Teviot Details

PropertyValue
Rupture Count529
Ruptures Above Sect Min Mag529
Ruptures w/ Nonzero Rates6
Magnitude Range[7.26, 8.29]
Length Range[29, 379] km
Total Rate2.7019287E-6 /yr
Multi-Fault Rate2.7019287E-6 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults46

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

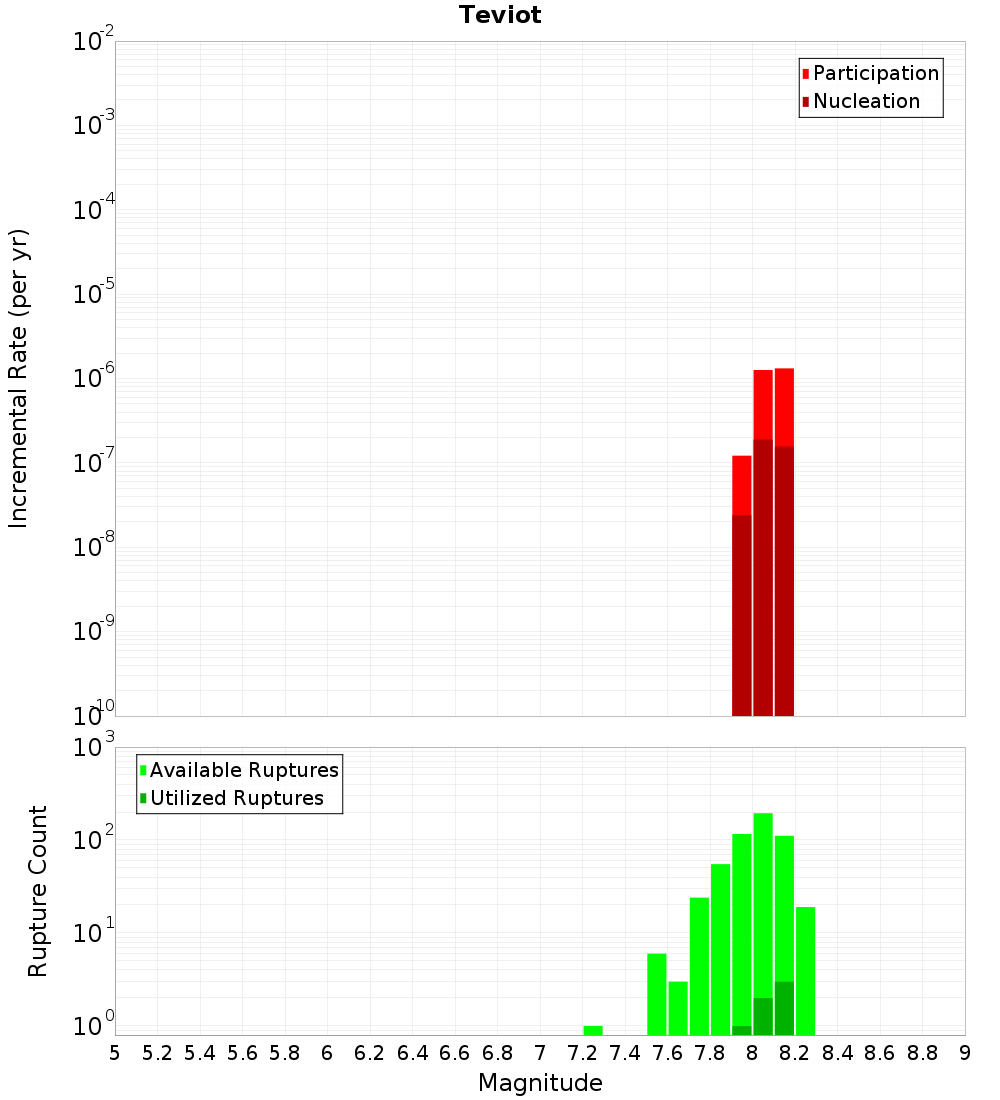

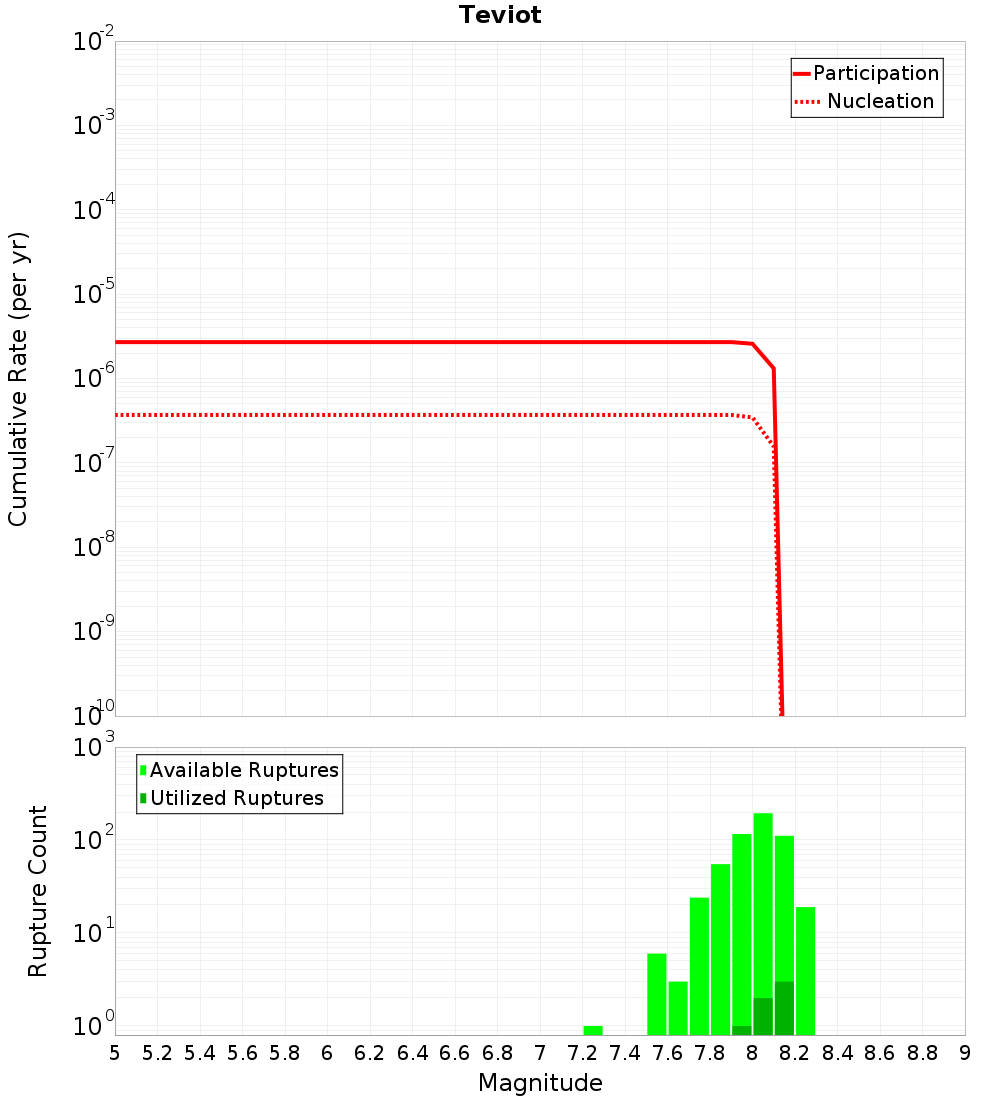

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

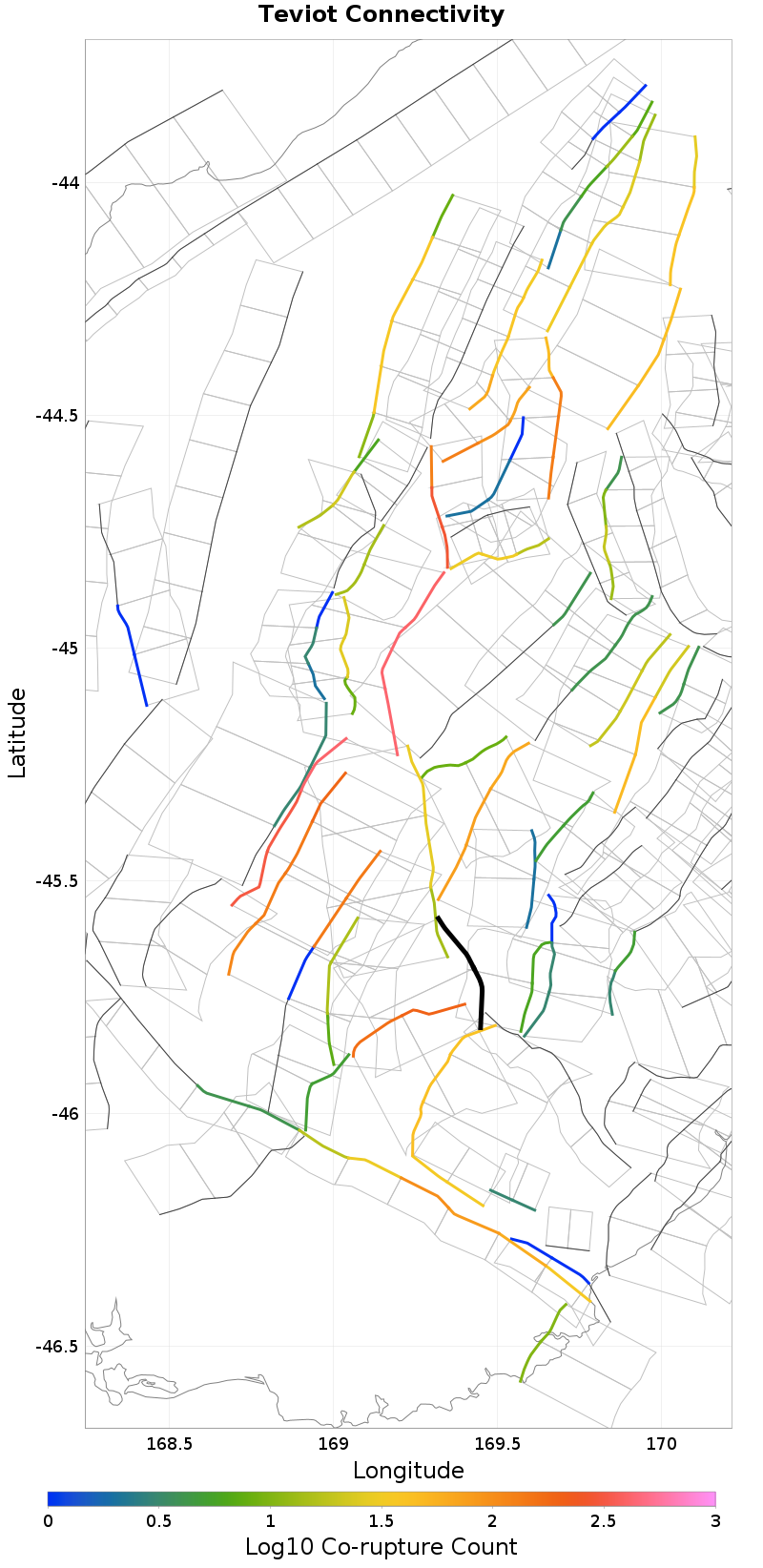

MapMap

Nearby Sections

(top)

Fault Section
Spylaw, 0.12 km away
Wendon Valley, 0.16 km away
Waikaia, 0.2 km away
Garvie, 0.39 km away
Old Man, 0.66 km away
Blue Mountain, 0.77 km away
Tuapeka, 1.07 km away
Roaring Lion, 3.6 km away
Little Valley, 4.31 km away
Backbone, 8.31 km away
Beaumont River, 10.54 km away
Lake Onslow, 13.96 km away
Waikaka, 15.95 km away
Beacon Hill, 16.42 km away
Mid Dome, 18.68 km away

Spylaw, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?true
Co-rupture Count197
Co-rupture Rate2.609585E-6

Wendon Valley, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate9.234368E-8

Waikaia, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?true
Co-rupture Count139
Co-rupture Rate9.234368E-8

Garvie, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?true
Co-rupture Count197
Co-rupture Rate9.234368E-8

Old Man, 0.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate0.0

Blue Mountain, 0.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count57
Co-rupture Rate0.0

Tuapeka, 1.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Roaring Lion, 3.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?true
Co-rupture Count419
Co-rupture Rate2.5801587E-6

Little Valley, 4.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?true
Co-rupture Count77
Co-rupture Rate1.2177011E-7

Backbone, 8.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Beaumont River, 10.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Lake Onslow, 13.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Waikaka, 15.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Beacon Hill, 16.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count34
Co-rupture Rate4.2435622E-7

Mid Dome, 18.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
