Waikaia Details

Property	Value
Rupture Count	365
Ruptures Above Sect Min Mag	363
Ruptures w/ Nonzero Rates	8
Magnitude Range	[7.14, 8.24]
Length Range	[28, 352] km
Total Rate	1.0907811E-5 /yr
Multi-Fault Rate	7.301292E-6 /yr (66.94%)
Directly-Connected Faults	3
All Co-Rupturing Faults	22

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

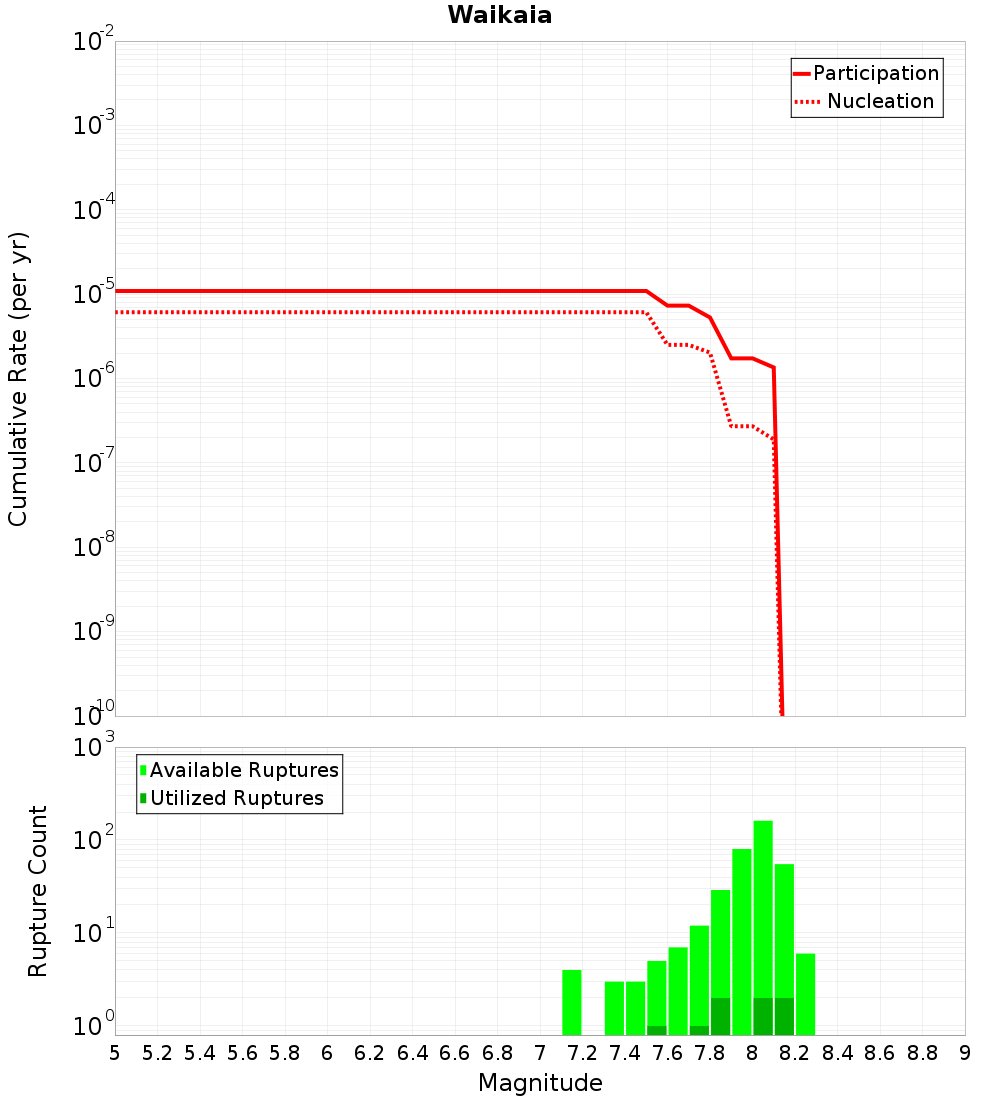

Magnitude-Frequency Distribution

Incremental	Cumulative

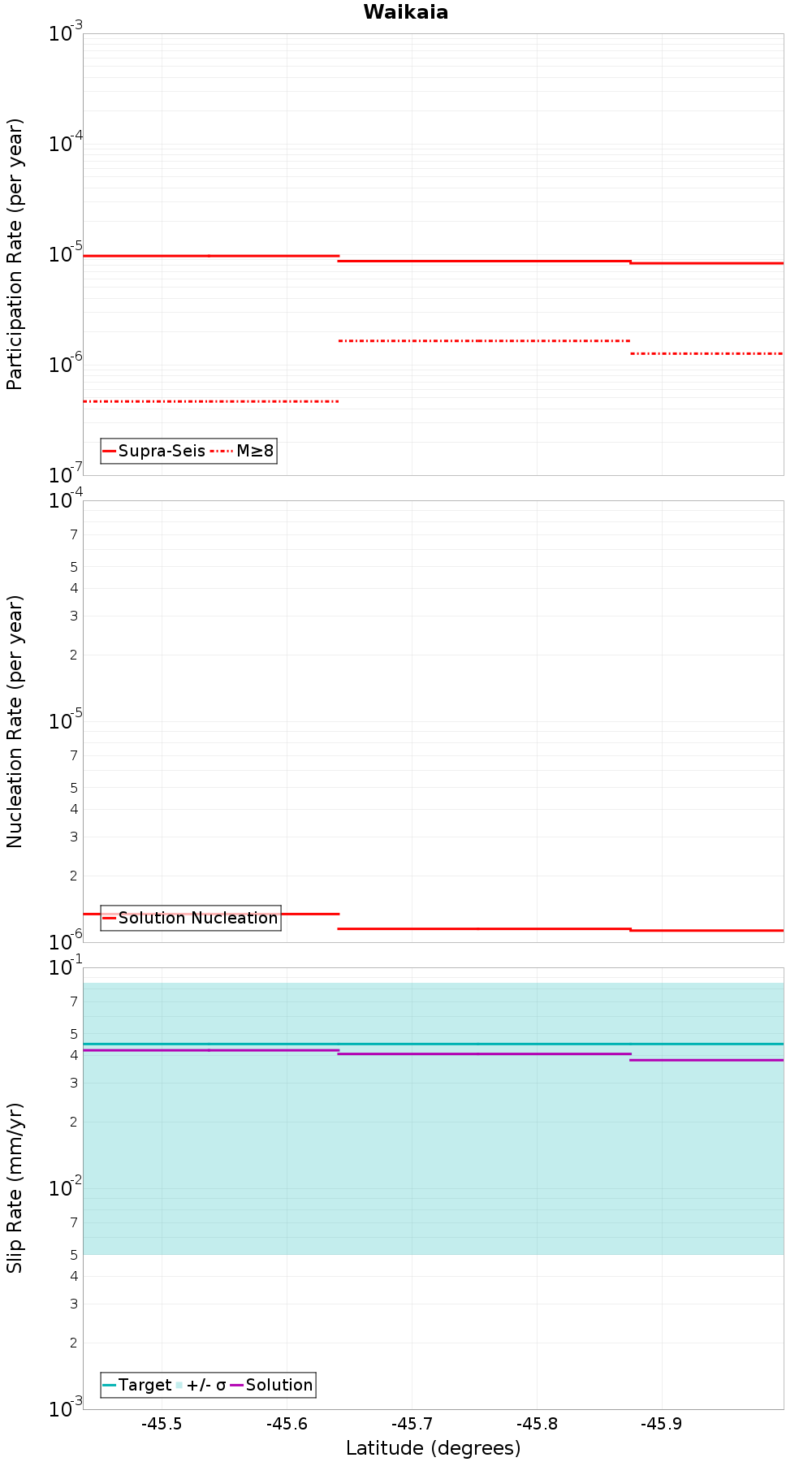

Along-Strike Values

Moment-Rates and b-Values

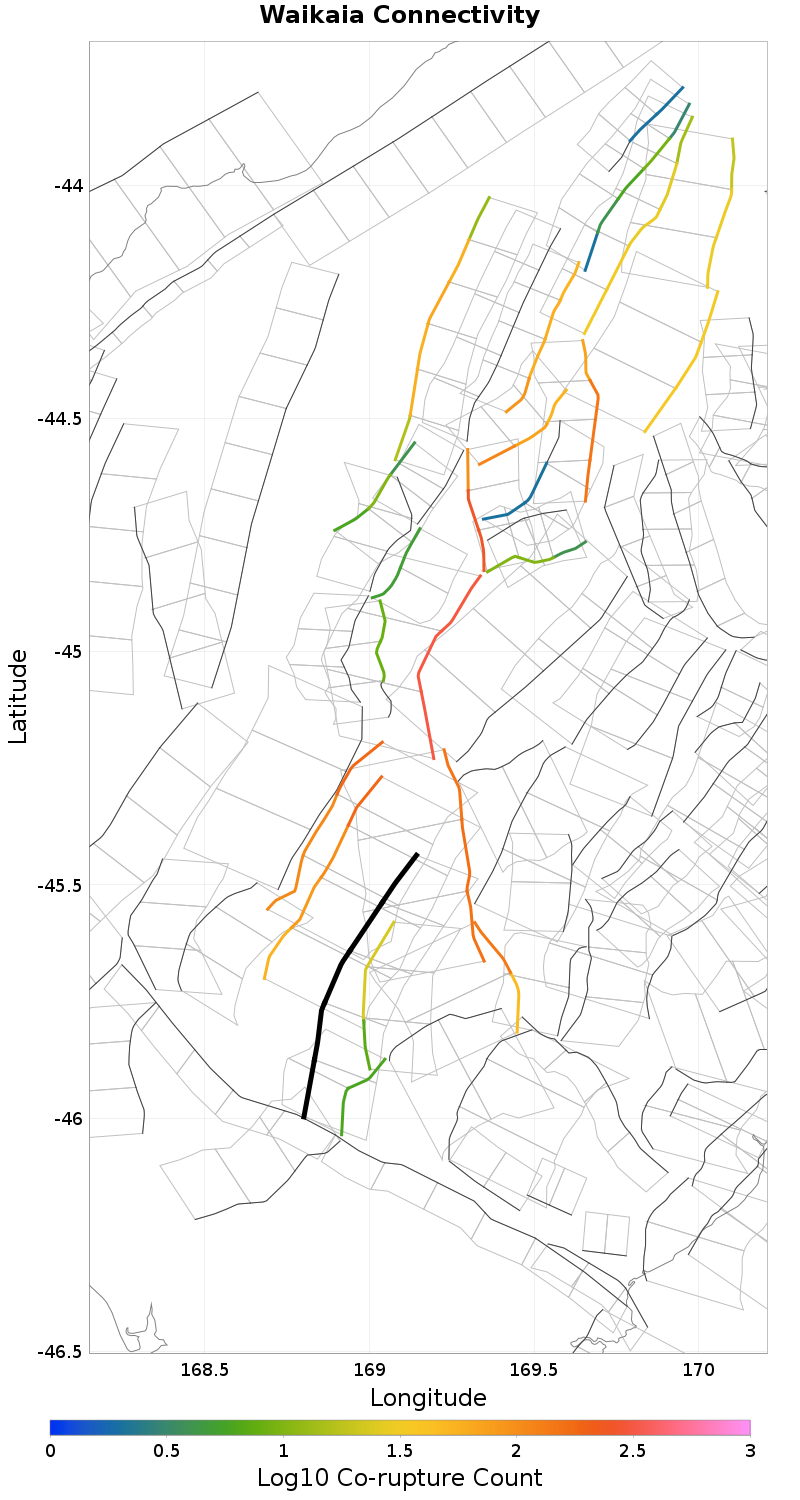

Connectivity

Nearby Sections

Fault Section
Waikaka, 0.07 km away
Old Man, 0.14 km away
Teviot, 0.2 km away
Hedgehope, 0.23 km away
Hokonui, 0.29 km away
Garvie, 2.34 km away
Wendon Valley, 3.04 km away
Hillfoot, 4.56 km away
Roaring Lion, 6.7 km away
Galloway, 6.74 km away
Lake Onslow, 8.4 km away
Backbone, 14.68 km away
Spylaw, 15.06 km away
Little Valley, 15.33 km away

Waikaka, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	2.0130178E-6

Old Man, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?	true
Directly Connected?	true
Co-rupture Count	161
Co-rupture Rate	1.2689469E-6

Teviot, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?	true
Directly Connected?	true
Co-rupture Count	139
Co-rupture Rate	9.234368E-8

Hedgehope, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hokonui, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Garvie, 2.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?	true
Directly Connected?	true
Co-rupture Count	183
Co-rupture Rate	6.0323455E-6

Wendon Valley, 3.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	2.3570931E-7

Hillfoot, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Roaring Lion, 6.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?	true
Directly Connected?	false
Co-rupture Count	186
Co-rupture Rate	6.082378E-7

Galloway, 6.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lake Onslow, 8.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Backbone, 14.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Spylaw, 15.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Little Valley, 15.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
