Caswell High 3 Details

Property	Value
Rupture Count	12,541
Ruptures Above Sect Min Mag	11,955
Ruptures w/ Nonzero Rates	13
Magnitude Range	[5.76, 8.59]
Length Range	[5, 933] km
Total Rate	6.956655E-5 /yr
Multi-Fault Rate	6.956655E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	45

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

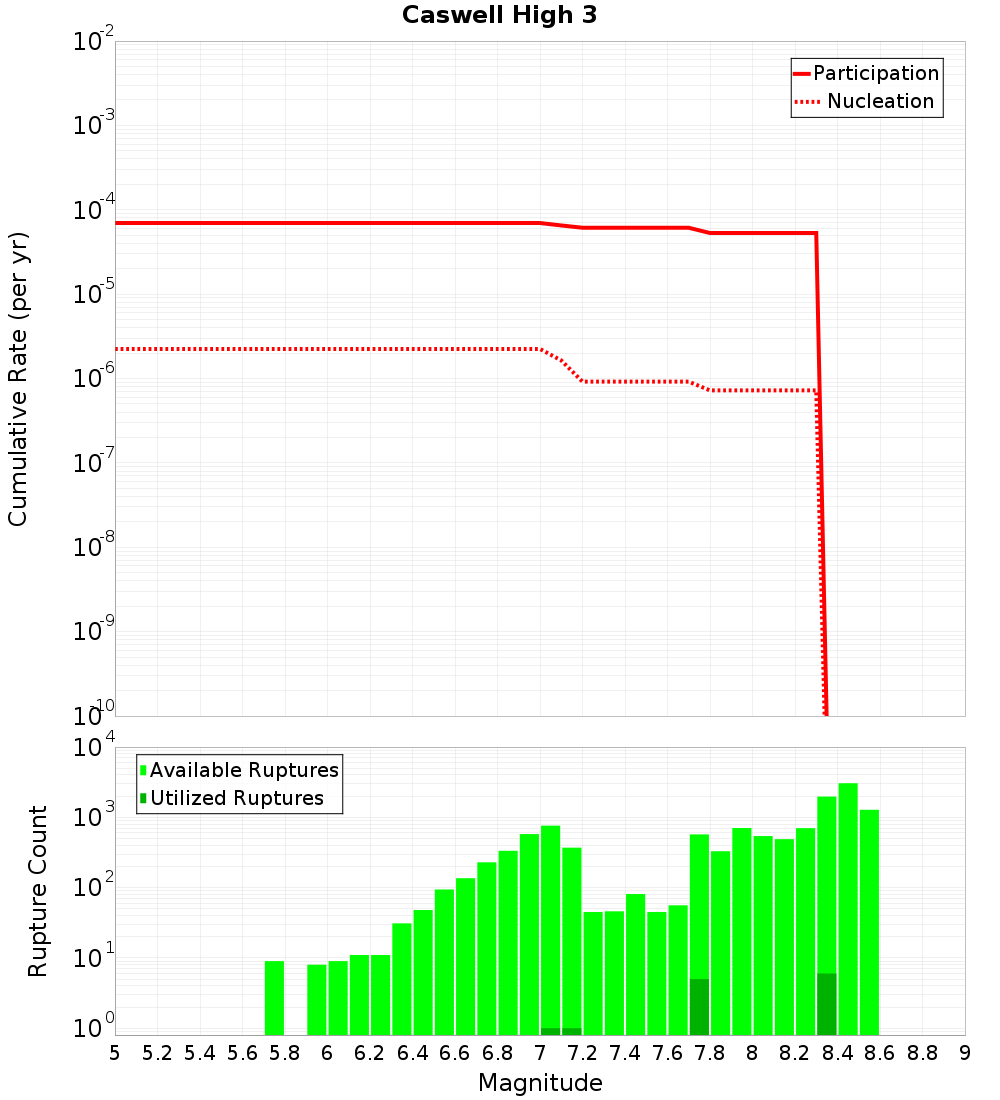

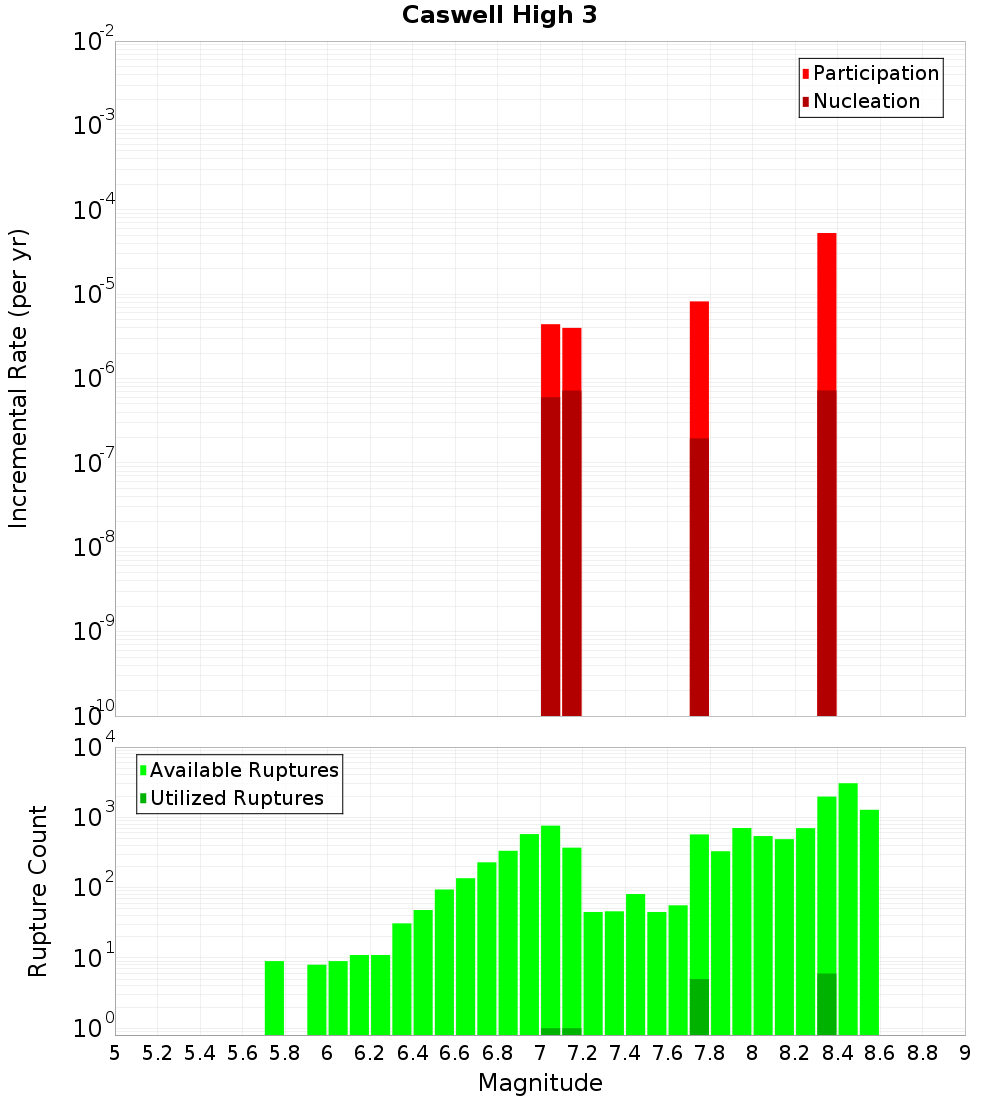

Magnitude-Frequency Distribution

Incremental	Cumulative

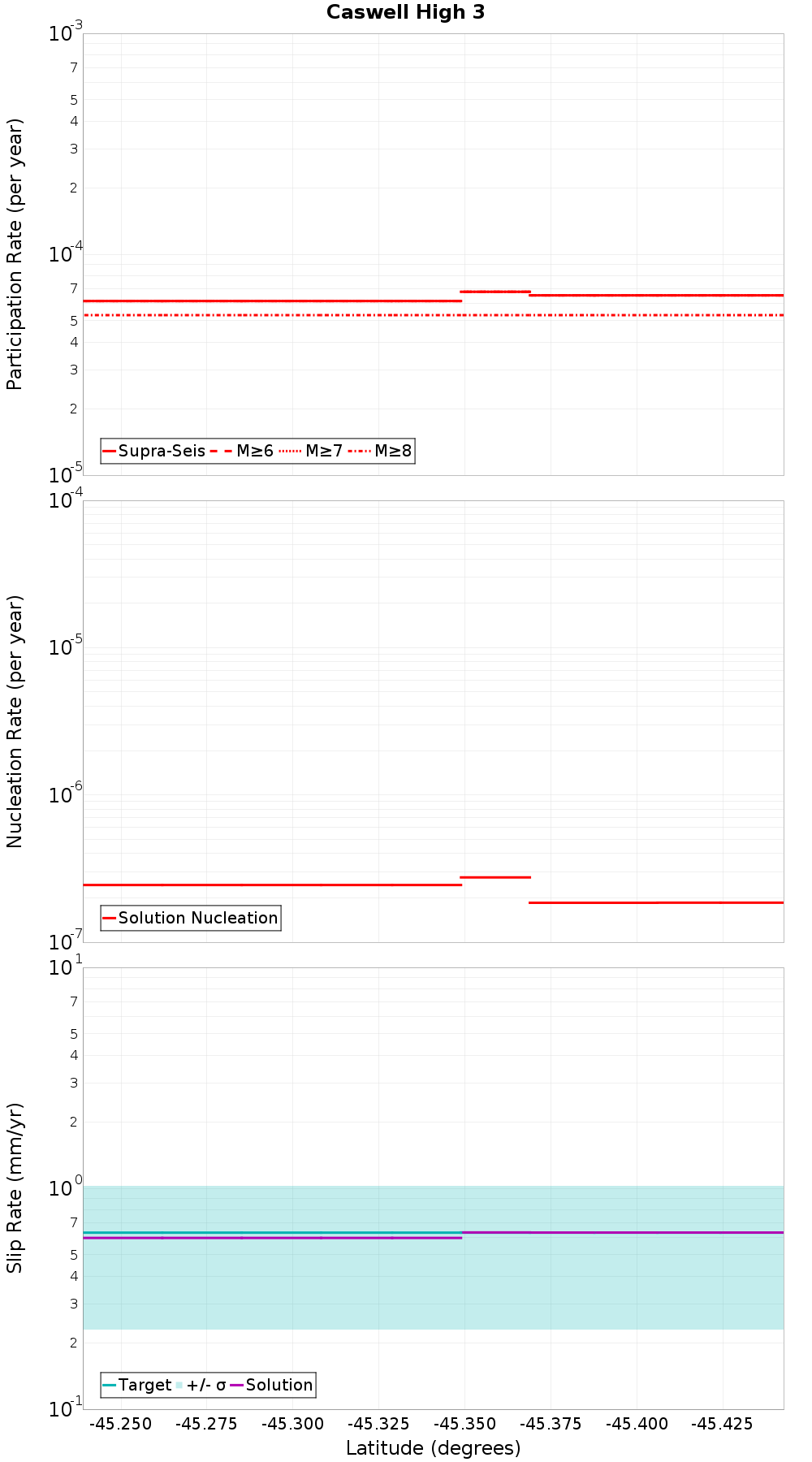

Along-Strike Values

Moment-Rates and b-Values

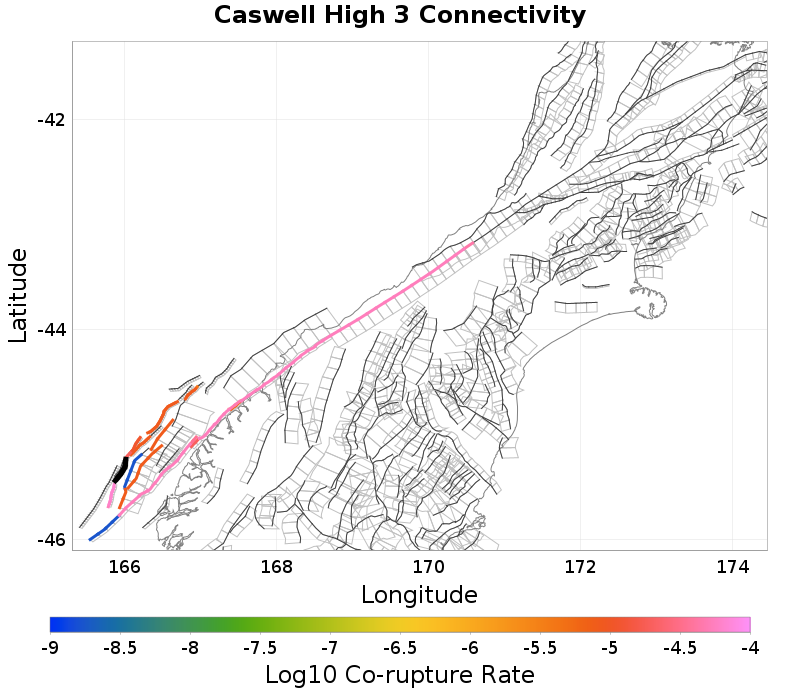

Connectivity

Nearby Sections

Fault Section
Caswell High 4, 0.94 km away
Caswell 211, 3.51 km away
Caswell High 1, 4.38 km away
South Wedge 5, 6.15 km away
Caswell High 5, 6.38 km away
South Wedge 3-6-10, 13.11 km away

Caswell High 4, 0.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	6,956
Co-rupture Rate	1.9416973E-5

Caswell 211, 3.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	6,701
Co-rupture Rate	6.516293E-5

Caswell High 1, 4.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	676
Co-rupture Rate	0.0

South Wedge 5, 6.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	4,408
Co-rupture Rate	8.20181E-6

Caswell High 5, 6.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	false
Co-rupture Count	2,070
Co-rupture Rate	8.38342E-6

South Wedge 3-6-10, 13.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	false
Co-rupture Count	342
Co-rupture Rate	8.200085E-6
