Dromedary Details

PropertyValue
Rupture Count1,687
Ruptures Above Sect Min Mag1,685
Ruptures w/ Nonzero Rates13
Magnitude Range[6.99, 8.45]
Length Range[20, 600] km
Total Rate1.10160036E-4 /yr
Multi-Fault Rate1.10160036E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults64

Table Of Contents

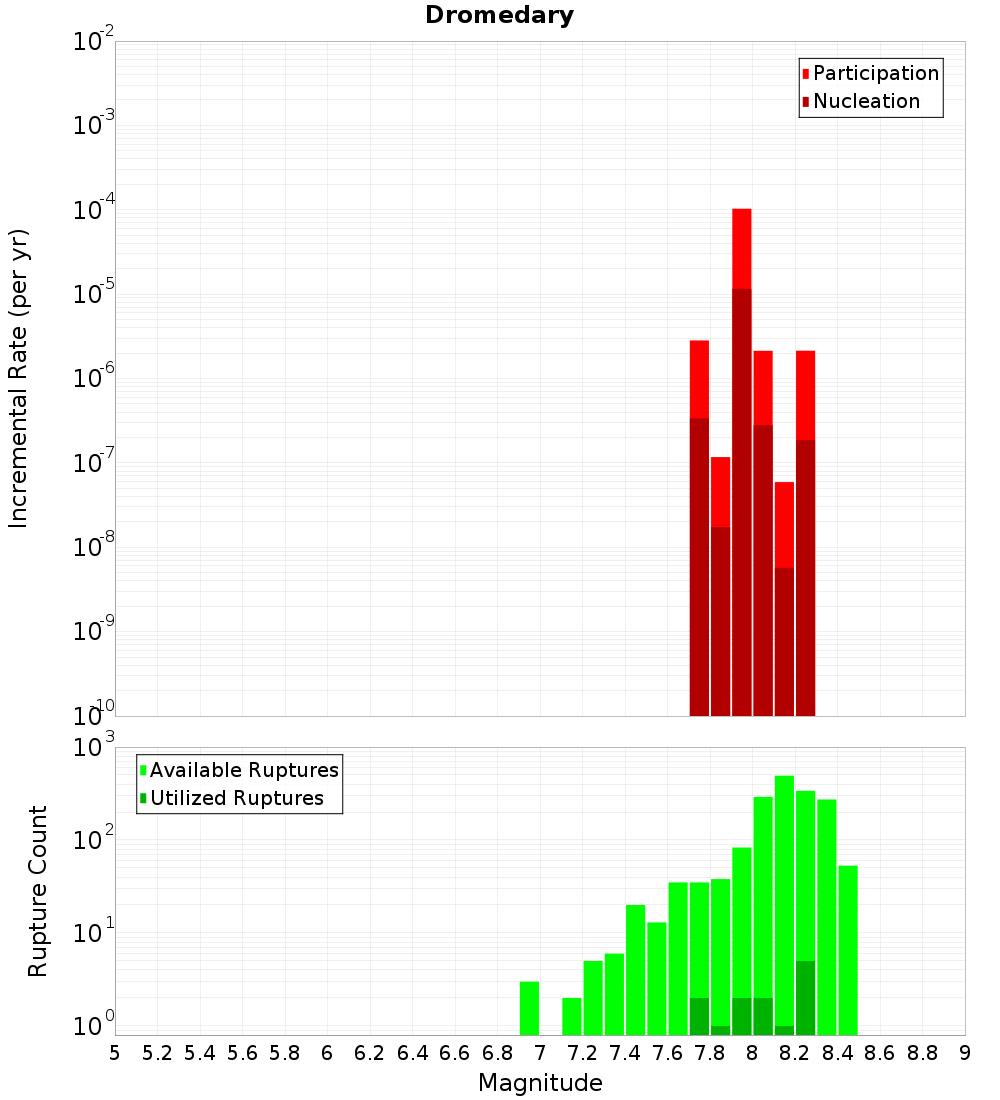

Magnitude-Frequency Distribution

(top)

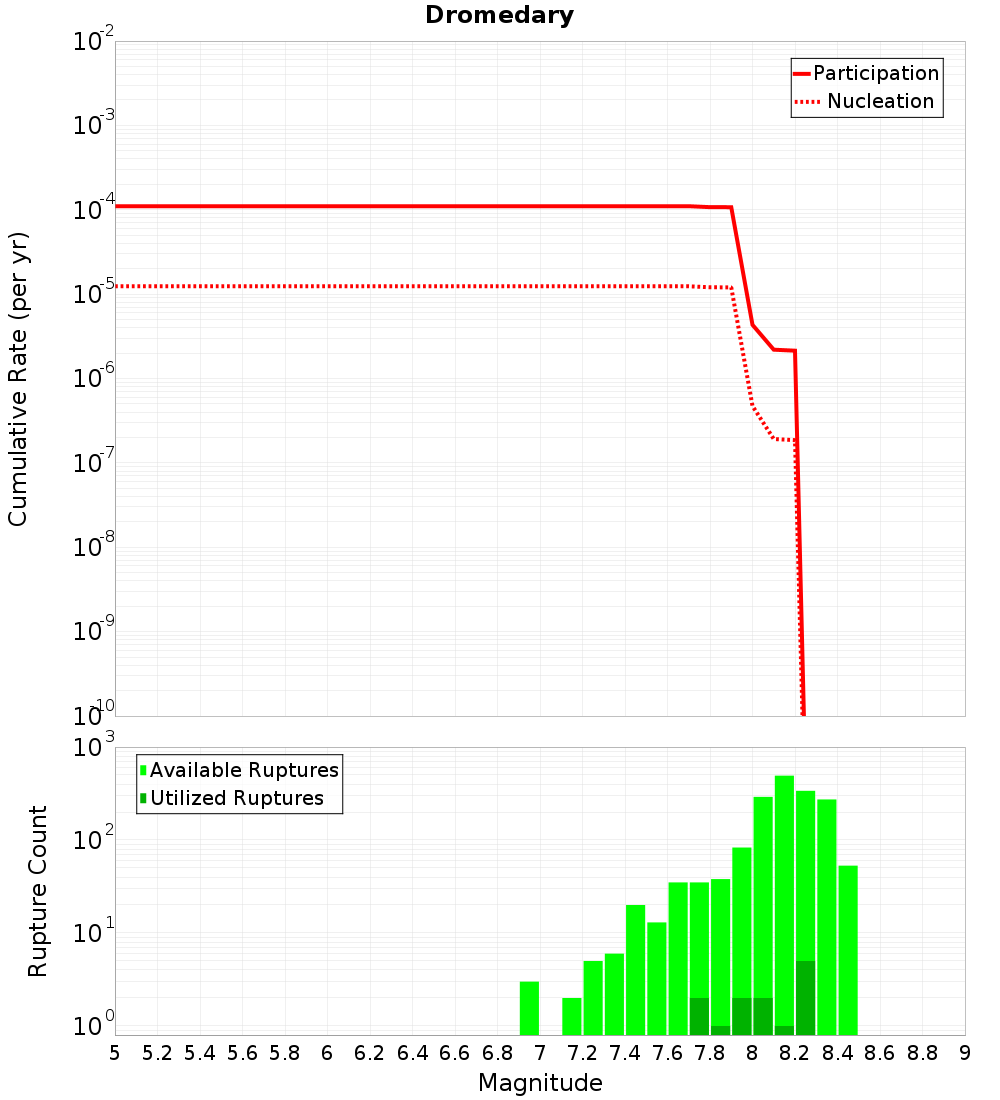

IncrementalCumulative
Incremental PlotCumulative Plot

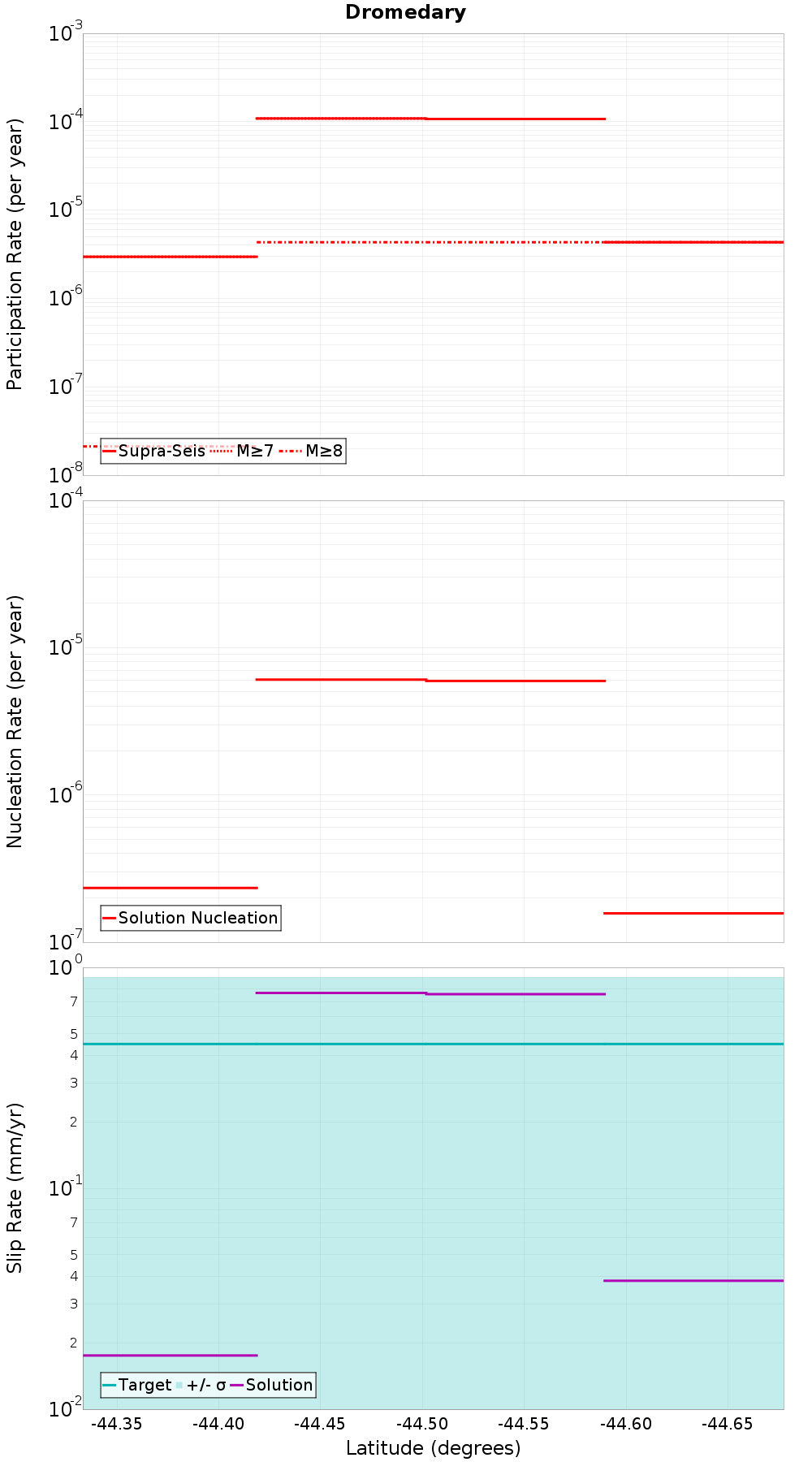

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

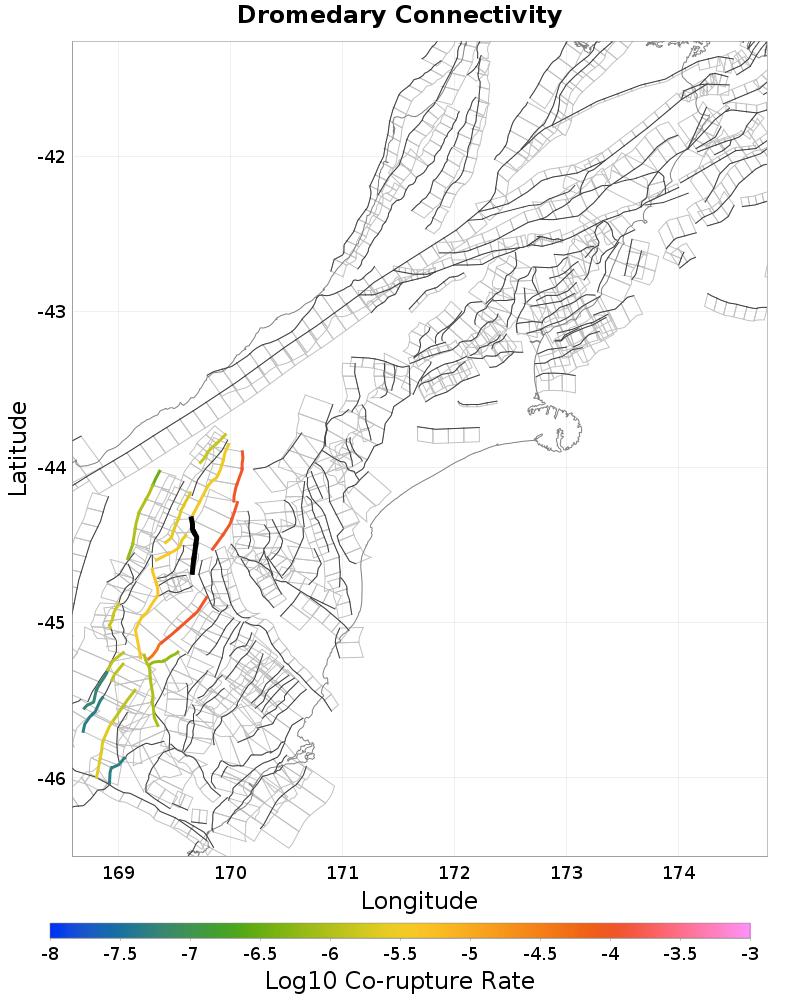

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Timaru Creek, 0.26 km awayDingle, 7.73 km away
Lindis River, 0.41 km awayWanaka, 12.35 km away
Cluden, 1.34 km awayOmarama Saddle, 13.1 km away
Barrier Range, 1.72 km awayHawkdun, 14.4 km away
Grandview, 2.15 km awayHunter Valley, 14.89 km away
Ostler South, 3.9 km awayHopkins, 16.74 km away
Goodger, 4.04 km awayMotatapu, 18.78 km away
Blue Lake, 4.84 km awayPaddys Ridge, 19.94 km away
Dunstan, 5.95 km away

Timaru Creek, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count305
Co-rupture Rate3.9249976E-6

Lindis River, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Cluden, 1.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Barrier Range, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count564
Co-rupture Rate2.942334E-6

Grandview, 2.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count928
Co-rupture Rate4.325333E-6

Ostler South, 3.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count667
Co-rupture Rate1.0621388E-4

Goodger, 4.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Blue Lake, 4.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunstan, 5.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count47
Co-rupture Rate1.0355214E-4

Dingle, 7.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count230
Co-rupture Rate2.4986578E-6

Wanaka, 12.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count245
Co-rupture Rate1.0038186E-6

Omarama Saddle, 13.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 14.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hunter Valley, 14.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hopkins, 16.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count495
Co-rupture Rate0.0

Motatapu, 18.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Paddys Ridge, 19.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0
