Gimmerburn Details

PropertyValue
Rupture Count649
Ruptures Above Sect Min Mag648
Ruptures w/ Nonzero Rates19
Magnitude Range[7.24, 8.19]
Length Range[29, 255] km
Total Rate5.4949483E-5 /yr
Multi-Fault Rate5.4949483E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults30

Table Of Contents

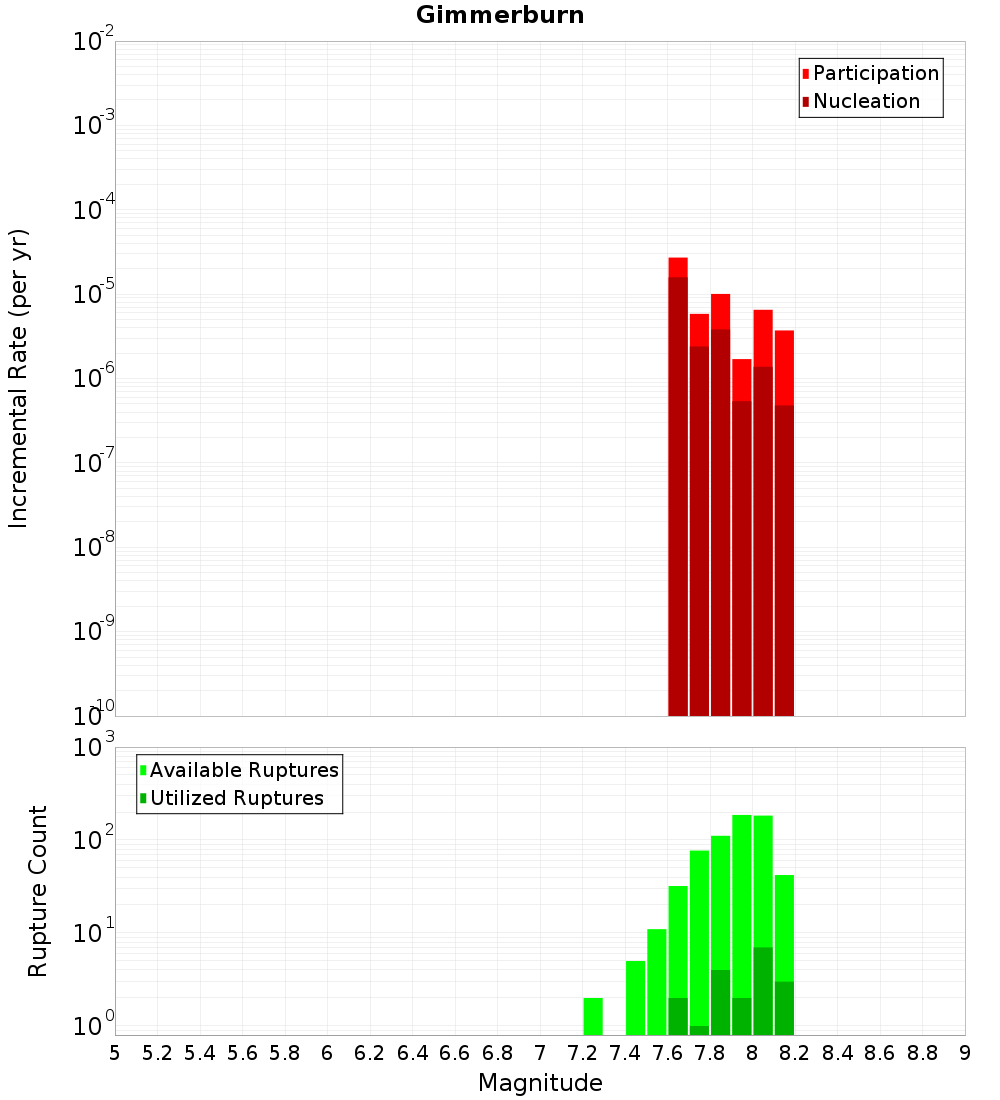

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

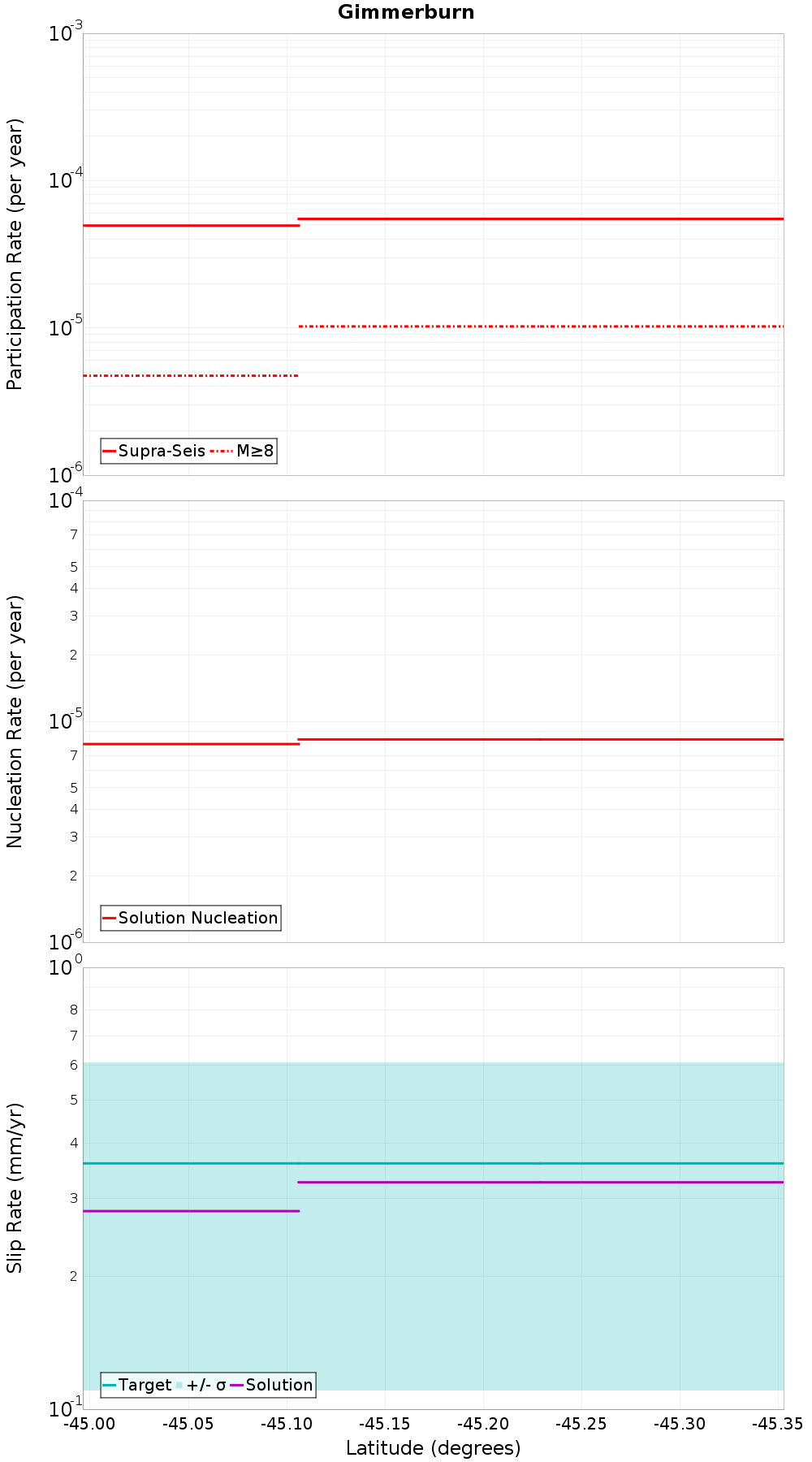

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

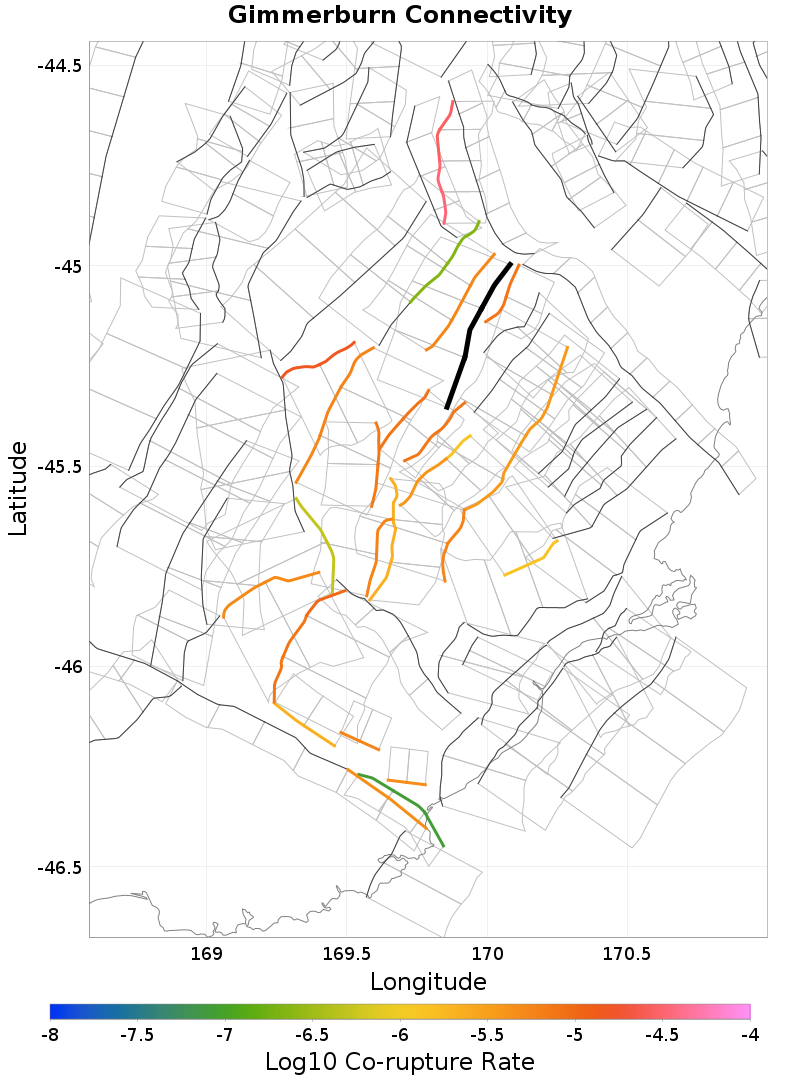

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Little Valley, 0.18 km awayRanfurly, 4.98 km away
Long Valley, 0.27 km awayOmarama Saddle, 6.75 km away
Pylap, 2.27 km awayWaipiata, 7.59 km away
Cross Eden, 2.3 km awayRaggedy - Blackstone, 10.2 km away
Waihemo, 3.59 km awayLogan Burn, 10.21 km away
Hawkdun, 3.64 km awayLake Onslow, 15.86 km away
Garibaldi, 3.79 km awayHyde North, 16.07 km away
Galloway, 4.12 km awayGoodger, 20 km away
Blue Lake, 4.57 km away

Little Valley, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count366
Co-rupture Rate5.990934E-6

Long Valley, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count213
Co-rupture Rate8.041124E-6

Pylap, 2.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count133
Co-rupture Rate7.4328764E-6

Cross Eden, 2.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count40
Co-rupture Rate7.880576E-6

Waihemo, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 3.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garibaldi, 3.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count232
Co-rupture Rate5.50332E-6

Galloway, 4.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate1.4520662E-5

Blue Lake, 4.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ranfurly, 4.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Omarama Saddle, 6.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count191
Co-rupture Rate3.34423E-5

Waipiata, 7.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raggedy - Blackstone, 10.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate2.1875374E-7

Logan Burn, 10.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate3.8785843E-6

Lake Onslow, 15.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate7.1455574E-6

Hyde North, 16.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate3.554292E-6

Goodger, 20 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
