Hyde North Details

PropertyValue
Rupture Count362
Ruptures Above Sect Min Mag360
Ruptures w/ Nonzero Rates13
Magnitude Range[7.21, 8.20]
Length Range[28, 266] km
Total Rate3.7866517E-5 /yr
Multi-Fault Rate3.7866517E-5 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults23

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

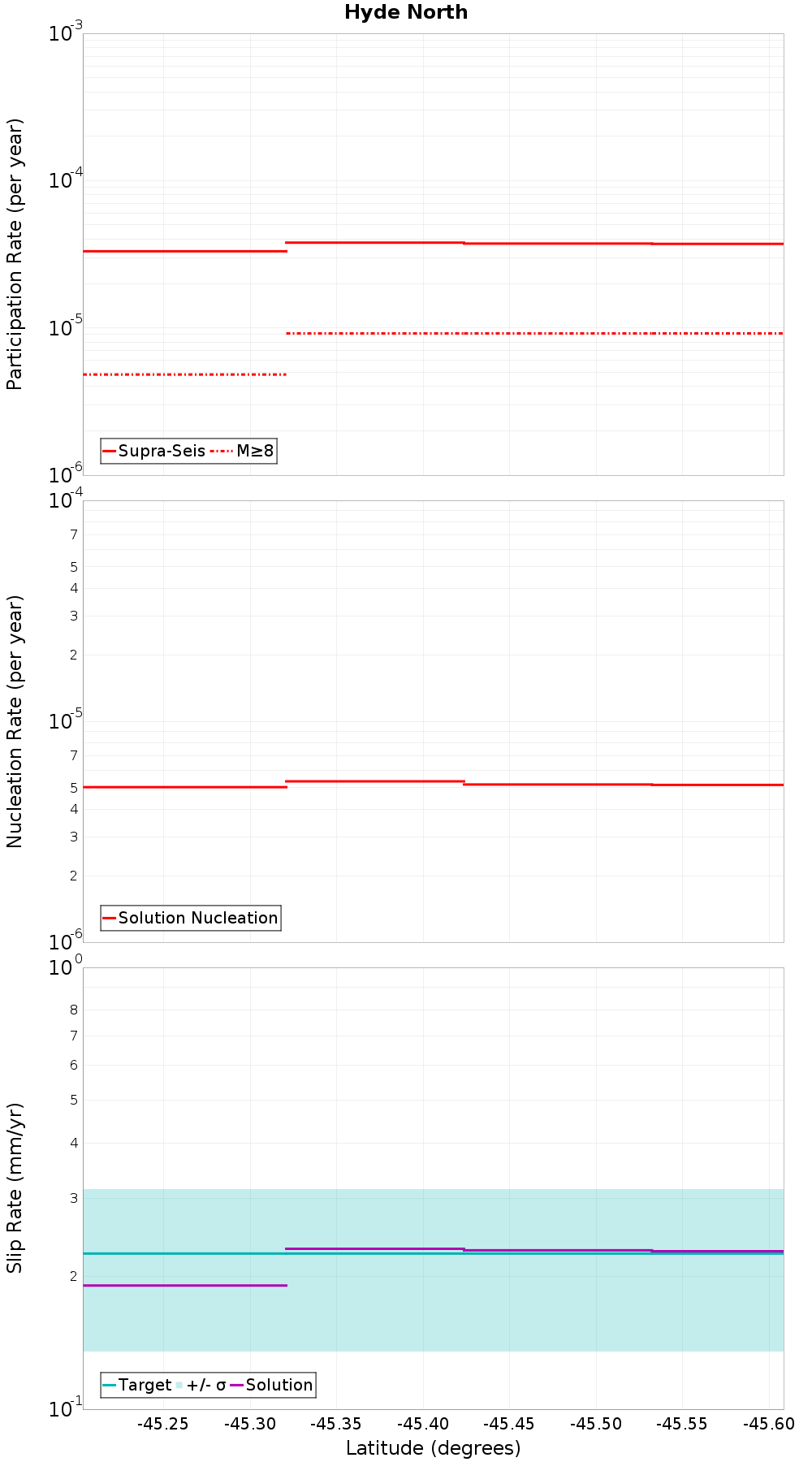

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Pylap, 0.13 km awayBillys Ridge, 9.03 km away
Long Valley, 0.15 km awayWaihemo, 9.14 km away
Logan Burn, 0.16 km awayMurphys Creek, 12.39 km away
Ranfurly, 0.19 km awayGalloway, 13.56 km away
Hyde South - The Twins, 0.33 km awayNichols Rock, 13.7 km away
Cross Eden, 0.34 km awayDunback Hill, 14.52 km away
Waipiata, 0.37 km awayFlat Stream - Glenpark, 14.79 km away
Beaumont River, 0.39 km awayLake Onslow, 15.79 km away
Little Valley, 2.72 km awayGimmerburn, 16.07 km away
Horse Flat, 5.99 km awayBackbone, 16.6 km away

Pylap, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate3.554292E-6

Long Valley, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate1.8048871E-5

Logan Burn, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count39
Co-rupture Rate3.8151688E-7

Ranfurly, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count158
Co-rupture Rate4.7320837E-6

Hyde South - The Twins, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count180
Co-rupture Rate1.1434841E-5

Cross Eden, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate5.046359E-7

Waipiata, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count167
Co-rupture Rate6.5191657E-6

Beaumont River, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count148
Co-rupture Rate2.6504754E-6

Little Valley, 2.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Horse Flat, 5.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate4.3275118E-6

Billys Ridge, 9.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate0.0

Waihemo, 9.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Murphys Creek, 12.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate8.5898597E-7

Galloway, 13.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 13.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate5.6762394E-7

Dunback Hill, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count56
Co-rupture Rate3.2180992E-6

Flat Stream - Glenpark, 14.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lake Onslow, 15.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gimmerburn, 16.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate3.554292E-6

Backbone, 16.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate0.0
