Irishman Creek Details

Property	Value
Rupture Count	52
Ruptures Above Sect Min Mag	51
Ruptures w/ Nonzero Rates	10
Magnitude Range	[7.13, 7.92]
Length Range	[23, 153] km
Total Rate	2.118189E-4 /yr
Multi-Fault Rate	2.118189E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	11

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

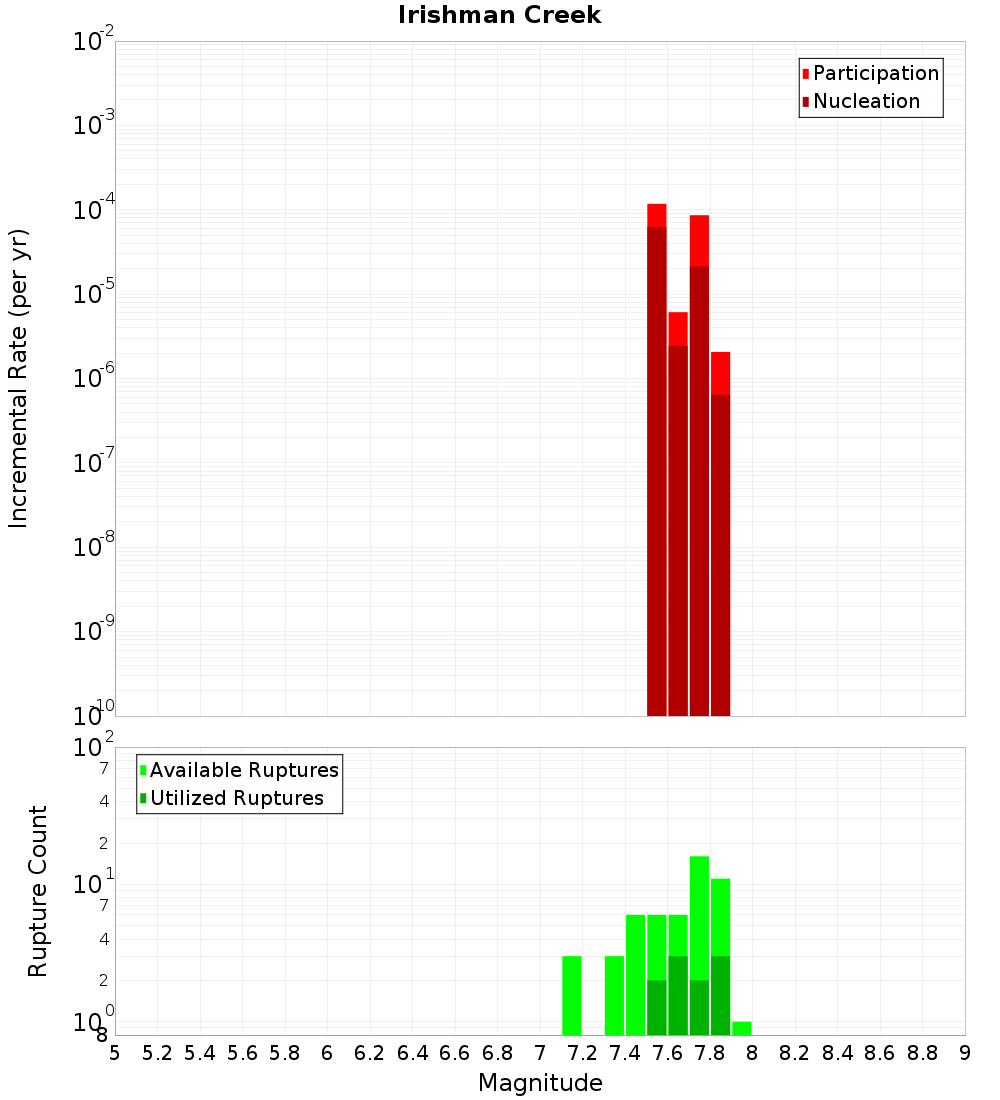

Magnitude-Frequency Distribution

Incremental	Cumulative

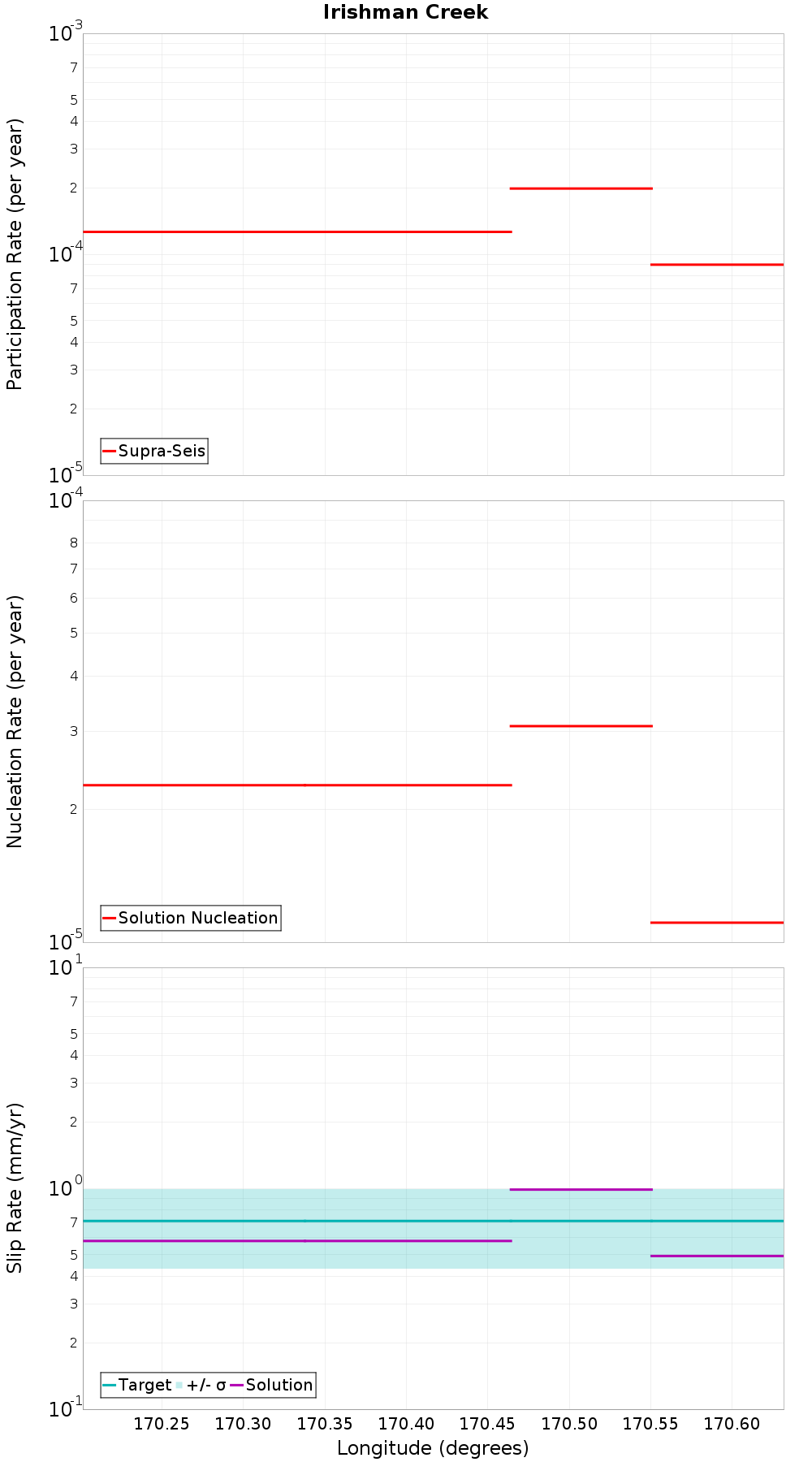

Along-Strike Values

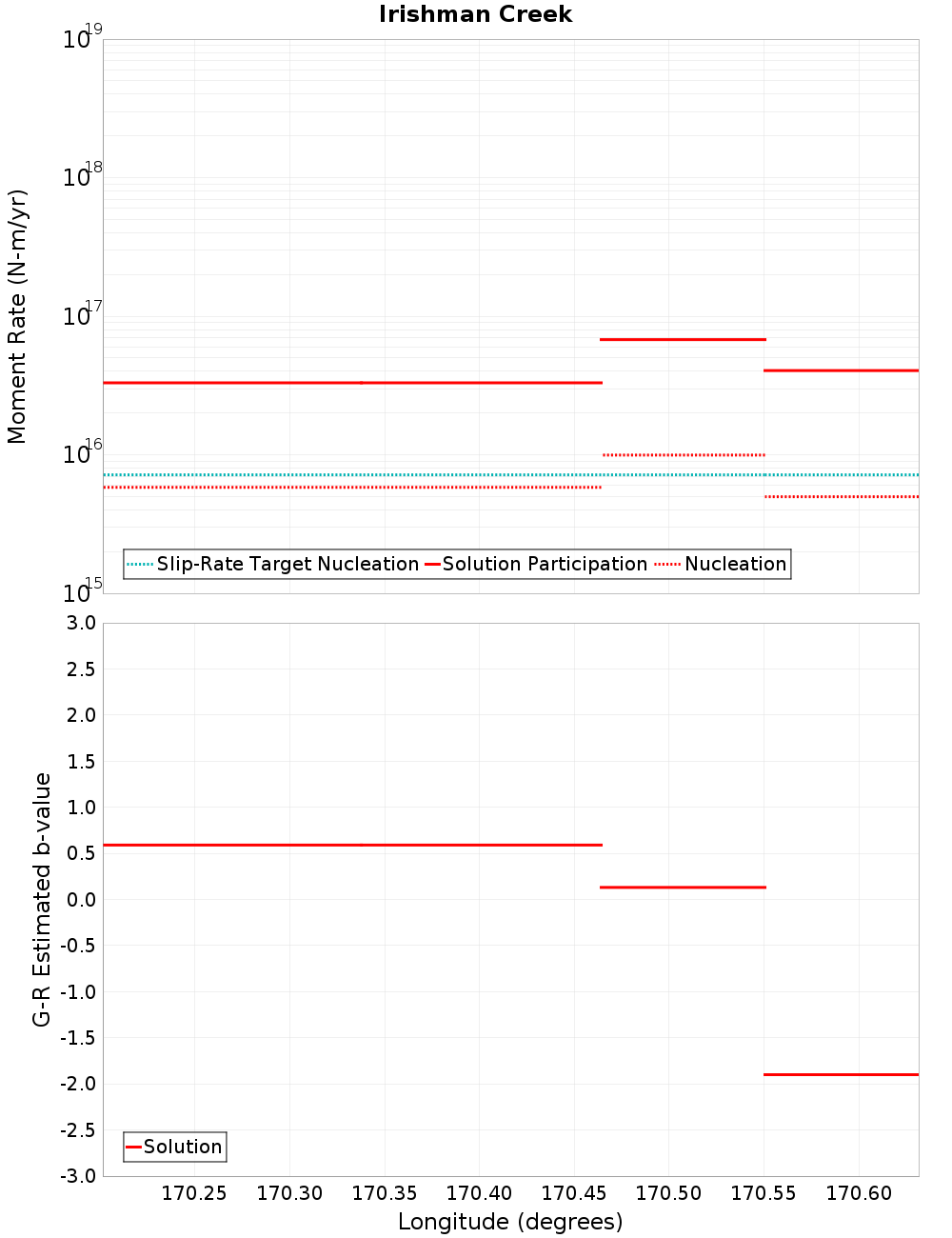

Moment-Rates and b-Values

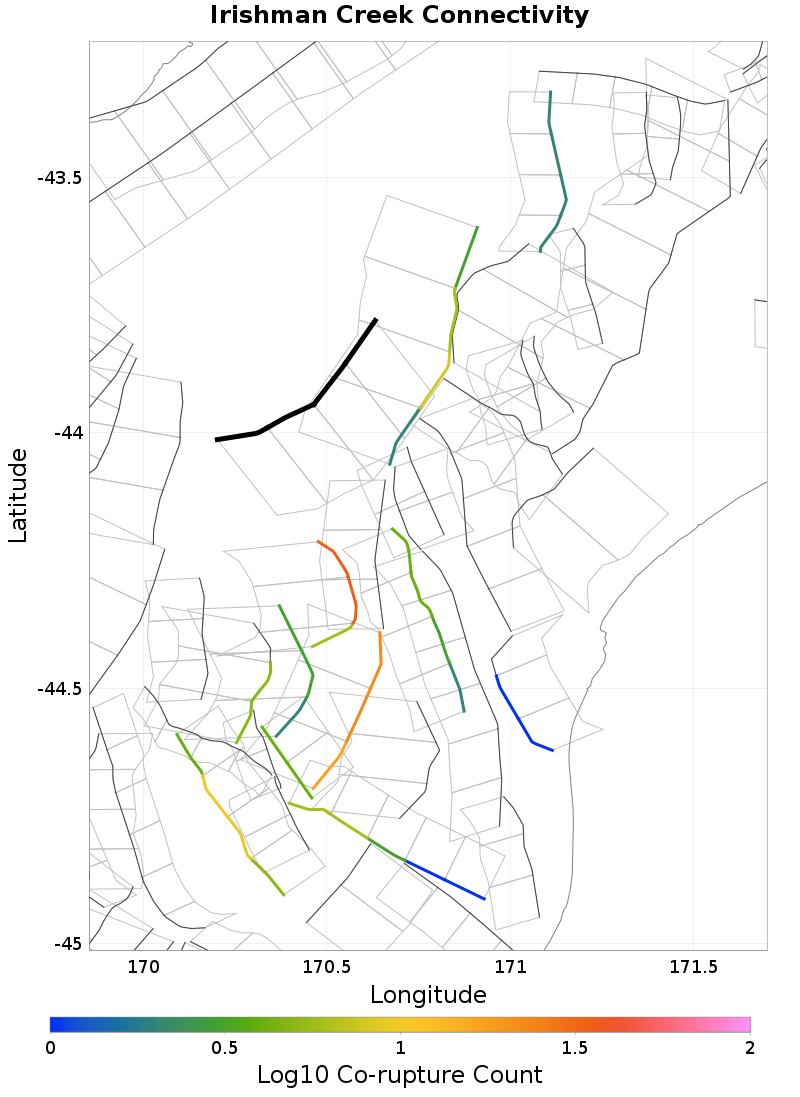

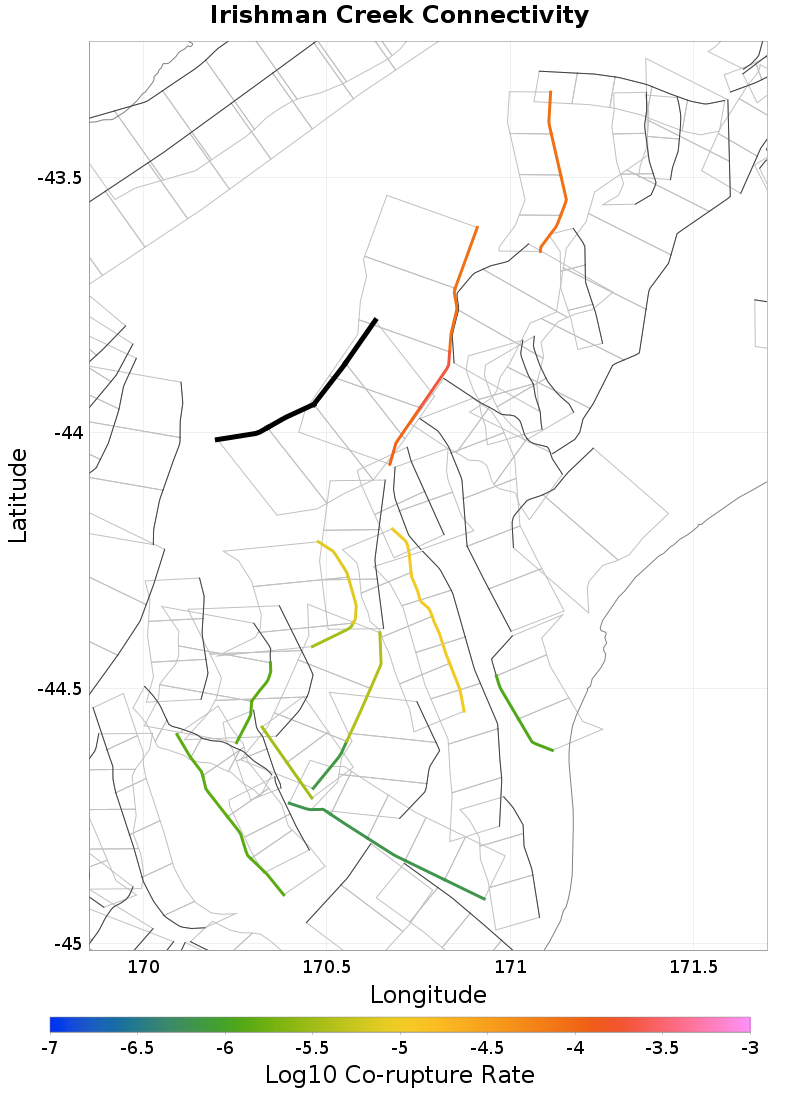

Connectivity

Nearby Sections

Fault Section
Fox Peak, 0.15 km away
Dalgety, 0.16 km away
Sugarloaf, 0.17 km away
Albury, 0.39 km away
Brothers, 7.24 km away
Ostler North, 8.16 km away
Opawa, 8.38 km away
Catherine, 8.44 km away
Hutt Peel, 8.44 km away
Chamberlain, 10.46 km away
Grampian, 10.73 km away
Edith, 11.79 km away
Ben McLeod, 14.47 km away
Hunters, 17.03 km away

Fox Peak, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	1.9427163E-4

Dalgety, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Sugarloaf, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Albury, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Brothers, 7.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ostler North, 8.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opawa, 8.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Catherine, 8.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hutt Peel, 8.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Chamberlain, 10.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	1.0001609E-5

Grampian, 10.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	35
Co-rupture Rate	7.5456574E-6

Edith, 11.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ben McLeod, 14.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hunters, 17.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
