Kaiapo Details
| Property | Value |
|---|---|
| Rupture Count | 1,525 |
| Ruptures Above Sect Min Mag | 1,472 |
| Ruptures w/ Nonzero Rates | 93 |
| Magnitude Range | [6.16, 7.65] |
| Length Range | [8, 169] km |
| Total Rate | 8.0933847E-4 /yr |
| Multi-Fault Rate | 8.0933847E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 18 |
Table Of Contents

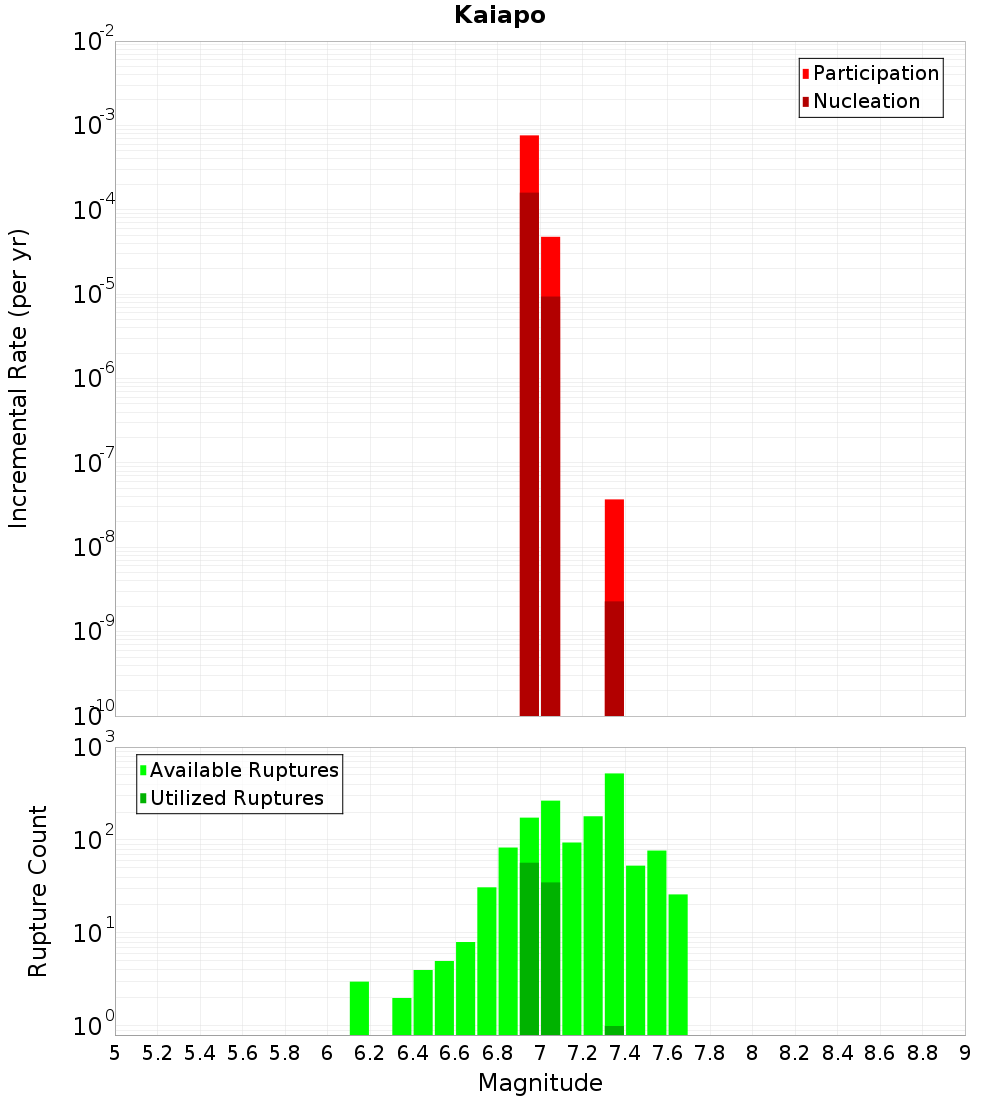

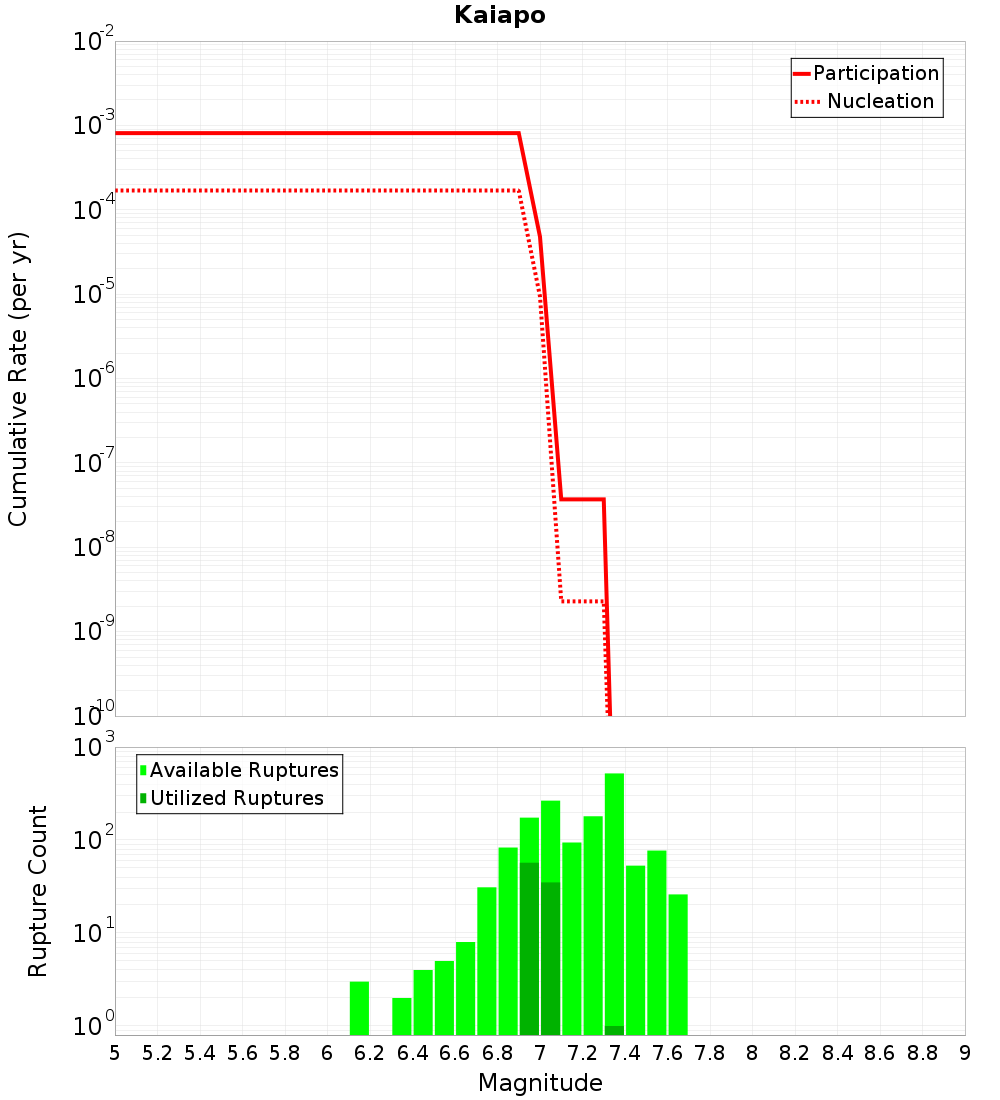

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

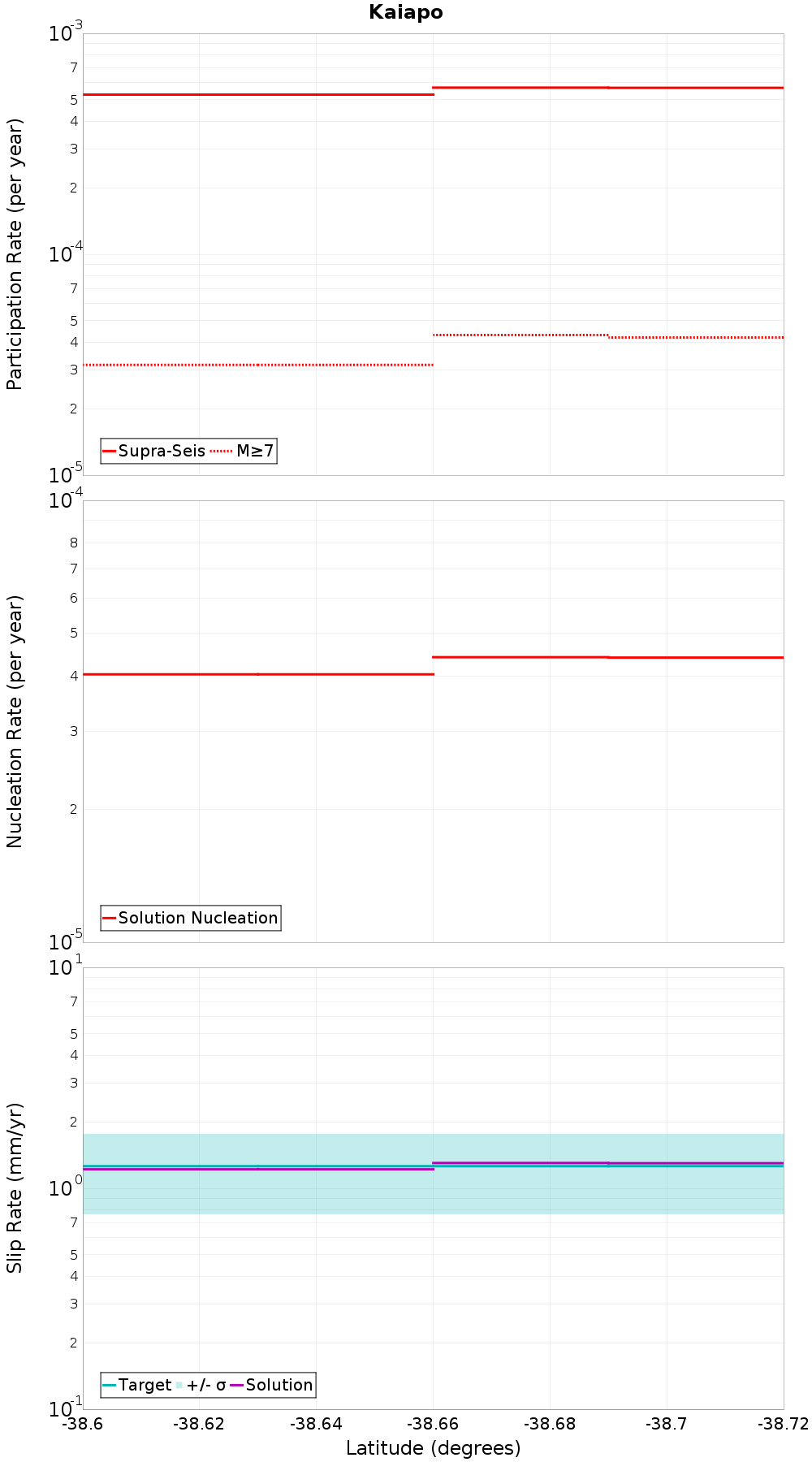

Along-Strike Values

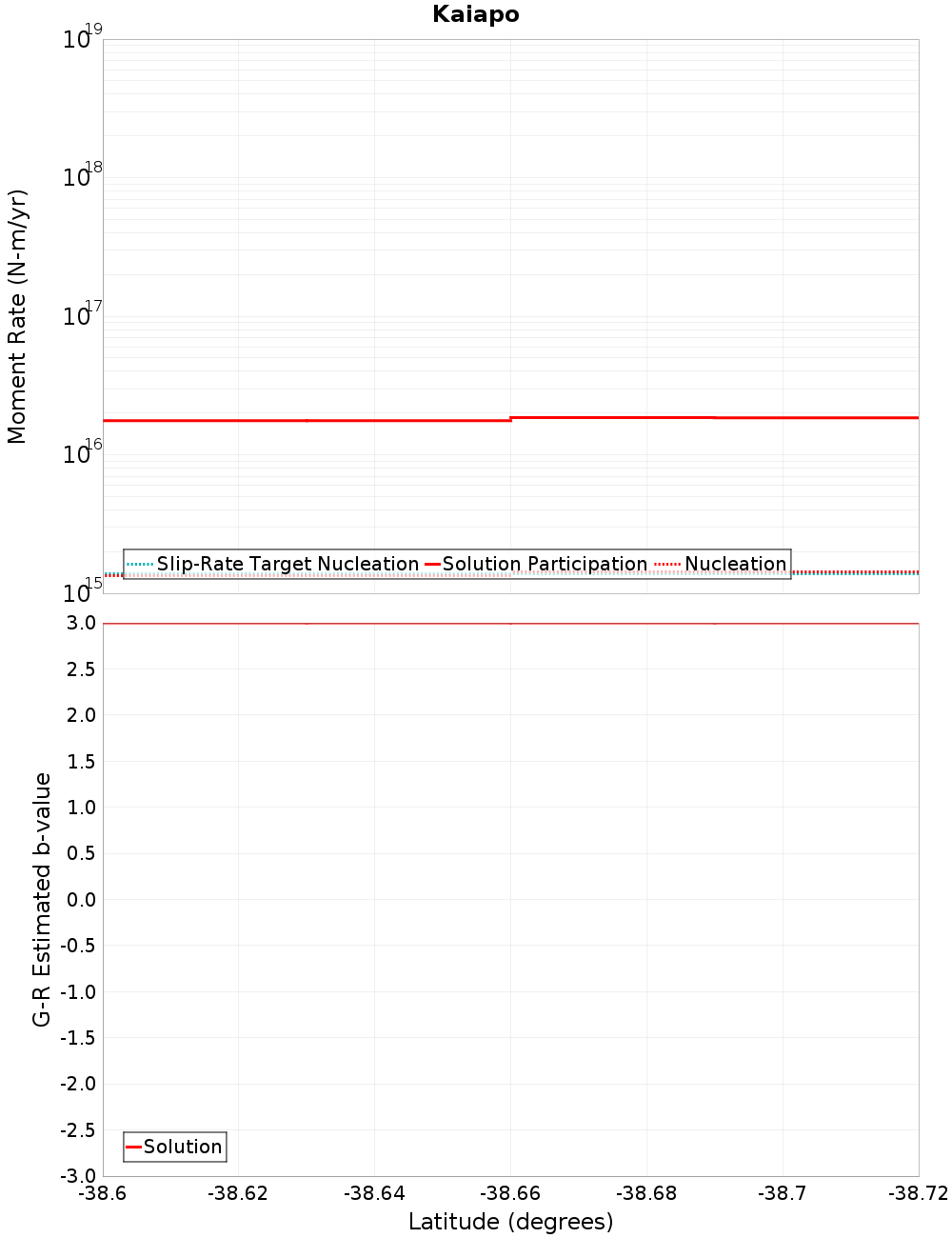

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Whangamata West, 0.92 km away |
| Orakeikorako, 4.37 km away |
| Puketerata, 5.97 km away |
| Puketerata North, 17.13 km away |
| Maleme, 19.73 km away |
Whangamata West, 0.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 925 |
| Co-rupture Rate | 3.8608172E-4 |
Orakeikorako, 4.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 887 |
| Co-rupture Rate | 3.549171E-4 |
Puketerata, 5.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 710 |
| Co-rupture Rate | 4.6501224E-4 |
Puketerata North, 17.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 540 |
| Co-rupture Rate | 3.349415E-4 |
Maleme, 19.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 862 |
| Co-rupture Rate | 1.5281096E-4 |
