Kakapo Details

PropertyValue
Rupture Count41,822
Ruptures Above Sect Min Mag41,820
Ruptures w/ Nonzero Rates22
Magnitude Range[6.94, 8.64]
Length Range[20, 1,156] km
Total Rate4.990707E-4 /yr
Multi-Fault Rate4.990707E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults83

Table Of Contents

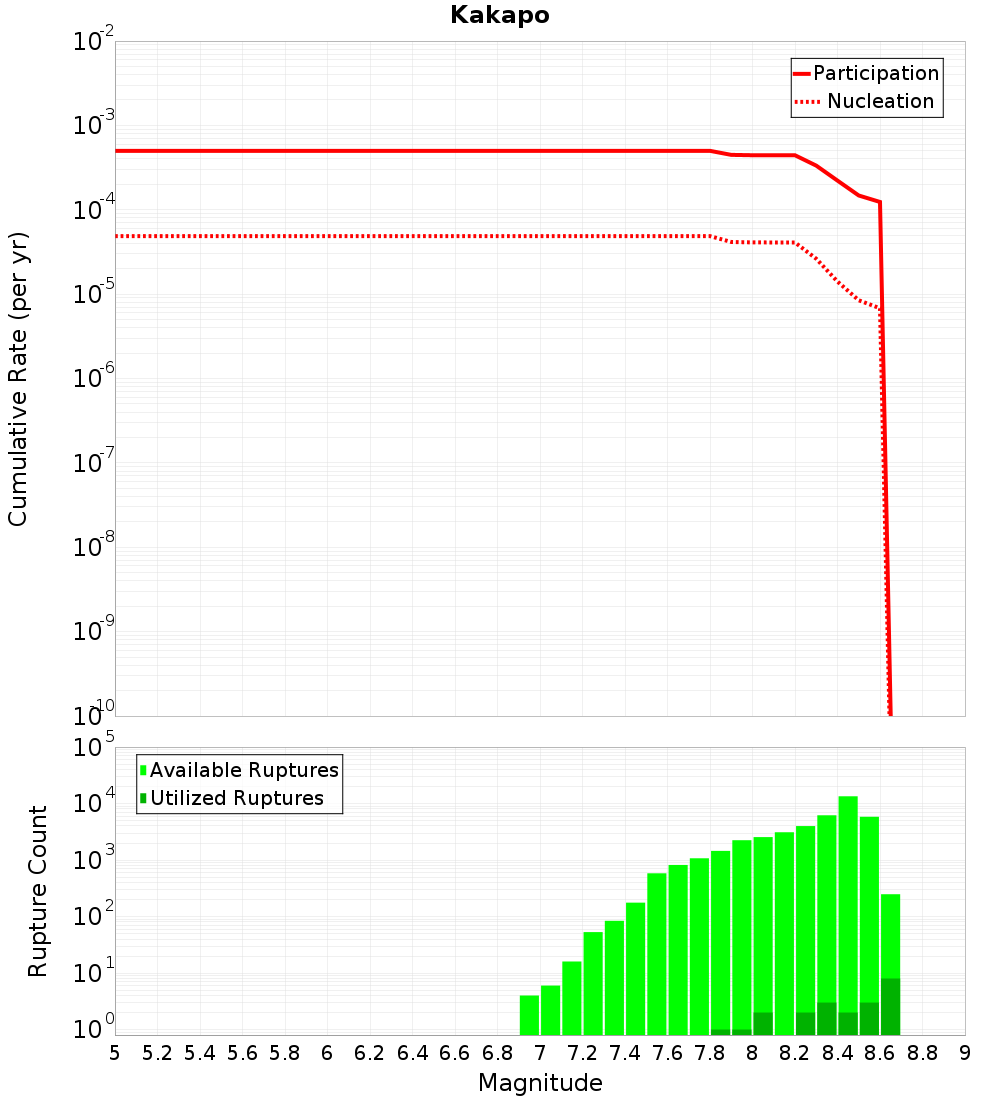

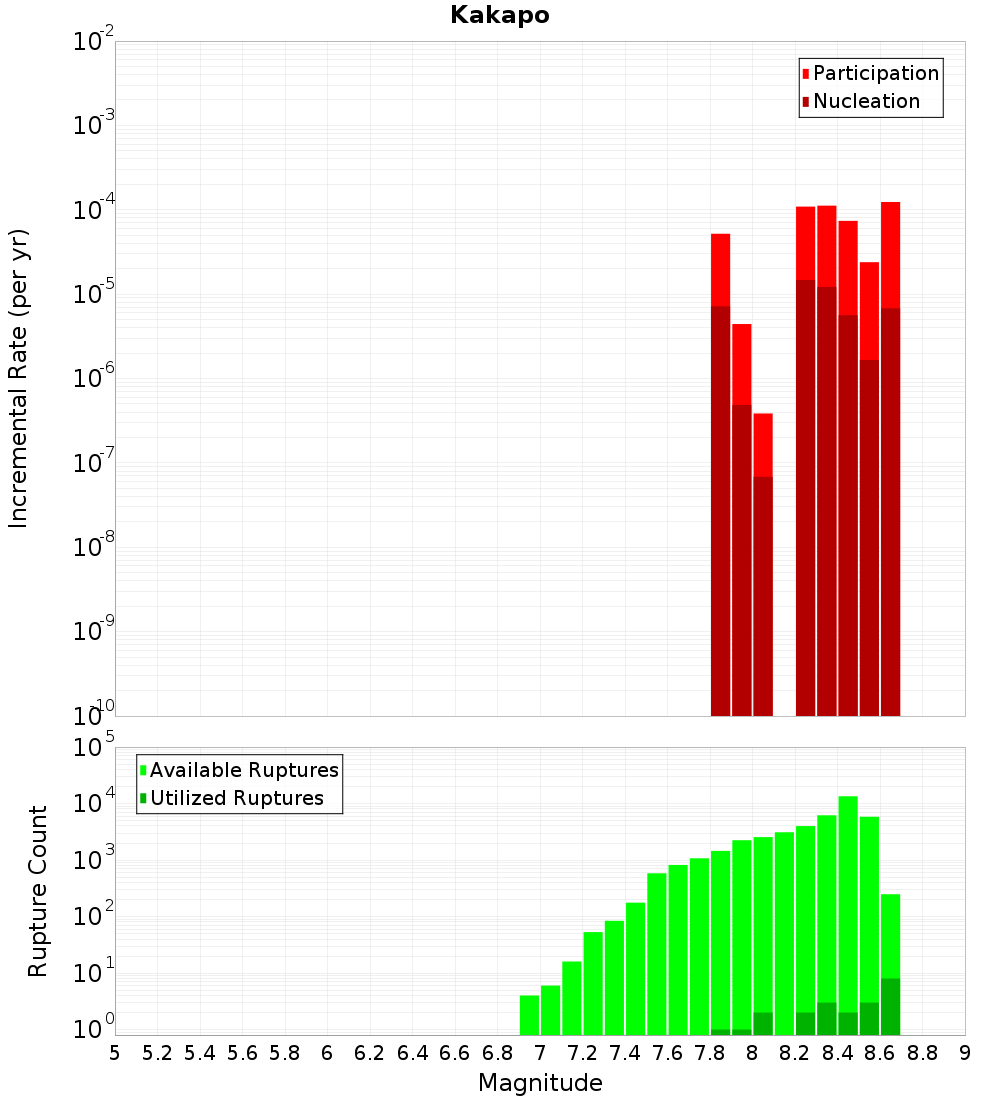

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

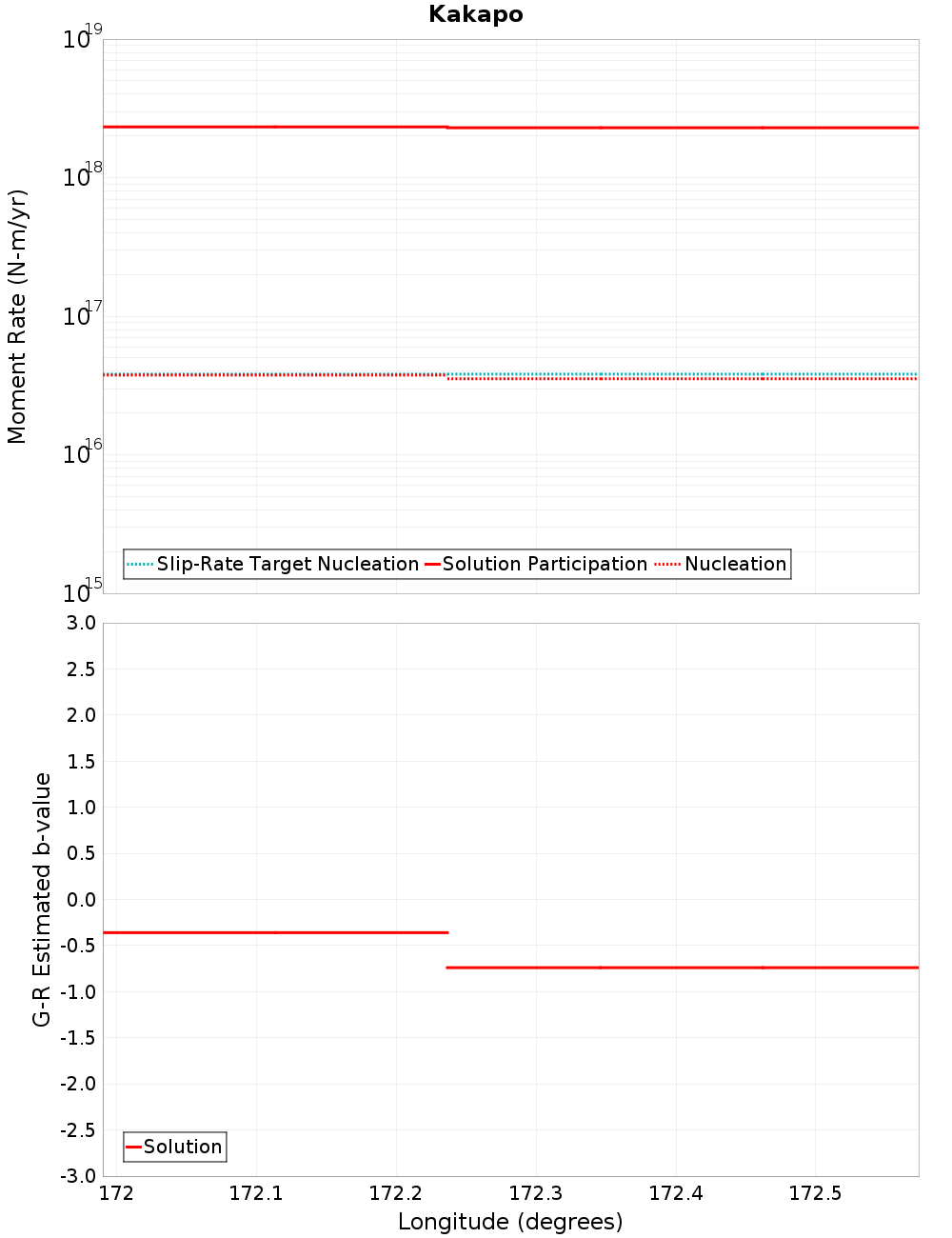

Moment-Rates and b-Values

(top)

Along-strike plot

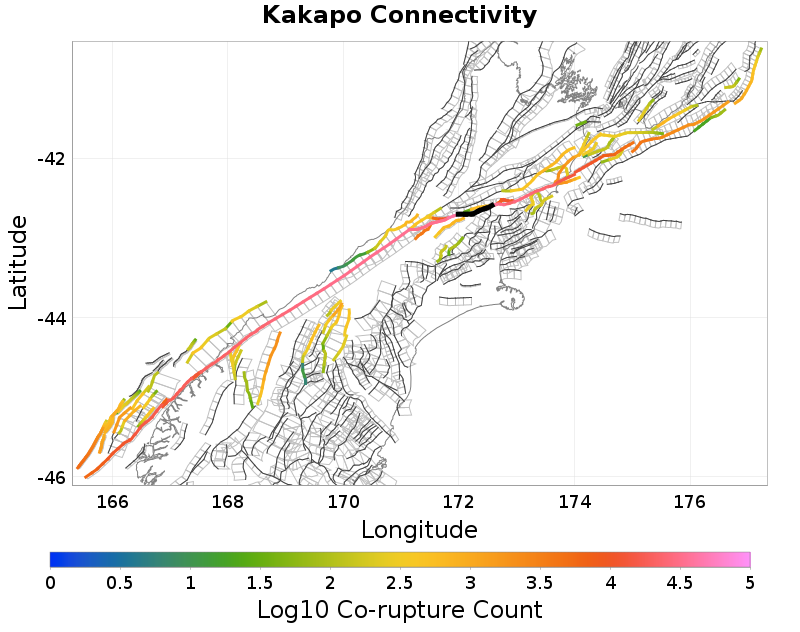

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hope: Kakapo-2-Hamner, 0 km awayHope: Hanmer SW, 6.3 km away
Hope: Hurunui, 0 km awayClarence: Southwest, 8.64 km away
Hope: Hope River, 0 km awayHope: Taramakau, 13.38 km away
Esk North, 0.09 km awayKelly, 14.38 km away
Poulter, 5.65 km awayHanmer, 14.45 km away
Hurunui Peak, 5.79 km awayBalmoral, 15.4 km away
Alpine: Kaniere to Springs Junction, 6.15 km awayHope: Hanmer SE, 16.57 km away
Hope: Hanmer NW, 6.3 km awayMt Culverden, 17.08 km away

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count38,105
Co-rupture Rate4.990707E-4

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count40,084
Co-rupture Rate4.4230875E-4

Hope: Hope River, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count612
Co-rupture Rate5.637694E-5

Esk North, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poulter, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?true
Co-rupture Count780
Co-rupture Rate3.849532E-7

Hurunui Peak, 5.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Kaniere to Springs Junction, 6.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count485
Co-rupture Rate0.0

Hope: Hanmer NW, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count7,612
Co-rupture Rate3.5114386E-4

Hope: Hanmer SW, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count31,148
Co-rupture Rate1.4792681E-4

Clarence: Southwest, 8.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Taramakau, 13.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count9,492
Co-rupture Rate0.0

Kelly, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count33,991
Co-rupture Rate4.4230875E-4

Hanmer, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count11,618
Co-rupture Rate5.637694E-5

Balmoral, 15.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hanmer SE, 16.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?true
Directly Connected?false
Co-rupture Count22,799
Co-rupture Rate1.4792681E-4

Mt Culverden, 17.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
