Leader: North Details

Property	Value
Rupture Count	486
Ruptures Above Sect Min Mag	485
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.69, 8.49]
Length Range	[10, 744] km
Total Rate	3.1634278E-5 /yr
Multi-Fault Rate	3.1634278E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	60

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

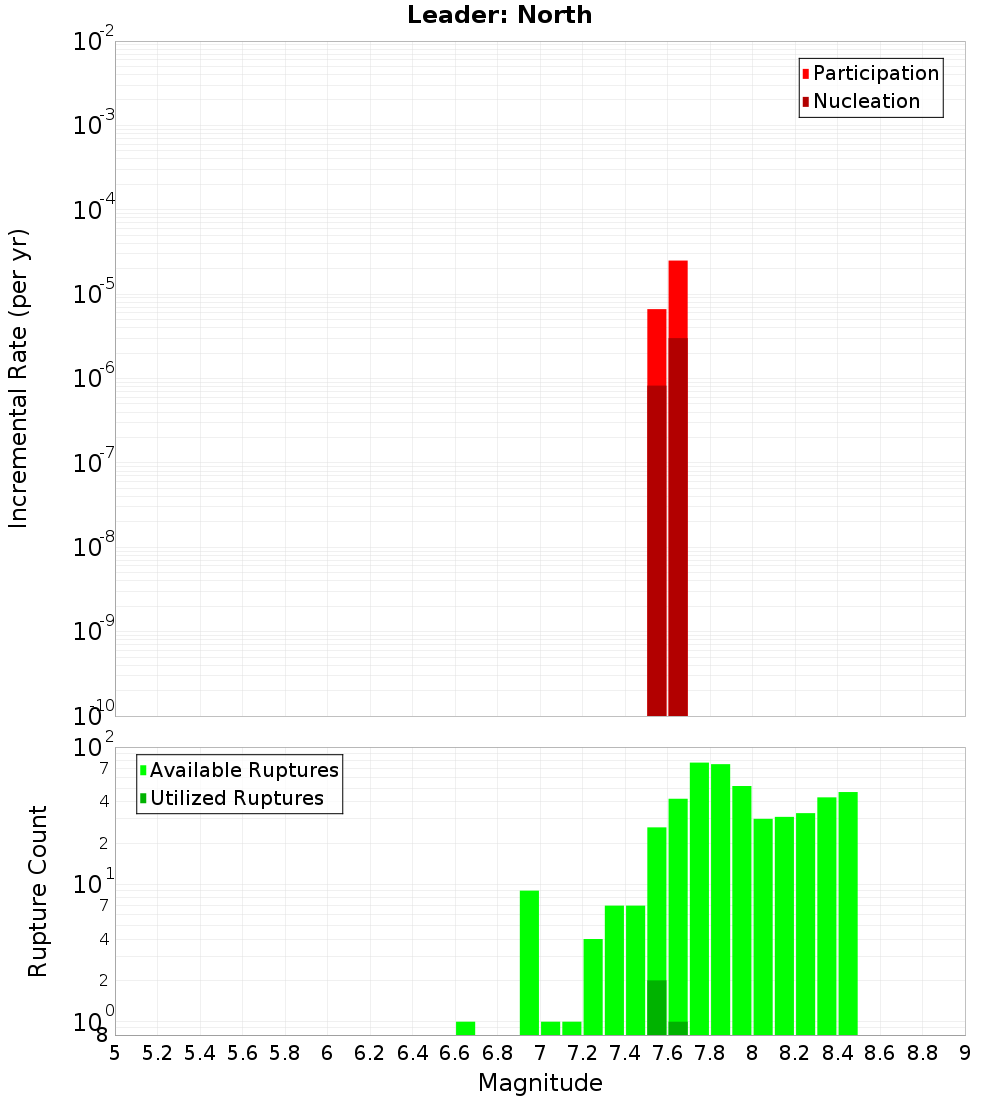

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

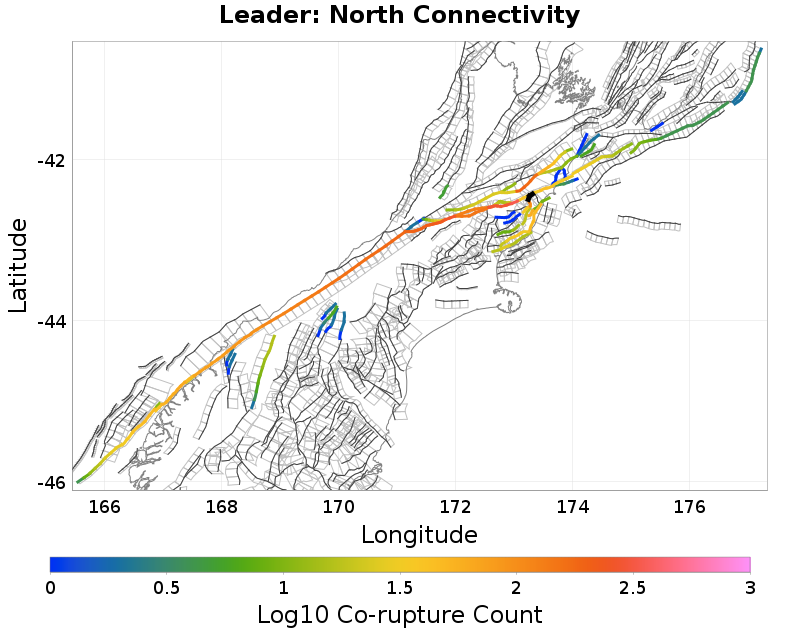

Connectivity

Nearby Sections

Fault Section
Leader: Central, 0 km away
Hope: Conway, 0.16 km away
StoneJug, 0.61 km away
Leader: South, 7.15 km away
The Humps, 9.77 km away
Elliott, 10.47 km away
Kaiwara North, 10.78 km away
Hundalee, 12.63 km away
Hope: Hanmer SE, 15.47 km away
Hawkswood, 18.35 km away
Fowlers, 18.42 km away
Clarence: Central, 18.55 km away
Barefell, 19.84 km away

Leader: Central, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	115
Co-rupture Rate	0.0

Hope: Conway, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	352
Co-rupture Rate	3.1634278E-5

StoneJug, 0.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leader: South, 7.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	false
Co-rupture Count	34
Co-rupture Rate	0.0

The Humps, 9.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Elliott, 10.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	197
Co-rupture Rate	0.0

Kaiwara North, 10.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	0.0

Hundalee, 12.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	false
Co-rupture Count	60
Co-rupture Rate	0.0

Hope: Hanmer SE, 15.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	false
Co-rupture Count	281
Co-rupture Rate	0.0

Hawkswood, 18.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	false
Co-rupture Count	48
Co-rupture Rate	0.0

Fowlers, 18.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clarence: Central, 18.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	0.0

Barefell, 19.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
