Ridge Road - Okaia 2 Details

Property	Value
Rupture Count	618
Ruptures Above Sect Min Mag	566
Ruptures w/ Nonzero Rates	24
Magnitude Range	[6.35, 7.43]
Length Range	[10, 123] km
Total Rate	9.4324925E-5 /yr
Multi-Fault Rate	6.498735E-5 /yr (68.90%)
Directly-Connected Faults	7
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

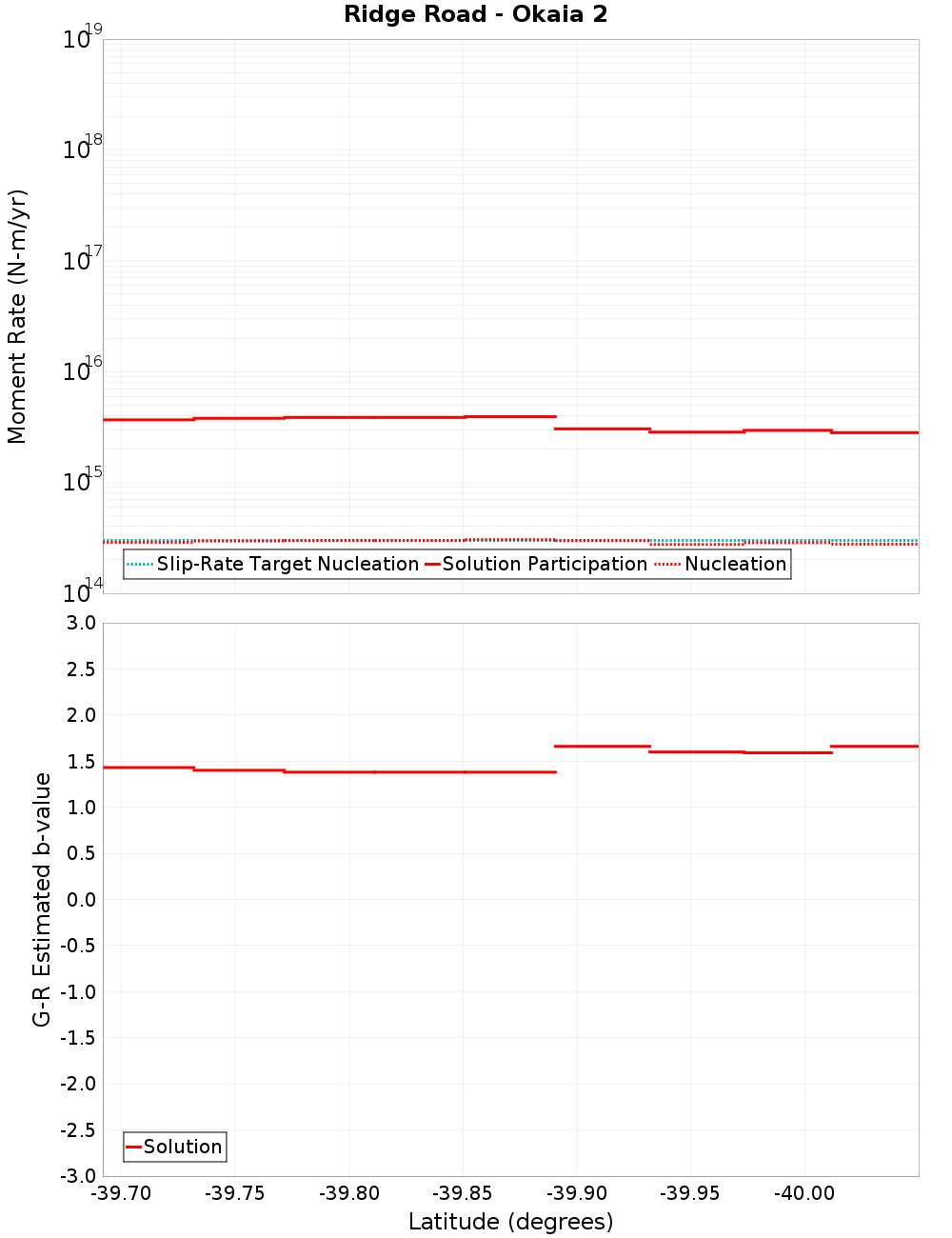

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waverley - Okaia 1, 0.09 km away
Okaia 3, 0.28 km away
Moumahaki - Okaia 4, 0.31 km away
Okaia 5, 0.31 km away
Waitotara 10 & 11, 0.52 km away
Waitotara 8 & 9, 2.25 km away
Nukumuru - Waitotara 1-6, 5.95 km away

Waverley - Okaia 1, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	101
Co-rupture Rate	7.757874E-6

Okaia 3, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	84
Co-rupture Rate	9.317553E-6

Moumahaki - Okaia 4, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	245
Co-rupture Rate	8.750302E-6

Okaia 5, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	230
Co-rupture Rate	1.5387963E-5

Waitotara 10 & 11, 0.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	157
Co-rupture Rate	2.0923973E-5

Waitotara 8 & 9, 2.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	270
Co-rupture Rate	3.9099028E-5

Nukumuru - Waitotara 1-6, 5.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	39
Co-rupture Rate	2.1947206E-5
