South Wedge 1 Details

Property	Value
Rupture Count	4,059
Ruptures Above Sect Min Mag	4,023
Ruptures w/ Nonzero Rates	10
Magnitude Range	[6.06, 8.57]
Length Range	[7, 860] km
Total Rate	8.785493E-5 /yr
Multi-Fault Rate	8.785493E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	48

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

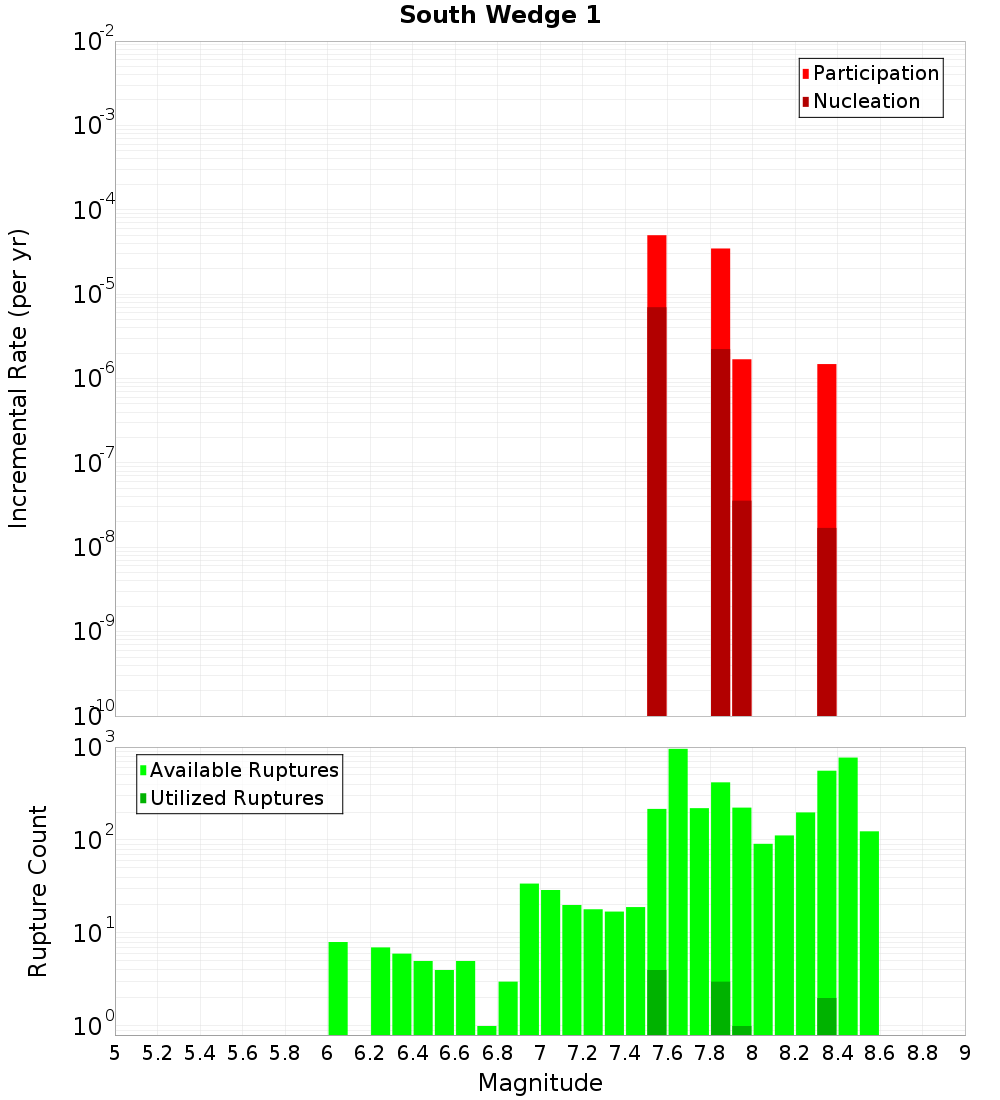

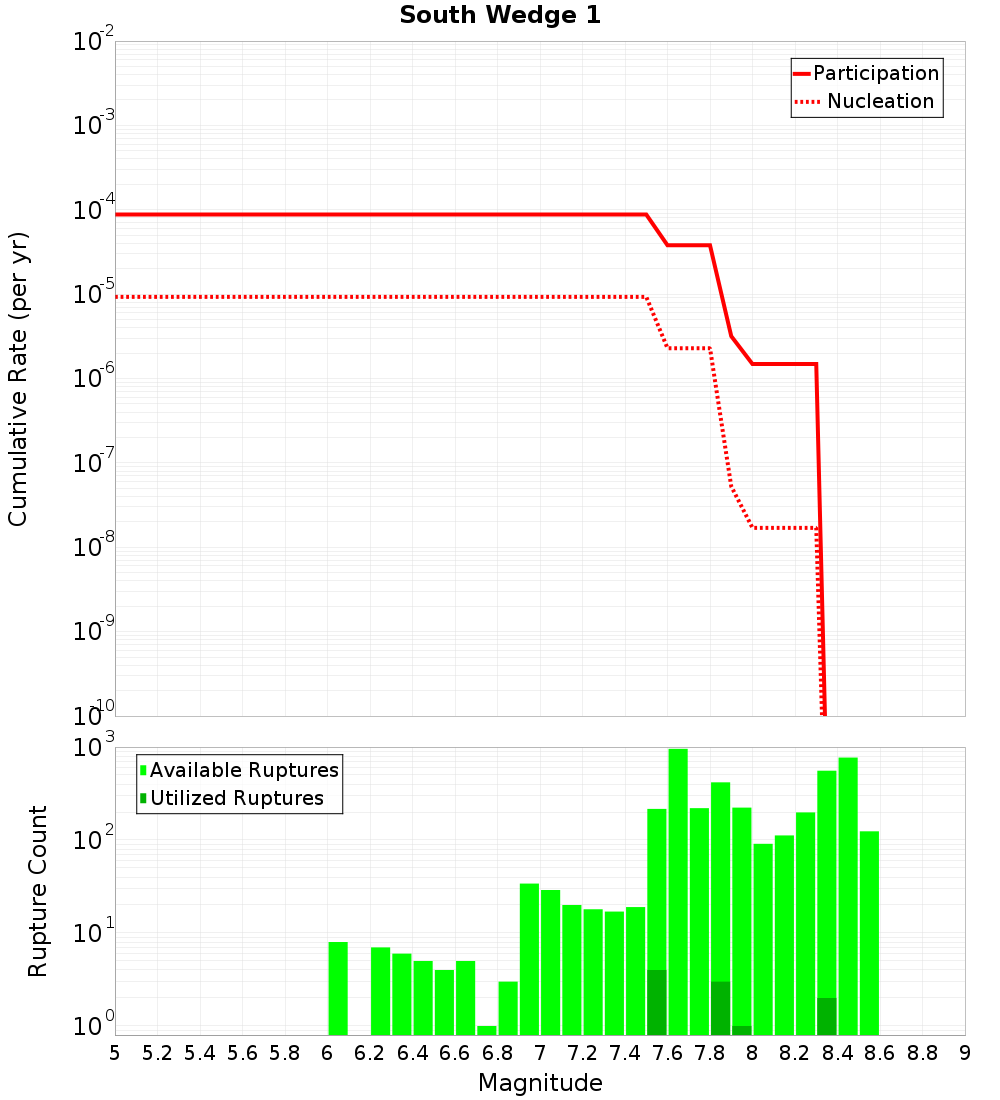

Magnitude-Frequency Distribution

Incremental	Cumulative

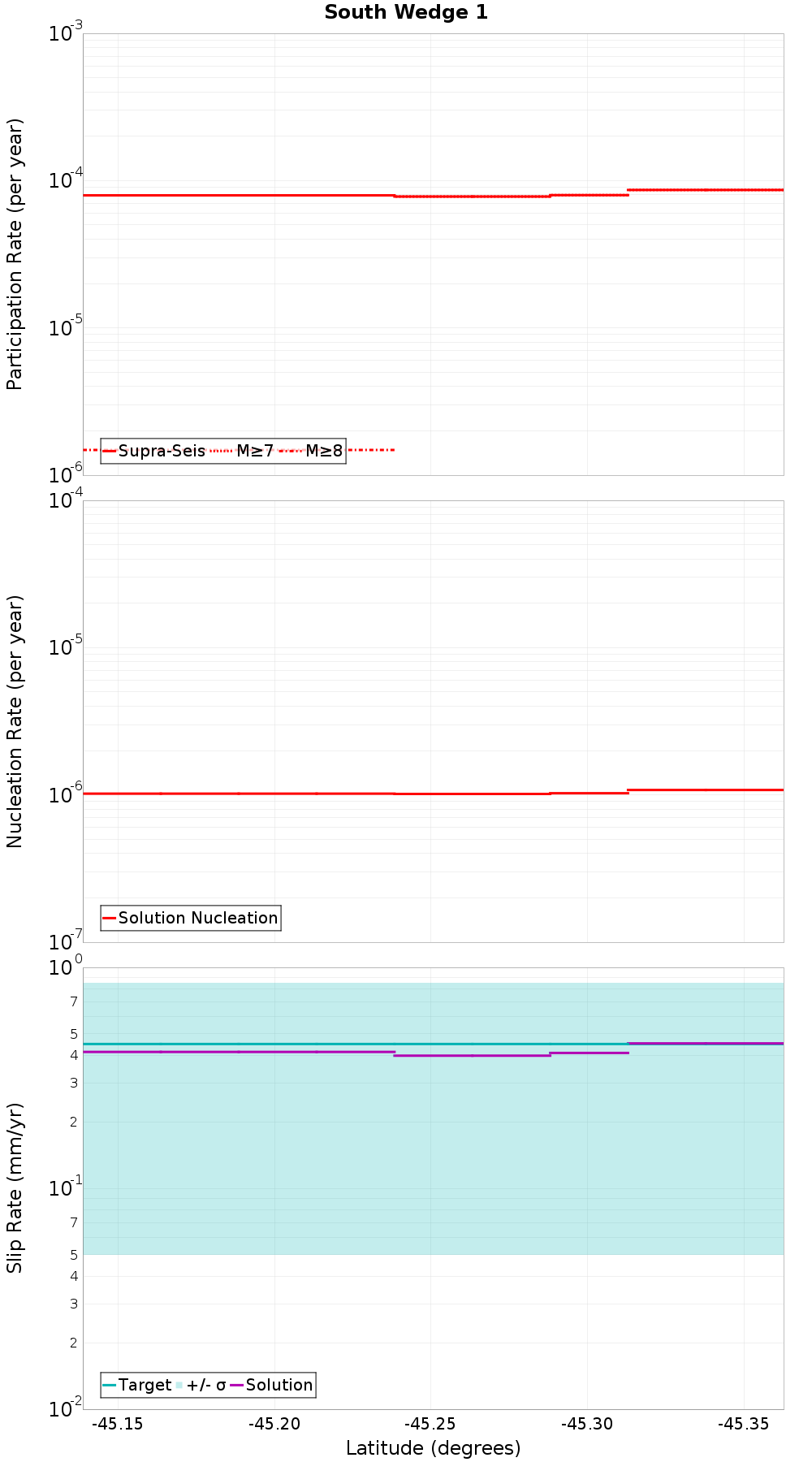

Along-Strike Values

Moment-Rates and b-Values

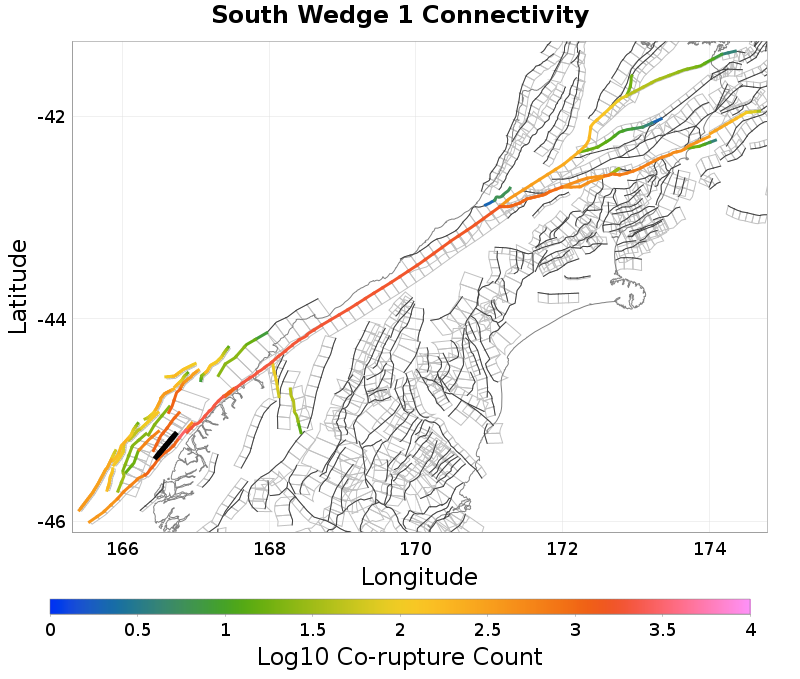

Connectivity

Nearby Sections

Fault Section
Alpine: Resolution - Dagg, 0.07 km away
South Wedge 2, 0.1 km away
South Wedge 3-6-10, 4.1 km away
Central Wedge 4 - South Wedge 411, 5.91 km away
Alpine: Nancy, 10.3 km away
South Wedge 5, 10.53 km away
Alpine: Resolution - Charles, 10.6 km away

Alpine: Resolution - Dagg, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	2,931
Co-rupture Rate	3.6238776E-5

South Wedge 2, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	1,113
Co-rupture Rate	8.429078E-6

South Wedge 3-6-10, 4.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	600
Co-rupture Rate	5.140879E-5

Central Wedge 4 - South Wedge 411, 5.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	false
Co-rupture Count	22
Co-rupture Rate	1.6904023E-6

Alpine: Nancy, 10.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	false
Co-rupture Count	1,968
Co-rupture Rate	0.0

South Wedge 5, 10.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	5.1616156E-5

Alpine: Resolution - Charles, 10.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	false
Co-rupture Count	378
Co-rupture Rate	1.4830388E-6
