Turi: South Details
| Property | Value |
|---|---|
| Rupture Count | 444 |
| Ruptures Above Sect Min Mag | 442 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.88, 8.01] |
| Length Range | [18, 208] km |
| Total Rate | 1.0190143E-4 /yr |
| Multi-Fault Rate | 4.6641322E-5 /yr (45.77%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 13 |
Table Of Contents

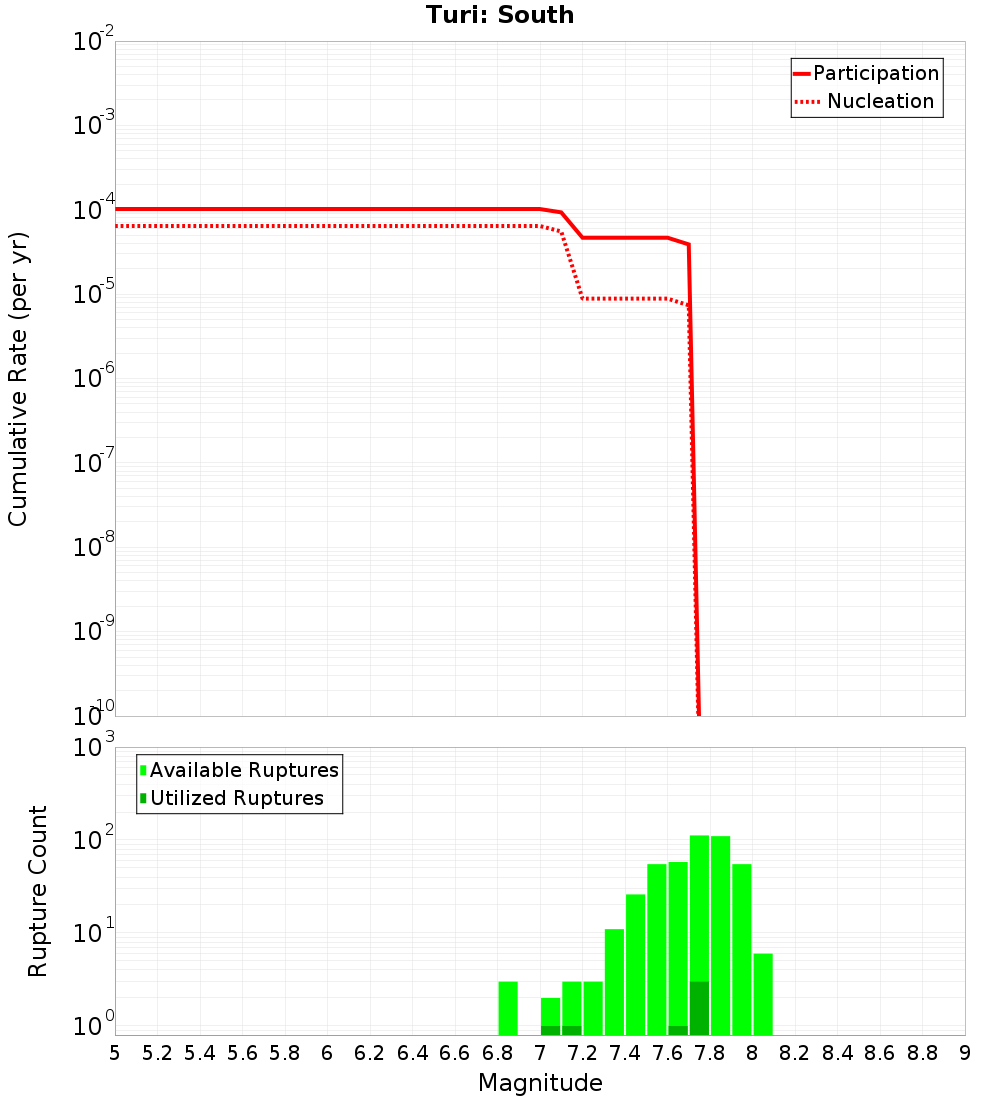

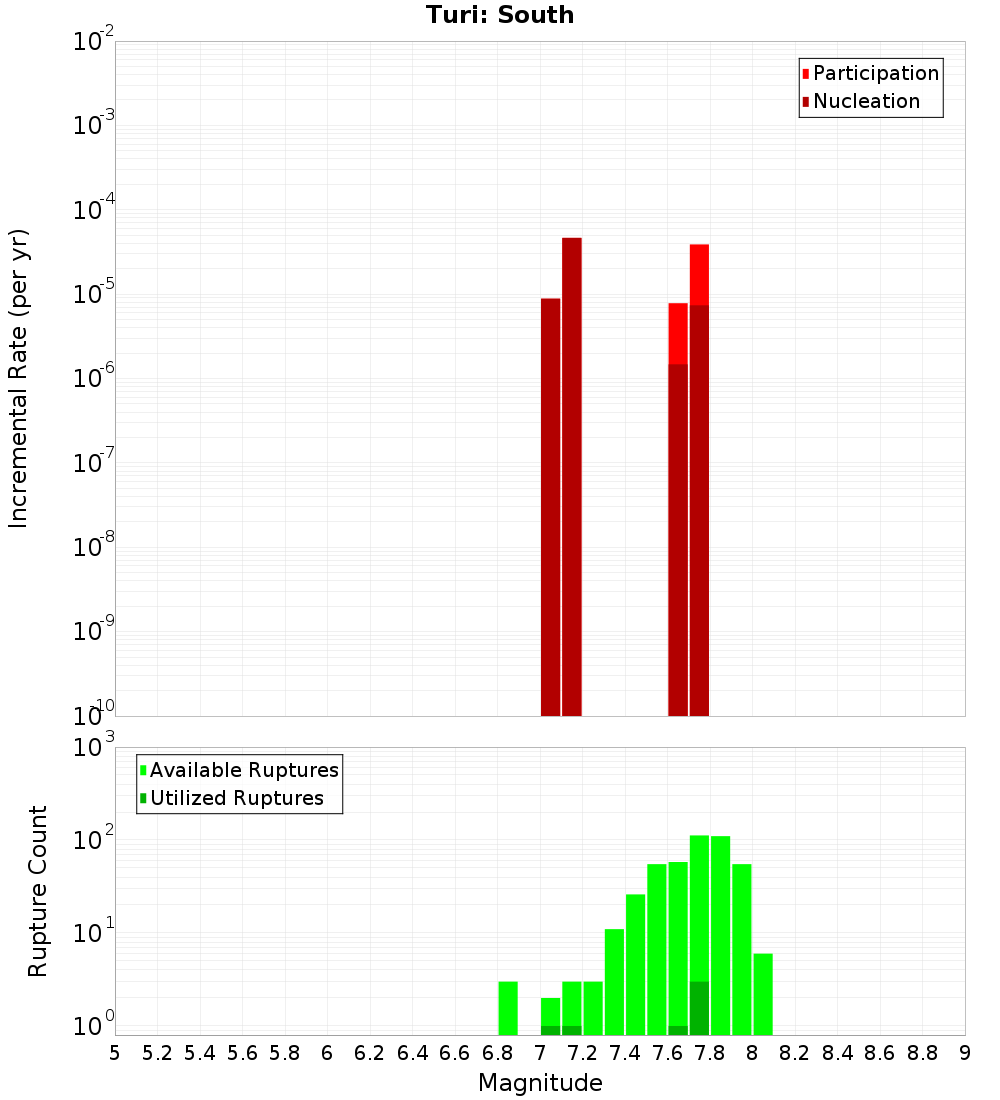

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

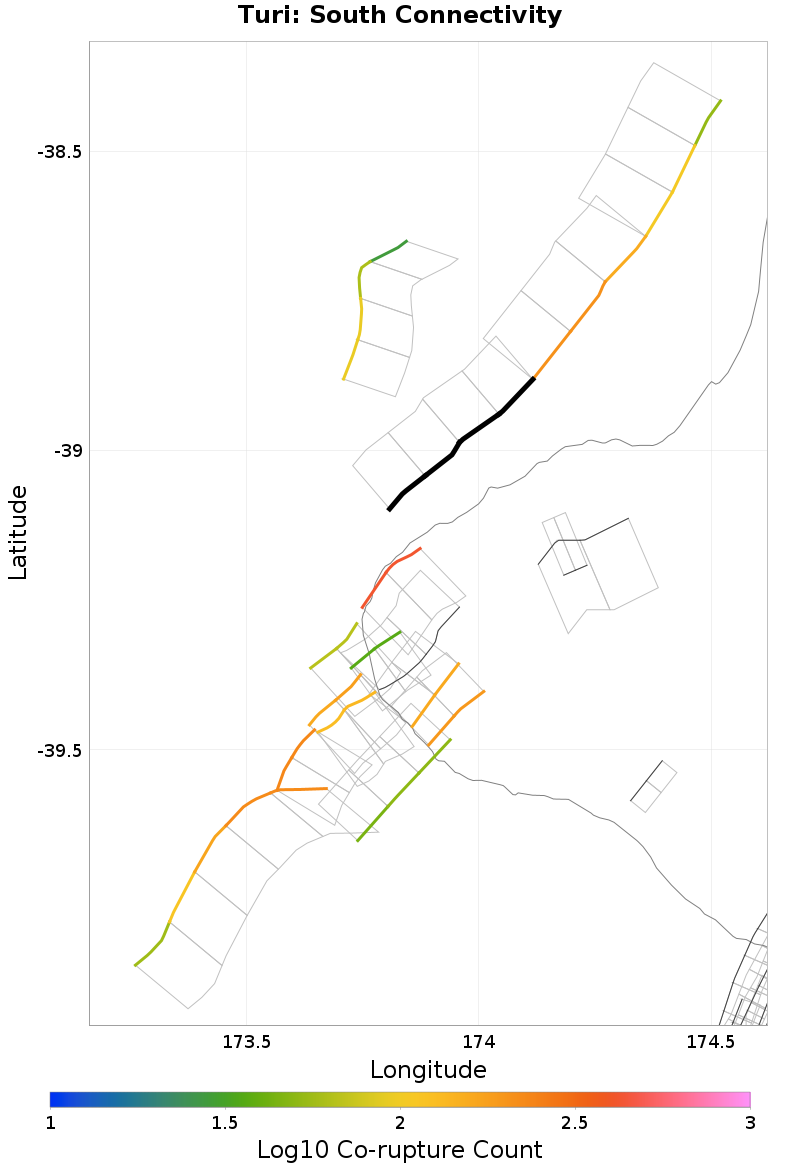

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Turi: Central, 0 km away |
| Parihaka, 4.48 km away |
| Warea, 9.28 km away |
Turi: Central, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 207 |
| Co-rupture Rate | 4.6641322E-5 |
Parihaka, 4.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 94 |
| Co-rupture Rate | 2.1108022E-5 |
Warea, 9.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 420 |
| Co-rupture Rate | 1.7727165E-5 |
