Whitemans Valley Details

Property	Value
Rupture Count	886
Ruptures Above Sect Min Mag	885
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.94, 8.36]
Length Range	[18, 540] km
Total Rate	4.6789337E-5 /yr
Multi-Fault Rate	4.6789337E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	70

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

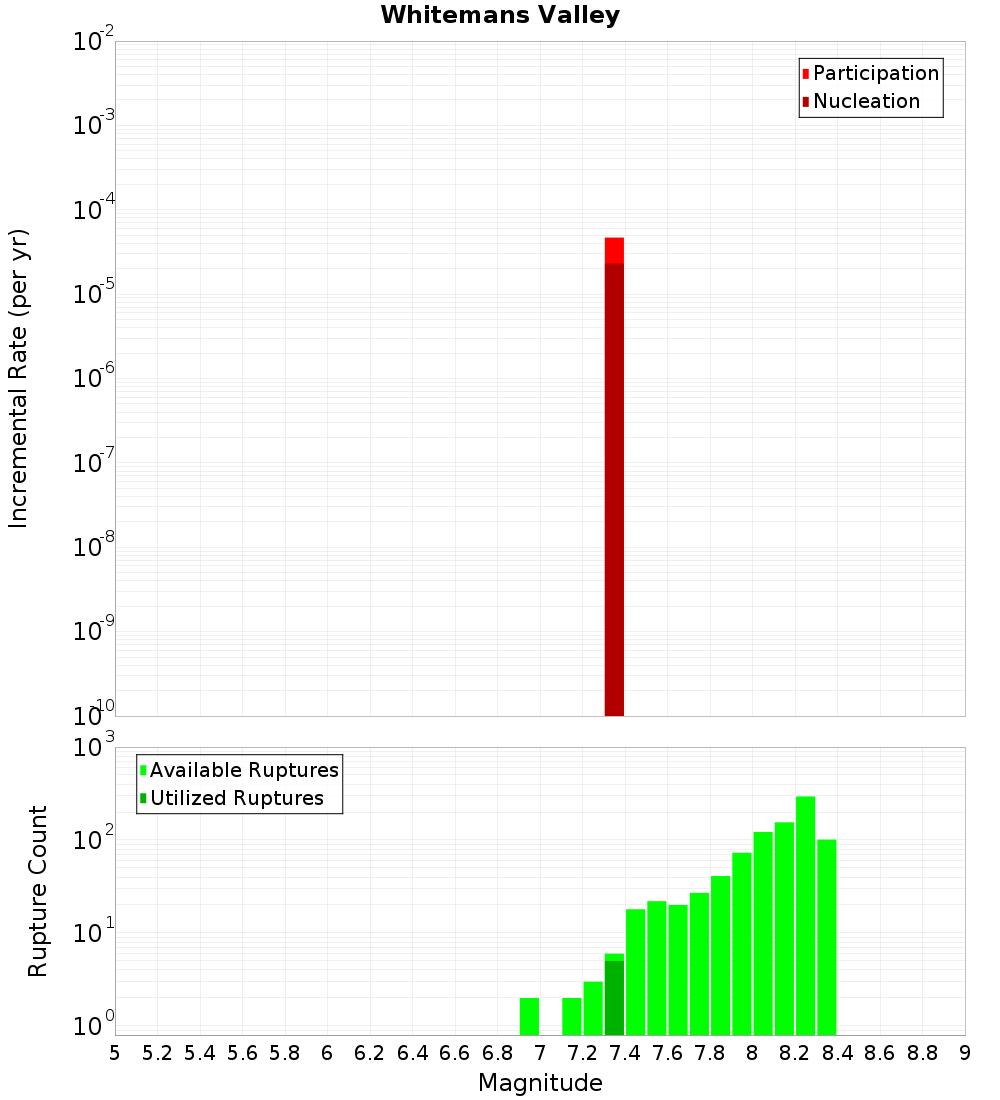

Magnitude-Frequency Distribution

Incremental	Cumulative

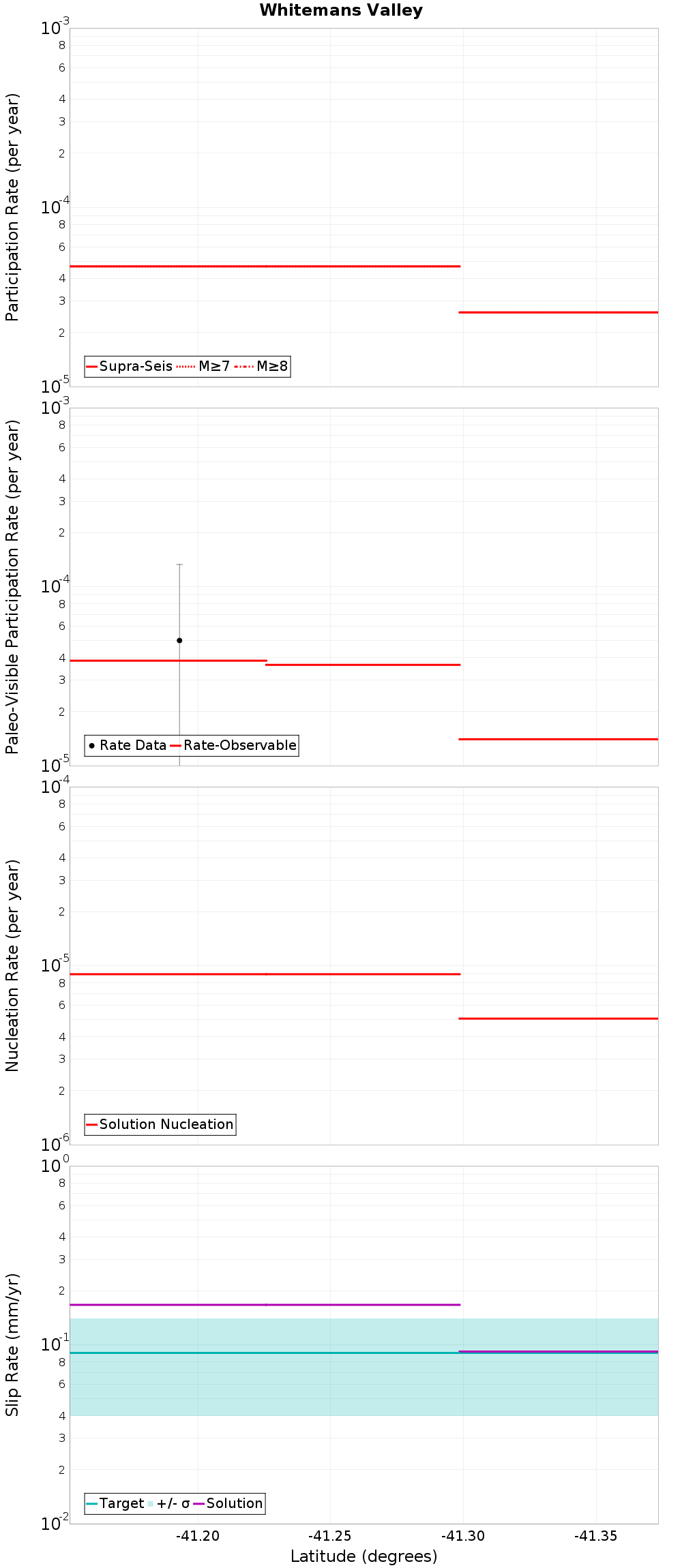

Along-Strike Values

Moment-Rates and b-Values

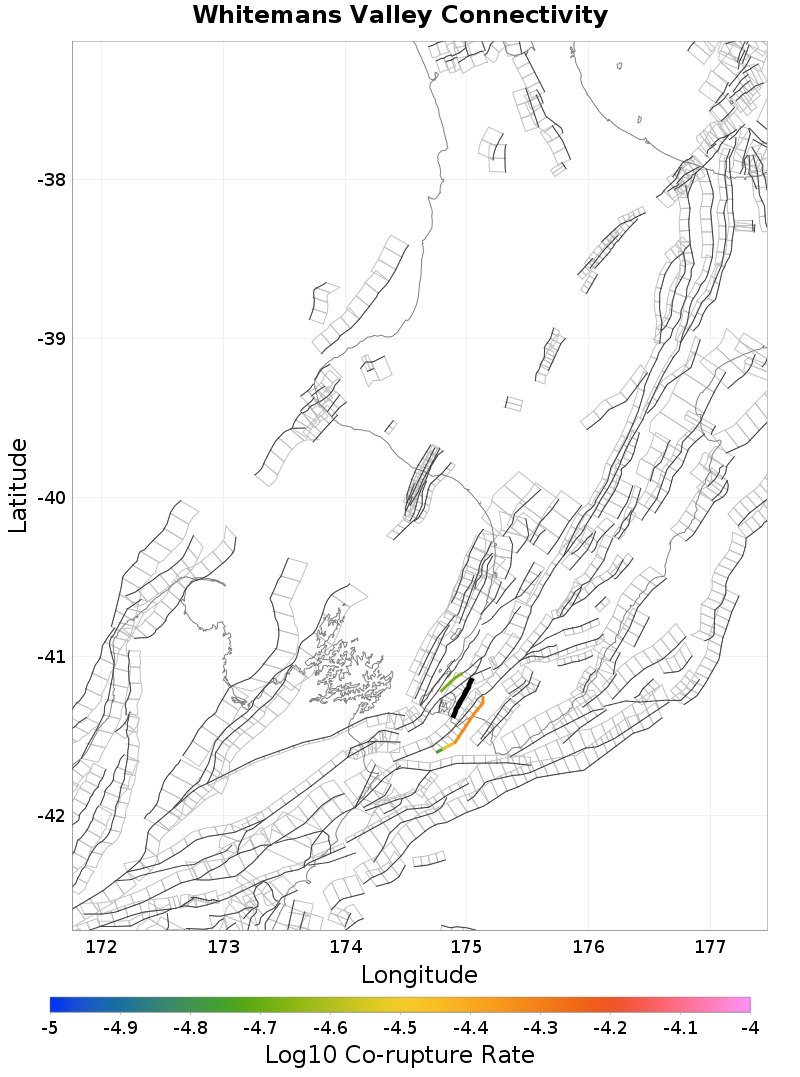

Connectivity

Nearby Sections

Fault Section	Fault Section
Wellington Hutt Valley: 4, 0.26 km away	Wellington Hutt Valley: 2, 8.79 km away
Moonshine, 0.26 km away	Pukerua - Shepherds Gully: 2, 9.23 km away
Aotea - Evans Bay, 0.35 km away	Pukerua - Shepherds Gully: 1, 9.6 km away
Wellington Hutt Valley: 3, 1.15 km away	Wairarapa: 2, 10.23 km away
Ohariu, 2.29 km away	Wellington Hutt Valley: 1, 15.08 km away
Wellington Hutt Valley: 5, 2.41 km away	Ohariu South 2, 16.18 km away
Akatarawa, 3 km away	Shepherds Gully - Mana, 16.74 km away
Wairarapa: 1, 5.26 km away	Wellington: Tararua 1, 17.14 km away
Pukerua - Shepherds Gully: 3, 6.09 km away	Otaki Forks: 1, 17.17 km away
Wharekauhau, 7.07 km away	Otaheke South, 17.99 km away

Wellington Hutt Valley: 4, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Moonshine, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	384
Co-rupture Rate	2.0872765E-5

Aotea - Evans Bay, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 3, 1.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohariu, 2.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	382
Co-rupture Rate	0.0

Wellington Hutt Valley: 5, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Akatarawa, 3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 1, 5.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	false
Co-rupture Count	85
Co-rupture Rate	0.0

Pukerua - Shepherds Gully: 3, 6.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0

Wharekauhau, 7.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	true
Co-rupture Count	205
Co-rupture Rate	4.6789337E-5

Wellington Hutt Valley: 2, 8.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pukerua - Shepherds Gully: 2, 9.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pukerua - Shepherds Gully: 1, 9.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 2, 10.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 1, 15.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohariu South 2, 16.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Shepherds Gully - Mana, 16.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington: Tararua 1, 17.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaki Forks: 1, 17.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	true
Directly Connected?	false
Co-rupture Count	322
Co-rupture Rate	0.0

Otaheke South, 17.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMFVveExy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
