Edgecumbe Coastal Details

Property	Value
Rupture Count	18,602
Ruptures Above Sect Min Mag	18,584
Ruptures w/ Nonzero Rates	14
Magnitude Range	[6.34, 8.39]
Length Range	[7, 584] km
Total Rate	4.0796507E-4 /yr
Multi-Fault Rate	4.0796507E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	91

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

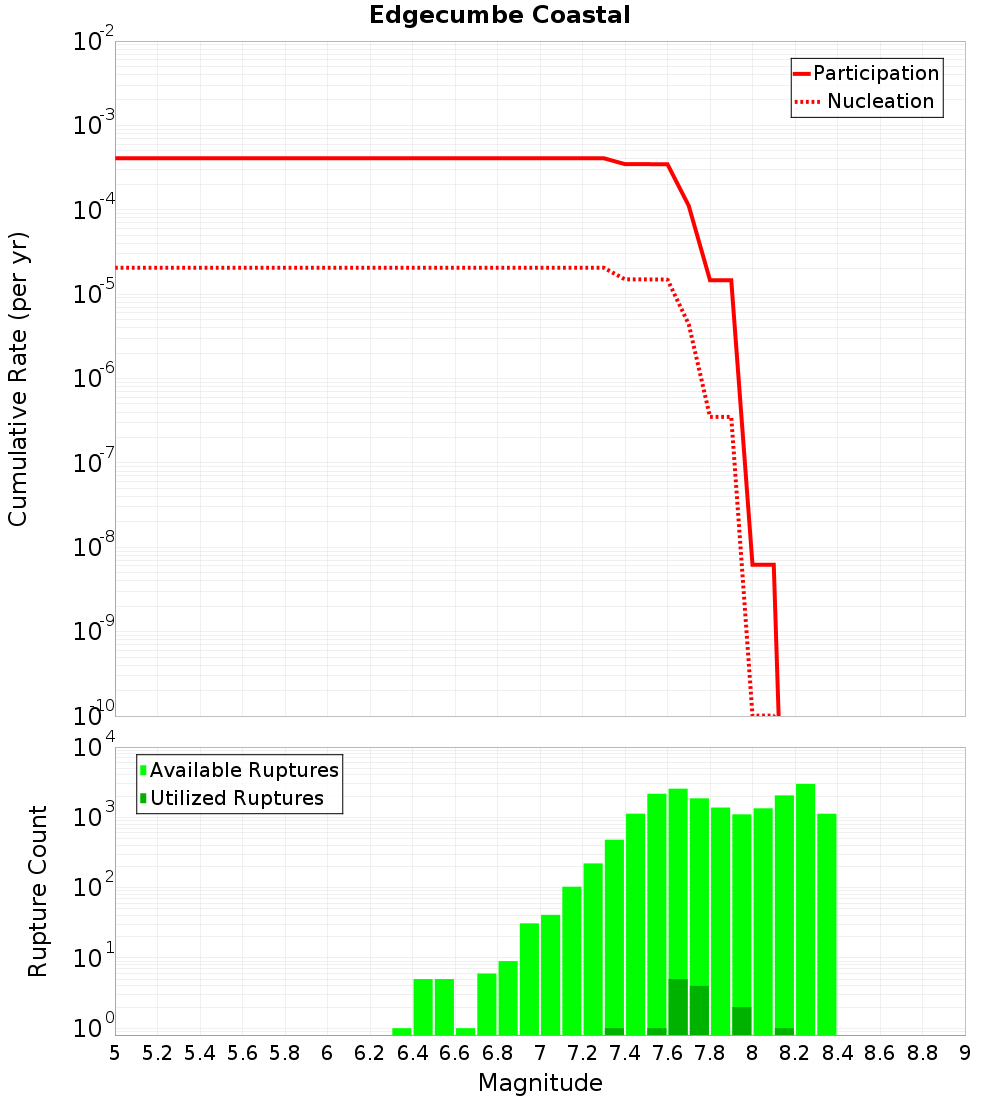

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Awakeri, 0 km away
Otakiri, 0.38 km away
Matata, 2.61 km away
Whakatane: North, 3.09 km away
Braemar, 4.61 km away
Rangitaiki 1, 8.8 km away
Waiohau: North, 11.47 km away
Rotoitipakau, 14.03 km away
Rangitaiki 2, 14.83 km away
Waimana: North, 15.94 km away
Waiotahi: North, 18.75 km away
Waimana - Waikaremoana, 19.37 km away

White Island 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	true
Co-rupture Count	16,055
Co-rupture Rate	9.881051E-5

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	true
Co-rupture Count	11,272
Co-rupture Rate	2.8223774E-4

Awakeri, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	true
Co-rupture Count	3,954
Co-rupture Rate	3.387859E-5

Otakiri, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	true
Co-rupture Count	2,572
Co-rupture Rate	9.1842514E-5

Matata, 2.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,005
Co-rupture Rate	7.92165E-6

Whakatane: North, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	true
Co-rupture Count	278
Co-rupture Rate	6.0990424E-5

Braemar, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	true
Co-rupture Count	3,485
Co-rupture Rate	1.7775982E-4

Rangitaiki 1, 8.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,275
Co-rupture Rate	2.481641E-4

Waiohau: North, 11.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	false
Co-rupture Count	12,604
Co-rupture Rate	1.4620586E-5

Rotoitipakau, 14.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	false
Co-rupture Count	1,616
Co-rupture Rate	1.0316019E-4

Rangitaiki 2, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	false
Co-rupture Count	4,845
Co-rupture Rate	2.6876657E-4

Waimana: North, 15.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	false
Co-rupture Count	212
Co-rupture Rate	0.0

Waiotahi: North, 18.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimana - Waikaremoana, 19.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	false
Co-rupture Count	106
Co-rupture Rate	0.0
