Kekerengu 1 Details

Property	Value
Rupture Count	24,977
Ruptures Above Sect Min Mag	24,976
Ruptures w/ Nonzero Rates	62
Magnitude Range	[6.94, 8.62]
Length Range	[18, 977] km
Total Rate	0.002491736 /yr
Multi-Fault Rate	0.002491736 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	135

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

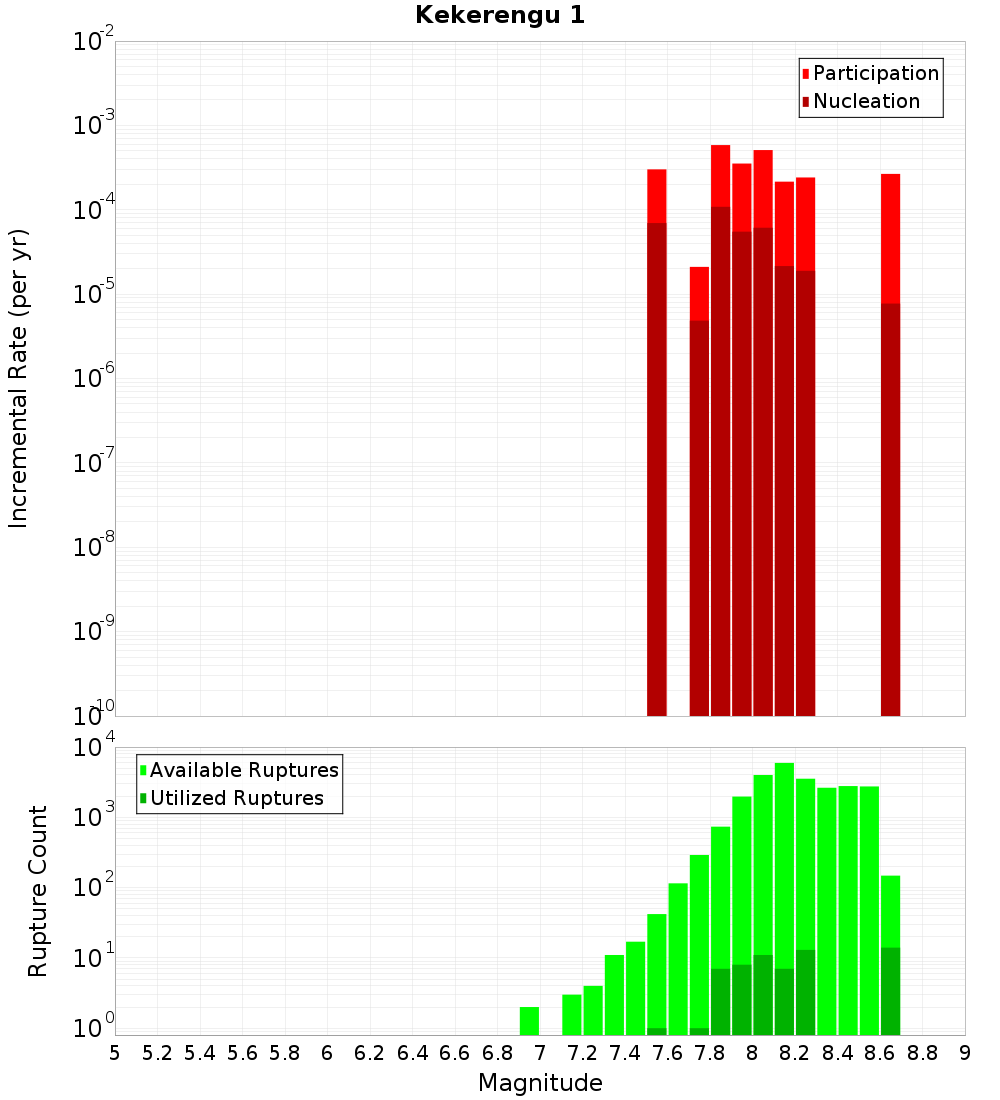

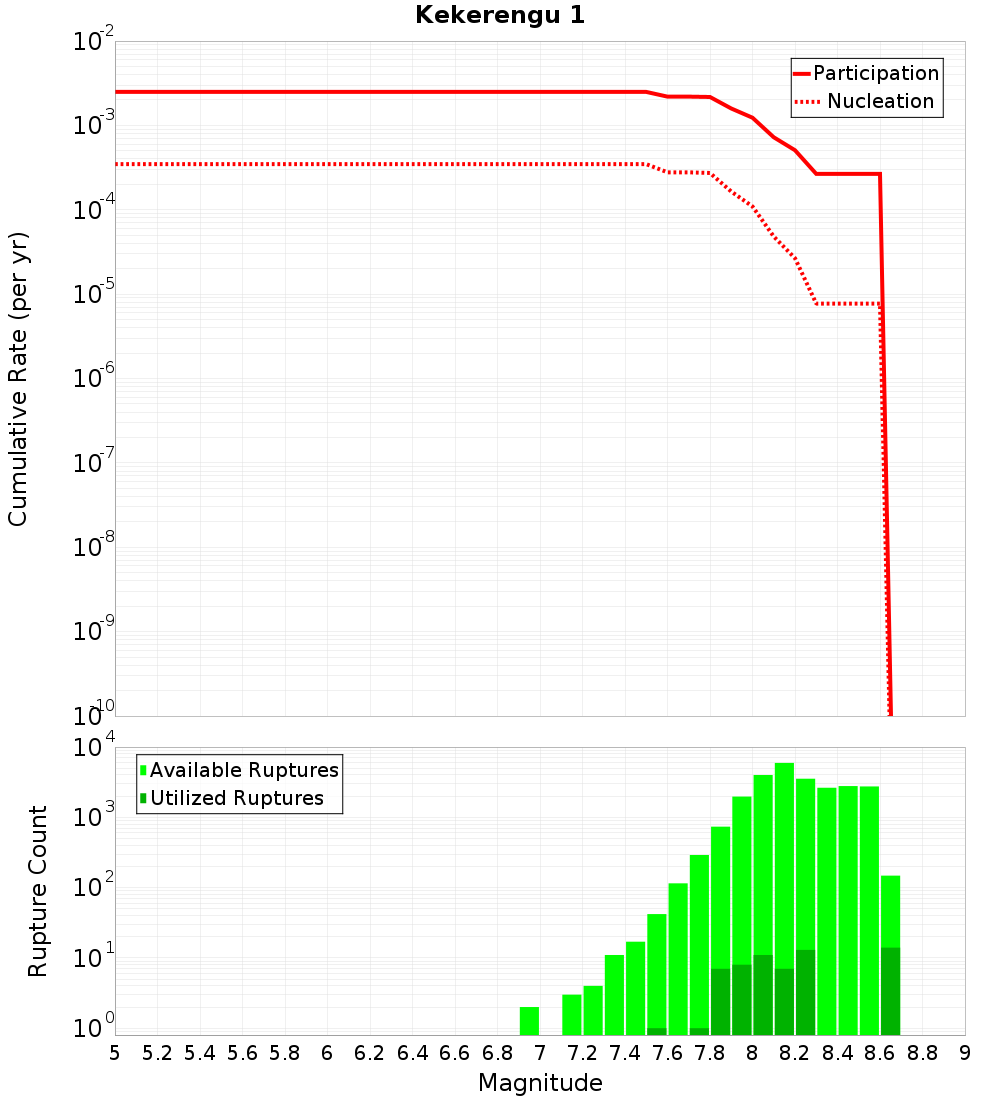

Magnitude-Frequency Distribution

Incremental	Cumulative

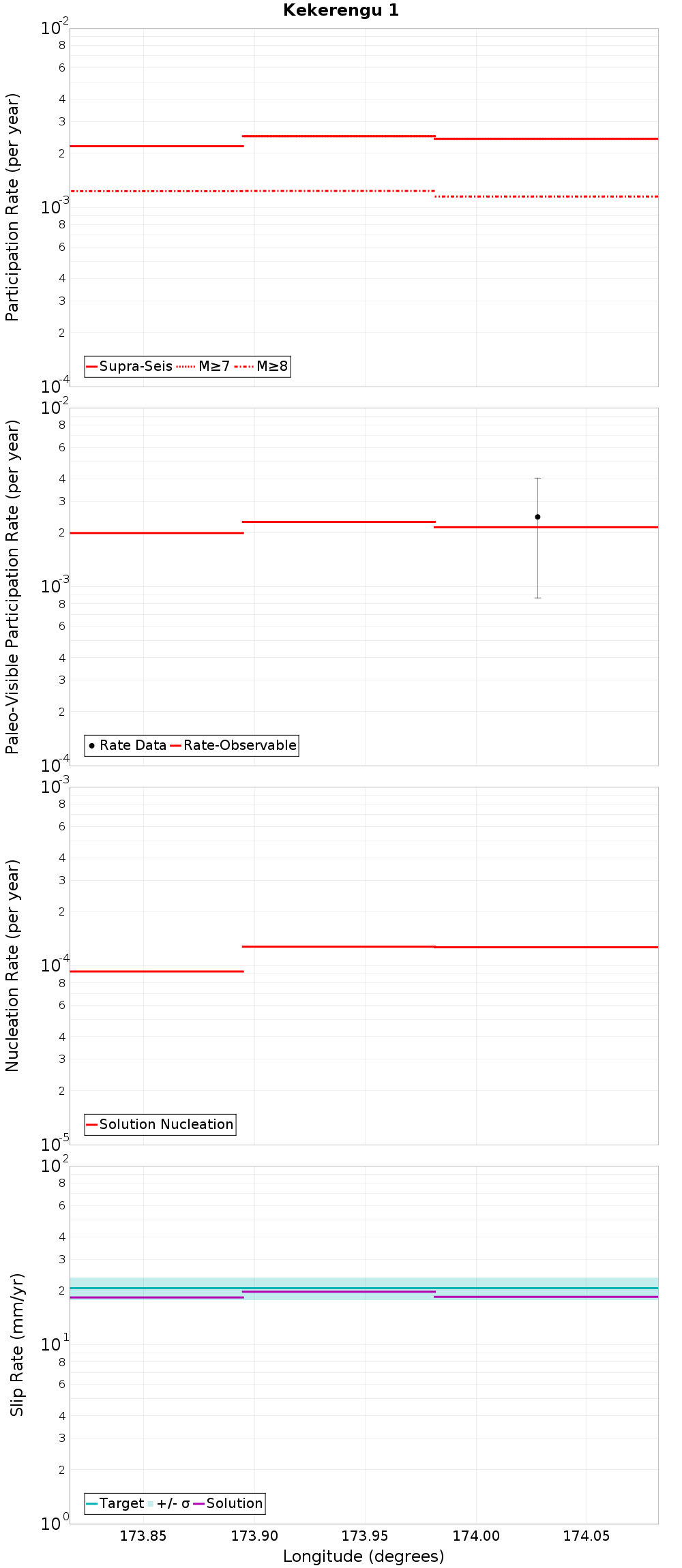

Along-Strike Values

Moment-Rates and b-Values

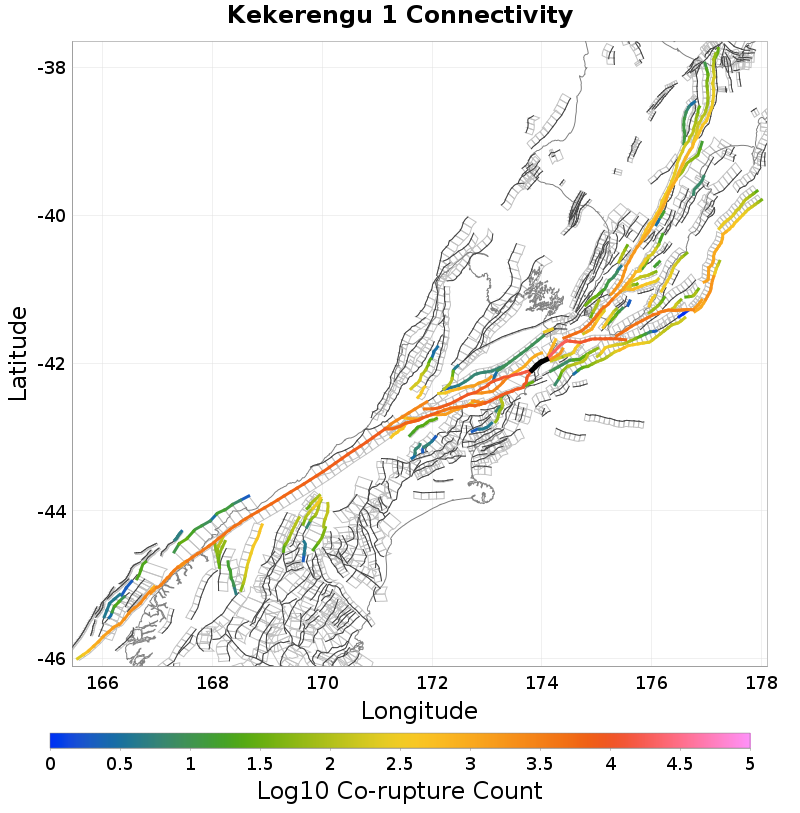

Connectivity

Nearby Sections

Fault Section
Papatea, 0 km away
Fidget, 0 km away
Jordan, 0 km away
London Hill, 0 km away
Needles, 0 km away
Needles East 2, 4.78 km away
Chancet, 7.4 km away
Clarence: Northeast, 10.43 km away
Hope: Seaward, 16.34 km away
Hope: Te Rapa, 17.16 km away
Upper Slope, 18.24 km away
Wharanui, 18.6 km away

Papatea, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fidget, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	true
Co-rupture Count	14,751
Co-rupture Rate	1.8797914E-4

Jordan, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	true
Co-rupture Count	9,713
Co-rupture Rate	0.0019099385

London Hill, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,128
Co-rupture Rate	8.697114E-6

Needles, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	true
Co-rupture Count	19,730
Co-rupture Rate	0.0019794726

Needles East 2, 4.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,814
Co-rupture Rate	5.347008E-5

Chancet, 7.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	false
Co-rupture Count	327
Co-rupture Rate	1.64985E-4

Clarence: Northeast, 10.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	true
Co-rupture Count	949
Co-rupture Rate	3.8766474E-4

Hope: Seaward, 16.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	false
Co-rupture Count	29
Co-rupture Rate	1.2592475E-4

Hope: Te Rapa, 17.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	false
Co-rupture Count	17
Co-rupture Rate	0.0

Upper Slope, 18.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	true
Directly Connected?	false
Co-rupture Count	122
Co-rupture Rate	0.0

Wharanui, 18.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDUuMHlnQlJQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
