Alpine: Springs Junction to Tophouse Details

PropertyValue
Rupture Count17,657
Ruptures Above Sect Min Mag17,652
Ruptures w/ Nonzero Rates73
Magnitude Range[6.91, 8.51]
Length Range[21, 1,009] km
Total Rate0.0029470045 /yr
Multi-Fault Rate0.0029470045 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults95

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

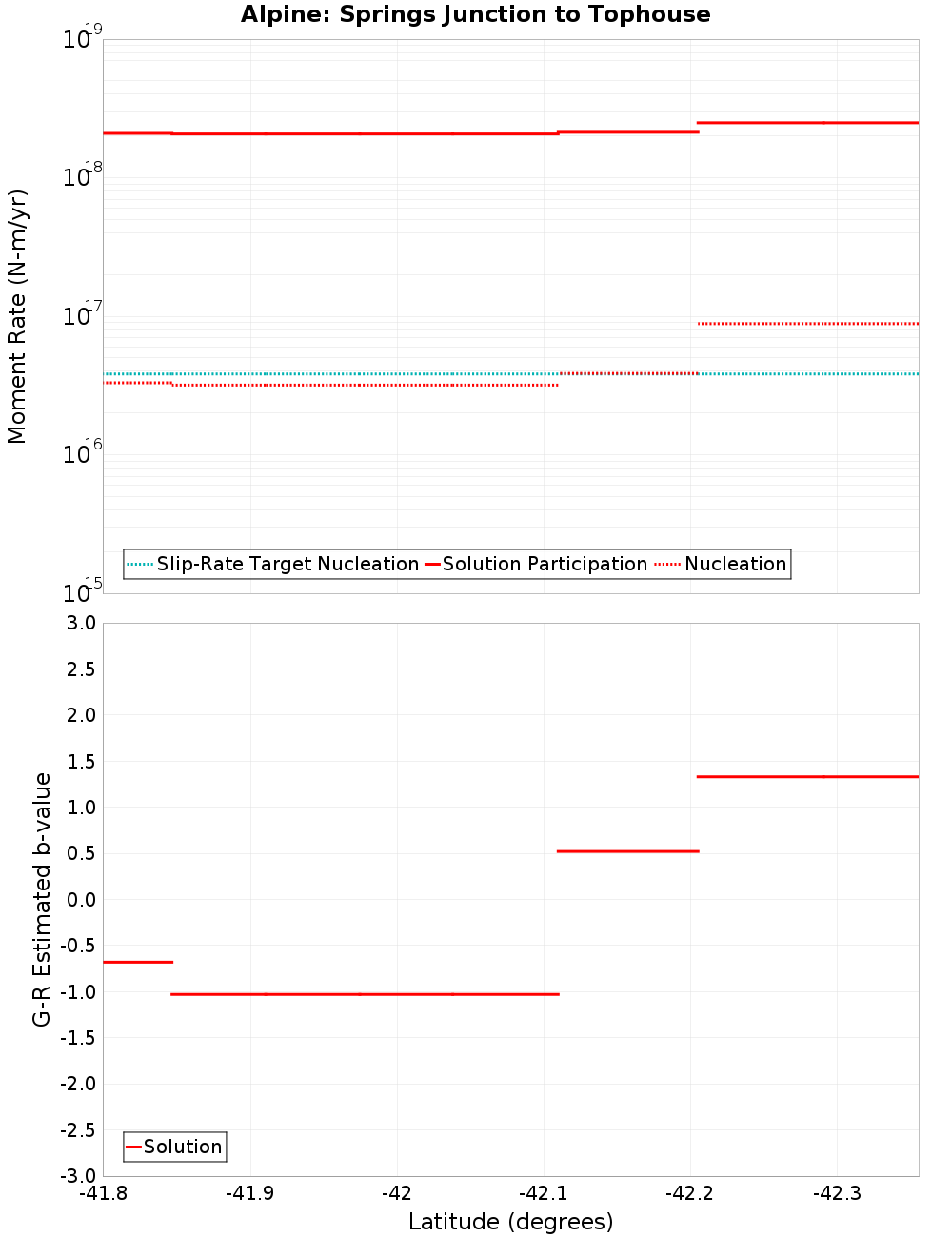

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wairau, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Whangamoa, 0 km away
Awatere: Southwest, 0 km away
Fowlers, 0.26 km away
Flaxmore - Waimea - Tahunanui, 0.39 km away
Tutaki, 0.48 km away
Clarence: Southwest, 6.38 km away
Hope: Hope River, 14.11 km away
Esk North, 16.07 km away
Elliott, 19.5 km away

Wairau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMDduRHdU
Connected?true
Directly Connected?true
Co-rupture Count8,209
Co-rupture Rate4.2571579E-4

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMDduRHdU
Connected?true
Directly Connected?true
Co-rupture Count16,820
Co-rupture Rate0.002689577

Whangamoa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMDduRHdU
Connected?true
Directly Connected?true
Co-rupture Count1,079
Co-rupture Rate4.023572E-5

Awatere: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMDduRHdU
Connected?true
Directly Connected?true
Co-rupture Count96
Co-rupture Rate0.0

Fowlers, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMDduRHdU
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate2.555723E-5

Flaxmore - Waimea - Tahunanui, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMDduRHdU
Connected?true
Directly Connected?true
Co-rupture Count2,130
Co-rupture Rate1.5255988E-5

Tutaki, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMDduRHdU
Connected?true
Directly Connected?true
Co-rupture Count629
Co-rupture Rate3.71267E-5

Clarence: Southwest, 6.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMDduRHdU
Connected?true
Directly Connected?true
Co-rupture Count142
Co-rupture Rate0.0

Hope: Hope River, 14.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMDduRHdU
Connected?true
Directly Connected?true
Co-rupture Count342
Co-rupture Rate1.9667104E-4

Esk North, 16.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMDduRHdU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Elliott, 19.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMDduRHdU
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0
