Ruahine: North Details

Property	Value
Rupture Count	34,018
Ruptures Above Sect Min Mag	34,015
Ruptures w/ Nonzero Rates	15
Magnitude Range	[7.01, 8.38]
Length Range	[24, 655] km
Total Rate	7.610115E-4 /yr
Multi-Fault Rate	1.8309876E-4 /yr (24.06%)
Directly-Connected Faults	7
All Co-Rupturing Faults	112

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

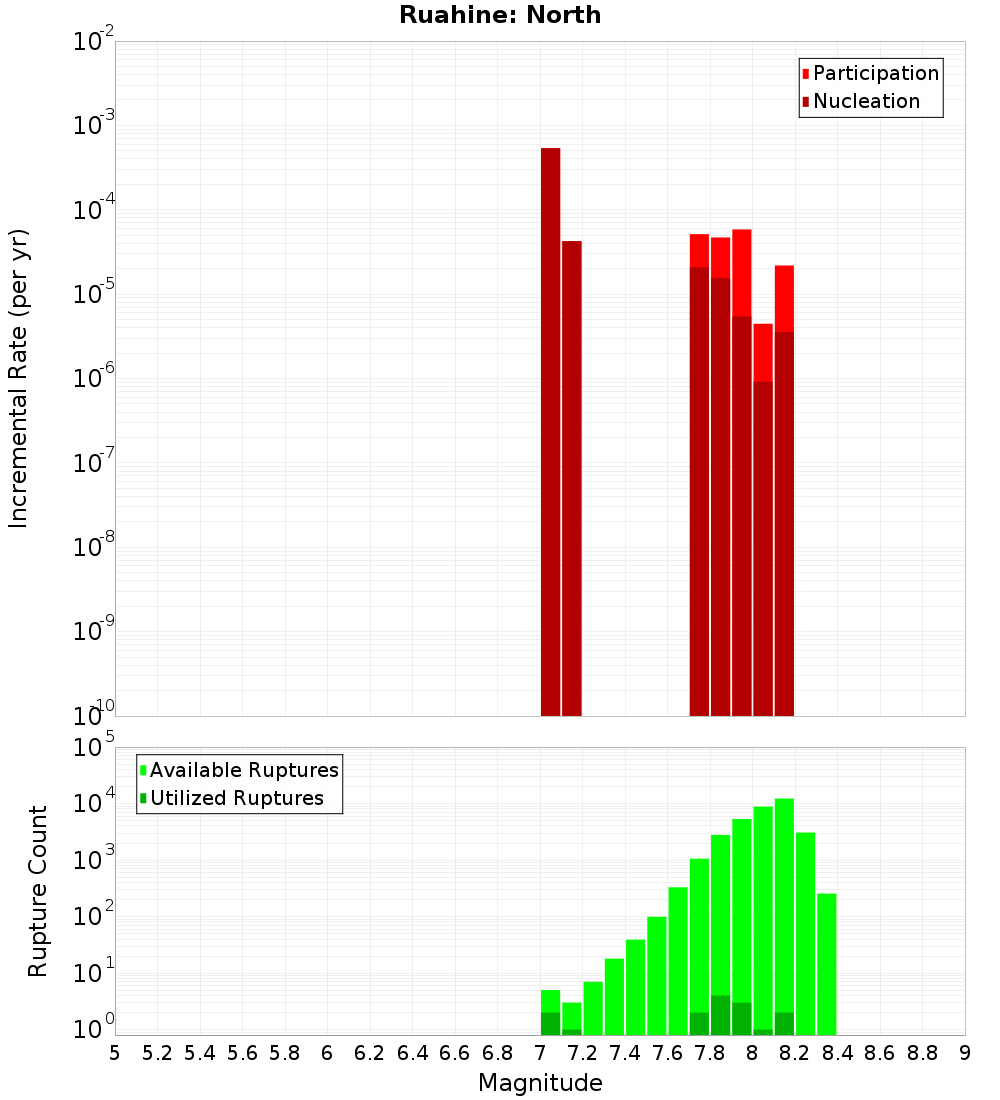

Magnitude-Frequency Distribution

Incremental	Cumulative

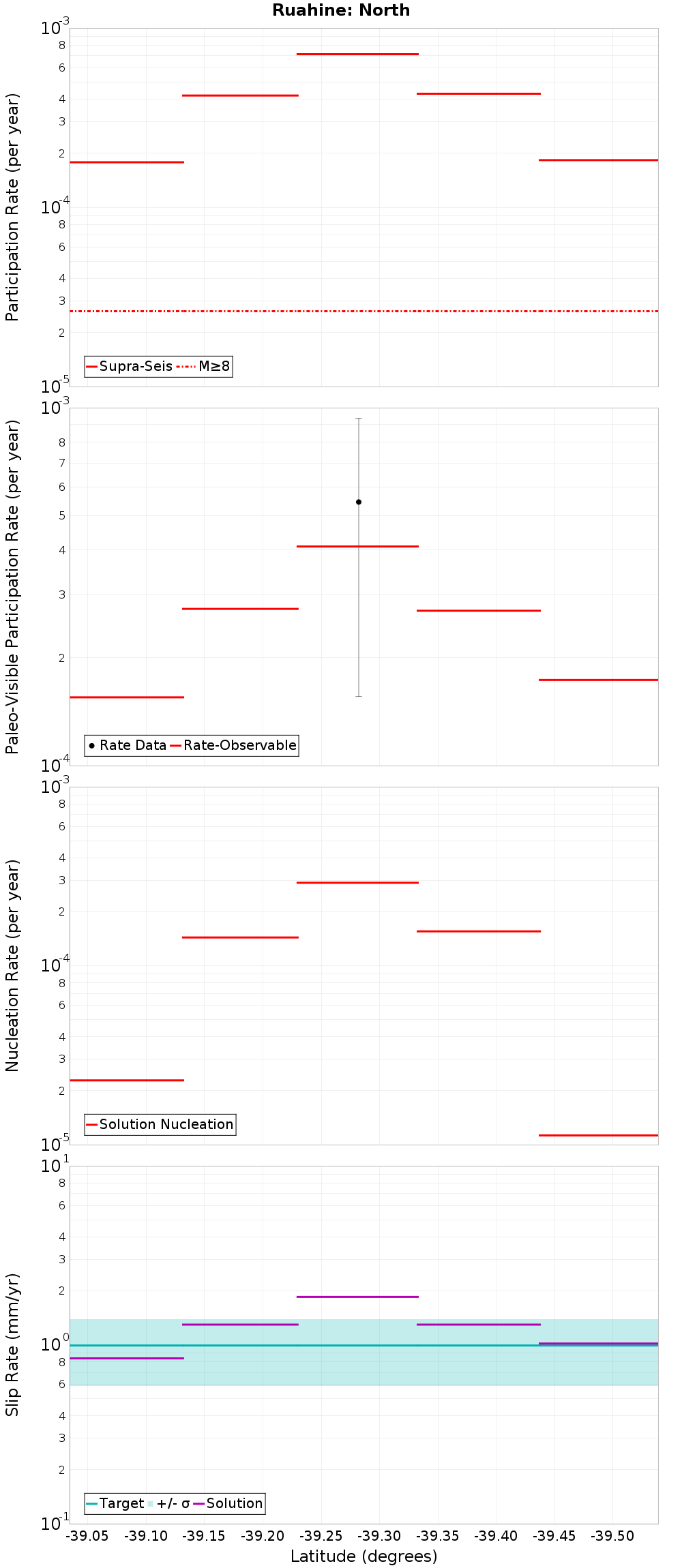

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waiohau: South, 0 km away
Ruahine: Central, 0 km away
Kaweka, 1.83 km away
Wheao: South, 2.63 km away
Mohaka: South, 4.35 km away
Wakarara, 4.93 km away
Mohaka: North, 5.2 km away
Patoka - Rangiora, 6.53 km away
Te Whaiti South, 9.06 km away
Whakatane: South, 11.52 km away
Waimana: South, 11.54 km away
Awanui, 14.79 km away

Waiohau: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMG00clR5
Connected?	true
Directly Connected?	true
Co-rupture Count	11,686
Co-rupture Rate	5.5177294E-5

Ruahine: Central, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMG00clR5
Connected?	true
Directly Connected?	true
Co-rupture Count	23,919
Co-rupture Rate	1.2499199E-4

Kaweka, 1.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMG00clR5
Connected?	true
Directly Connected?	true
Co-rupture Count	281
Co-rupture Rate	9.439685E-5

Wheao: South, 2.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMG00clR5
Connected?	true
Directly Connected?	true
Co-rupture Count	13,372
Co-rupture Rate	3.5815E-5

Mohaka: South, 4.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMG00clR5
Connected?	true
Directly Connected?	true
Co-rupture Count	6,781
Co-rupture Rate	1.10848905E-5

Wakarara, 4.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMG00clR5
Connected?	true
Directly Connected?	true
Co-rupture Count	184
Co-rupture Rate	0.0

Mohaka: North, 5.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMG00clR5
Connected?	true
Directly Connected?	false
Co-rupture Count	313
Co-rupture Rate	0.0

Patoka - Rangiora, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMG00clR5
Connected?	true
Directly Connected?	false
Co-rupture Count	26
Co-rupture Rate	0.0

Te Whaiti South, 9.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMG00clR5
Connected?	true
Directly Connected?	true
Co-rupture Count	9,777
Co-rupture Rate	6.551273E-5

Whakatane: South, 11.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMG00clR5
Connected?	true
Directly Connected?	false
Co-rupture Count	327
Co-rupture Rate	0.0

Waimana: South, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMG00clR5
Connected?	true
Directly Connected?	false
Co-rupture Count	121
Co-rupture Rate	0.0

Awanui, 14.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTIuMG00clR5
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	0.0
