Acton Details
| Property | Value |
|---|---|
| Rupture Count | 8 |
| Ruptures Above Sect Min Mag | 7 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [7.06, 7.97] |
| Length Range | [23, 197] km |
| Total Rate | 5.0893195E-5 /yr |
| Multi-Fault Rate | 7.877305E-6 /yr (15.48%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

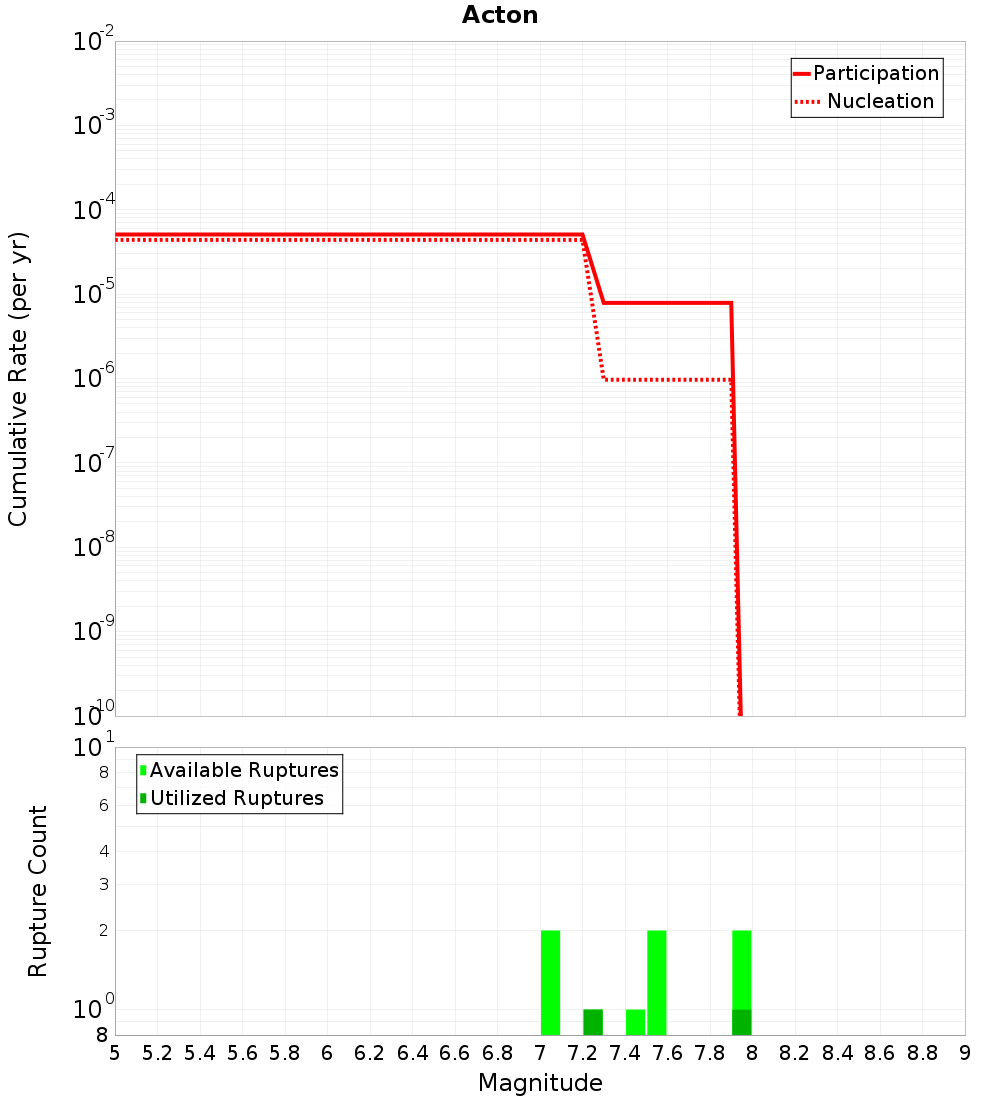

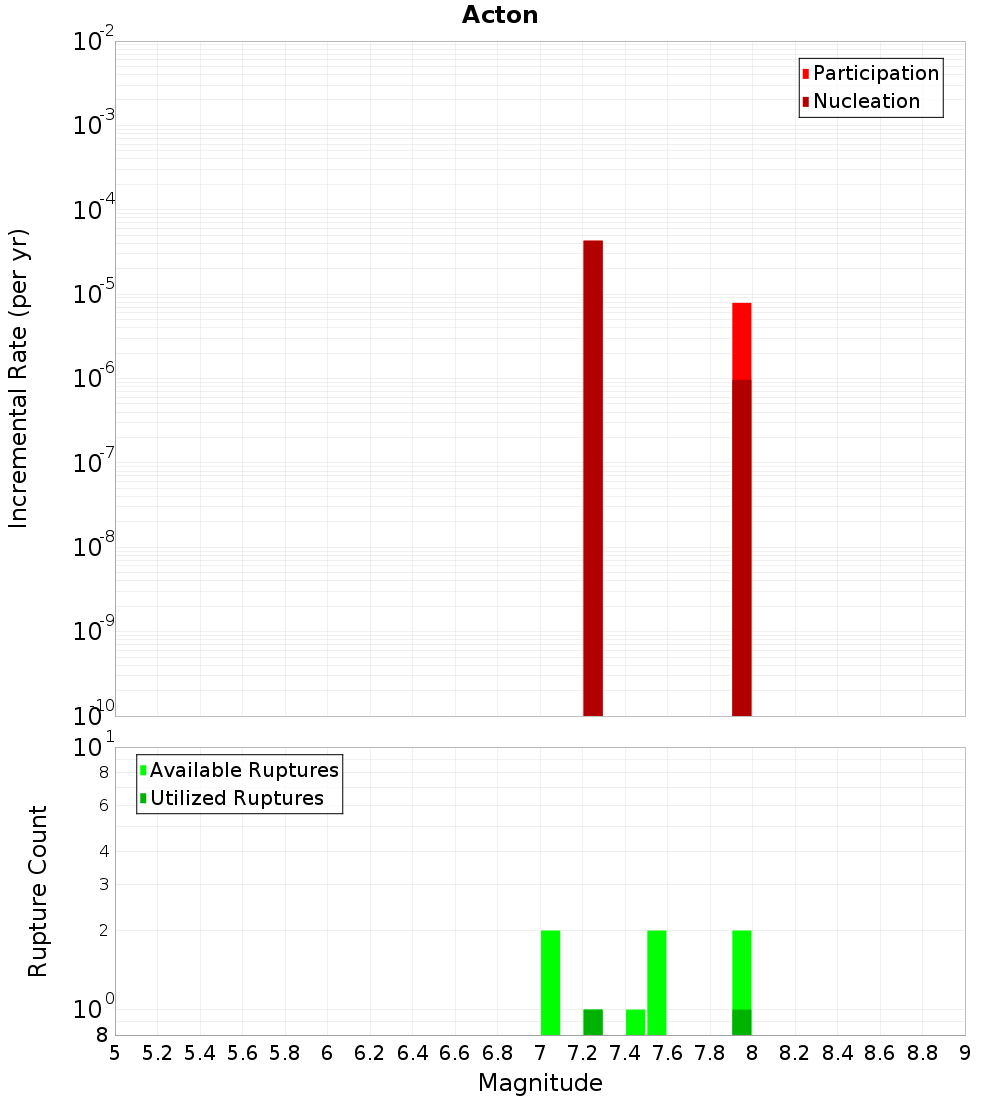

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

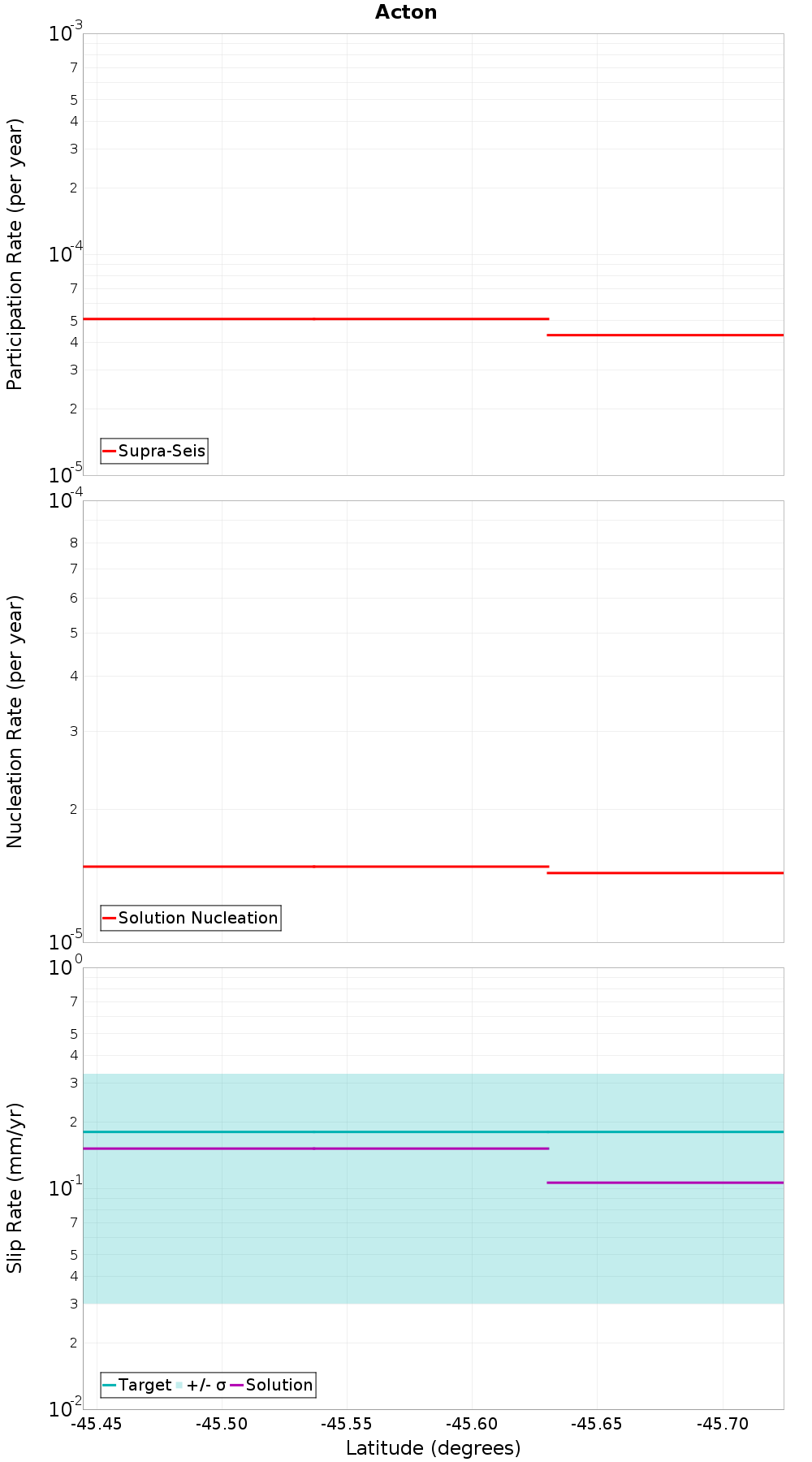

Along-Strike Values
Moment-Rates and b-Values

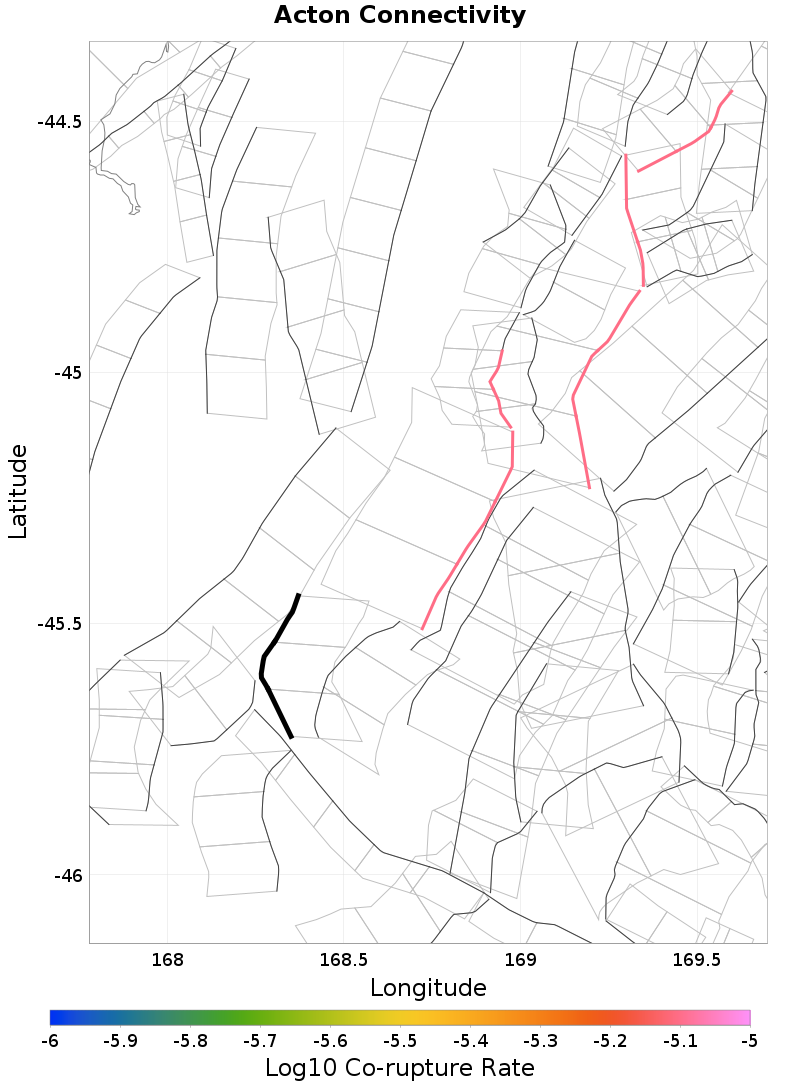

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Nevis, 0.96 km away |
| Mossburn, 1.57 km away |
| Hokonui, 1.83 km away |
| White Hill, 3.1 km away |
| Mid Dome, 3.22 km away |
| Moonlight South, 12 km away |
Nevis, 0.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 7.877305E-6 |
Mossburn, 1.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hokonui, 1.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Hill, 3.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mid Dome, 3.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Moonlight South, 12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
