Ariel Bank Details

PropertyValue
Rupture Count156
Ruptures Above Sect Min Mag150
Ruptures w/ Nonzero Rates8
Magnitude Range[6.49, 7.53]
Length Range[13, 136] km
Total Rate8.694134E-4 /yr
Multi-Fault Rate8.694134E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults8

Table Of Contents

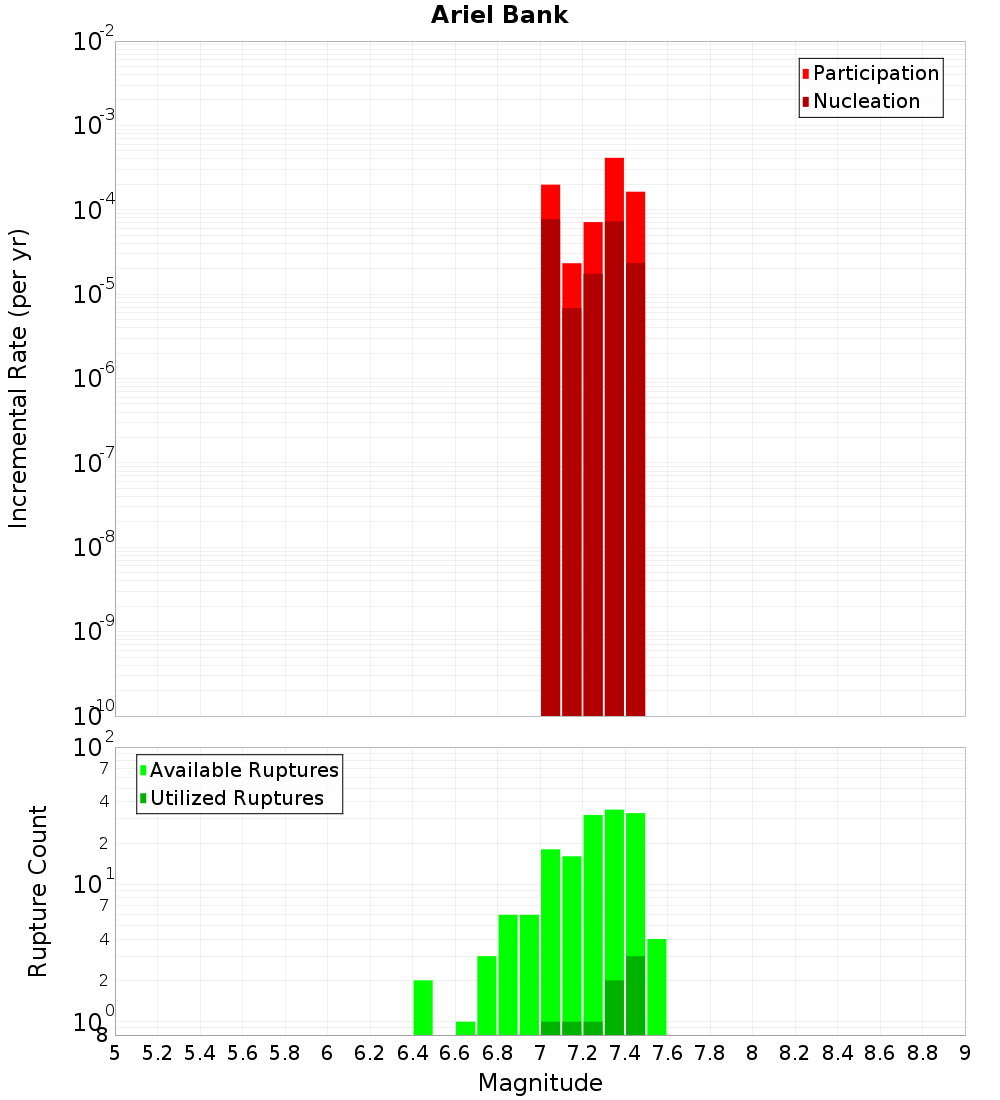

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Ikaarongamai, 0.33 km away
Ariel East, 0.42 km away
Gable End North, 2.26 km away
Lachlan 3, 6.74 km away
Gable End South, 7.12 km away
Poverty Bay, 8.84 km away
Pakarae, 10.5 km away
Ariel Bank 2, 17.07 km away

Te Ikaarongamai, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count33
Co-rupture Rate7.057543E-4

Ariel East, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count41
Co-rupture Rate5.326353E-5

Gable End North, 2.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count102
Co-rupture Rate1.6365905E-4

Lachlan 3, 6.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count94
Co-rupture Rate1.7380611E-4

Gable End South, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poverty Bay, 8.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Pakarae, 10.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ariel Bank 2, 17.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate7.1885023E-4
