Leithfield - NCVI - NCVII Details

Property	Value
Rupture Count	210
Ruptures Above Sect Min Mag	208
Ruptures w/ Nonzero Rates	6
Magnitude Range	[6.89, 7.94]
Length Range	[21, 255] km
Total Rate	8.824134E-5 /yr
Multi-Fault Rate	8.824134E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	21

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

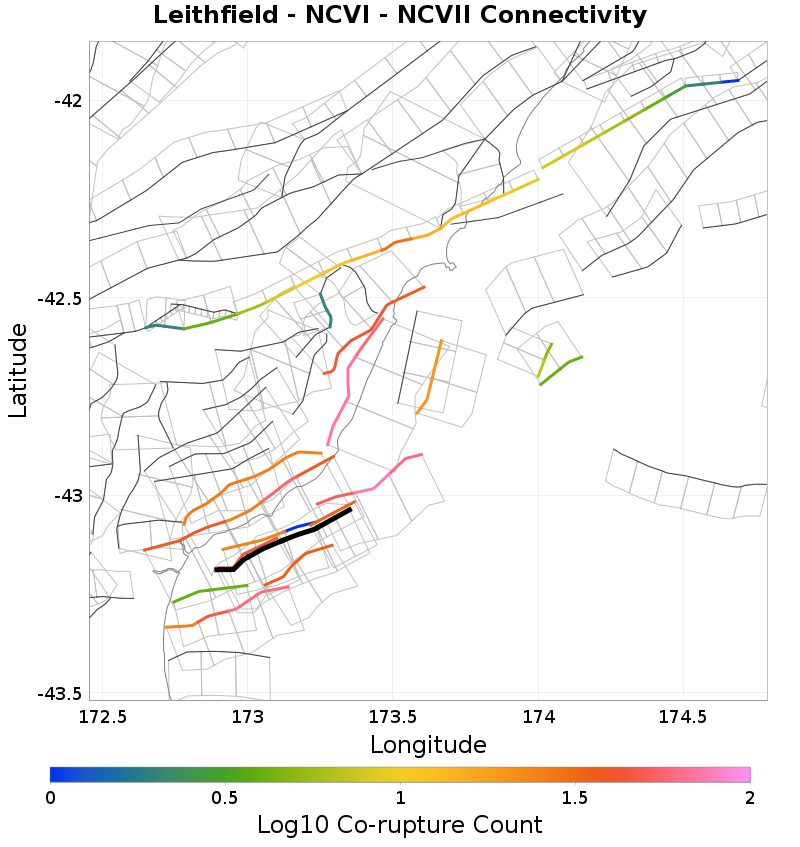

Connectivity

Nearby Sections

Fault Section
North Canterbury Shelf 2, 0.39 km away
North Canterbury Shelf 11, 1.09 km away
Motunau, 1.35 km away
Point Gibson, 3.67 km away
Waikuku, 4.12 km away
North Canterbury Shelf 4, 4.47 km away
AmberBlyth, 4.61 km away
Pegasus Bay, 7.75 km away
OmihiLwrHuru, 10.66 km away
Boby Stream, 15.82 km away
Hawkswood, 17.16 km away
Kaiwara South, 17.66 km away
CenPeg1n2, 19.55 km away

North Canterbury Shelf 2, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	43
Co-rupture Rate	2.6906031E-5

North Canterbury Shelf 11, 1.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	33
Co-rupture Rate	8.533274E-6

Motunau, 1.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	25
Co-rupture Rate	0.0

Point Gibson, 3.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	75
Co-rupture Rate	8.949033E-7

Waikuku, 4.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0

North Canterbury Shelf 4, 4.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	36
Co-rupture Rate	2.6316156E-6

AmberBlyth, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	79
Co-rupture Rate	7.125181E-5

Pegasus Bay, 7.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	61
Co-rupture Rate	4.4345776E-5

OmihiLwrHuru, 10.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	26
Co-rupture Rate	1.609463E-5

Boby Stream, 15.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawkswood, 17.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	false
Co-rupture Count	69
Co-rupture Rate	7.7076445E-5

Kaiwara South, 17.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

CenPeg1n2, 19.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
