Lyell South Details

PropertyValue
Rupture Count564
Ruptures Above Sect Min Mag559
Ruptures w/ Nonzero Rates6
Magnitude Range[6.80, 8.16]
Length Range[19, 431] km
Total Rate1.22881E-4 /yr
Multi-Fault Rate1.22881E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults34

Table Of Contents

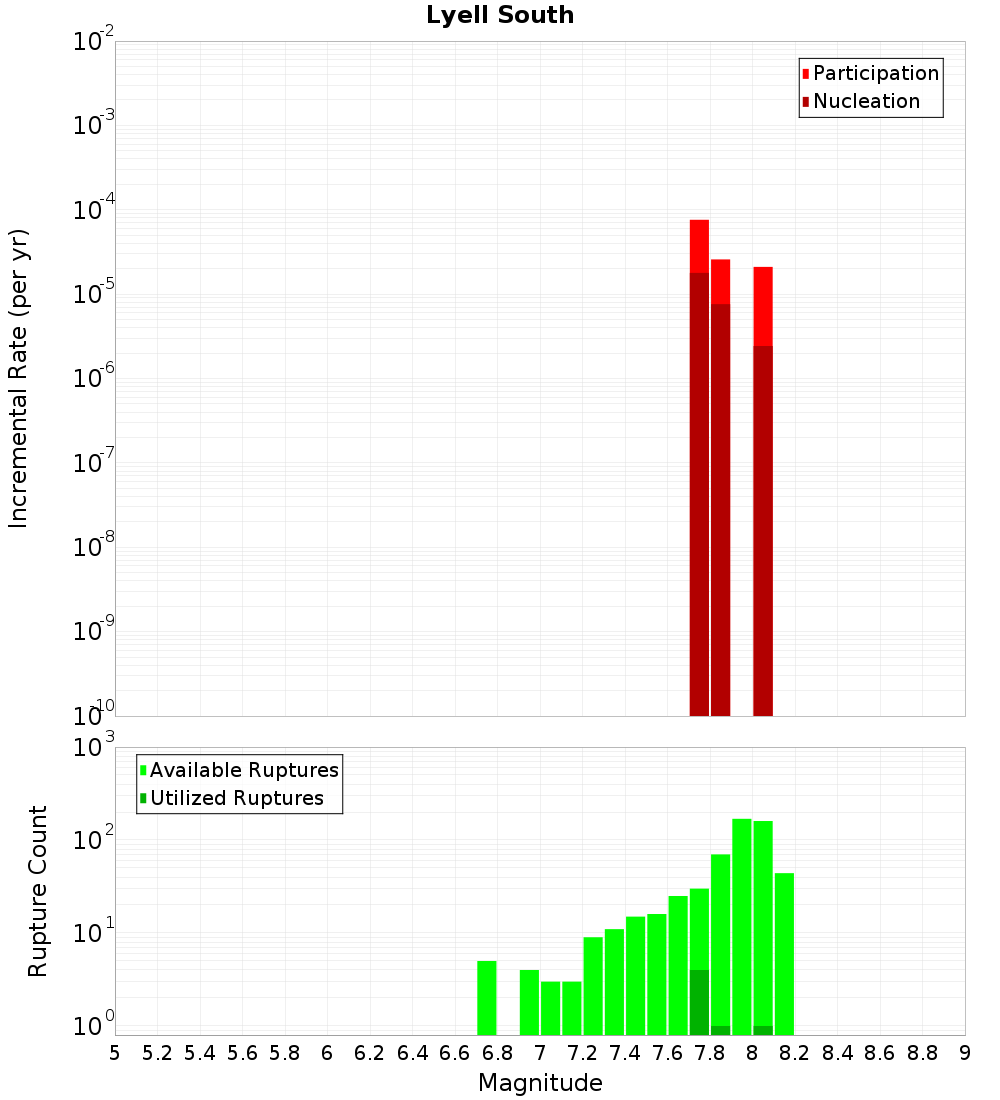

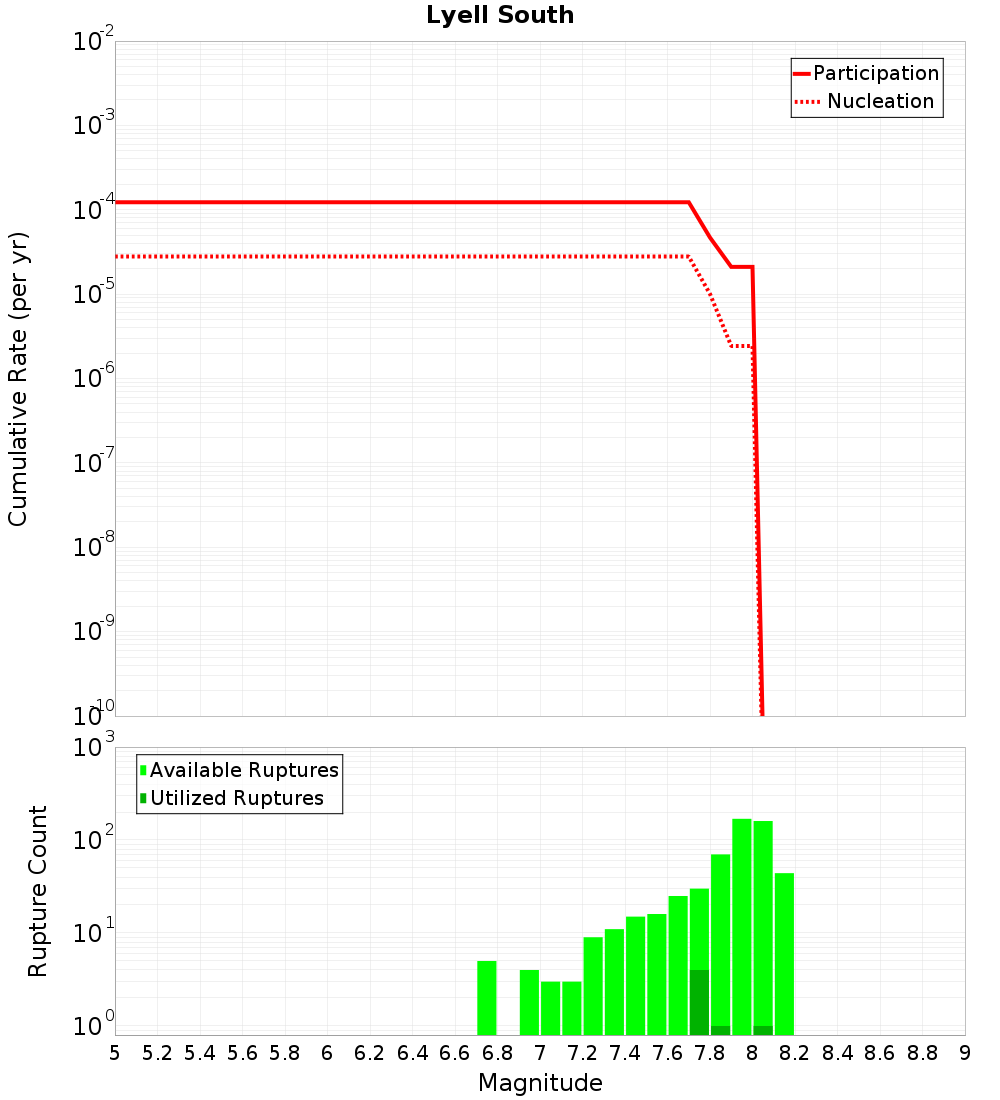

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

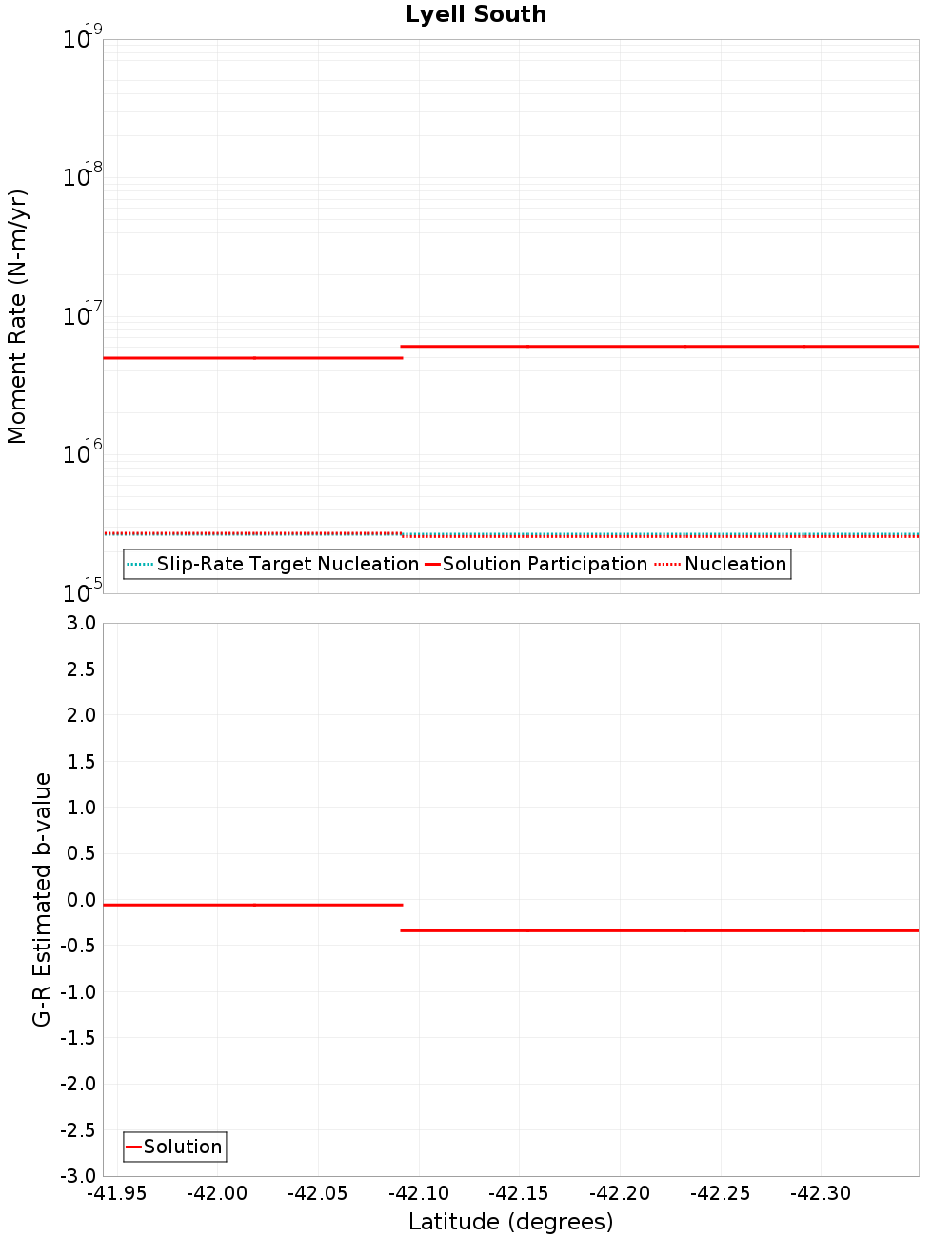

Moment-Rates and b-Values

(top)

Along-strike plot

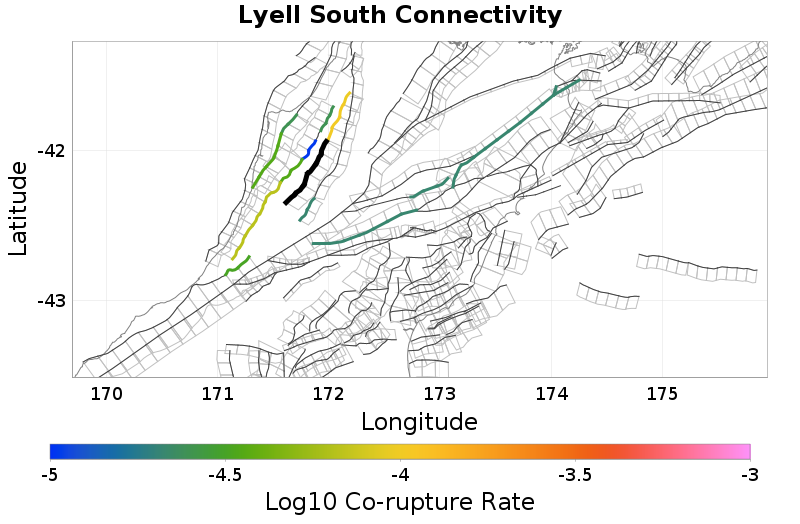

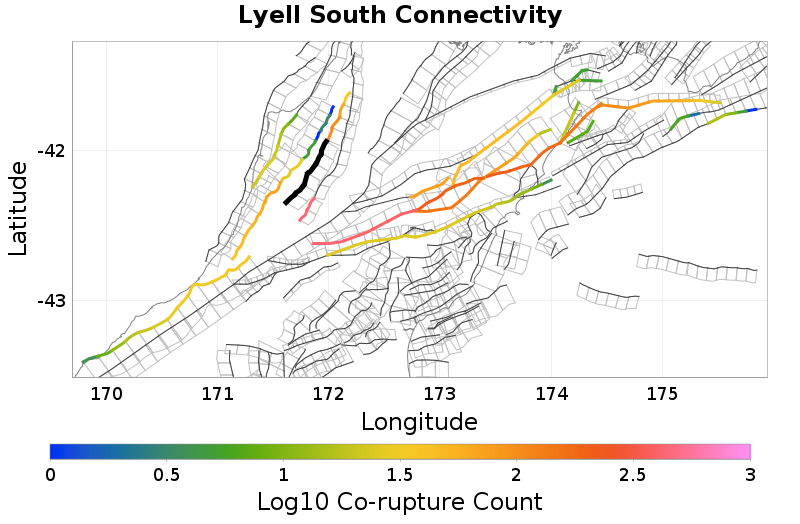

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Lyell, 1.51 km away
White Creek, 6.33 km away
Maimai: North, 7.01 km away
White Creek - buried, 7.41 km away
Inangahua, 9 km away
Maimai, 9.15 km away
Maimai: South, 11.17 km away
Clarence: Southwest, 19.5 km away

Lyell, 1.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count104
Co-rupture Rate1.0184815E-4

White Creek, 6.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai: North, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate1.0391264E-5

White Creek - buried, 7.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count436
Co-rupture Rate2.1032858E-5

Inangahua, 9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate2.469878E-5

Maimai, 9.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate3.5090045E-5

Maimai: South, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate6.6758104E-5

Clarence: Southwest, 19.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count432
Co-rupture Rate2.1032858E-5
