Marlborough Slope 9 Details
| Property | Value |
|---|---|
| Rupture Count | 21 |
| Ruptures Above Sect Min Mag | 20 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.67, 7.73] |
| Length Range | [14, 134] km |
| Total Rate | 4.9326398E-5 /yr |
| Multi-Fault Rate | 4.9326398E-5 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

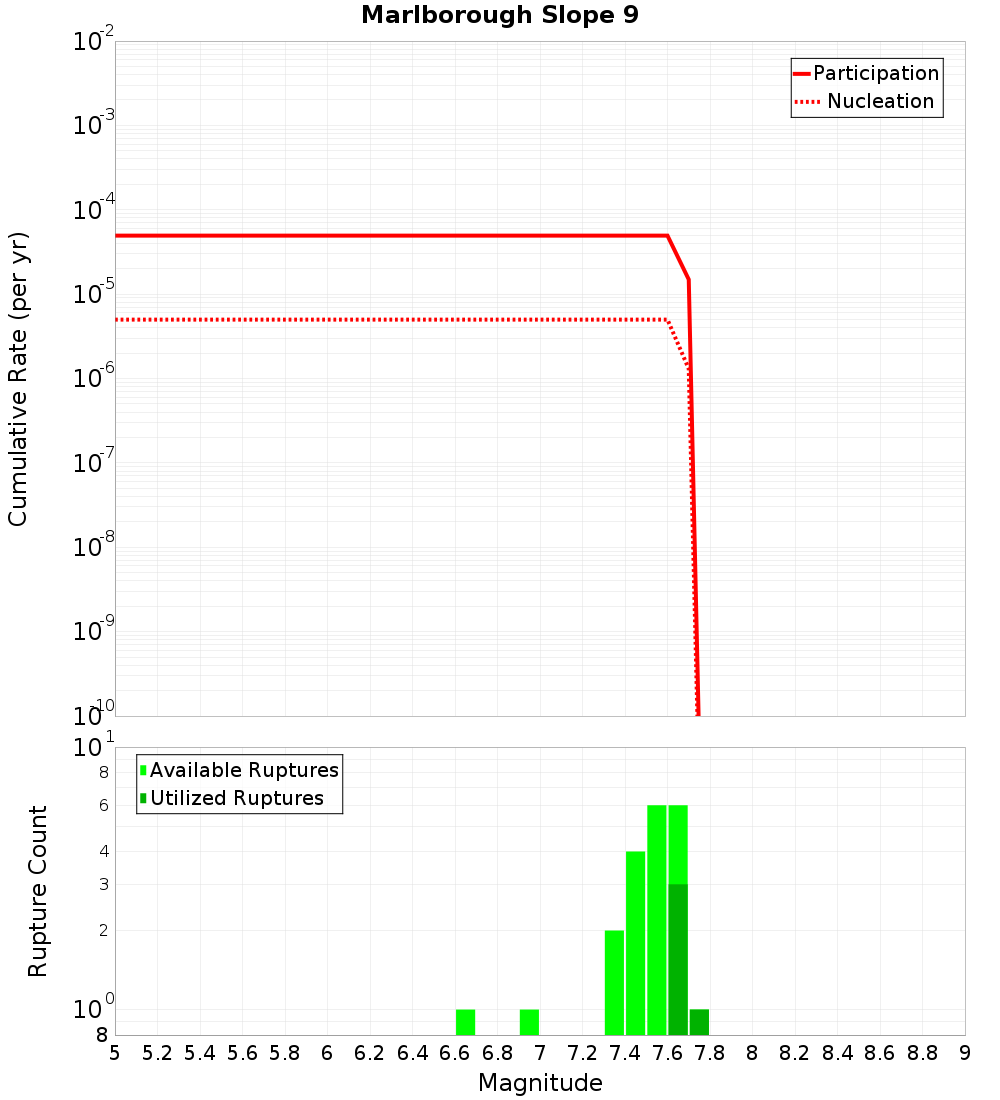

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

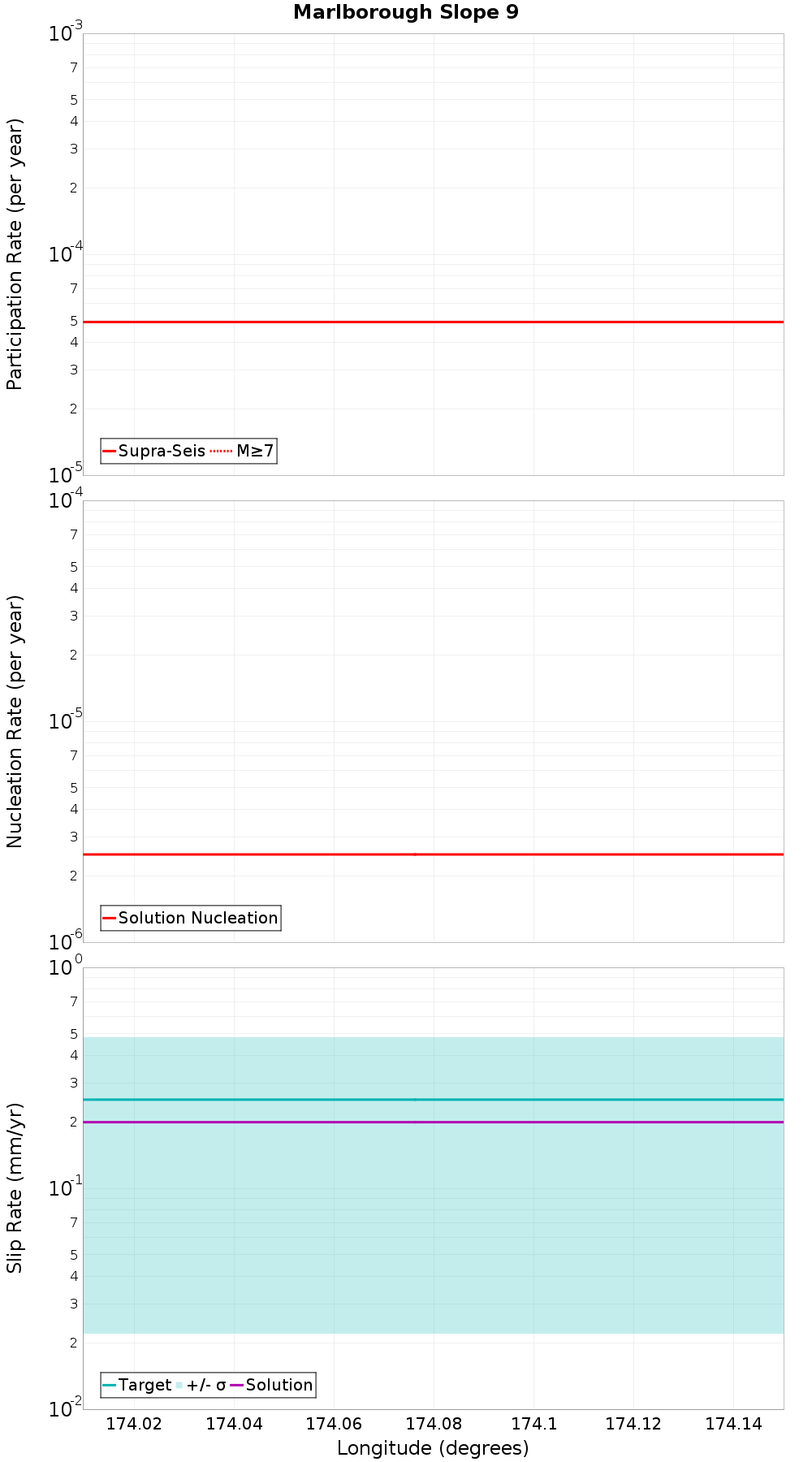

Along-Strike Values

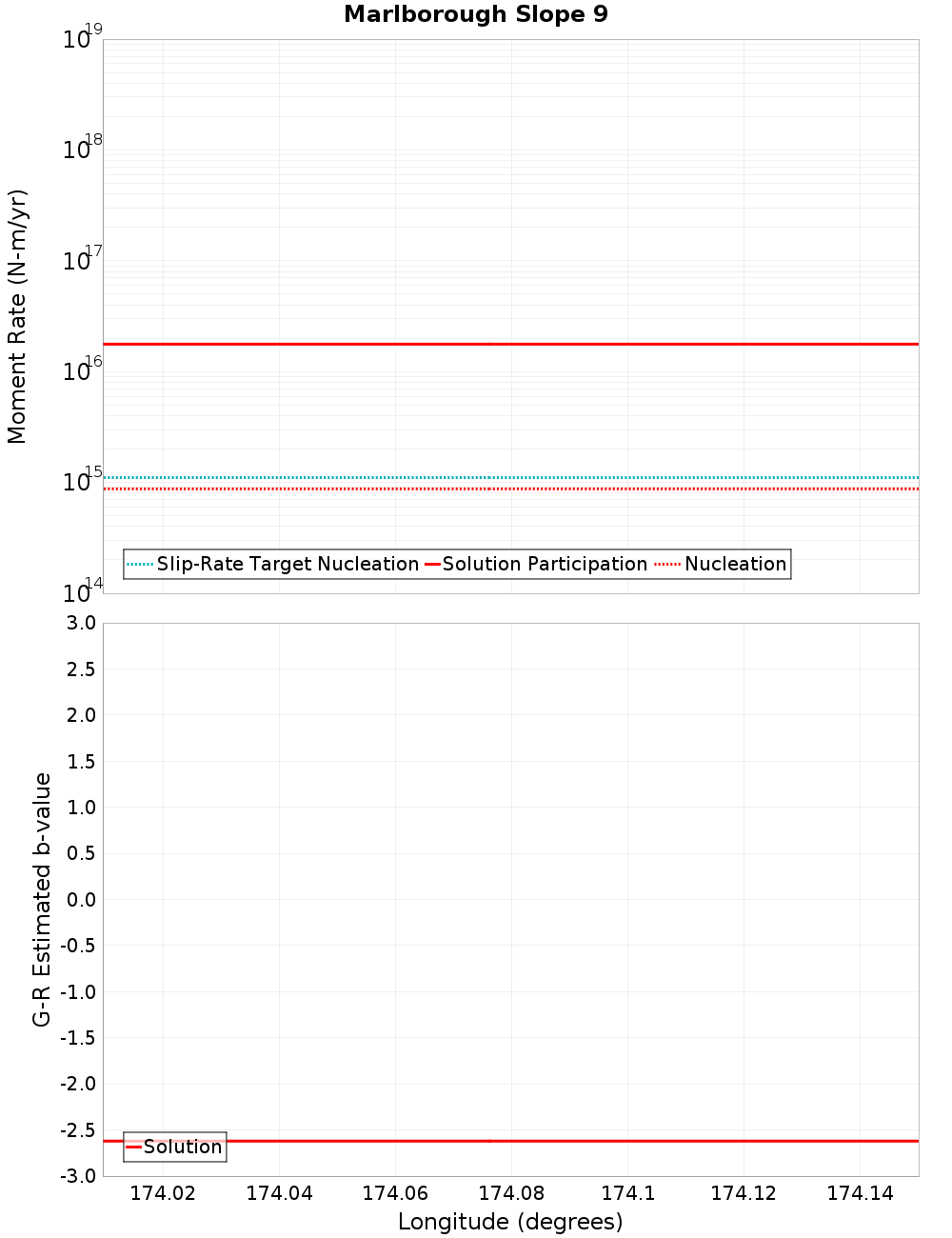

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Marlborough Slope 11, 1.66 km away |
| Conway Trough East, 9.04 km away |
| Marlborough Slope 2, 13.95 km away |
| Conway Trough West, 16.85 km away |
| Hawkswood, 19.26 km away |
Marlborough Slope 11, 1.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 20 |
| Co-rupture Rate | 4.9326398E-5 |
Conway Trough East, 9.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 19 |
| Co-rupture Rate | 4.9326398E-5 |
Marlborough Slope 2, 13.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Conway Trough West, 16.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hawkswood, 19.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
