Murphys Creek Details

PropertyValue
Rupture Count110
Ruptures Above Sect Min Mag109
Ruptures w/ Nonzero Rates5
Magnitude Range[6.99, 8.02]
Length Range[22, 213] km
Total Rate1.266912E-5 /yr
Multi-Fault Rate1.266912E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults17

Table Of Contents

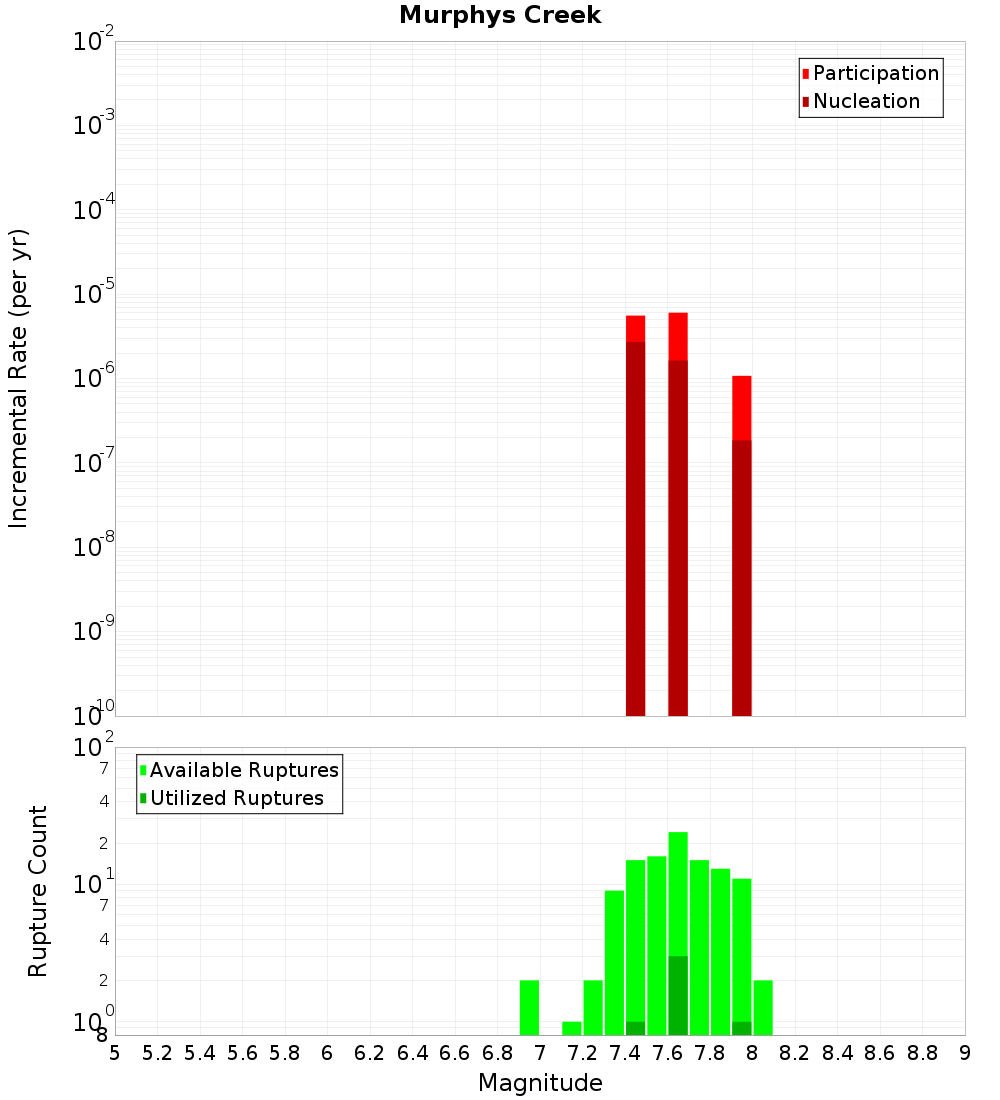

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

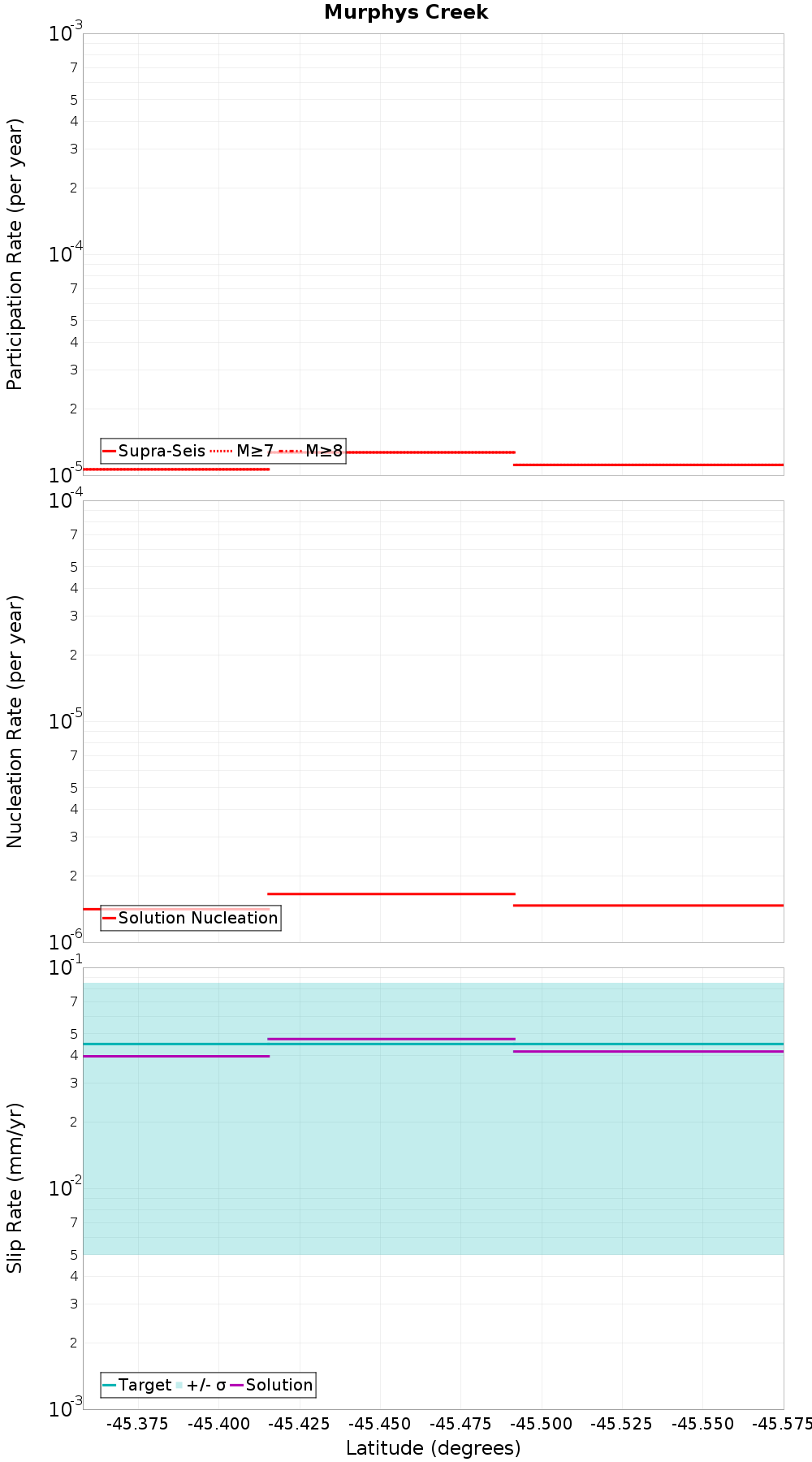

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

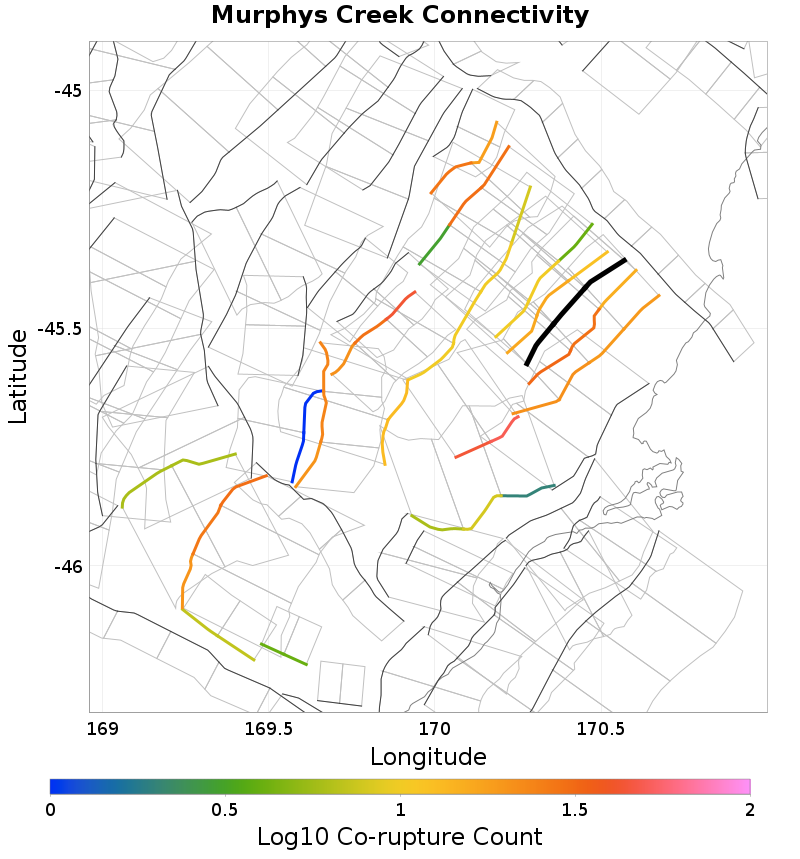

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waipiata, 0.26 km away
Ranfurly, 1.24 km away
Billys Ridge, 2.04 km away
Dunback Hill, 2.53 km away
Waihemo, 3.7 km away
Logan Burn, 4.91 km away
Horse Flat, 5.2 km away
Pylap, 6.11 km away
Flat Stream - Glenpark, 7.15 km away
Nichols Rock, 7.37 km away
Hyde North, 12.39 km away
Long Valley, 16.03 km away
Sliver Stream - Merton, 16.29 km away
Cross Eden, 16.73 km away
Maungatua - North Taieri, 19.42 km away

Waipiata, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate1.0759303E-6

Ranfurly, 1.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count28
Co-rupture Rate6.0275947E-6

Billys Ridge, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate4.4920116E-6

Dunback Hill, 2.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate1.5355832E-6

Waihemo, 3.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Logan Burn, 4.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count43
Co-rupture Rate3.979879E-6

Horse Flat, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate6.077728E-6

Pylap, 6.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Flat Stream - Glenpark, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate0.0

Nichols Rock, 7.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count50
Co-rupture Rate1.5355832E-6

Hyde North, 12.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate1.0759303E-6

Long Valley, 16.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sliver Stream - Merton, 16.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cross Eden, 16.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 19.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0
