South Wedge 3-6-10 Details

PropertyValue
Rupture Count10,399
Ruptures Above Sect Min Mag10,392
Ruptures w/ Nonzero Rates33
Magnitude Range[6.77, 8.49]
Length Range[19, 892] km
Total Rate4.82222E-4 /yr
Multi-Fault Rate4.82222E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults61

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

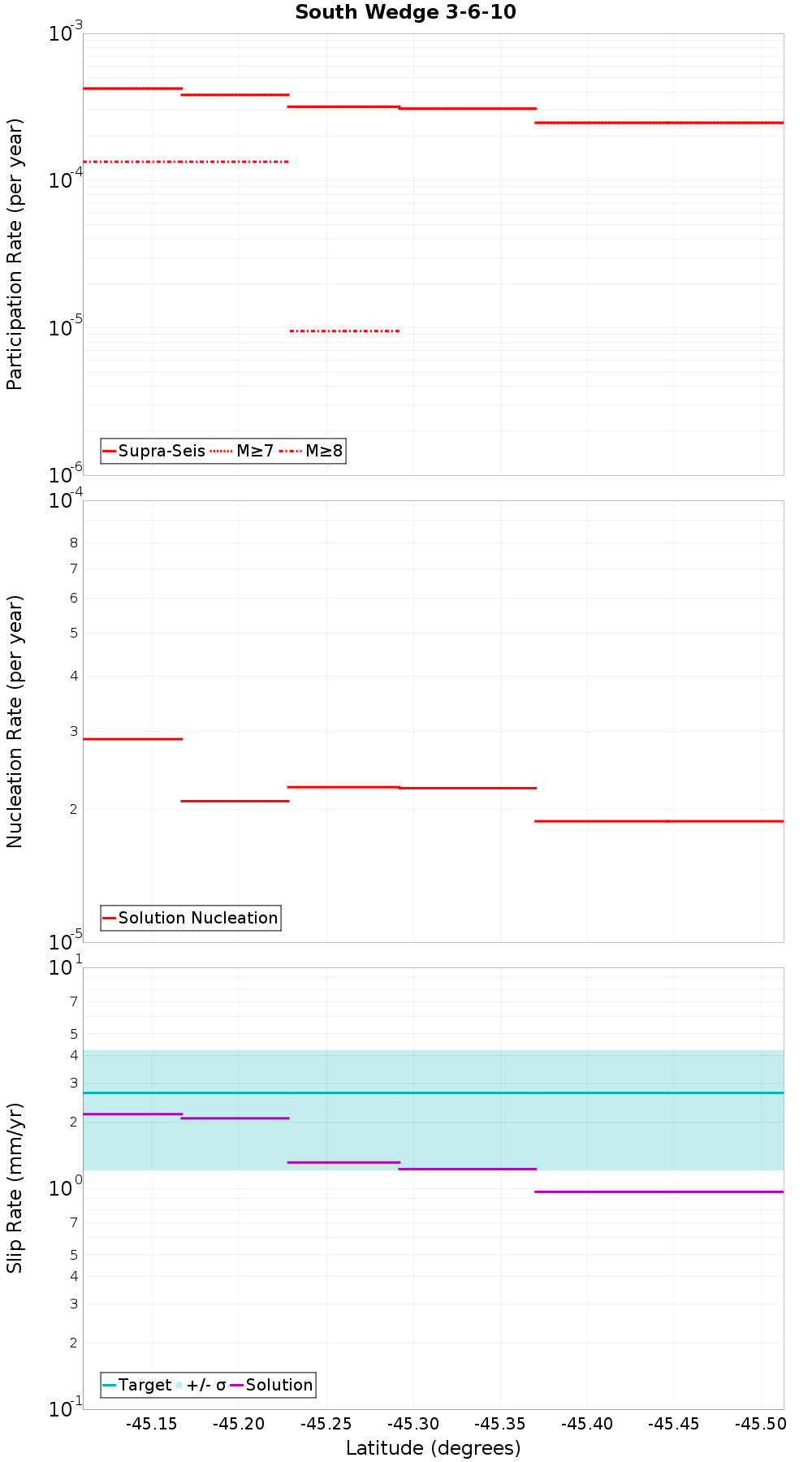

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

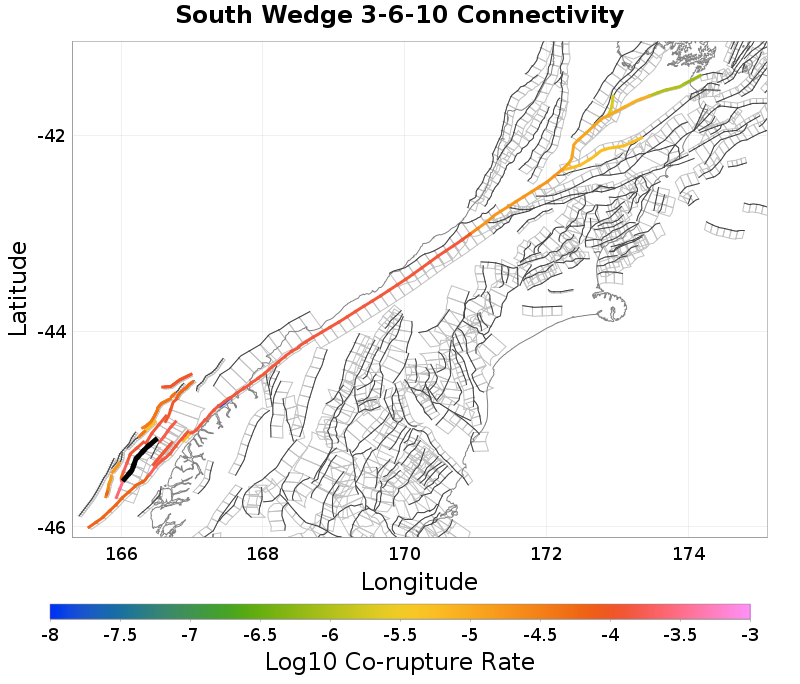

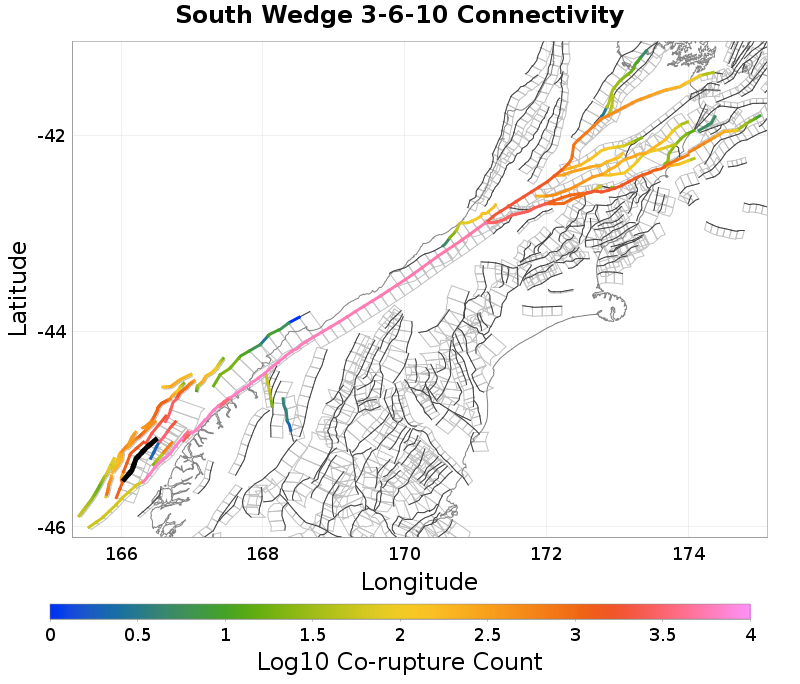

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Resolution - Five Fingers, 0.3 km away
South Wedge 5, 0.46 km away
Alpine: Resolution - Dagg, 1.76 km away
Central Wedge 4 - South Wedge 411, 1.81 km away
South Wedge 2, 2.13 km away
South Wedge 1, 4.1 km away
Caswell 211, 12.71 km away
Caswell High 5, 12.89 km away
Caswell High 3, 13.11 km away
Caswell High 4, 15.34 km away
Caswell High 67, 16.91 km away
Caswell High 1, 18.06 km away
Alpine: Nancy, 18.23 km away
Alpine: Resolution - Charles, 18.31 km away

Alpine: Resolution - Five Fingers, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count67
Co-rupture Rate6.083135E-5

South Wedge 5, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count2,519
Co-rupture Rate4.3266534E-4

Alpine: Resolution - Dagg, 1.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count6,579
Co-rupture Rate1.9500934E-4

Central Wedge 4 - South Wedge 411, 1.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count2,375
Co-rupture Rate1.2990835E-4

South Wedge 2, 2.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count3,154
Co-rupture Rate1.6470032E-4

South Wedge 1, 4.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count600
Co-rupture Rate1.2678199E-4

Caswell 211, 12.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count751
Co-rupture Rate6.0425427E-5

Caswell High 5, 12.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count1,416
Co-rupture Rate4.0039497E-5

Caswell High 3, 13.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count342
Co-rupture Rate1.6996788E-5

Caswell High 4, 15.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count619
Co-rupture Rate0.0

Caswell High 67, 16.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count1,348
Co-rupture Rate4.0039497E-5

Caswell High 1, 18.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count175
Co-rupture Rate0.0

Alpine: Nancy, 18.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count2,560
Co-rupture Rate5.5648793E-6

Alpine: Resolution - Charles, 18.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count3,997
Co-rupture Rate1.2861312E-4
