Tauranga Trough West 2 Details

PropertyValue
Rupture Count47
Ruptures Above Sect Min Mag45
Ruptures w/ Nonzero Rates7
Magnitude Range[6.80, 7.59]
Length Range[18, 106] km
Total Rate4.0445384E-4 /yr
Multi-Fault Rate4.0445384E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults8

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

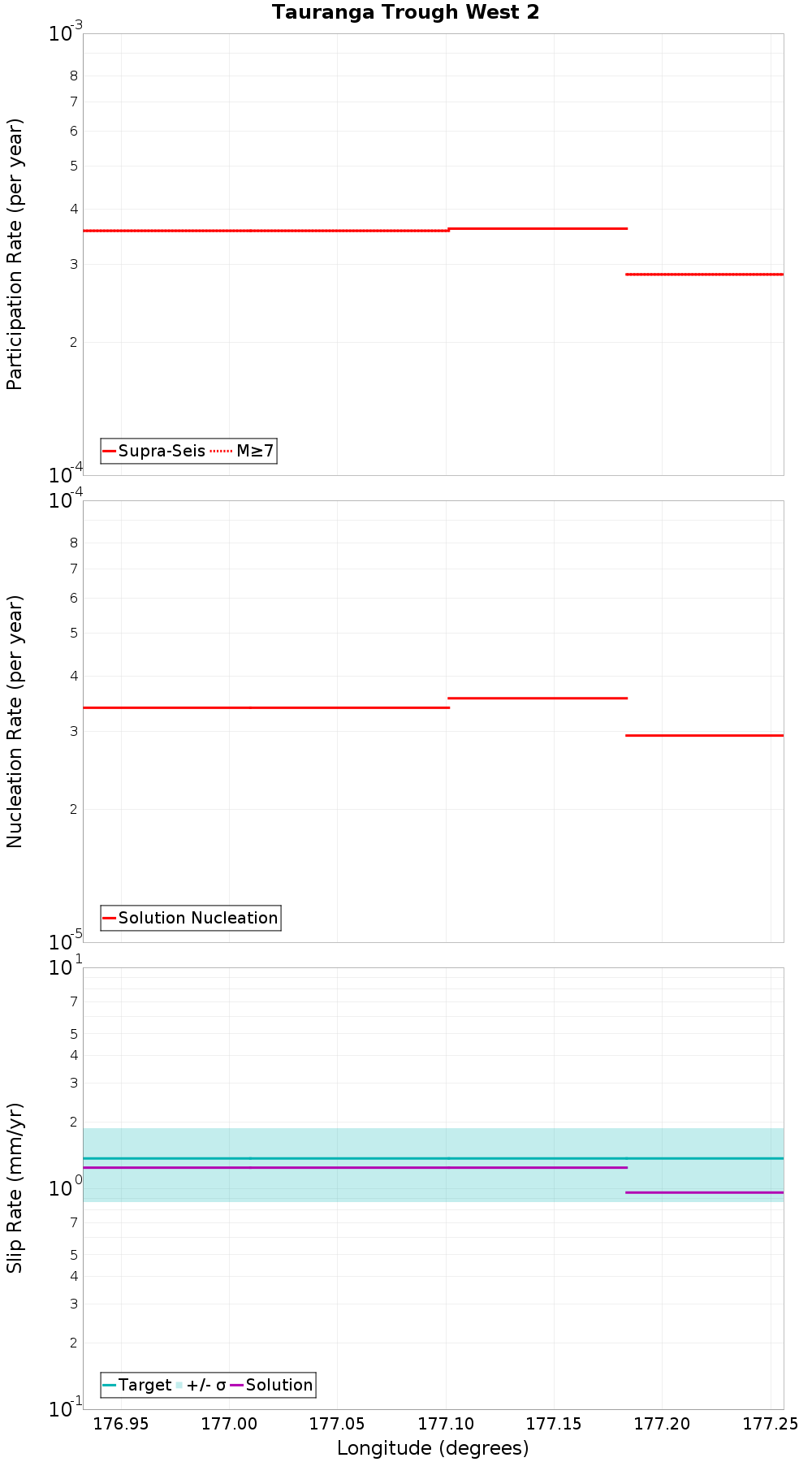

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

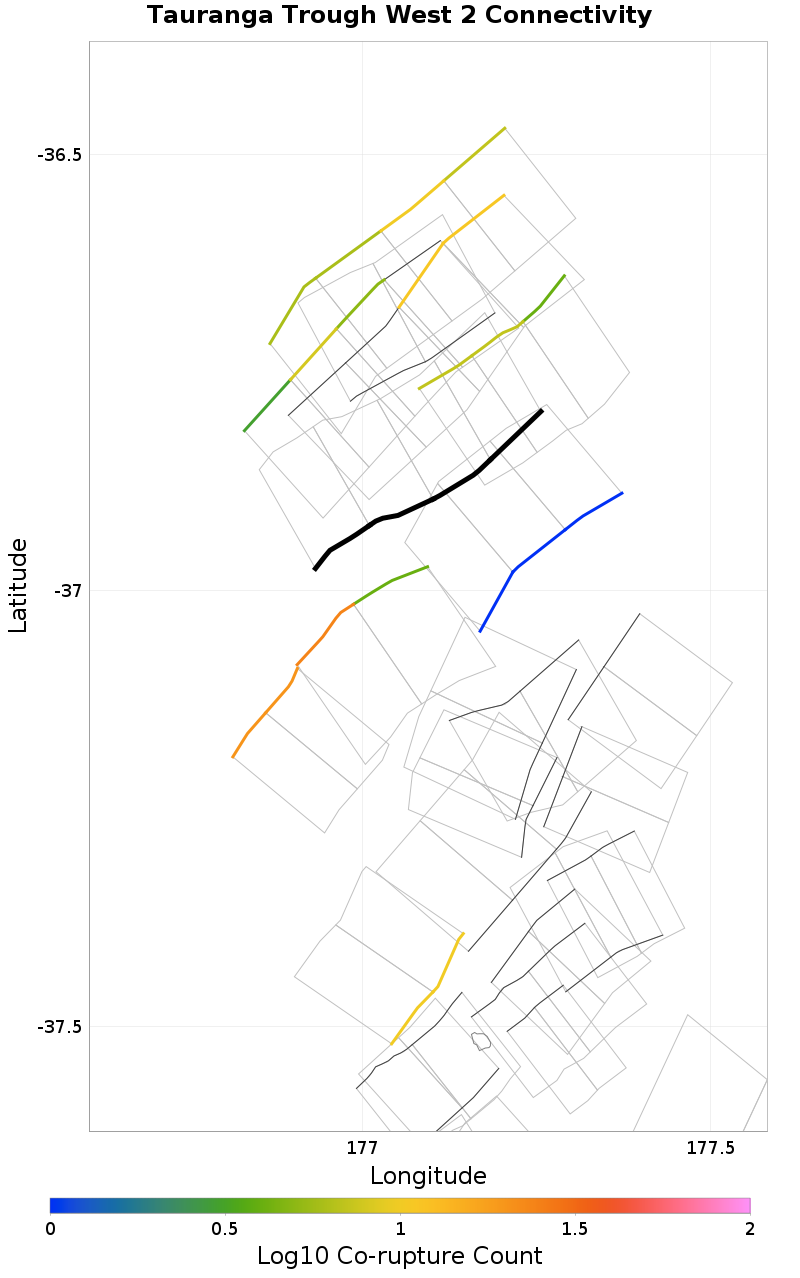

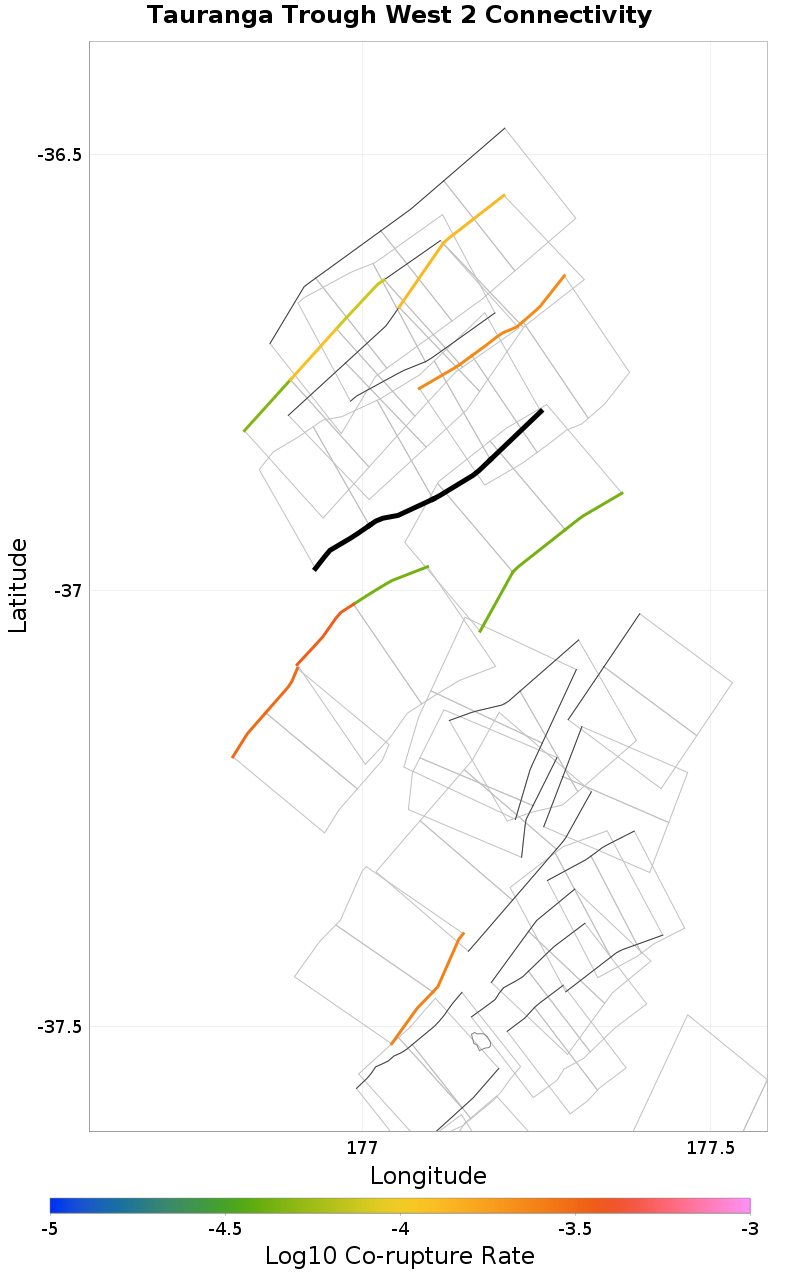

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ohena 3, 0.13 km away
Ngatoro South 2, 0.15 km away
Ohena 2, 0.21 km away
Ohena 4, 0.29 km away
Tuakana 7, 6.47 km away
Tauranga Trough East 2, 9.68 km away
Ngatoro South 5, 10.46 km away
Tuakana 6, 12.95 km away

Ohena 3, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate1.2376986E-4

Ngatoro South 2, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate2.2743022E-4

Ohena 2, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate1.3383183E-4

Ohena 4, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate0.0

Tuakana 7, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate3.542296E-4

Tauranga Trough East 2, 9.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate4.3191794E-5

Ngatoro South 5, 10.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuakana 6, 12.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate3.110378E-4
