Waiotahi: South Details

PropertyValue
Rupture Count6,482
Ruptures Above Sect Min Mag6,480
Ruptures w/ Nonzero Rates10
Magnitude Range[7.03, 8.26]
Length Range[26, 514] km
Total Rate3.3019937E-4 /yr
Multi-Fault Rate3.3019937E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults71

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

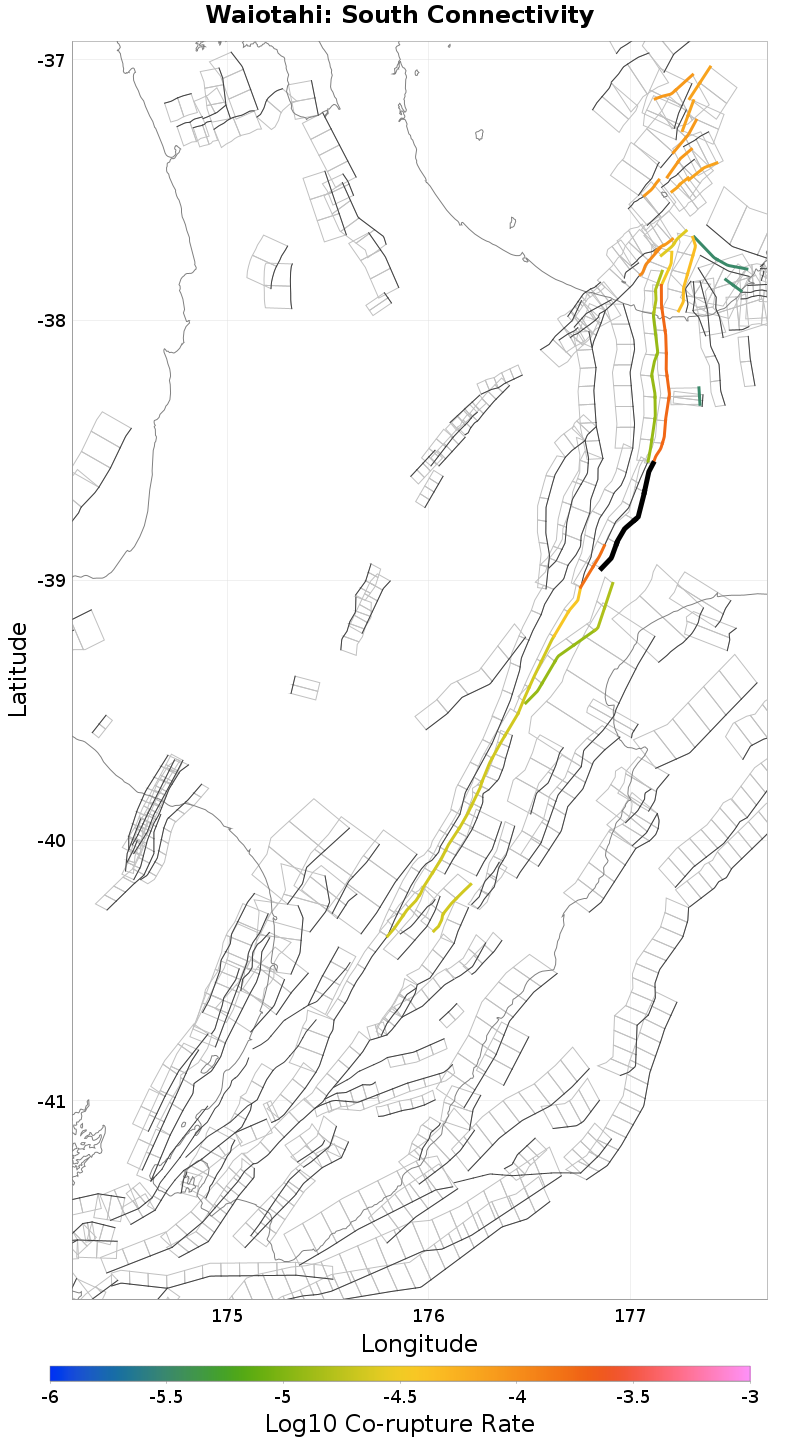

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waiotahi: North, 0 km away
Waimana: South, 2.17 km away
Waimana: North, 2.4 km away
Whakatane: South, 5.94 km away
Patoka - Rangiora, 7.71 km away
Whakatane: North, 10.84 km away
Mohaka: North, 11.46 km away
Waiohau: South, 12.2 km away
Awanui, 16.94 km away
Te Whaiti South, 18.53 km away

Waiotahi: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count4,207
Co-rupture Rate1.8202448E-4

Waimana: South, 2.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count1,859
Co-rupture Rate1.6093564E-4

Waimana: North, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count1,345
Co-rupture Rate1.5399852E-5

Whakatane: South, 5.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate0.0

Patoka - Rangiora, 7.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?false
Co-rupture Count82
Co-rupture Rate1.5381733E-5

Whakatane: North, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: North, 11.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?true
Directly Connected?true
Co-rupture Count6,231
Co-rupture Rate3.7110432E-5

Waiohau: South, 12.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awanui, 16.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Whaiti South, 18.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
