Waverley - Okaia 1 Details
| Property | Value |
|---|---|
| Rupture Count | 360 |
| Ruptures Above Sect Min Mag | 288 |
| Ruptures w/ Nonzero Rates | 14 |
| Magnitude Range | [6.29, 7.32] |
| Length Range | [11, 120] km |
| Total Rate | 3.2434724E-5 /yr |
| Multi-Fault Rate | 3.2434724E-5 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

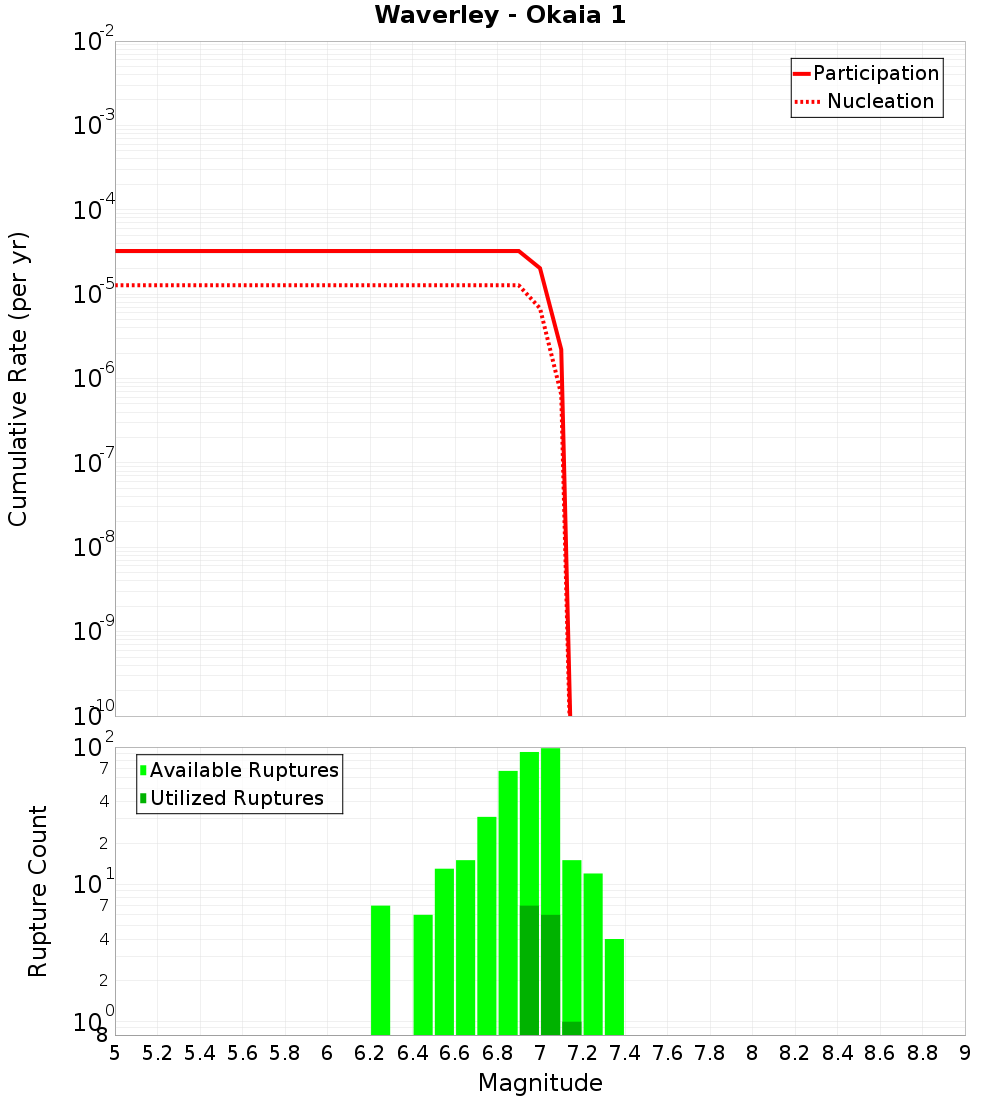

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

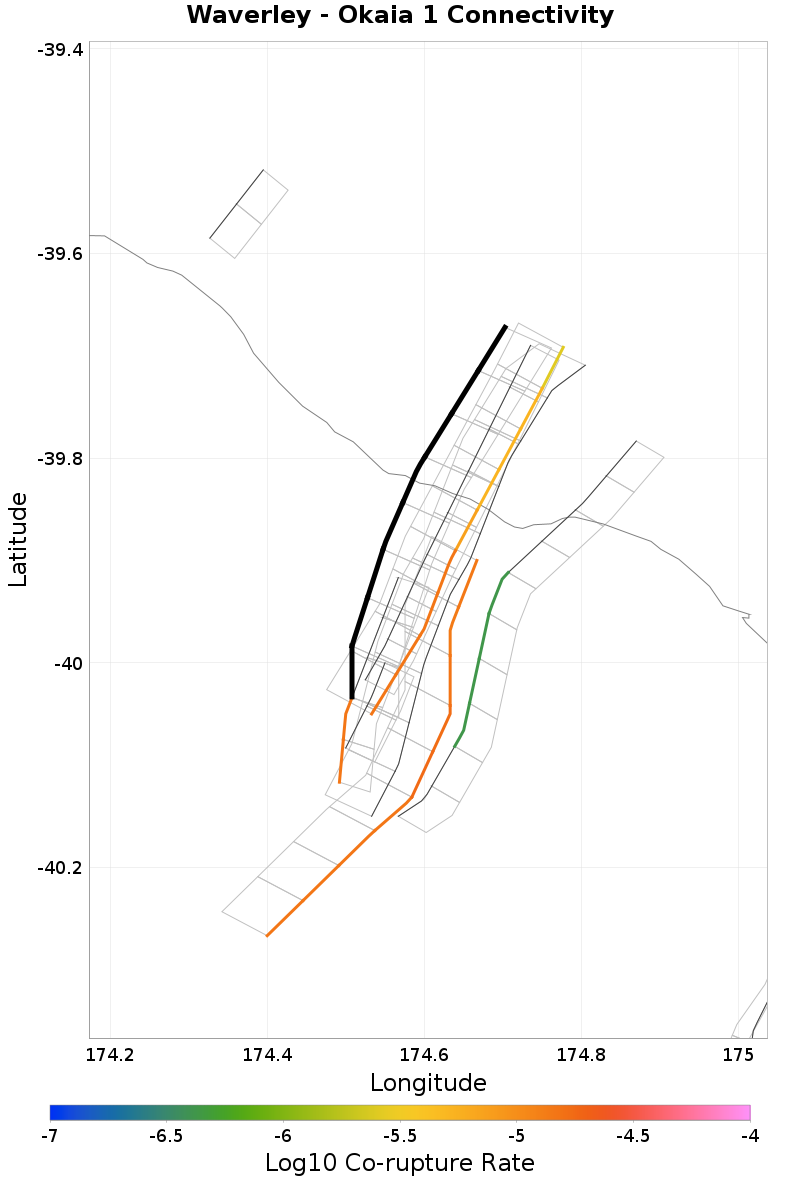

Connectivity
 |  |
|---|
Nearby Sections
Ridge Road - Okaia 2, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 101 |
| Co-rupture Rate | 1.45176255E-5 |
Okaia 5, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 105 |
| Co-rupture Rate | 1.45176255E-5 |
Waitotara 10 & 11, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 124 |
| Co-rupture Rate | 0.0 |
Waitotara 8 & 9, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 199 |
| Co-rupture Rate | 1.7917098E-5 |
Okaia 3, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 80 |
| Co-rupture Rate | 0.0 |
Moumahaki - Okaia 4, 0.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 39 |
| Co-rupture Rate | 0.0 |
Nukumuru - Waitotara 1-6, 9.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 25 |
| Co-rupture Rate | 4.191865E-7 |
