Wheao: South Details

Property	Value
Rupture Count	14,851
Ruptures Above Sect Min Mag	14,847
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.81, 8.32]
Length Range	[19, 602] km
Total Rate	4.216453E-5 /yr
Multi-Fault Rate	4.216453E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	87

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

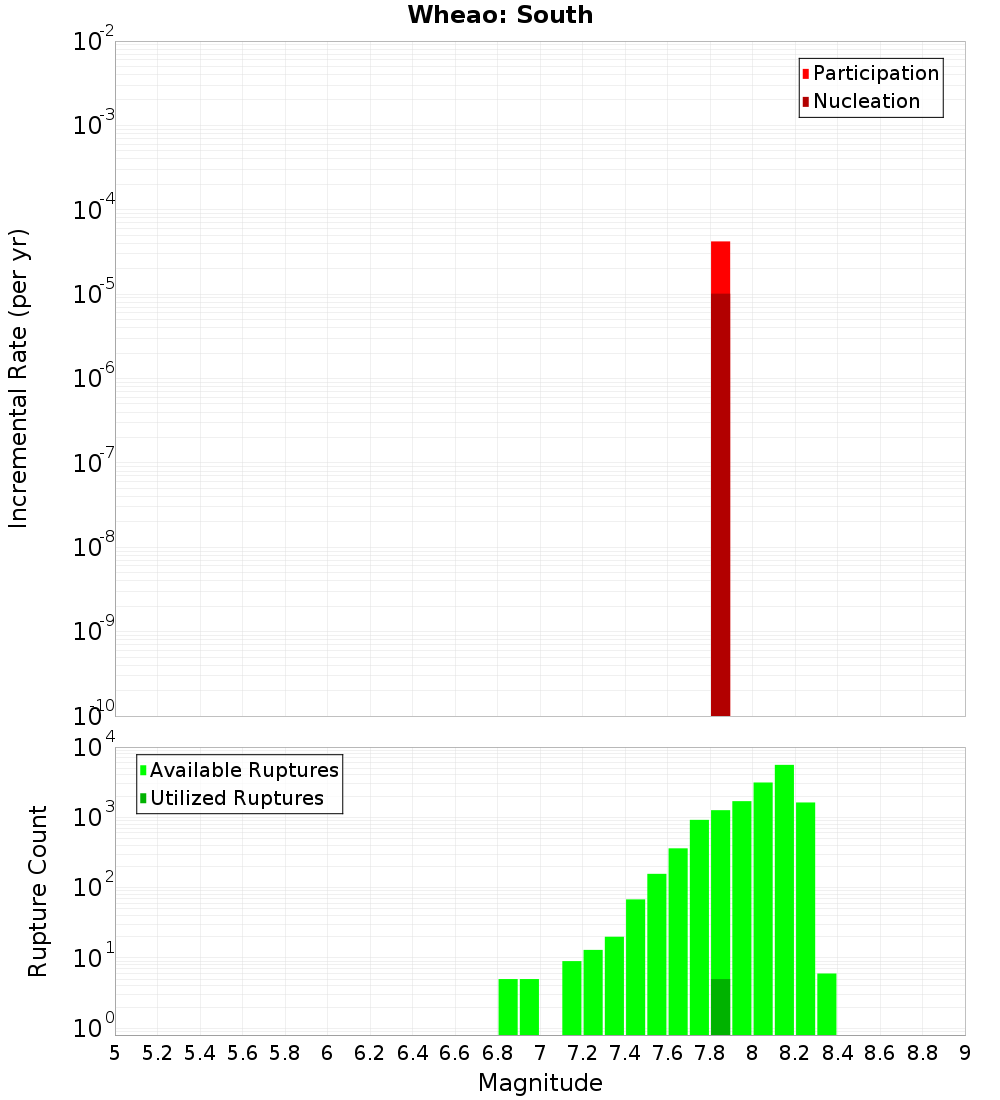

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wheao: North, 0 km away
Waiohau: South, 0.45 km away
Te Whaiti South, 0.47 km away
Ruahine: North, 2.63 km away
Te Whaiti North, 11.11 km away
Waiohau: North, 11.29 km away
Mohaka: North, 13.51 km away
Whakatane: South, 14.53 km away
Waimana: South, 14.54 km away
Kaweka, 18.96 km away

Wheao: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	10,868
Co-rupture Rate	3.5883022E-5

Waiohau: South, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Whaiti South, 0.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,545
Co-rupture Rate	6.28151E-6

Ruahine: North, 2.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	13,372
Co-rupture Rate	0.0

Te Whaiti North, 11.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	false
Co-rupture Count	147
Co-rupture Rate	0.0

Waiohau: North, 11.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	false
Co-rupture Count	12,572
Co-rupture Rate	4.216453E-5

Mohaka: North, 13.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	false
Co-rupture Count	86
Co-rupture Rate	0.0

Whakatane: South, 14.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimana: South, 14.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaweka, 18.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTMuMDh4OGs1
Connected?	true
Directly Connected?	false
Co-rupture Count	102
Co-rupture Rate	0.0
