Mt Sutton Details

PropertyValue
Rupture Count33
Ruptures Above Sect Min Mag32
Ruptures w/ Nonzero Rates4
Magnitude Range[6.89, 7.62]
Length Range[22, 124] km
Total Rate3.5478406E-5 /yr
Multi-Fault Rate3.5478406E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults11

Table Of Contents

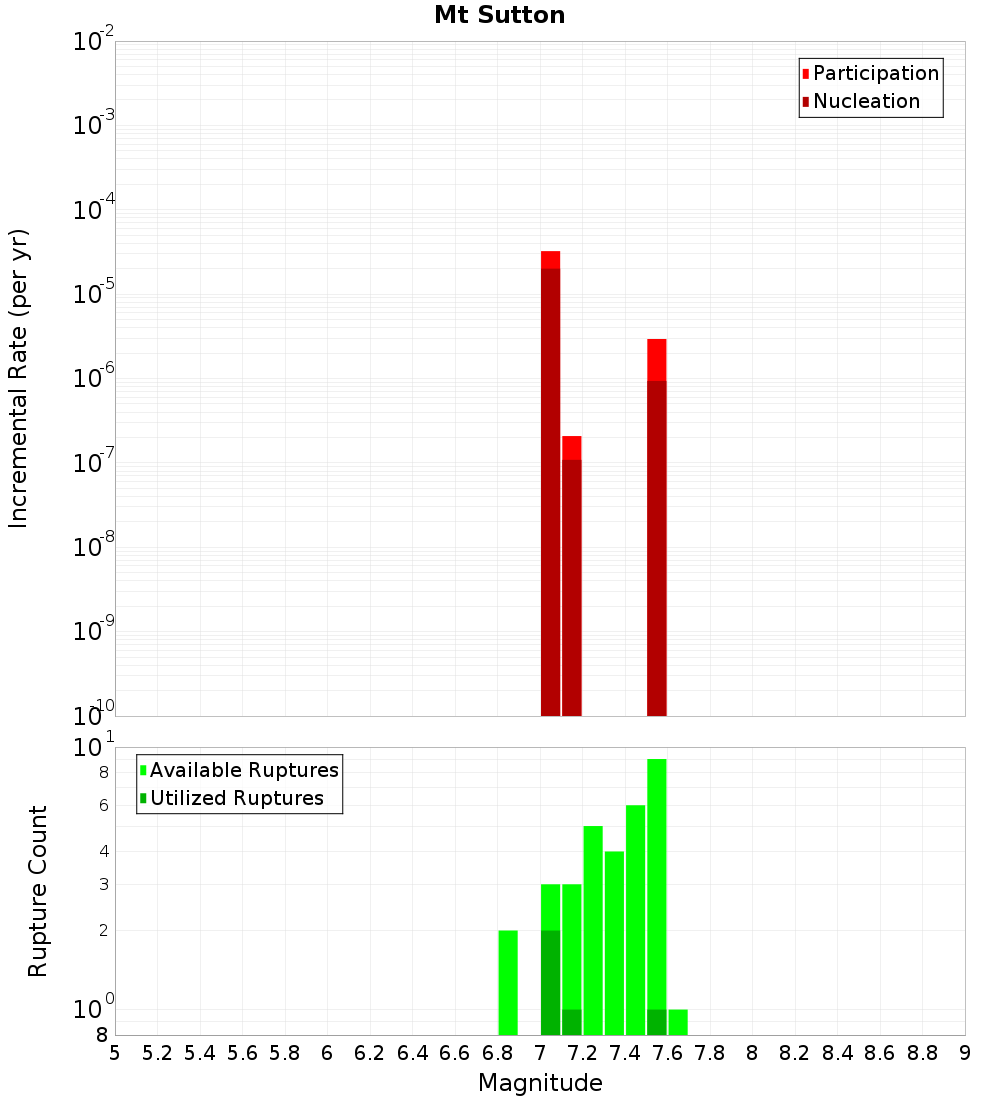

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

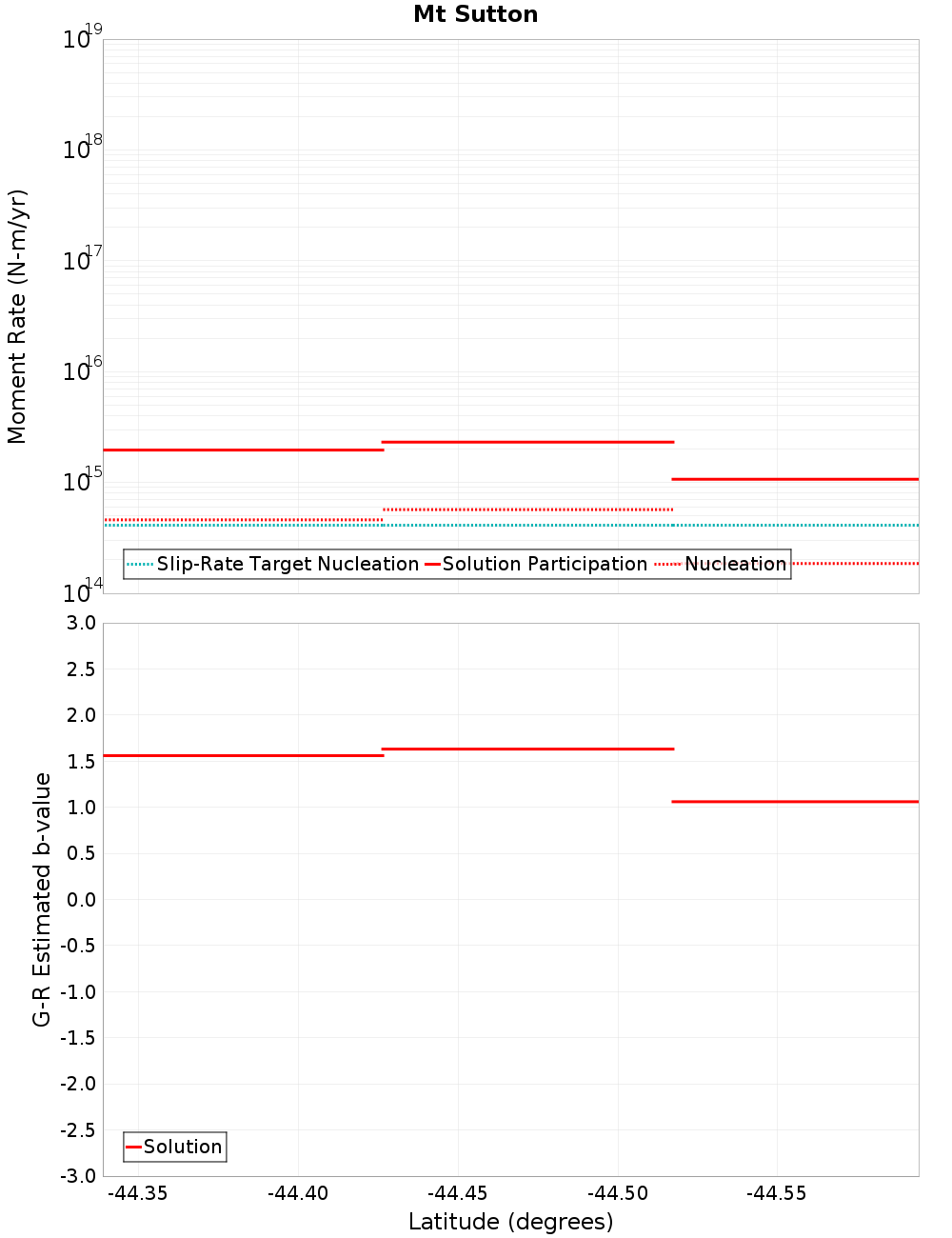

Moment-Rates and b-Values

(top)

Along-strike plot

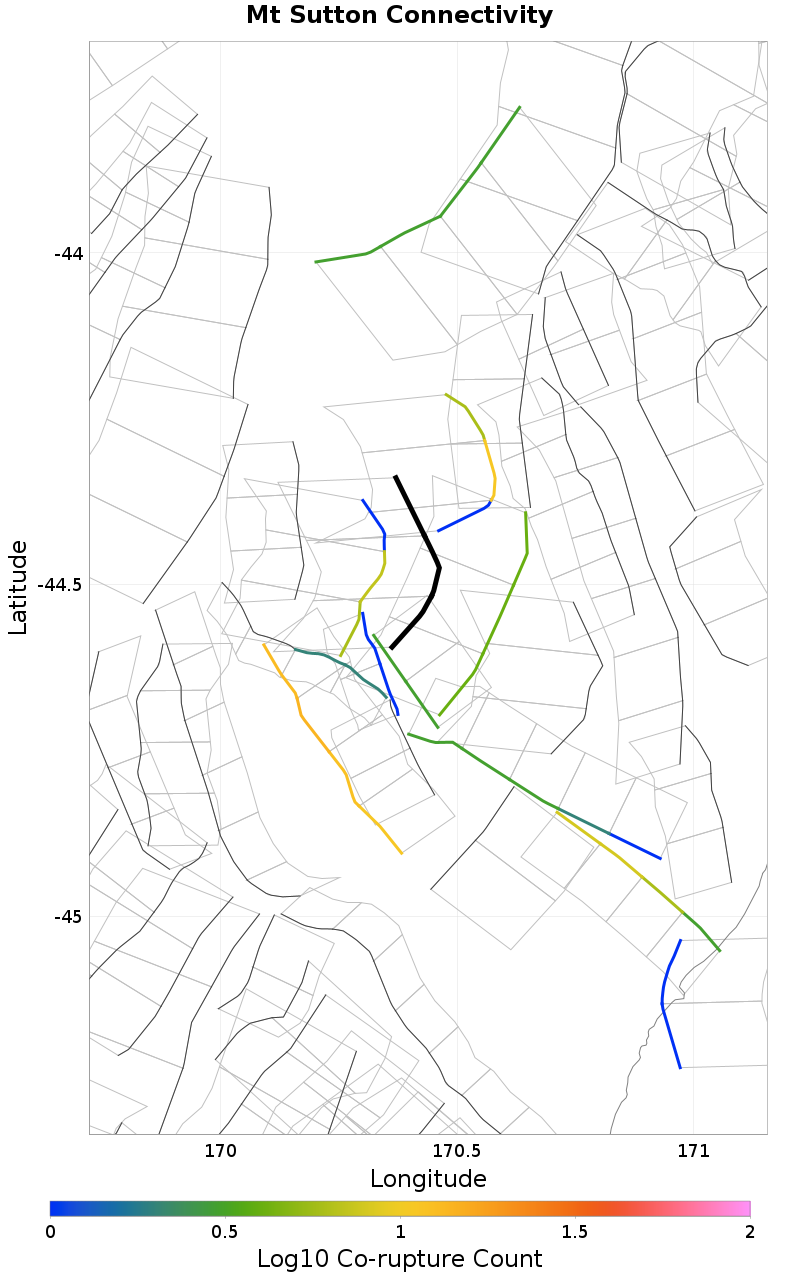

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Middle Range, 0.18 km away
Waitangi, 0.21 km away
Dryburgh, 0.34 km away
Grampian, 1.51 km away
Gibson, 2.84 km away
Fern Gully, 3.17 km away
Falstone, 6.94 km away
Omarama Saddle, 7.02 km away
Awahokomo, 8.83 km away
Kirkliston, 9.09 km away
Hawkdun, 9.31 km away
Stonewall, 13.56 km away
Dalgety, 16.01 km away
Campbell Hills, 16.31 km away
Ostler South, 19.97 km away

Middle Range, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate2.938655E-6

Waitangi, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate2.5290008E-5

Dryburgh, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

Grampian, 1.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate0.0

Gibson, 2.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate2.0791629E-7

Fern Gully, 3.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate7.0418264E-6

Falstone, 6.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Omarama Saddle, 7.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awahokomo, 8.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 9.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Hawkdun, 9.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Stonewall, 13.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Dalgety, 16.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Campbell Hills, 16.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler South, 19.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
