NW Cardrona South Details

Property	Value
Rupture Count	104
Ruptures Above Sect Min Mag	102
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.79, 7.96]
Length Range	[19, 251] km
Total Rate	1.4002522E-4 /yr
Multi-Fault Rate	9.9478806E-5 /yr (71.04%)
Directly-Connected Faults	2
All Co-Rupturing Faults	19

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

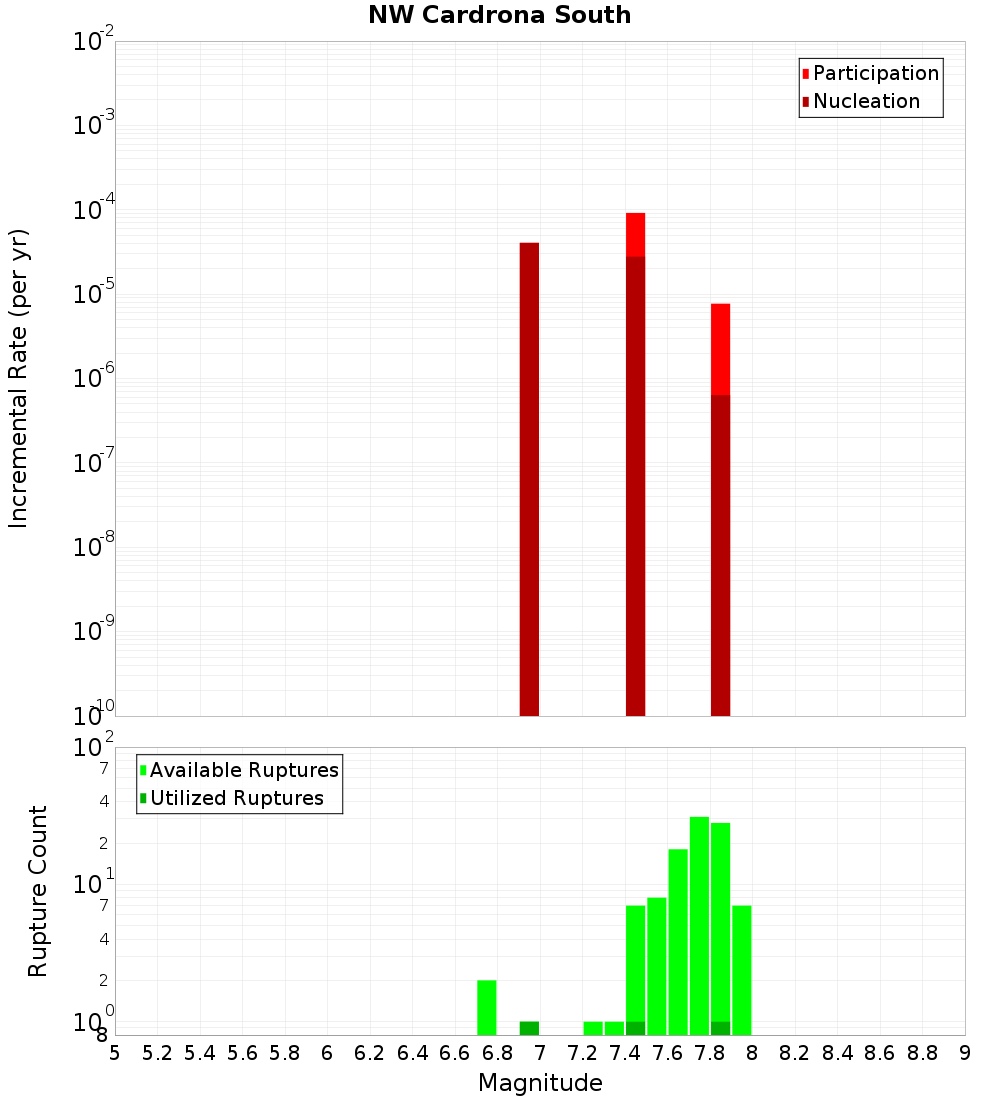

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Nevis, 0.51 km away
Paddys Ridge, 1.01 km away
NW Cardrona North, 1.15 km away
Roaring Meg, 2.75 km away
Pisa, 5.79 km away
Roaring Lion, 10.86 km away
Motatapu, 11.74 km away
West Wakatipu, 14.06 km away
Dunstan, 16.52 km away
Moonlight South, 17.44 km away
Garvie, 18.48 km away
Old Man, 18.78 km away

Nevis, 0.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	true
Directly Connected?	true
Co-rupture Count	51
Co-rupture Rate	9.9478806E-5

Paddys Ridge, 1.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

NW Cardrona North, 1.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Roaring Meg, 2.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pisa, 5.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	true
Directly Connected?	true
Co-rupture Count	95
Co-rupture Rate	7.708938E-6

Roaring Lion, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	0.0

Motatapu, 11.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

West Wakatipu, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0

Dunstan, 16.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Moonlight South, 17.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Garvie, 18.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Old Man, 18.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	0.0
