Ranfurly Details

Property	Value
Rupture Count	319
Ruptures Above Sect Min Mag	319
Ruptures w/ Nonzero Rates	14
Magnitude Range	[6.91, 8.00]
Length Range	[24, 266] km
Total Rate	2.302655E-5 /yr
Multi-Fault Rate	2.302655E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	20

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

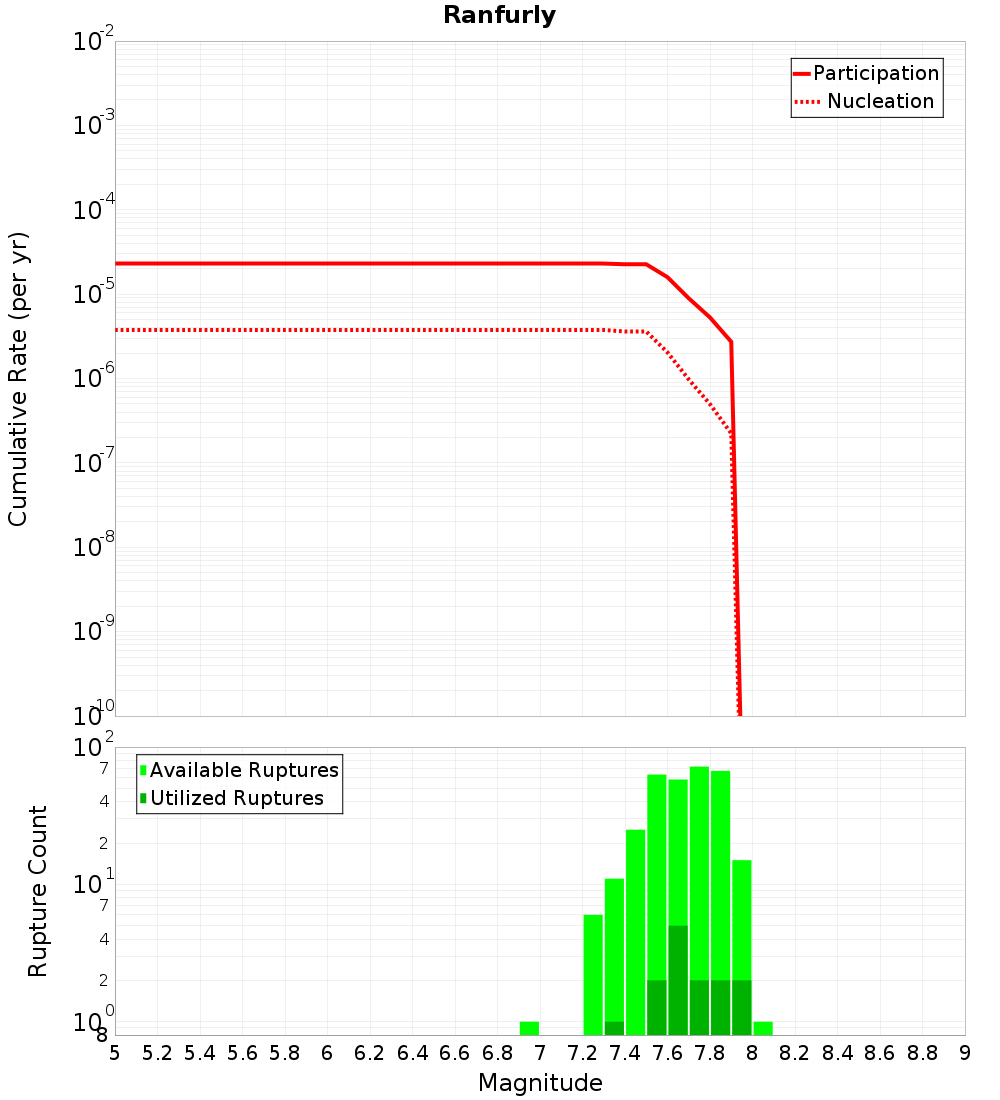

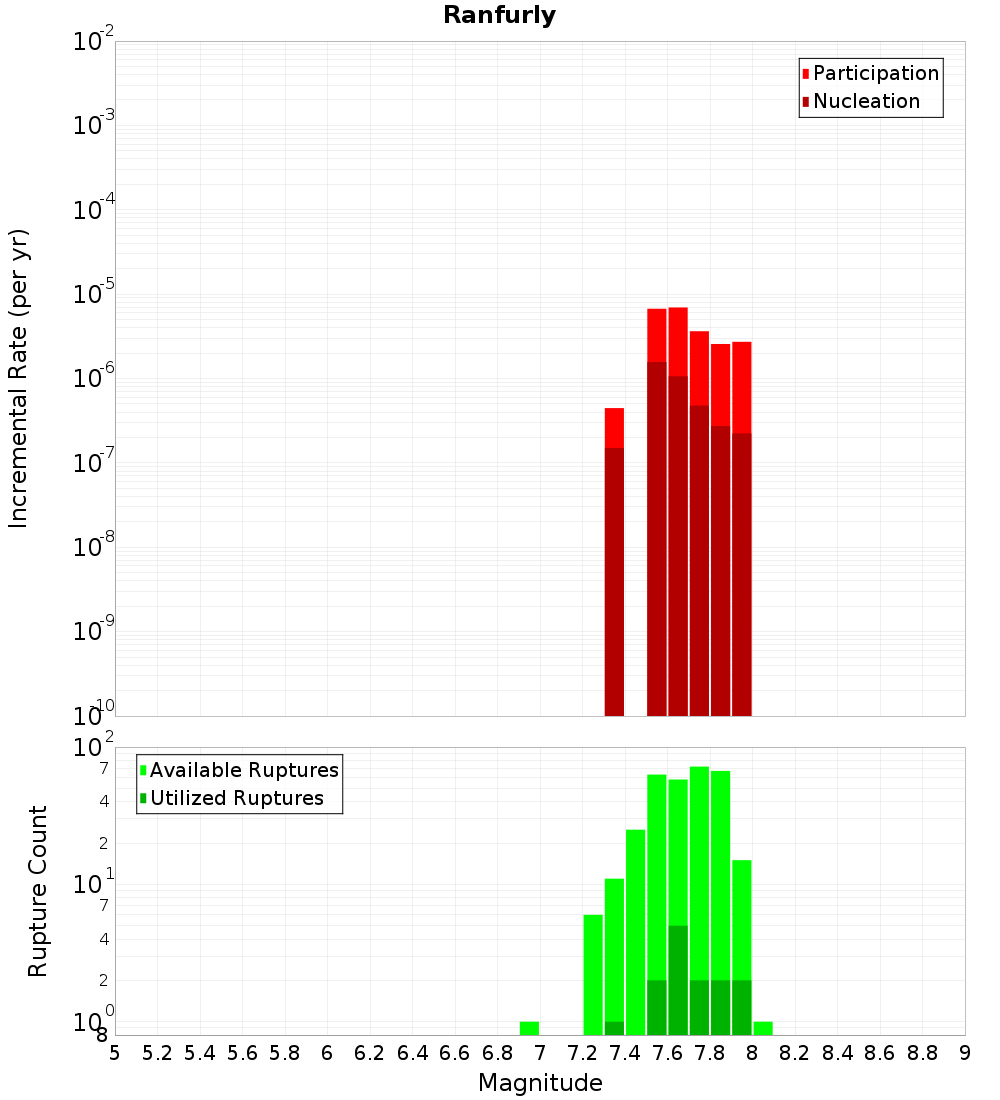

Magnitude-Frequency Distribution

Incremental	Cumulative

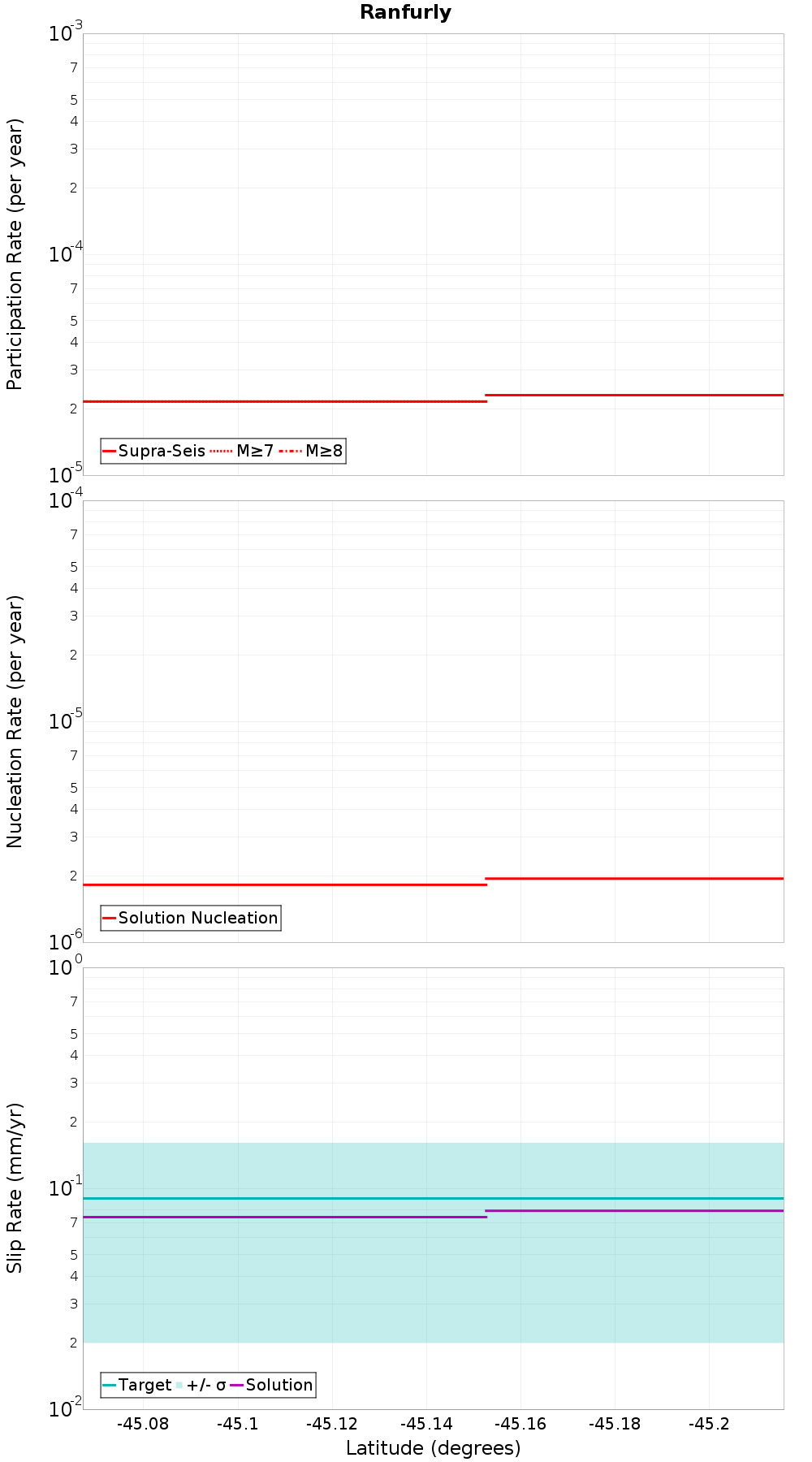

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Billys Ridge, 0.11 km away
Hyde North, 0.19 km away
Horse Flat, 0.22 km away
Murphys Creek, 1.24 km away
Waipiata, 2.79 km away
Cross Eden, 4.43 km away
Gimmerburn, 4.98 km away
Waihemo, 5.63 km away
Dunback Hill, 5.98 km away
Hawkdun, 10.99 km away
Garibaldi, 12.32 km away
Flat Stream - Glenpark, 13.41 km away
Pylap, 13.82 km away
Long Valley, 18.55 km away

Billys Ridge, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	true
Directly Connected?	true
Co-rupture Count	148
Co-rupture Rate	1.3887349E-5

Hyde North, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	true
Directly Connected?	true
Co-rupture Count	158
Co-rupture Rate	9.9599565E-6

Horse Flat, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	true
Directly Connected?	true
Co-rupture Count	26
Co-rupture Rate	4.458973E-7

Murphys Creek, 1.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	true
Directly Connected?	true
Co-rupture Count	28
Co-rupture Rate	7.991299E-6

Waipiata, 2.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	true
Directly Connected?	true
Co-rupture Count	171
Co-rupture Rate	9.94399E-6

Cross Eden, 4.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Gimmerburn, 4.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waihemo, 5.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dunback Hill, 5.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	true
Directly Connected?	false
Co-rupture Count	58
Co-rupture Rate	5.28783E-6

Hawkdun, 10.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Garibaldi, 12.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Flat Stream - Glenpark, 13.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0

Pylap, 13.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	true
Directly Connected?	false
Co-rupture Count	40
Co-rupture Rate	0.0

Long Valley, 18.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTUuMGVGdmJr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
