Alpine: Resolution - Dagg Details

PropertyValue
Rupture Count105,169
Ruptures Above Sect Min Mag105,166
Ruptures w/ Nonzero Rates176
Magnitude Range[6.99, 8.64]
Length Range[22, 1,156] km
Total Rate0.0019838274 /yr
Multi-Fault Rate0.0019838274 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults91

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

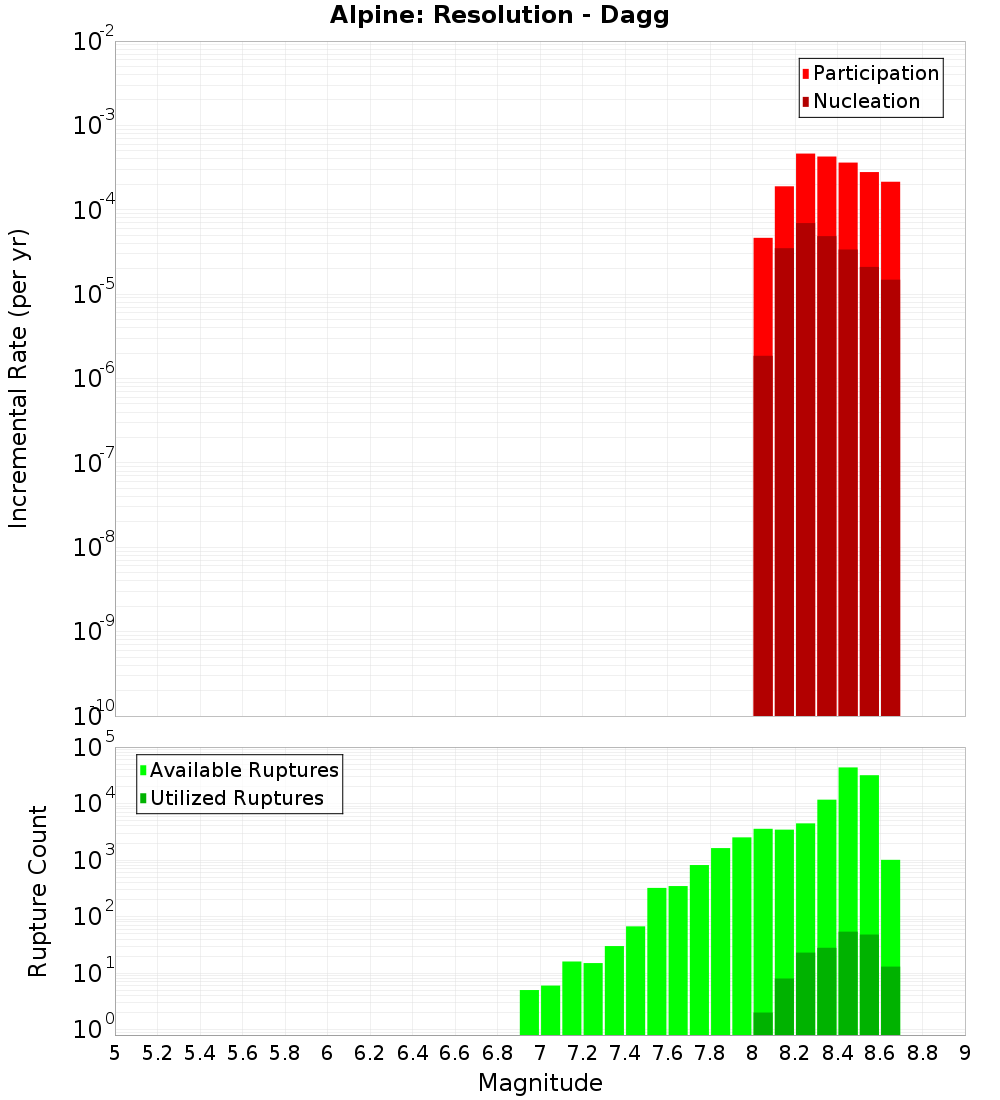

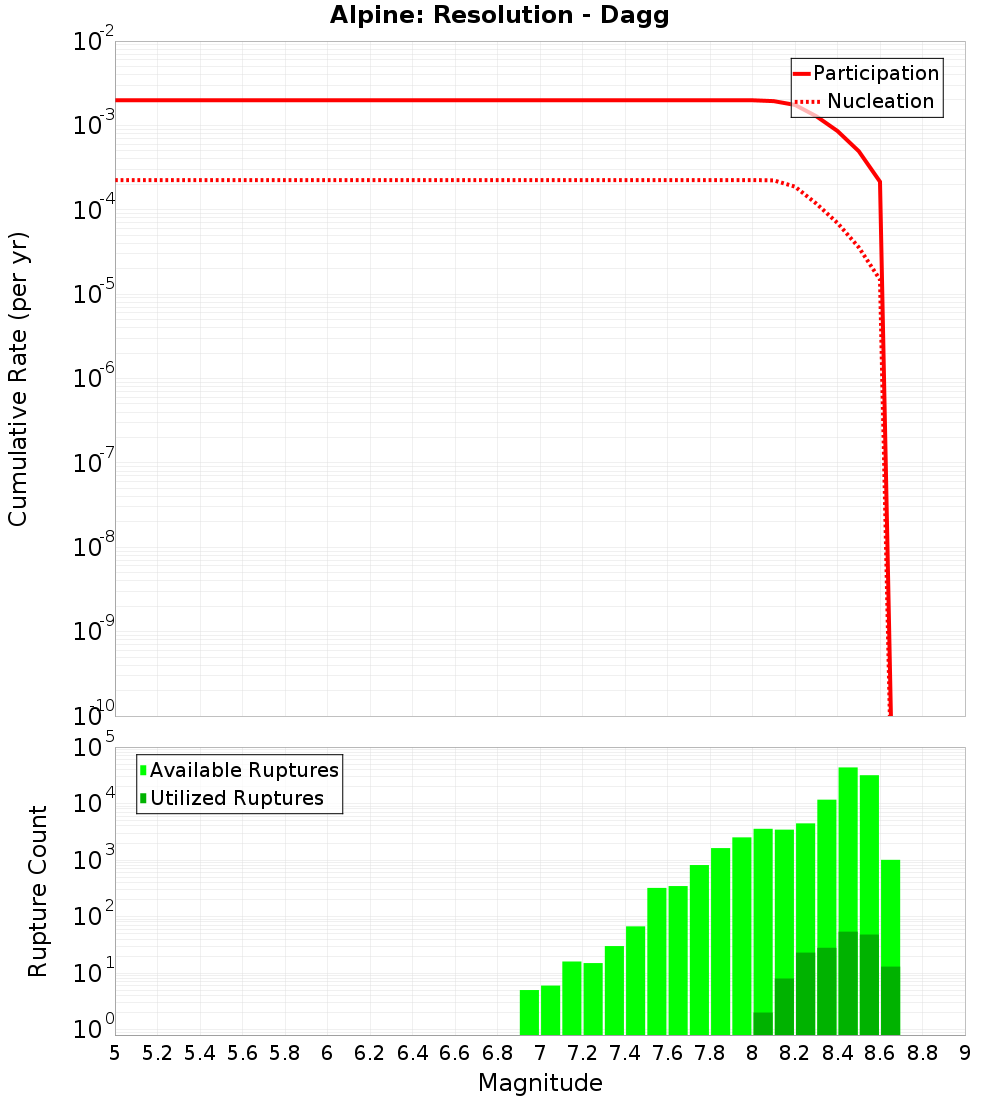

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Resolution - Charles, 0 km away
South Wedge 1, 0.07 km away
South Wedge 2, 0.17 km away
Alpine: Resolution - Five Fingers, 0.91 km away
South Wedge 3-6-10, 1.76 km away
Alpine: Nancy, 2.58 km away
Central Wedge 4 - South Wedge 411, 4.03 km away
South Wedge 5, 5.57 km away
Alpine: Caswell, 11.24 km away
Central Wedge 1 & 2 & 3, 12.75 km away
Five Fingers, 18.37 km away

Alpine: Resolution - Charles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?true
Co-rupture Count42,384
Co-rupture Rate0.0010292974

South Wedge 1, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?true
Co-rupture Count2,931
Co-rupture Rate4.8740058E-5

South Wedge 2, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?true
Co-rupture Count2,775
Co-rupture Rate4.7520192E-5

Alpine: Resolution - Five Fingers, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?true
Co-rupture Count62,778
Co-rupture Rate0.0018225536

South Wedge 3-6-10, 1.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?true
Co-rupture Count6,579
Co-rupture Rate8.388347E-5

Alpine: Nancy, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?true
Co-rupture Count61,163
Co-rupture Rate9.5453E-4

Central Wedge 4 - South Wedge 411, 4.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?false
Co-rupture Count2,362
Co-rupture Rate0.0

South Wedge 5, 5.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?true
Co-rupture Count19,688
Co-rupture Rate5.968582E-5

Alpine: Caswell, 11.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?false
Co-rupture Count103,000
Co-rupture Rate0.0019838274

Central Wedge 1 & 2 & 3, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?false
Co-rupture Count342
Co-rupture Rate0.0

Five Fingers, 18.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
