Ariel Bank 2 Details

PropertyValue
Rupture Count238
Ruptures Above Sect Min Mag236
Ruptures w/ Nonzero Rates10
Magnitude Range[6.75, 7.72]
Length Range[17, 157] km
Total Rate0.0011633264 /yr
Multi-Fault Rate0.0011633264 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults10

Table Of Contents

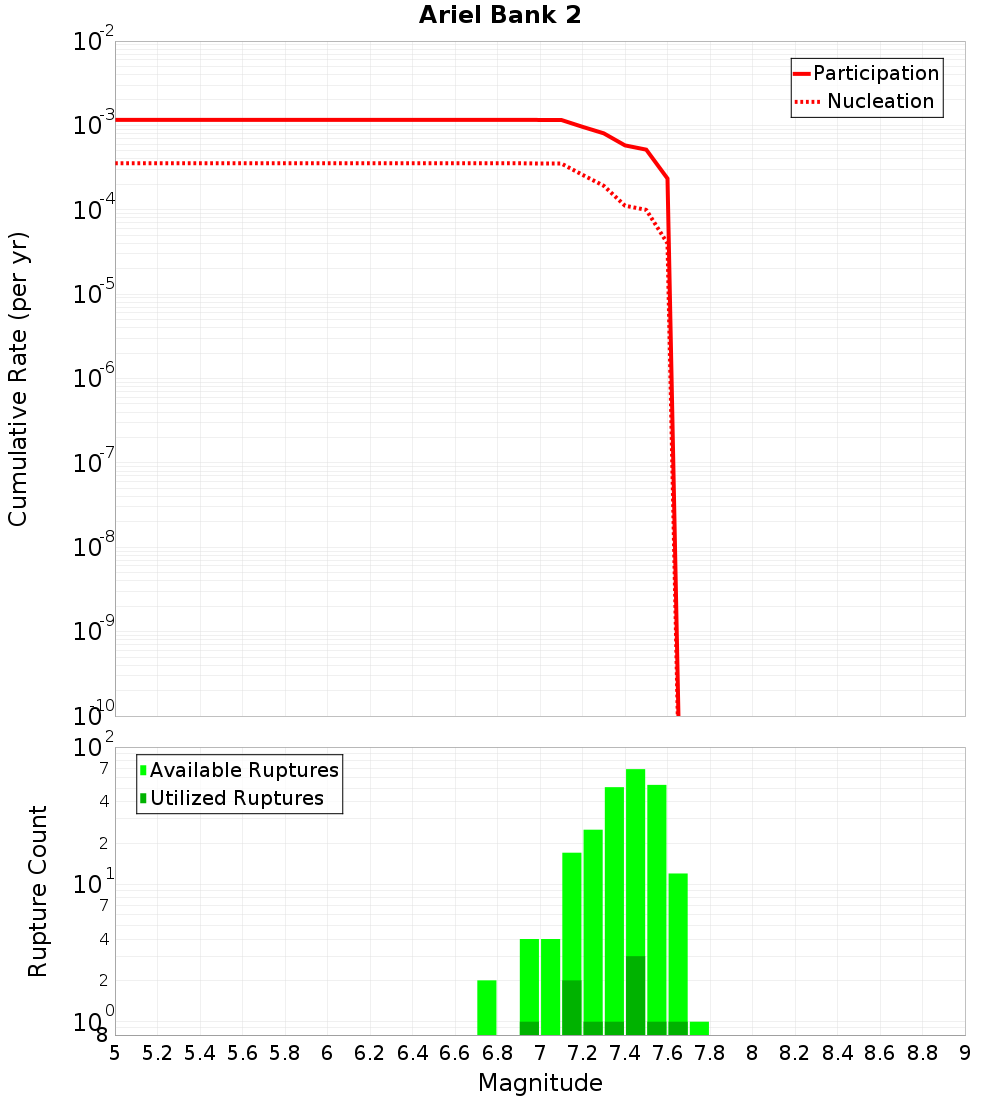

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Gable End North, 0.91 km away
Pakarae, 3.93 km away
Ruatoria South 3, 7.91 km away
Te Ikaarongamai, 11.27 km away
Gable End South, 12.24 km away
Ruatoria South 4, 14.82 km away
Houtunui, 16.51 km away
Ariel Bank, 17.07 km away

Gable End North, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?true
Co-rupture Count140
Co-rupture Rate2.3428725E-4

Pakarae, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?true
Co-rupture Count26
Co-rupture Rate5.184476E-9

Ruatoria South 3, 7.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?true
Co-rupture Count148
Co-rupture Rate3.8207407E-4

Te Ikaarongamai, 11.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?true
Co-rupture Count96
Co-rupture Rate9.290392E-4

Gable End South, 12.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?false
Co-rupture Count34
Co-rupture Rate2.3428205E-4

Ruatoria South 4, 14.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0

Houtunui, 16.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ariel Bank, 17.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate5.804749E-4
