Waimana: South Details

Property	Value
Rupture Count	18,891
Ruptures Above Sect Min Mag	18,887
Ruptures w/ Nonzero Rates	12
Magnitude Range	[6.93, 8.52]
Length Range	[21, 758] km
Total Rate	7.095483E-4 /yr
Multi-Fault Rate	1.4197482E-4 /yr (20.01%)
Directly-Connected Faults	6
All Co-Rupturing Faults	111

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

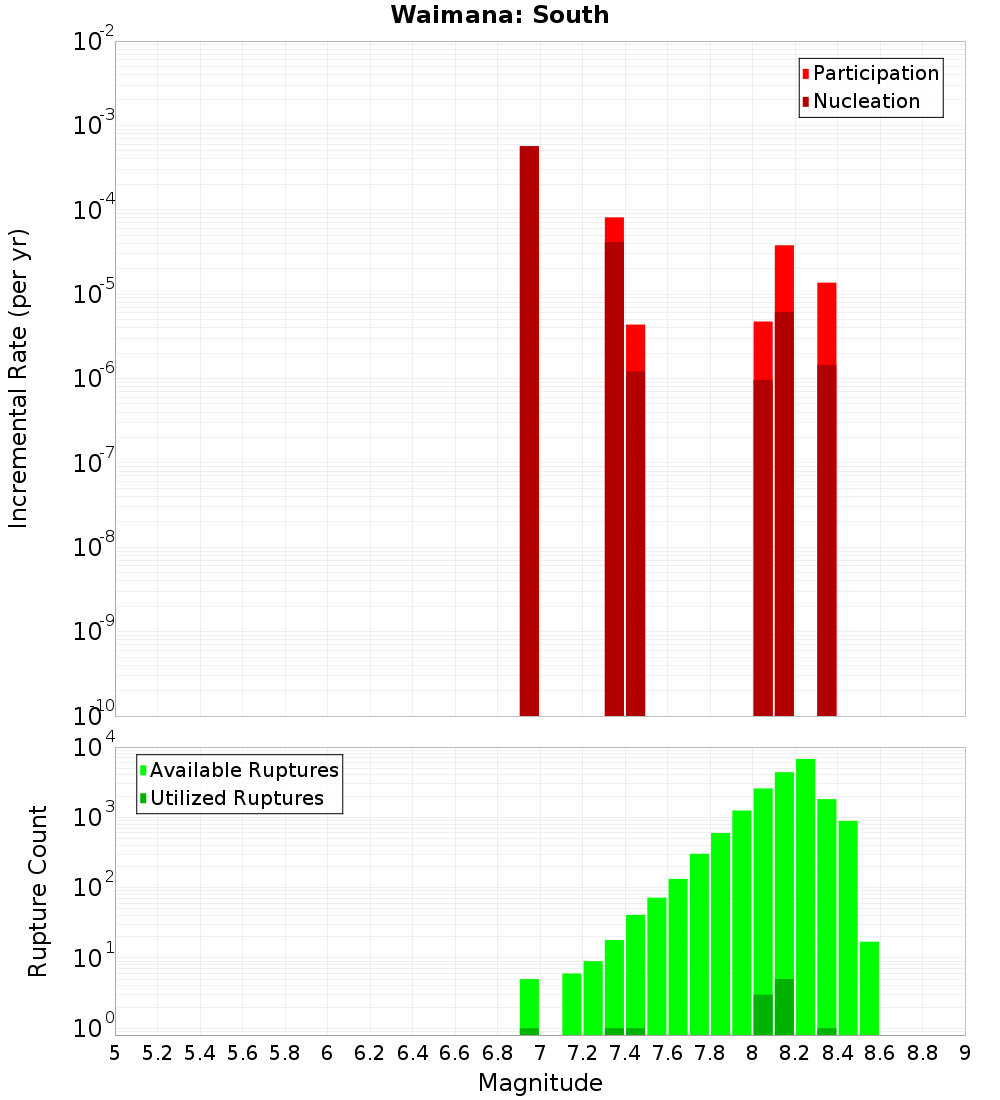

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Whakatane: South, 0 km away
Mohaka: North, 0 km away
Waimana: North, 0 km away
Waiotahi: South, 2.17 km away
Waiotahi: North, 2.4 km away
Waiohau: South, 8.04 km away
Whakatane: North, 8.54 km away
Patoka - Rangiora, 10.75 km away
Ruahine: North, 11.54 km away
Wheao: South, 14.54 km away
Te Whaiti South, 14.59 km away
Awanui, 15.3 km away
Waiohau: North, 17.98 km away

Whakatane: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?	true
Directly Connected?	true
Co-rupture Count	619
Co-rupture Rate	4.3564496E-6

Mohaka: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?	true
Directly Connected?	true
Co-rupture Count	18,259
Co-rupture Rate	1.3761836E-4

Waimana: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?	true
Directly Connected?	true
Co-rupture Count	6,260
Co-rupture Rate	3.9412503E-6

Waiotahi: South, 2.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?	true
Directly Connected?	true
Co-rupture Count	1,859
Co-rupture Rate	0.0

Waiotahi: North, 2.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?	true
Directly Connected?	true
Co-rupture Count	5,000
Co-rupture Rate	3.1767344E-5

Waiohau: South, 8.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakatane: North, 8.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?	true
Directly Connected?	true
Co-rupture Count	4,568
Co-rupture Rate	2.0642226E-5

Patoka - Rangiora, 10.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?	true
Directly Connected?	false
Co-rupture Count	52
Co-rupture Rate	0.0

Ruahine: North, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?	true
Directly Connected?	false
Co-rupture Count	121
Co-rupture Rate	0.0

Wheao: South, 14.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Whaiti South, 14.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awanui, 15.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?	true
Directly Connected?	false
Co-rupture Count	29
Co-rupture Rate	3.9412503E-6

Waiohau: North, 17.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNTcuMDh1ZzVU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
