Browning Pass Details

Property	Value
Rupture Count	17,444
Ruptures Above Sect Min Mag	17,427
Ruptures w/ Nonzero Rates	18
Magnitude Range	[6.39, 8.59]
Length Range	[11, 895] km
Total Rate	2.4160129E-4 /yr
Multi-Fault Rate	2.4160129E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	65

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

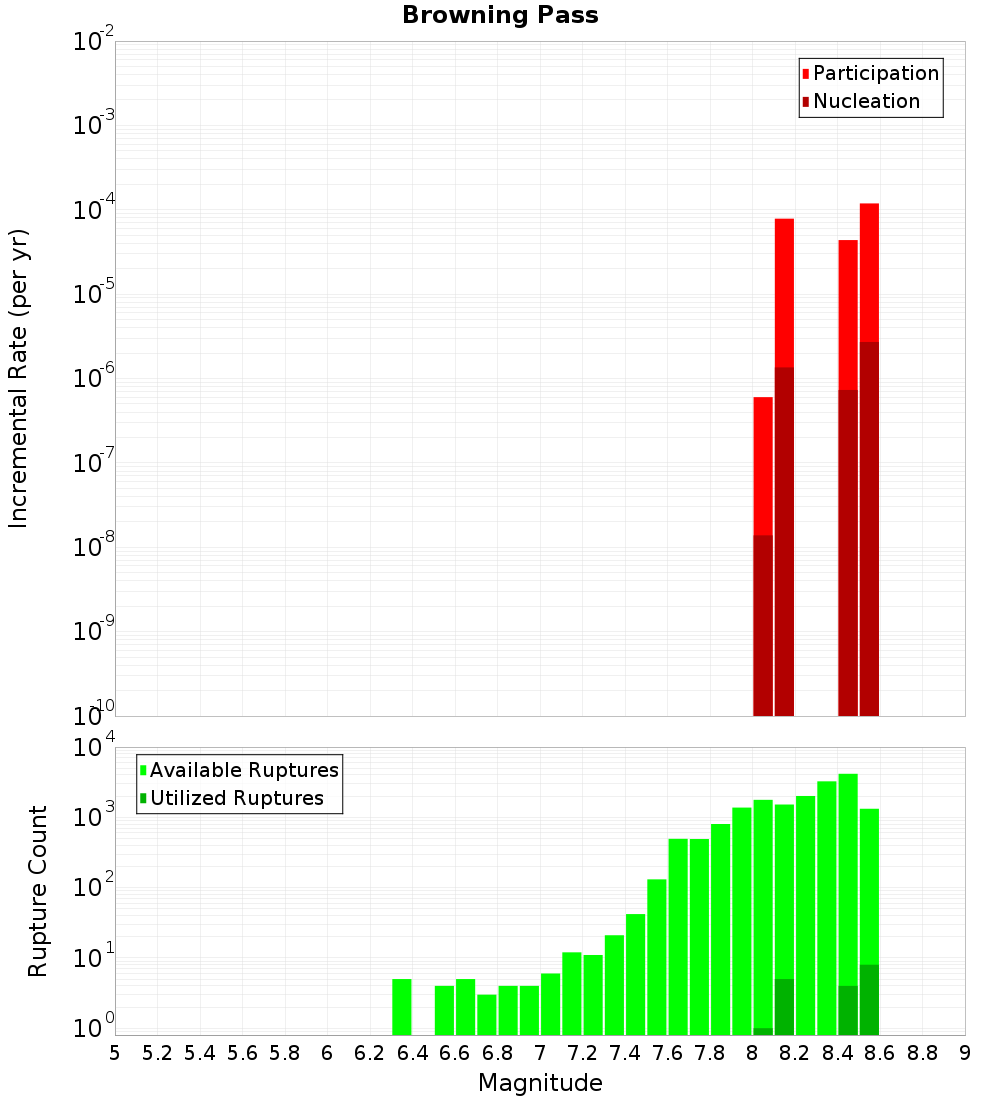

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kelly, 0.05 km away
Alpine: Kaniere to Springs Junction, 0.42 km away
Alpine: Jacksons to Kaniere, 0.87 km away
Hohonu: South, 3.12 km away
Hope: Taramakau, 6.97 km away
Poulter, 14.55 km away

Kelly, 0.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	true
Co-rupture Count	416
Co-rupture Rate	0.0

Alpine: Kaniere to Springs Junction, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	true
Co-rupture Count	4,415
Co-rupture Rate	1.9788183E-4

Alpine: Jacksons to Kaniere, 0.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	true
Co-rupture Count	13,433
Co-rupture Rate	1.6258538E-4

Hohonu: South, 3.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	true
Co-rupture Count	1,305
Co-rupture Rate	0.0

Hope: Taramakau, 6.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	true
Co-rupture Count	11,740
Co-rupture Rate	0.0

Poulter, 14.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	true
Co-rupture Count	219
Co-rupture Rate	7.901592E-5
