Cloudy 2 Details

PropertyValue
Rupture Count2,694
Ruptures Above Sect Min Mag2,693
Ruptures w/ Nonzero Rates6
Magnitude Range[6.26, 8.50]
Length Range[4, 731] km
Total Rate4.2043166E-4 /yr
Multi-Fault Rate4.2043166E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults76

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

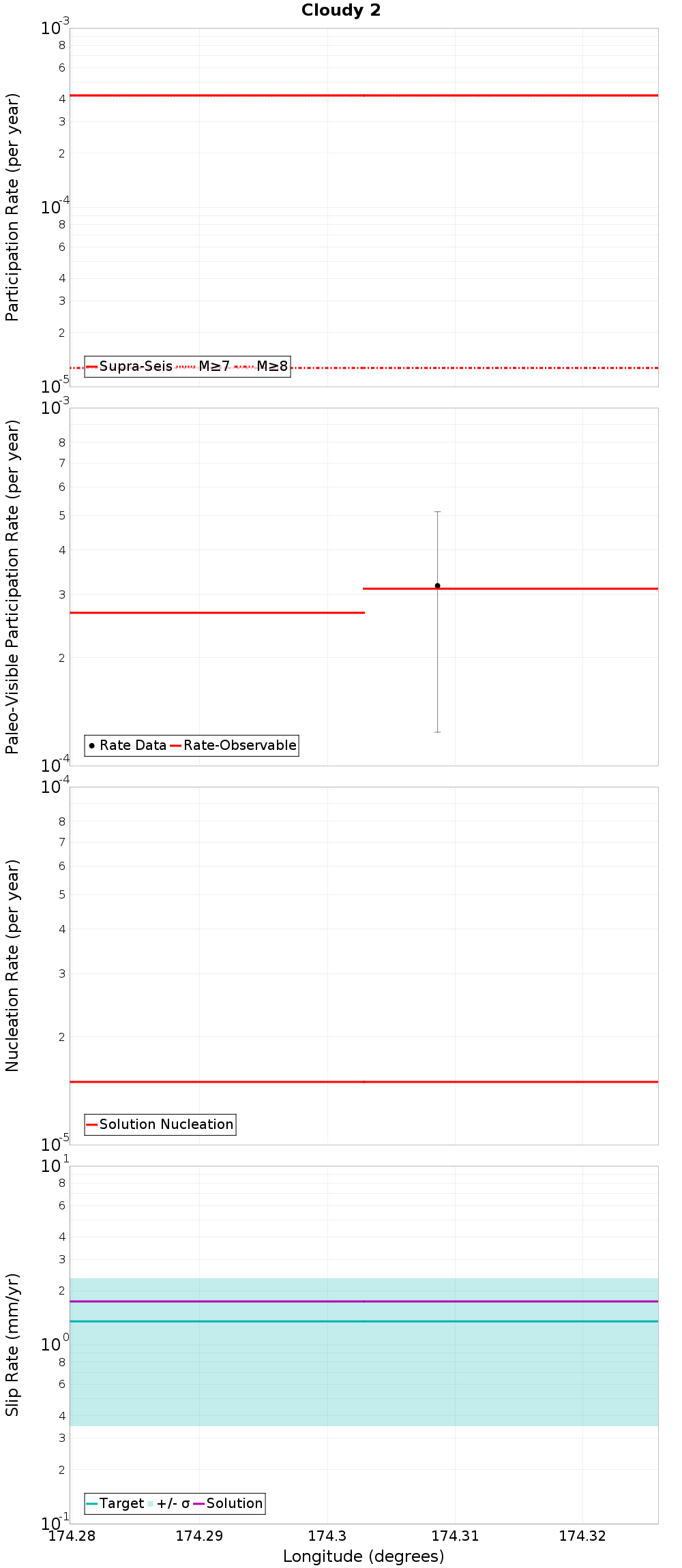

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

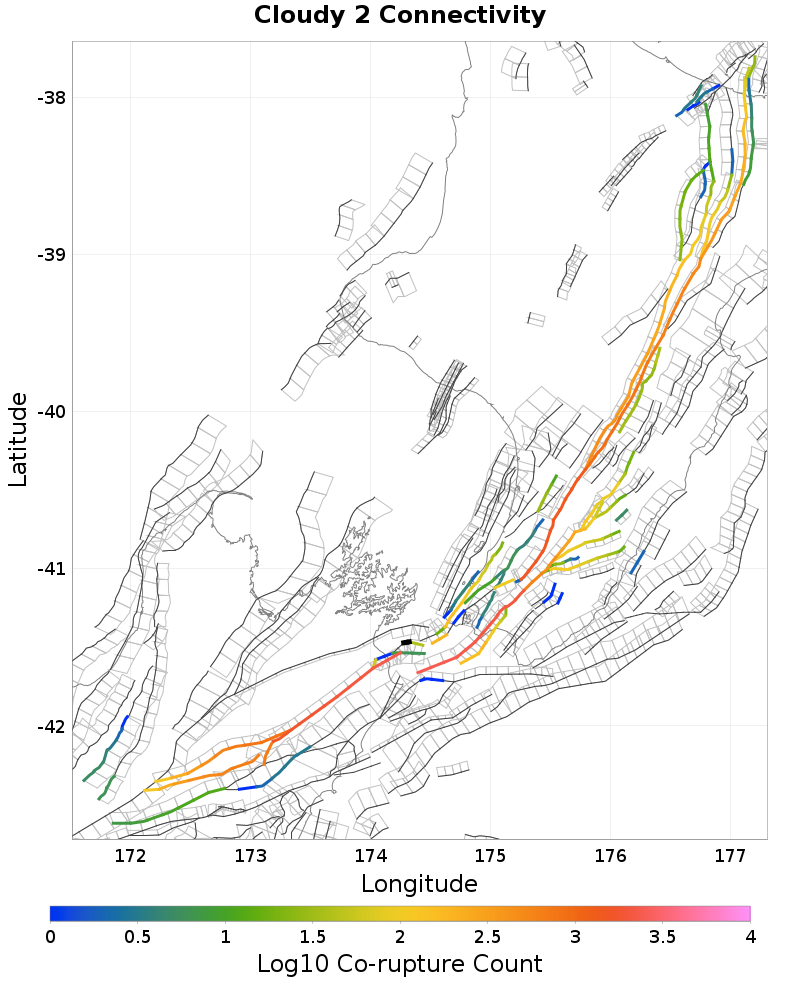

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Cloudy 1, 0 km awayVernon 2, 9.22 km away
Cloudy 3, 0 km awayWairau 2, 10.61 km away
Awatere: Northeast 2, 3.99 km awayWairau, 12.85 km away
Vernon 4, 6.7 km awayNeedles East 2, 13.39 km away
Vernon 3, 7.01 km awayWellington Hutt Valley: 1, 14.75 km away
Ohariu South 1, 7.53 km awayVernon 1, 15.83 km away
Wairarapa: Needles, 7.97 km awayNeedles, 16.43 km away
Wairau 3, 9.09 km awayBooBoo, 16.93 km away

Cloudy 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate0.0

Awatere: Northeast 2, 3.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count2,294
Co-rupture Rate2.906543E-4

Vernon 4, 6.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate1.7477425E-5

Vernon 3, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate3.3677843E-6

Ohariu South 1, 7.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: Needles, 7.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count2,464
Co-rupture Rate6.643578E-5

Wairau 3, 9.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 2, 9.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Wairau 2, 10.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles East 2, 13.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 1, 14.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count187
Co-rupture Rate3.5399589E-4

Vernon 1, 15.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate2.0337333E-4

Needles, 16.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

BooBoo, 16.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0
