Hope: Hanmer SW Details

PropertyValue
Rupture Count81,290
Ruptures Above Sect Min Mag81,259
Ruptures w/ Nonzero Rates40
Magnitude Range[6.71, 8.64]
Length Range[11, 1,156] km
Total Rate4.443348E-4 /yr
Multi-Fault Rate4.443348E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults135

Table Of Contents

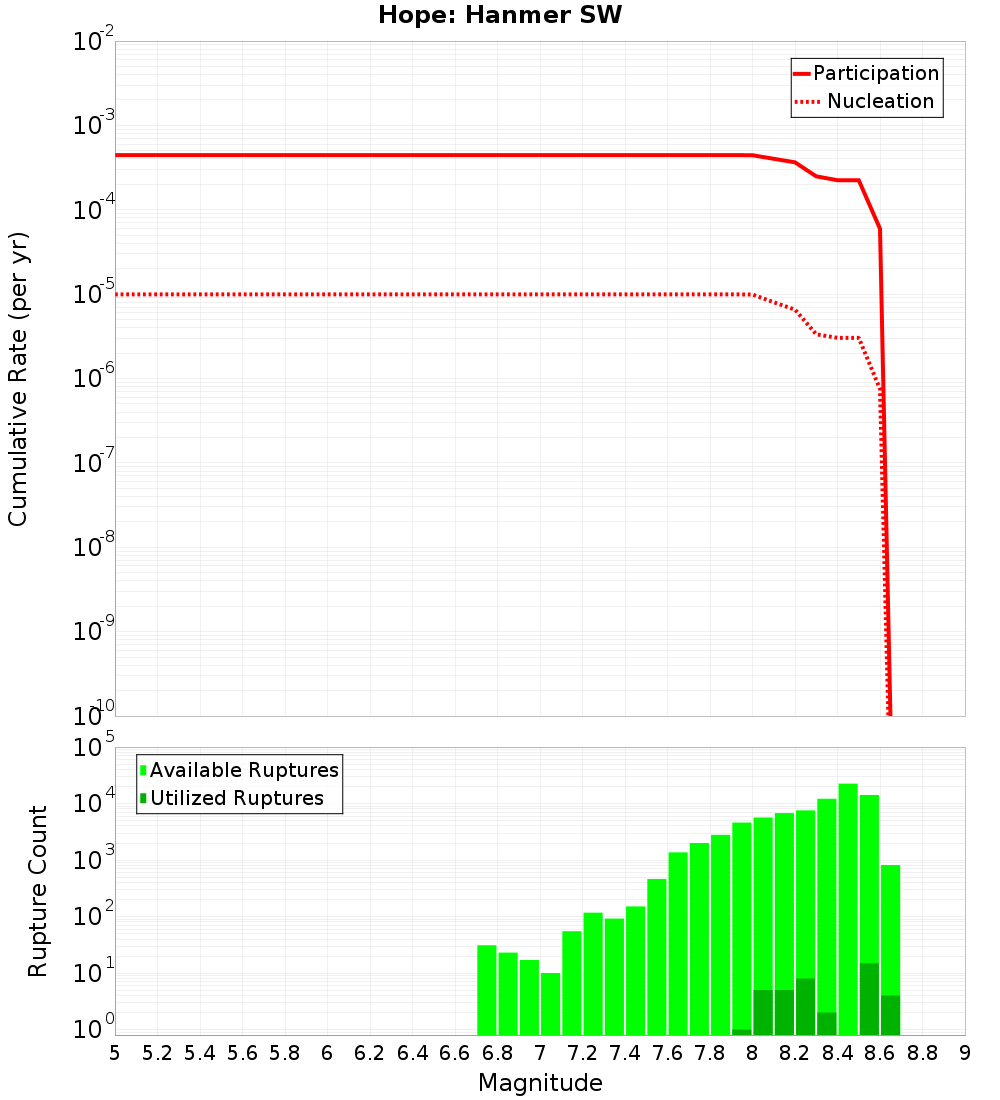

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Hanmer SE, 0 km away
Hope: Kakapo-2-Hamner, 0 km away
Hope: Hanmer NW, 0 km away
Hanmer, 3.33 km away
Hope: Hope River, 6.3 km away
Kakapo, 6.3 km away
Esk North, 9.97 km away
The Humps, 10.61 km away
Hope: Conway, 13.51 km away
Clarence: Southwest, 13.89 km away
Hurunui Peak, 14.89 km away
Mt Culverden, 15.12 km away
Balmoral, 15.69 km away
Clarence: Central, 17.73 km away
Elliott, 17.88 km away

Hope: Hanmer SE, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count60,963
Co-rupture Rate4.443348E-4

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count79,085
Co-rupture Rate4.4261102E-4

Hope: Hanmer NW, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count10,259
Co-rupture Rate8.4294064E-5

Hanmer, 3.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count19,779
Co-rupture Rate0.0

Hope: Hope River, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count48,199
Co-rupture Rate3.524696E-4

Kakapo, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count31,148
Co-rupture Rate9.0141424E-5

Esk North, 9.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Humps, 10.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Hope: Conway, 13.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count69,422
Co-rupture Rate4.443348E-4

Clarence: Southwest, 13.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count211
Co-rupture Rate9.988834E-6

Hurunui Peak, 14.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Culverden, 15.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count95
Co-rupture Rate0.0

Balmoral, 15.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Central, 17.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Elliott, 17.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count2,033
Co-rupture Rate1.2140254E-4
