Hope: Hurunui Details

Property	Value
Rupture Count	113,694
Ruptures Above Sect Min Mag	113,693
Ruptures w/ Nonzero Rates	76
Magnitude Range	[6.69, 8.64]
Length Range	[14, 1,156] km
Total Rate	0.0021215465 /yr
Multi-Fault Rate	0.0021215465 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	104

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

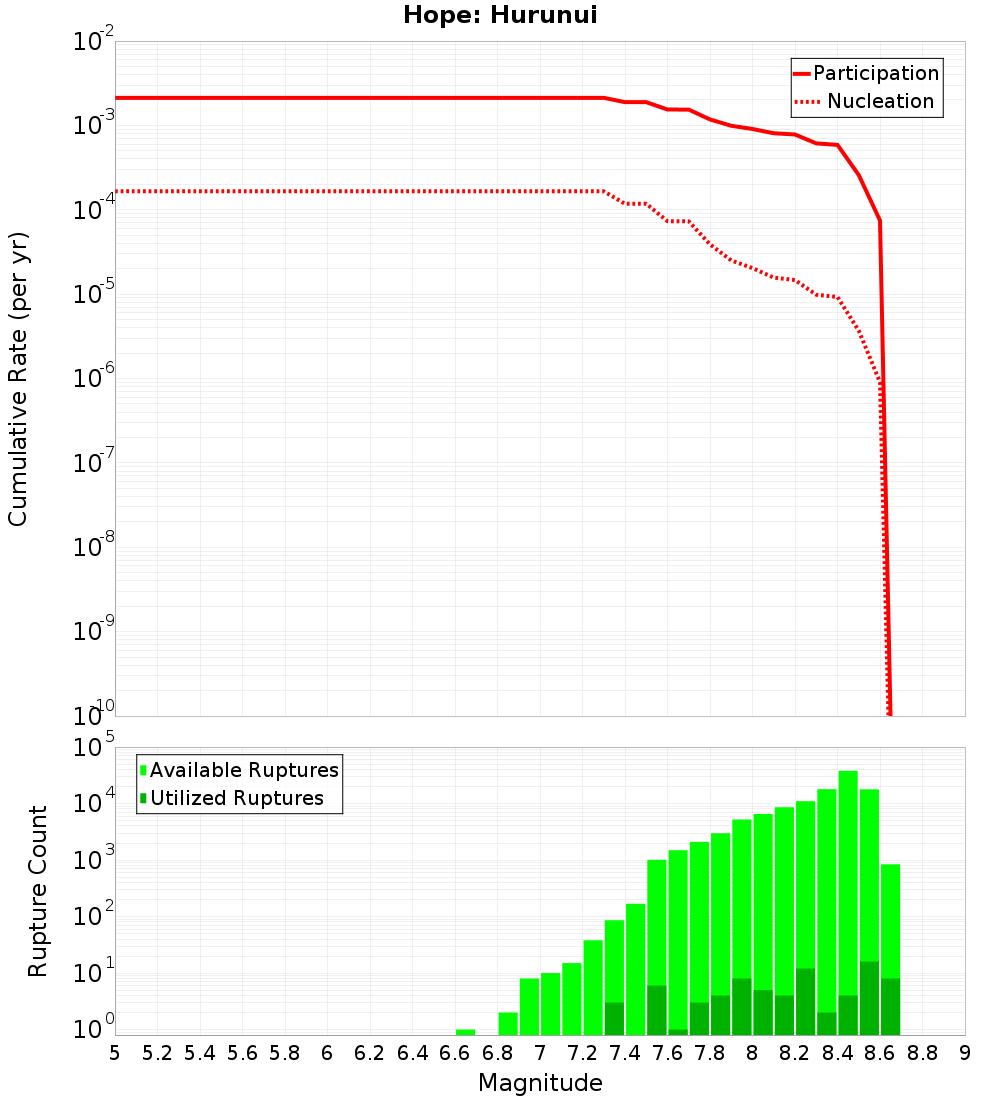

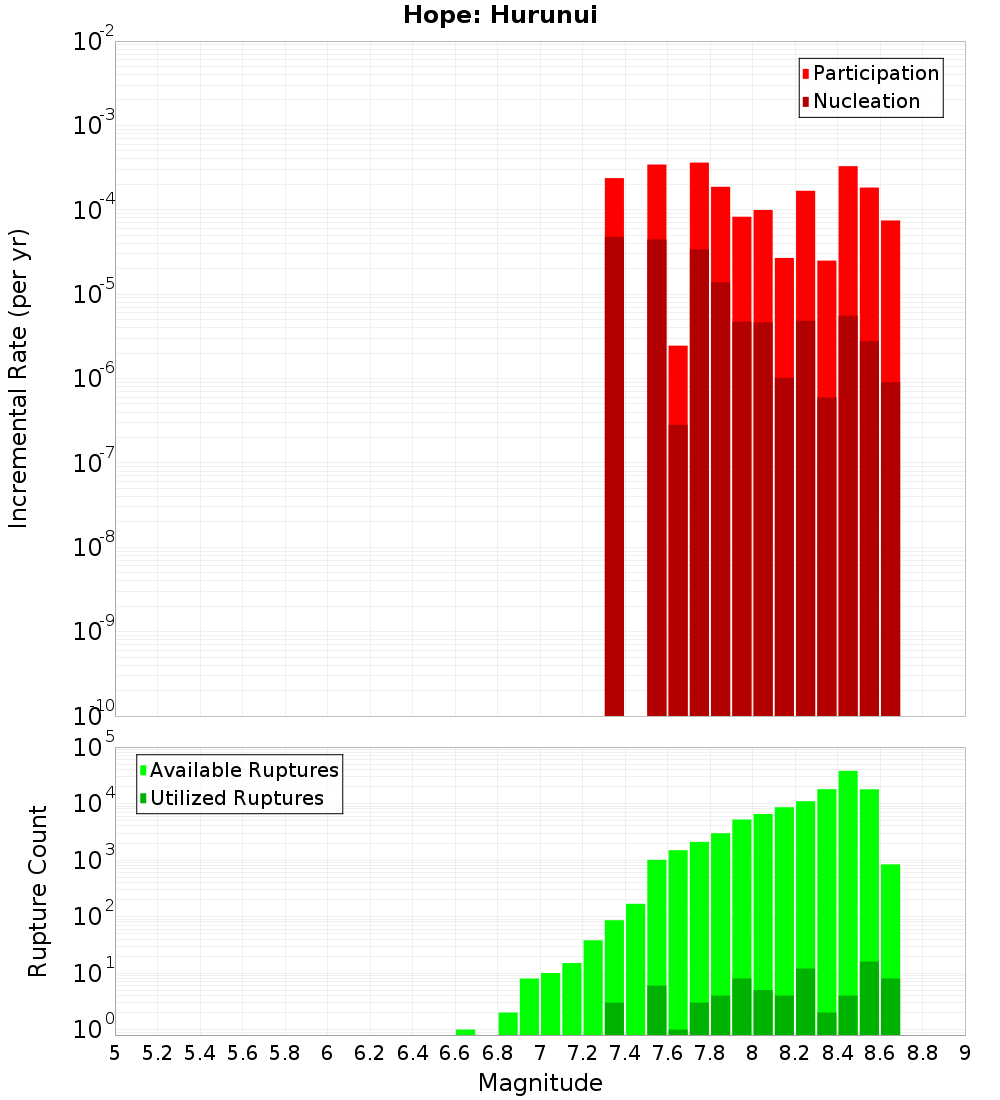

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kelly, 0 km away
Kakapo, 0 km away
Hope: Taramakau, 0 km away
Hope: Hope River, 0 km away
Alpine: Kaniere to Springs Junction, 1.98 km away
Poulter, 7.27 km away
Clarence: Southwest, 8.29 km away

Kelly, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	true
Co-rupture Count	97,453
Co-rupture Rate	0.0012898088

Kakapo, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	true
Co-rupture Count	40,084
Co-rupture Rate	4.1845735E-4

Hope: Taramakau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	true
Co-rupture Count	23,559
Co-rupture Rate	7.144449E-4

Hope: Hope River, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	true
Co-rupture Count	73,073
Co-rupture Rate	0.0017030891

Alpine: Kaniere to Springs Junction, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	false
Co-rupture Count	1,383
Co-rupture Rate	5.09332E-4

Poulter, 7.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	false
Co-rupture Count	325
Co-rupture Rate	3.4409608E-5

Clarence: Southwest, 8.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	false
Co-rupture Count	8,247
Co-rupture Rate	1.5144173E-5
