Motu Details

PropertyValue
Rupture Count52
Ruptures Above Sect Min Mag52
Ruptures w/ Nonzero Rates11
Magnitude Range[7.04, 7.81]
Length Range[21, 117] km
Total Rate1.11193105E-4 /yr
Multi-Fault Rate1.11193105E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults11

Table Of Contents

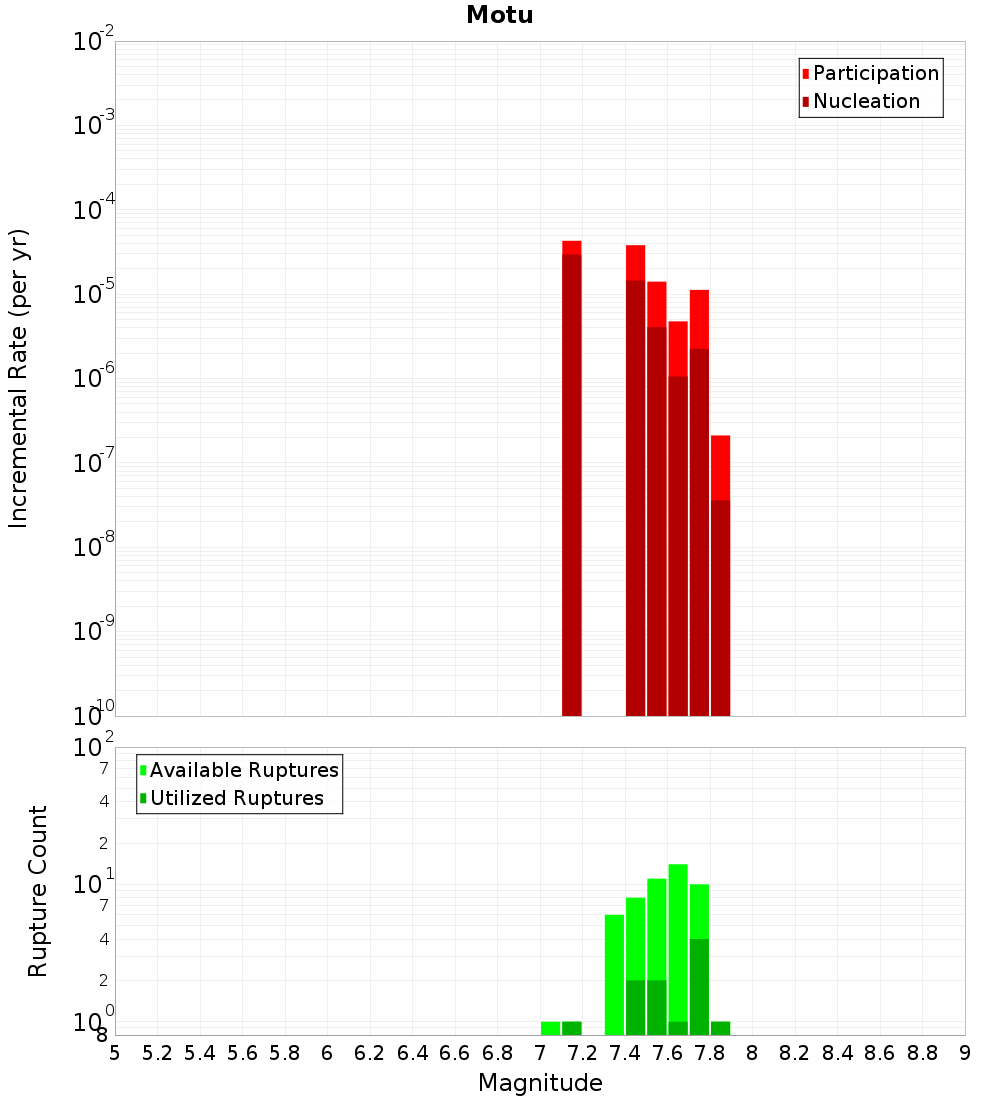

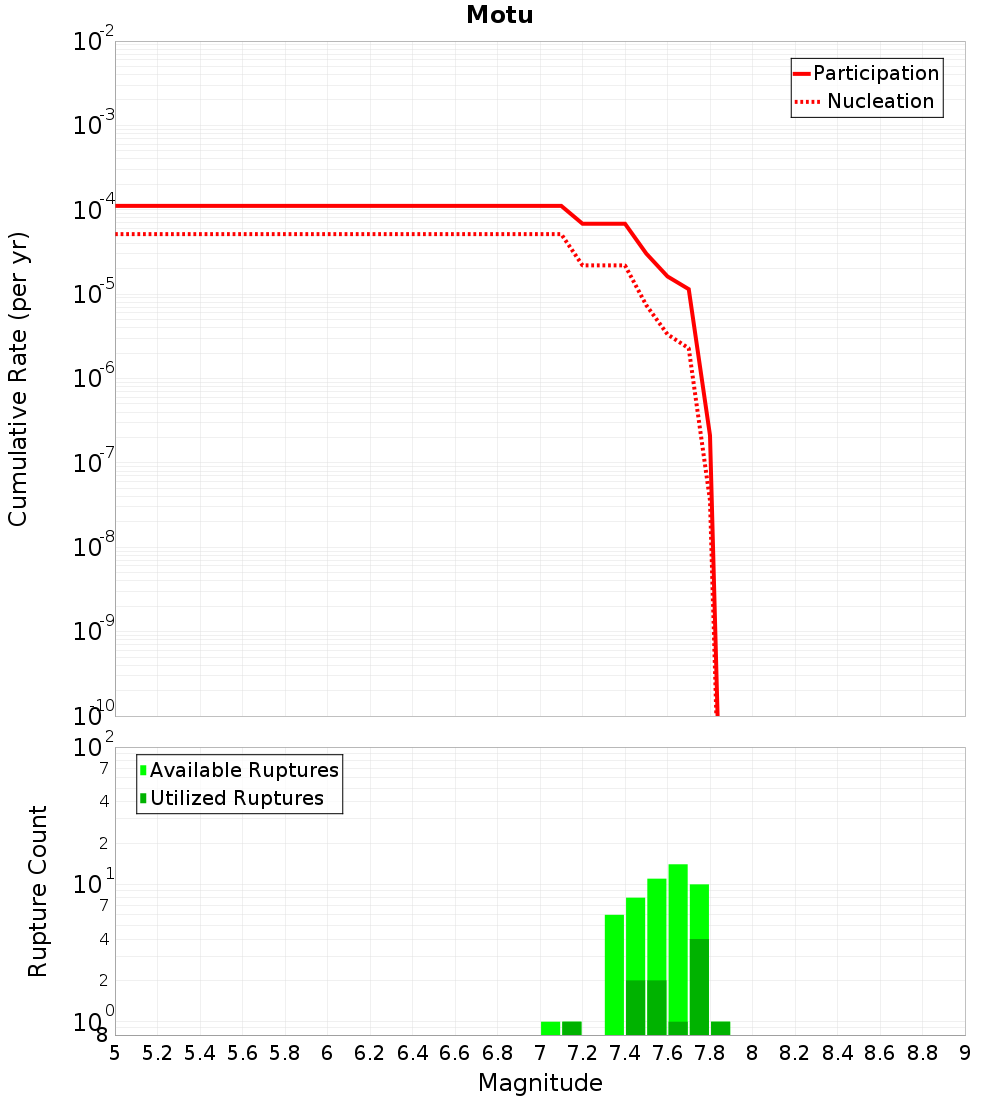

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

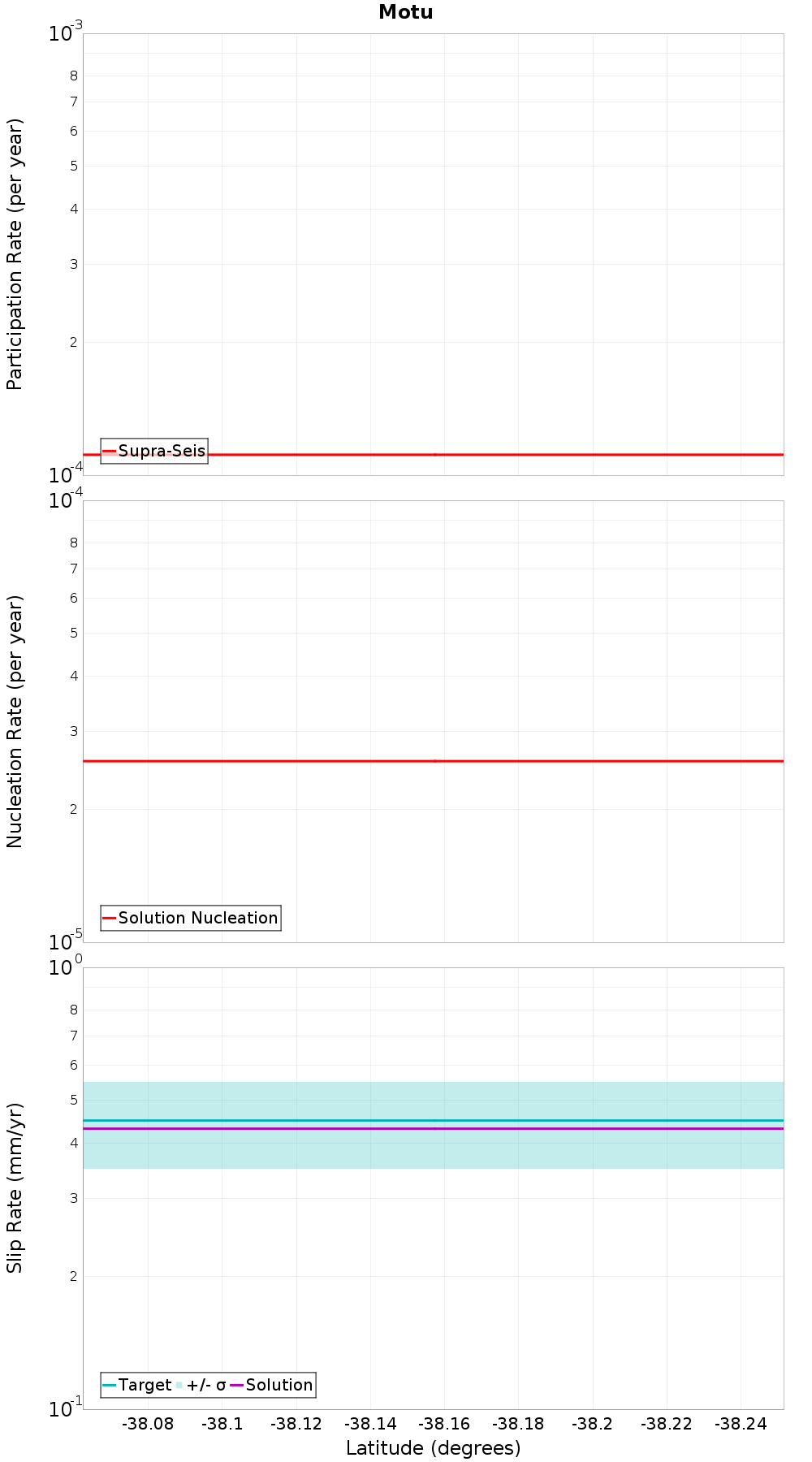

Along-Strike Values

(top)

Along-strike plot

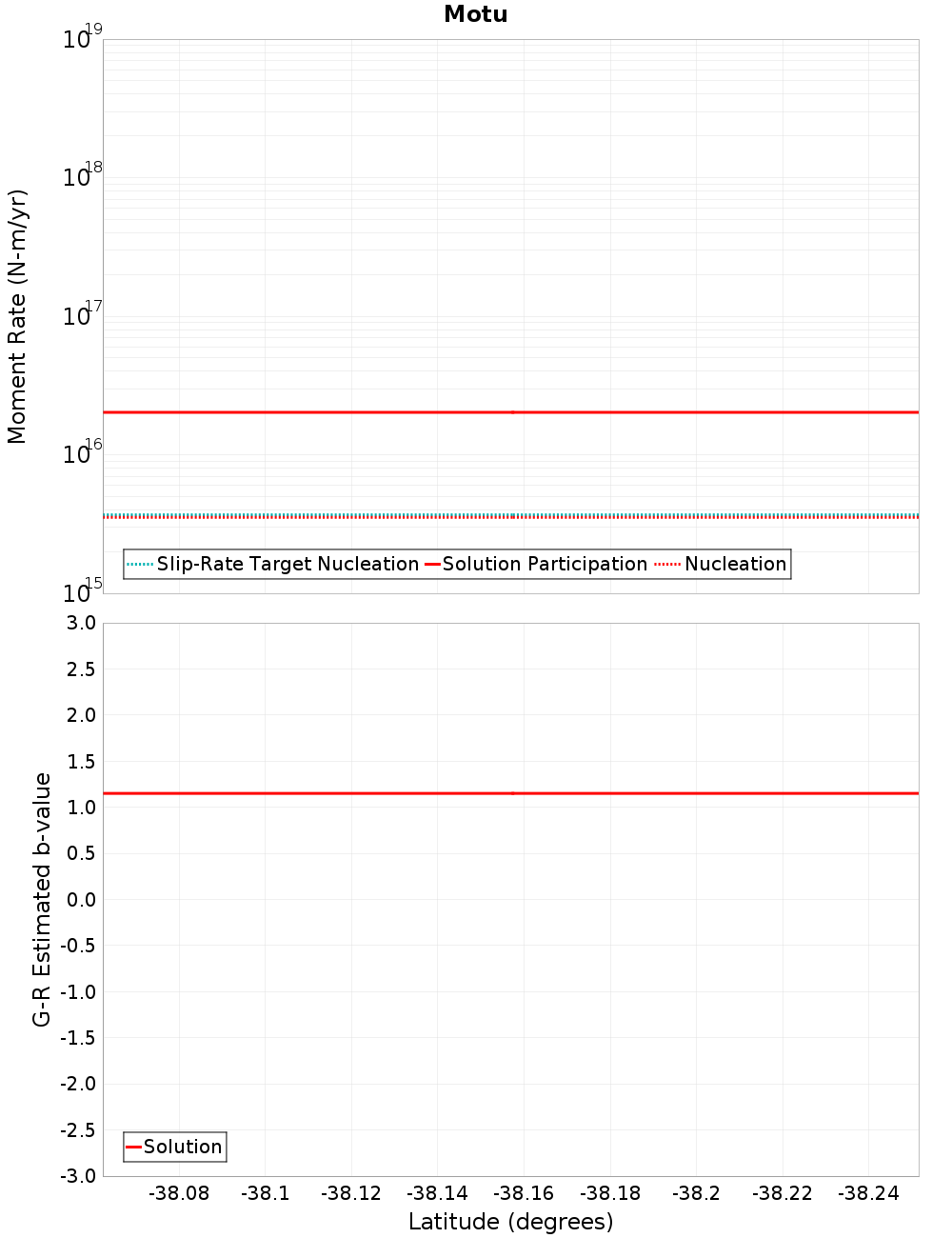

Moment-Rates and b-Values

(top)

Along-strike plot

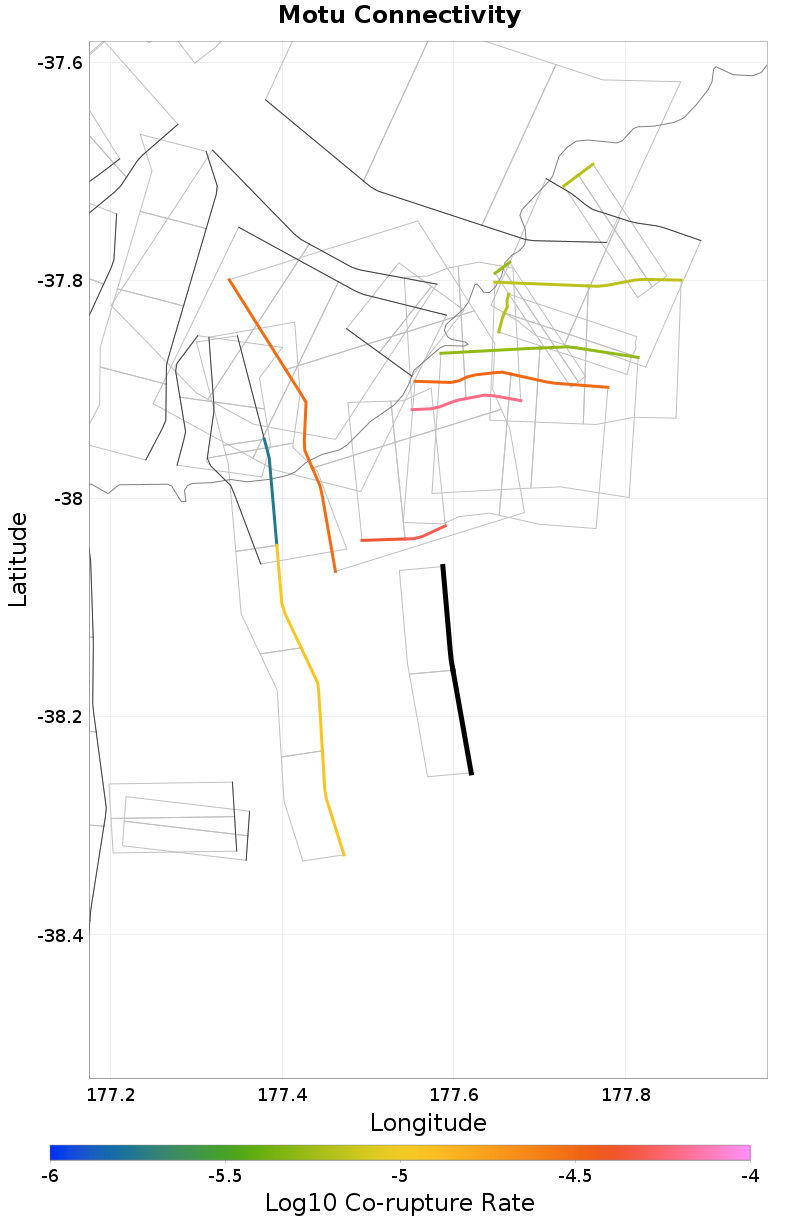

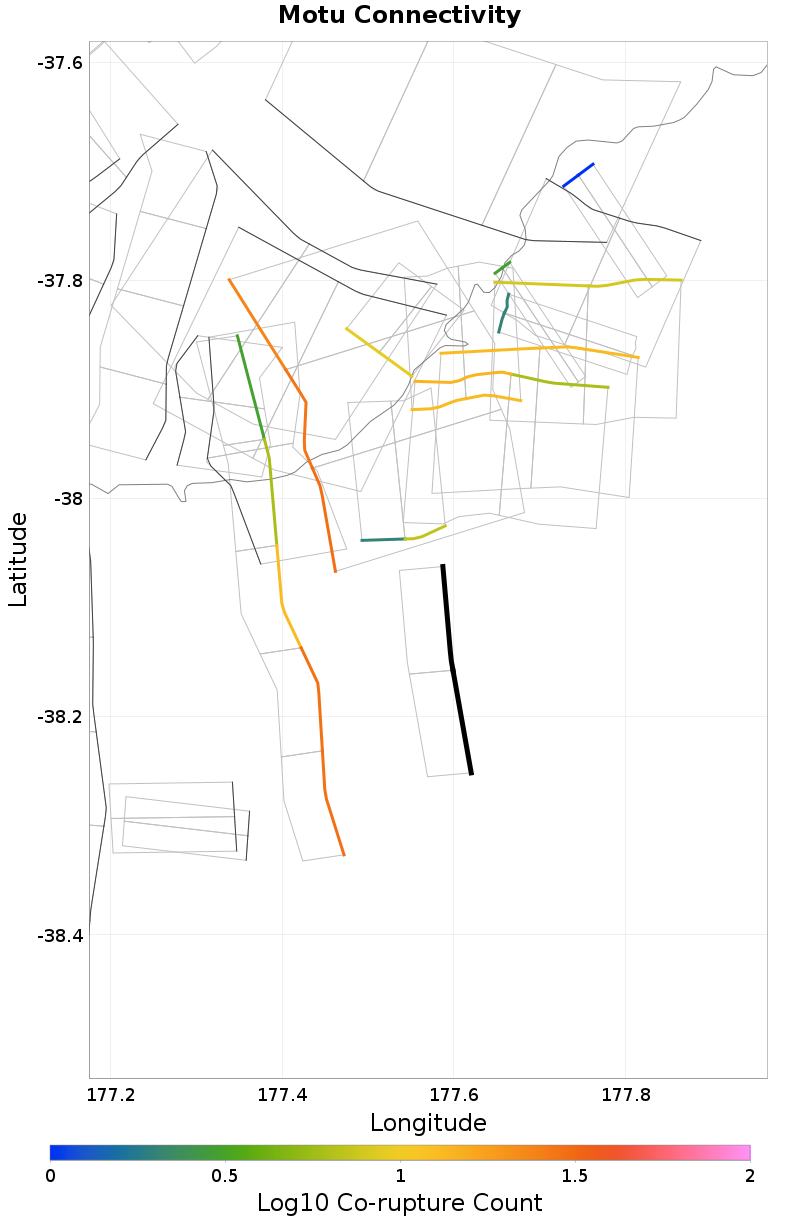

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Opape 1, 2.39 km away
Raukumara 16, 3.67 km away
Raukumara 18, 4.9 km away
Tirohanga, 5.85 km away
Motu River, 8.47 km away
Ohae 2, 9.03 km away
Kotare - Moutuhora, 13.58 km away
Ohae 1, 15.02 km away
Raukumara 17, 16.14 km away
Opotiki 2, 17.02 km away
Raukumara 21, 17.71 km away
Ohae 3, 19.67 km away

Opape 1, 2.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count31
Co-rupture Rate3.025715E-5

Raukumara 16, 3.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate4.9389724E-5

Raukumara 18, 4.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate3.1546228E-5

Tirohanga, 5.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motu River, 8.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate5.140977E-6

Ohae 2, 9.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kotare - Moutuhora, 13.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate1.14422155E-5

Ohae 1, 15.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 17, 16.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate6.1803374E-5

Opotiki 2, 17.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 21, 17.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate6.711882E-6

Ohae 3, 19.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0
