Ohariu South 1 Details

Property	Value
Rupture Count	559
Ruptures Above Sect Min Mag	559
Ruptures w/ Nonzero Rates	1
Magnitude Range	[6.83, 8.34]
Length Range	[13, 494] km
Total Rate	3.5124214E-4 /yr
Multi-Fault Rate	3.5124214E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	49

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

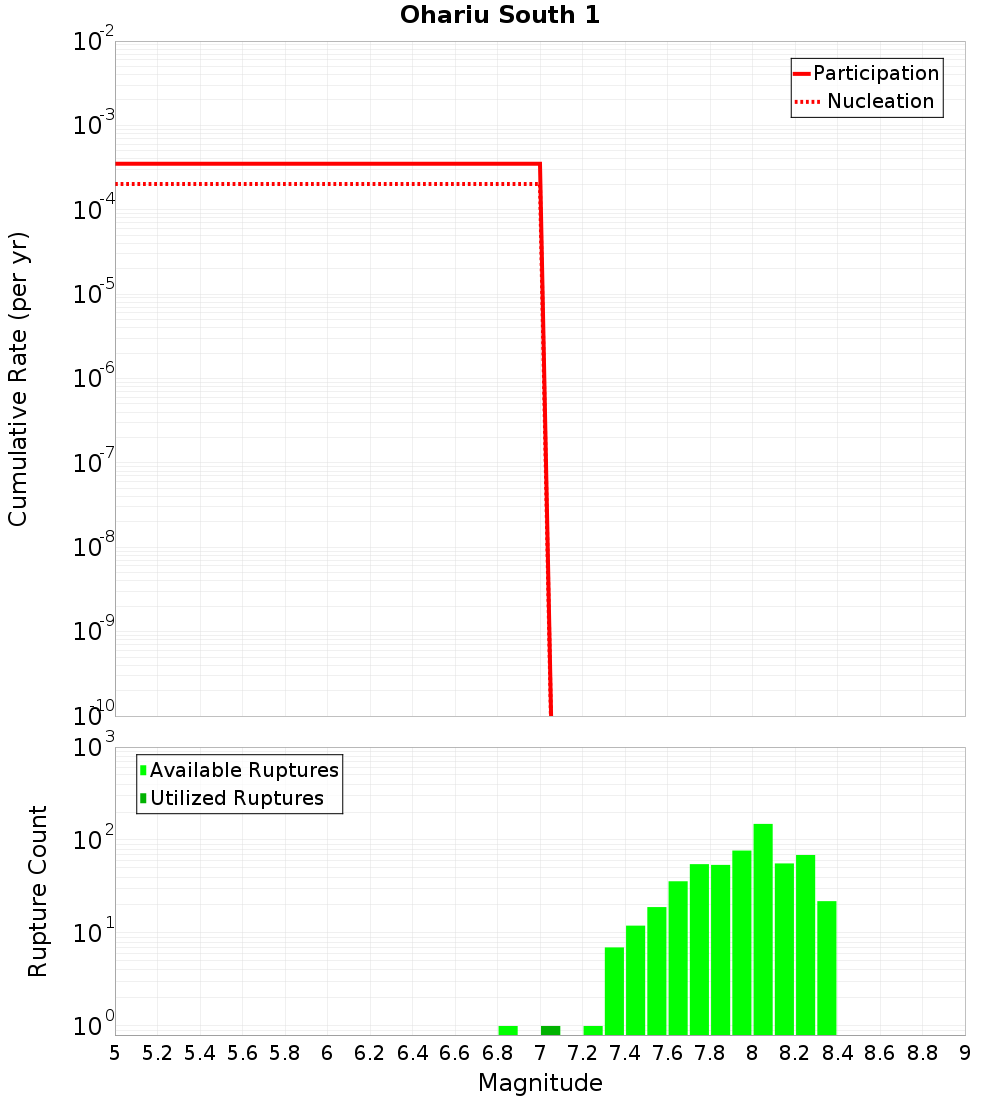

Magnitude-Frequency Distribution

Incremental	Cumulative

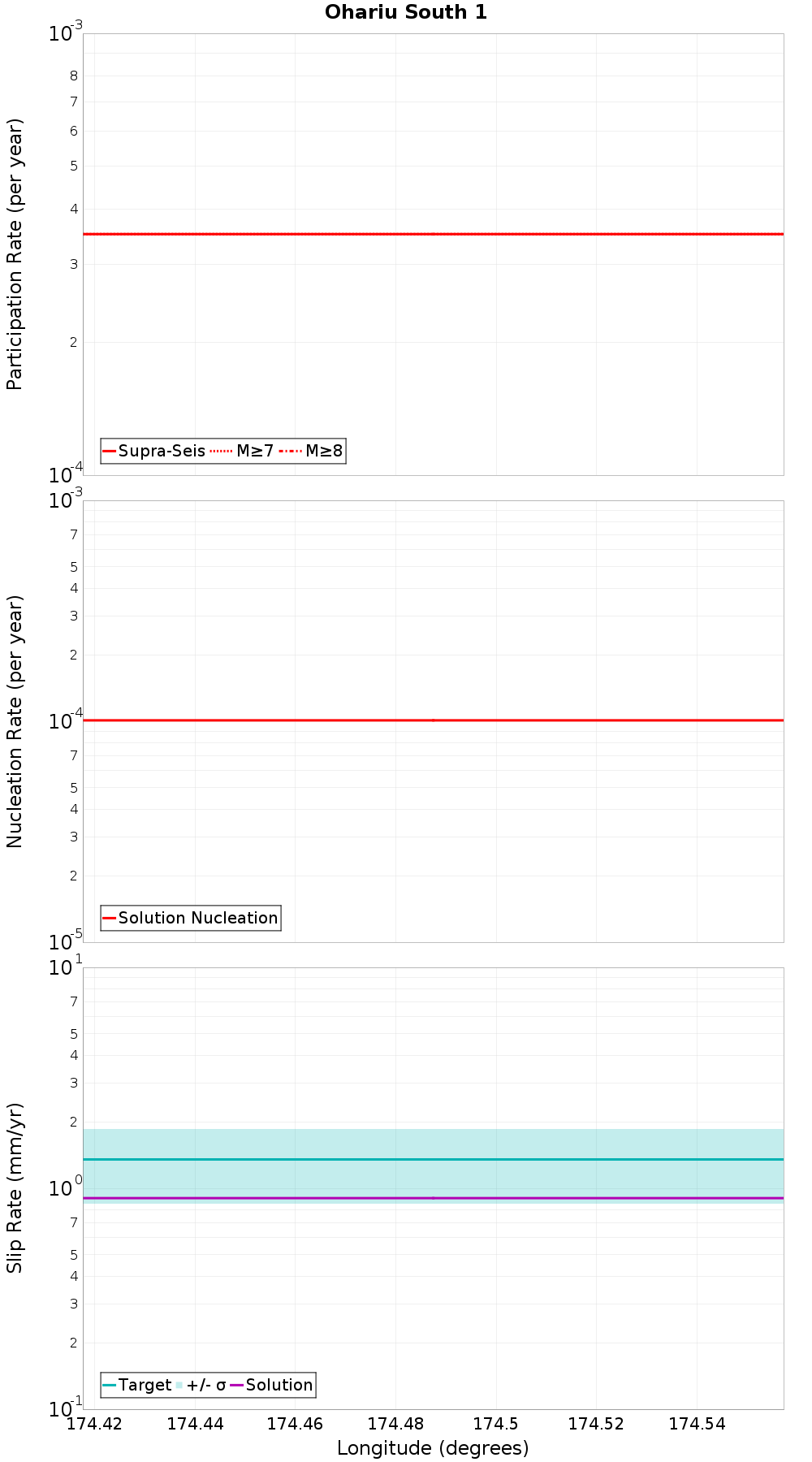

Along-Strike Values

Moment-Rates and b-Values

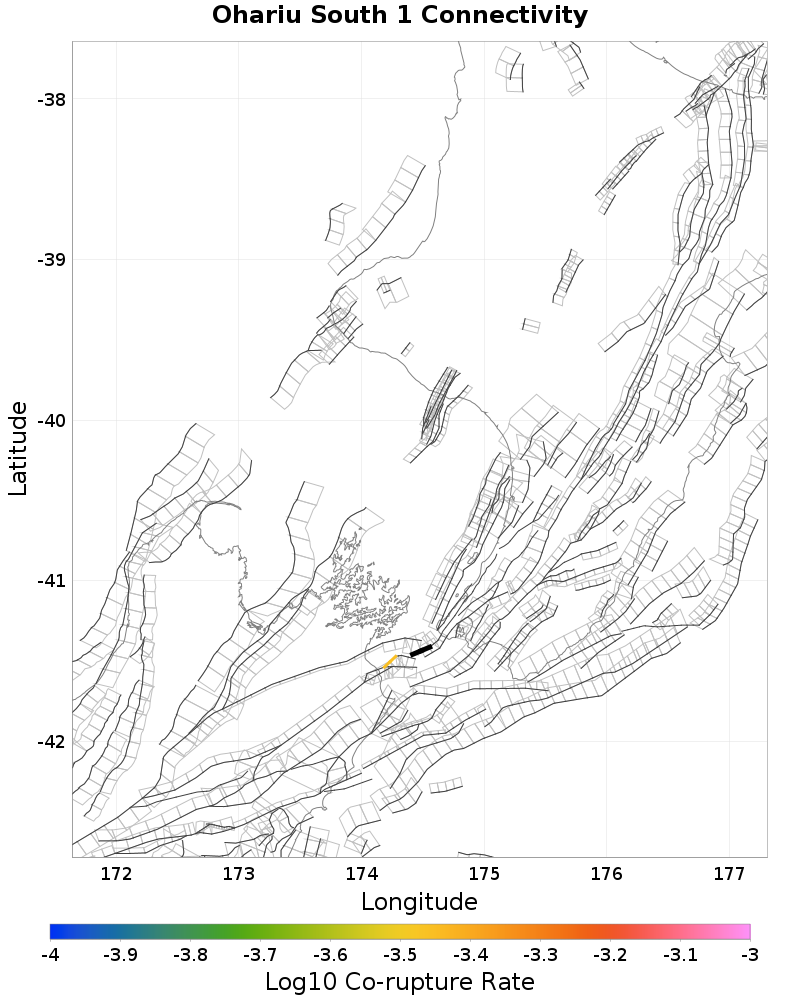

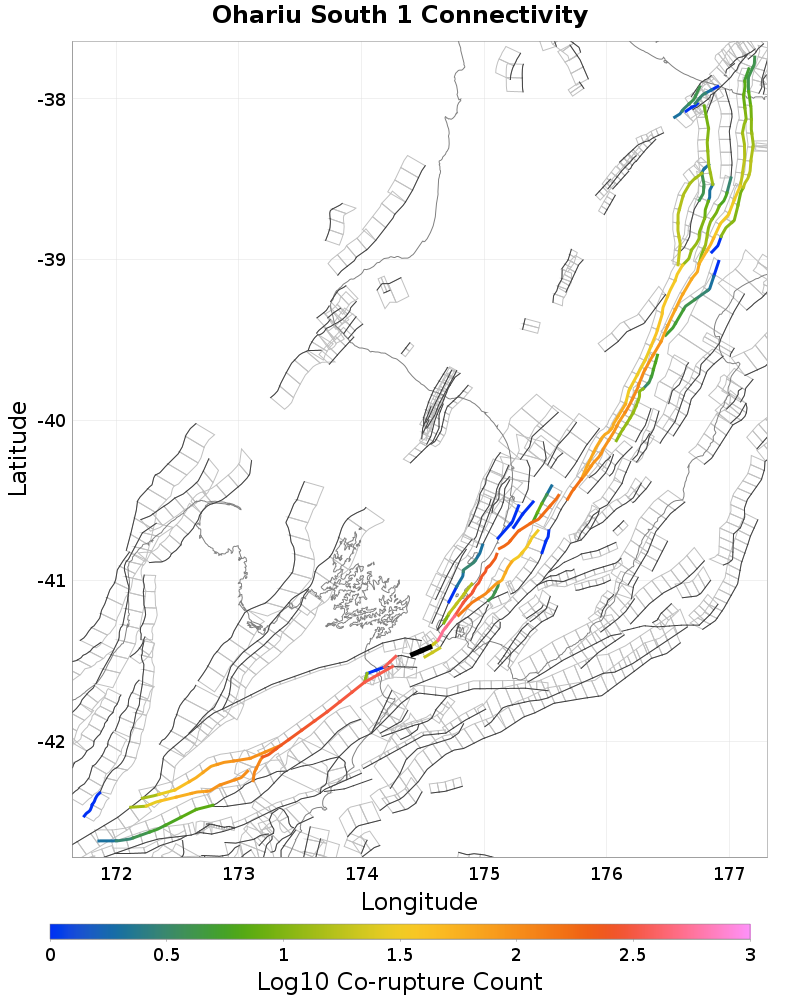

Connectivity

Nearby Sections

Fault Section	Fault Section
Ohariu South 2, 0 km away	Vernon 4, 8.87 km away
Wairau 3, 0.18 km away	Pukerua - Shepherds Gully: 1, 9.15 km away
Wairau 2, 1.34 km away	Cloudy 1, 10.5 km away
Cloudy 3, 2.61 km away	Wellington Hutt Valley: 3, 13.74 km away
Wellington Hutt Valley: 1, 3.91 km away	Pukerua - Shepherds Gully: 2, 15.36 km away
Shepherds Gully - Mana, 5.16 km away	Vernon 3, 16.05 km away
Wellington Hutt Valley: 2, 6.74 km away	Awatere: Northeast 2, 16.05 km away
Ohariu, 6.95 km away	Wairau, 16.33 km away
Cloudy 2, 7.53 km away	Aotea - Evans Bay, 18.88 km away
Okupe 1, 8.71 km away	Wairarapa: Needles, 19.05 km away

Ohariu South 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	0.0

Wairau 3, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairau 2, 1.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cloudy 3, 2.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 1, 3.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	0.0

Shepherds Gully - Mana, 5.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 2, 6.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohariu, 6.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	true
Co-rupture Count	539
Co-rupture Rate	0.0

Cloudy 2, 7.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Okupe 1, 8.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Vernon 4, 8.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pukerua - Shepherds Gully: 1, 9.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cloudy 1, 10.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	true
Co-rupture Count	351
Co-rupture Rate	3.5124214E-4

Wellington Hutt Valley: 3, 13.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pukerua - Shepherds Gully: 2, 15.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	false
Co-rupture Count	10
Co-rupture Rate	0.0

Vernon 3, 16.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awatere: Northeast 2, 16.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	true
Directly Connected?	false
Co-rupture Count	334
Co-rupture Rate	0.0

Wairau, 16.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Aotea - Evans Bay, 18.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: Needles, 19.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
