Tirohanga Details

PropertyValue
Rupture Count3
Ruptures Above Sect Min Mag3
Ruptures w/ Nonzero Rates3
Magnitude Range[7.11, 7.62]
Length Range[25, 84] km
Total Rate7.799048E-5 /yr
Multi-Fault Rate4.373566E-5 /yr (56.08%)
Directly-Connected Faults1
All Co-Rupturing Faults2

Table Of Contents

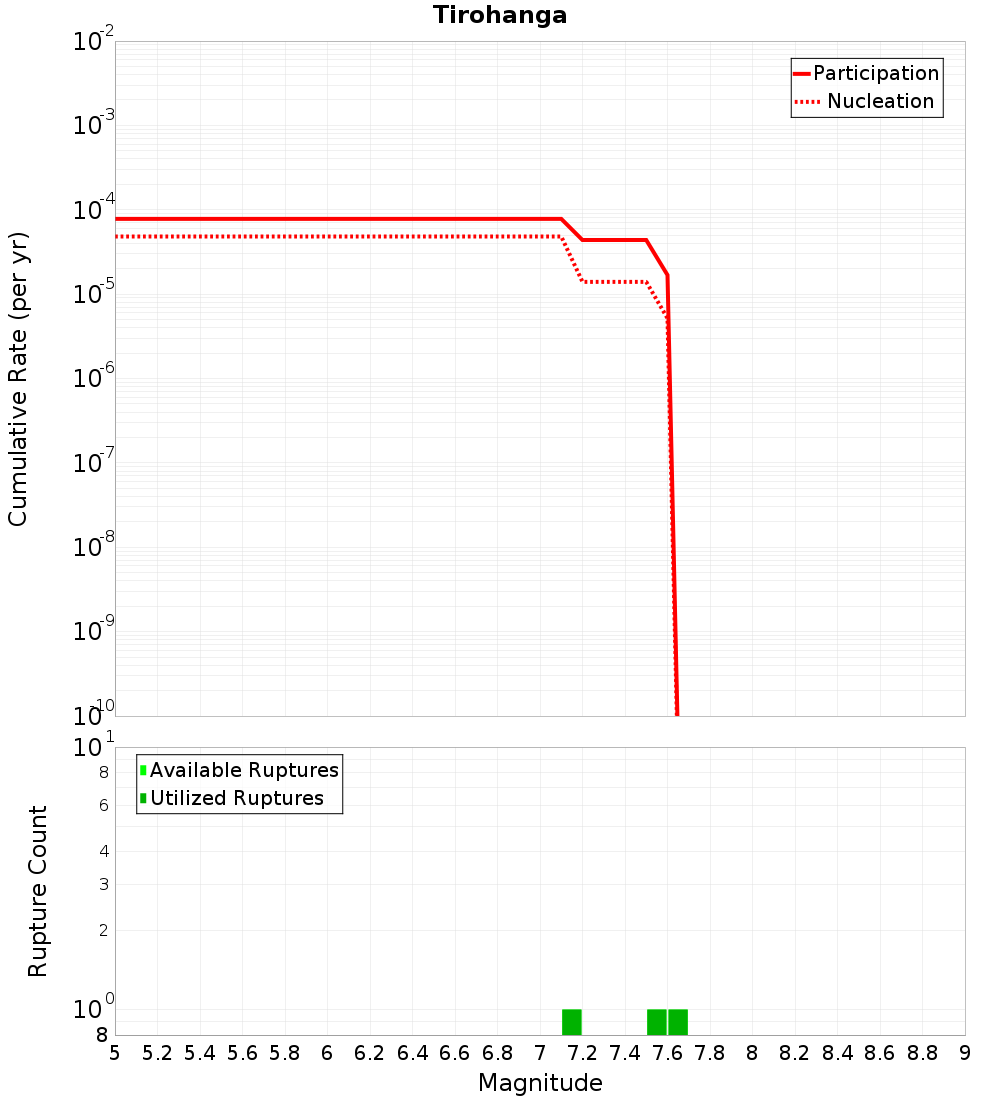

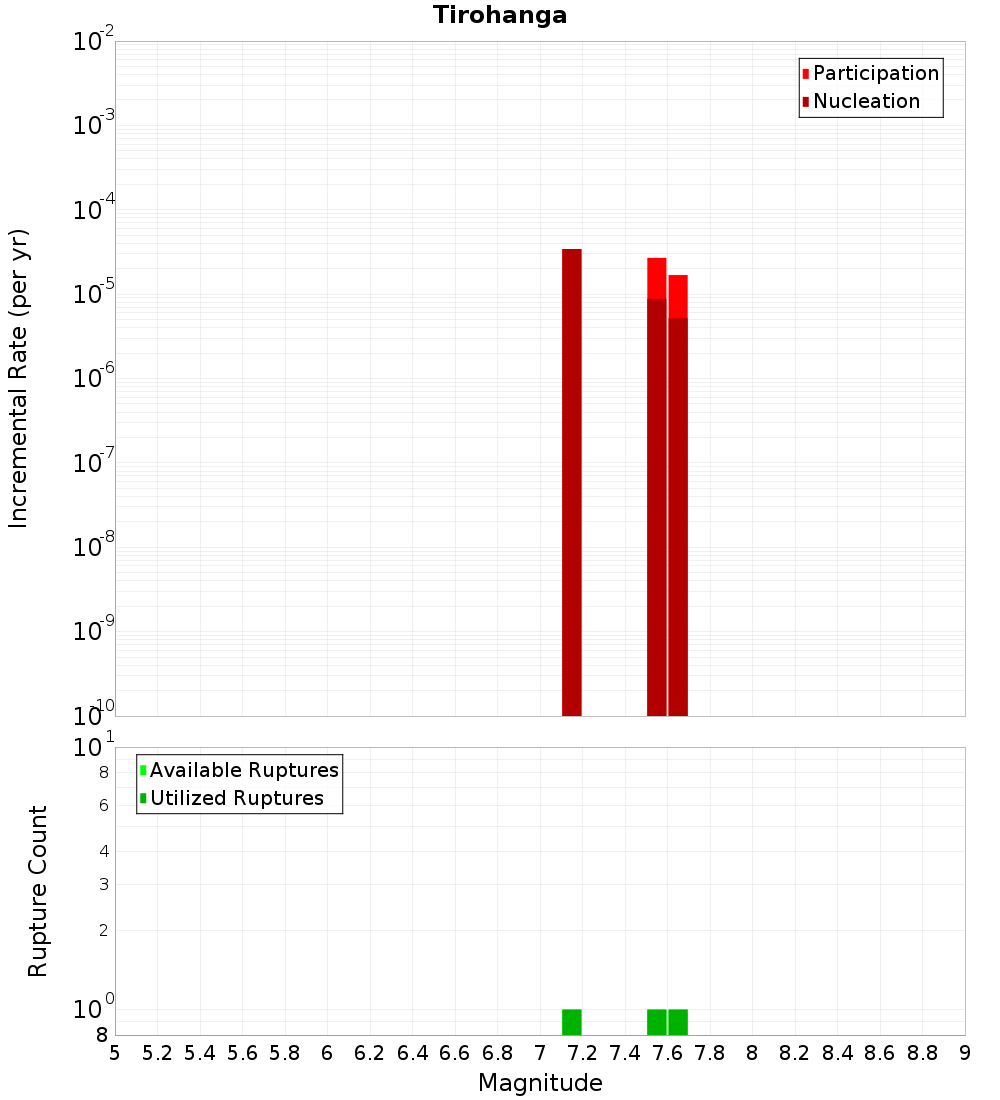

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

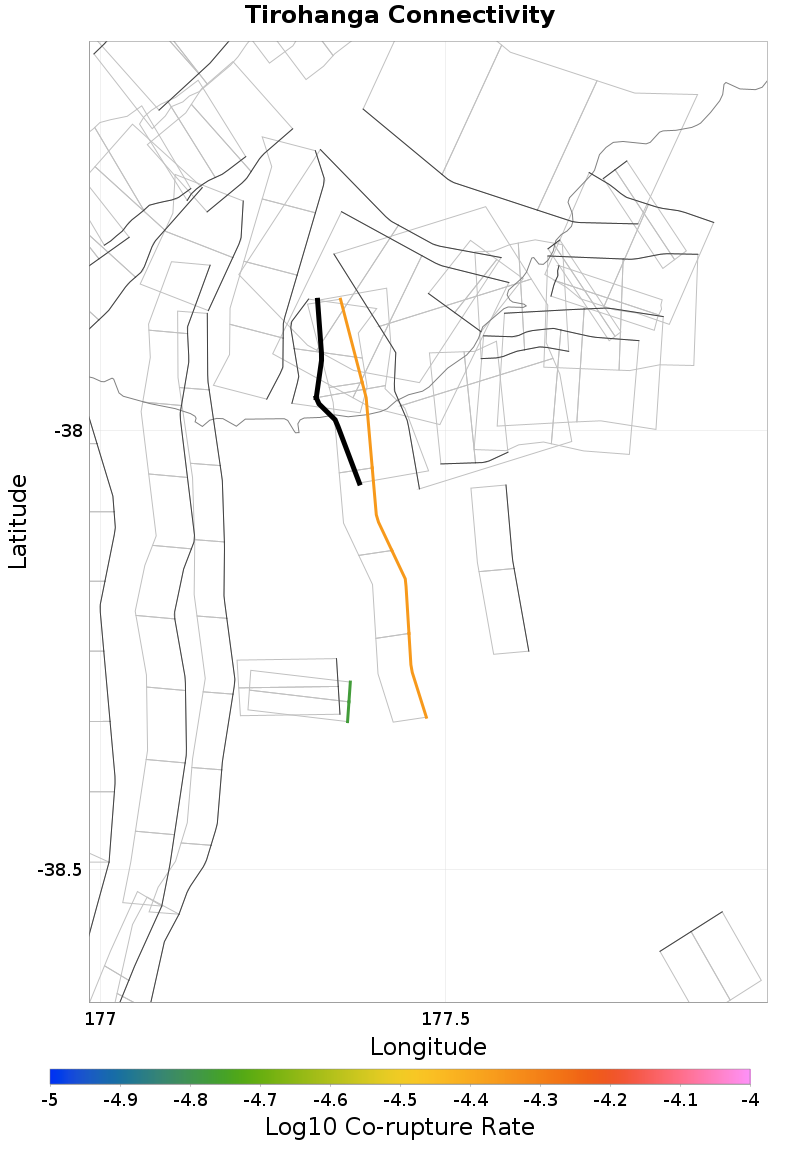

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohae 2, 0.03 km awayMotu River, 10.15 km away
Ohae 1, 0.24 km awayOhae 3, 11.9 km away
Kotare - Moutuhora, 0.32 km awayWaimana - Waikaremoana, 12.06 km away
Opotiki 2, 1.13 km awayRaukumara 17, 12.11 km away
Opotiki 3, 3.42 km awayWaiotahi: North, 13.29 km away
Opape 1, 4.64 km awayWaimana: North, 14.35 km away
Raukumara 16, 4.95 km awayWhite Island 2, 17.57 km away
Motu, 5.85 km awayRaukumara 21, 18.32 km away
Raukumara 18, 6.38 km away

Ohae 2, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kotare - Moutuhora, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate4.373566E-5

Opotiki 2, 1.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 3.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 4.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 16, 4.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motu, 5.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 18, 6.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motu River, 10.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 3, 11.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana - Waikaremoana, 12.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 17, 12.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 13.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: North, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 2, 17.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 21, 18.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
