Tuakana 6 Details

PropertyValue
Rupture Count451
Ruptures Above Sect Min Mag451
Ruptures w/ Nonzero Rates10
Magnitude Range[6.82, 8.01]
Length Range[14, 256] km
Total Rate4.676215E-4 /yr
Multi-Fault Rate4.676215E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults28

Table Of Contents

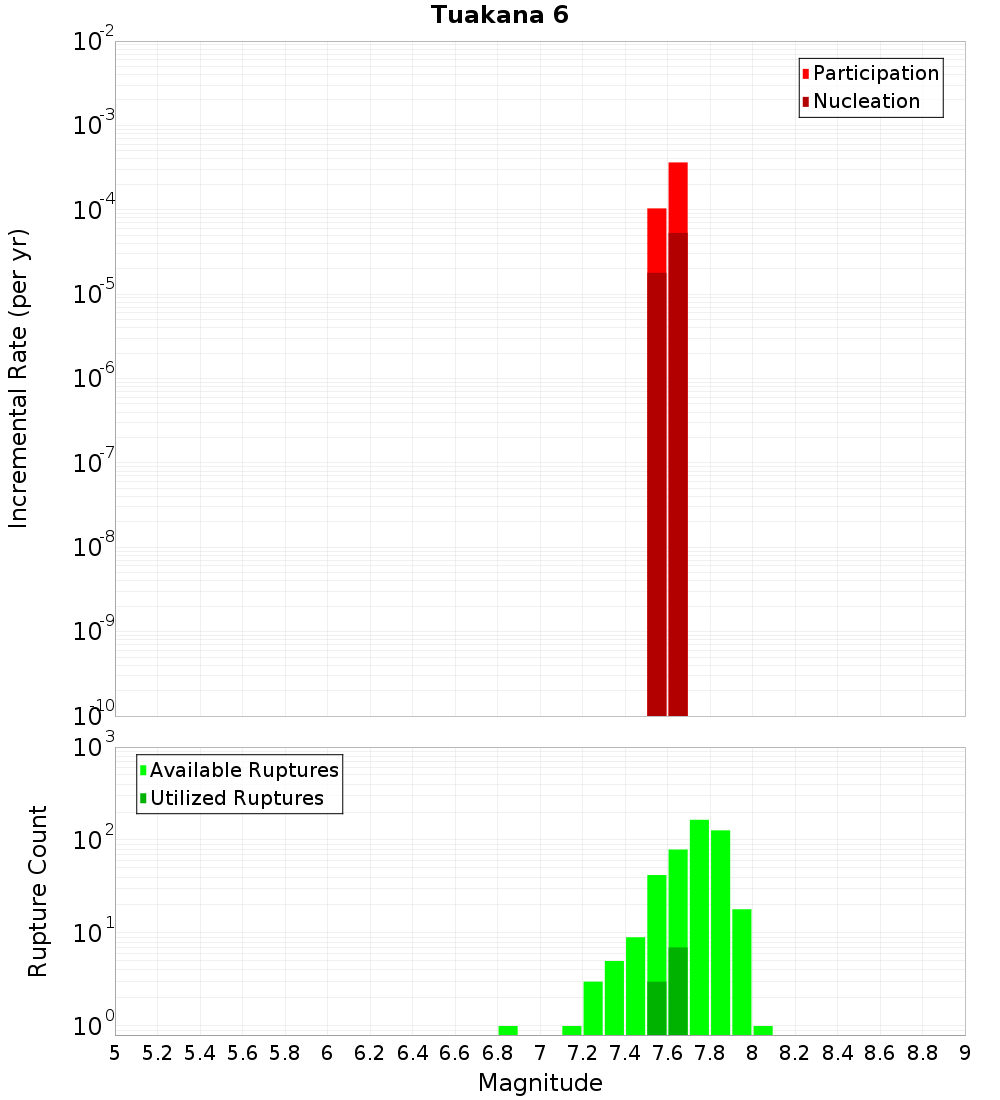

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

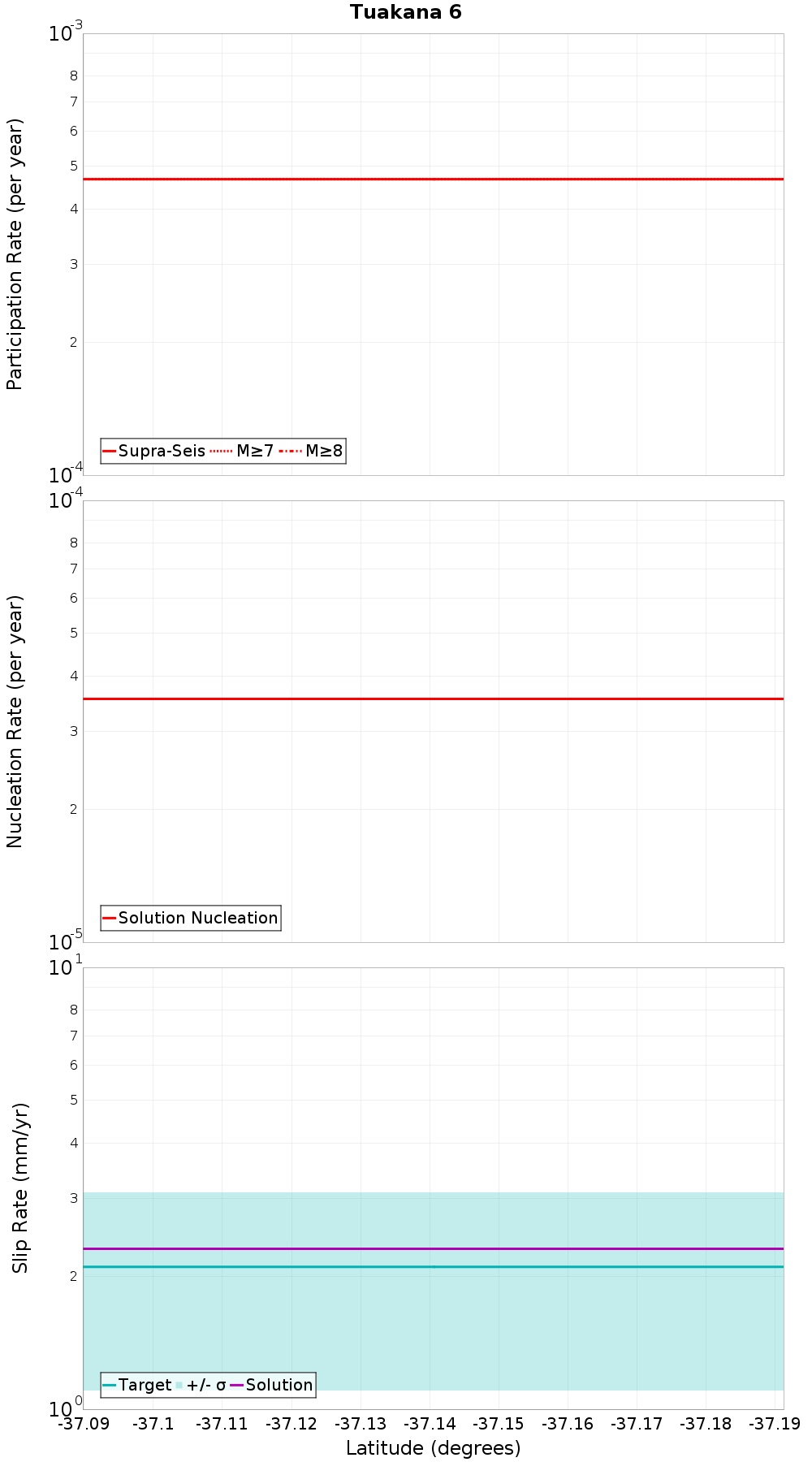

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

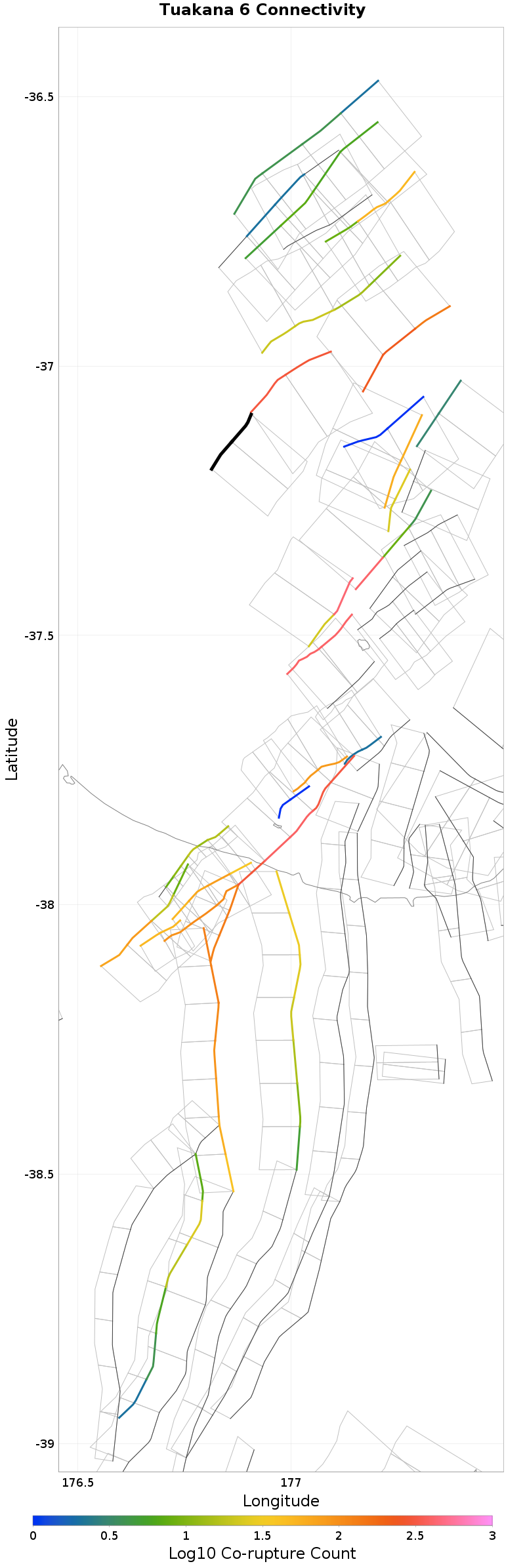

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuakana 7, 0.36 km away
Otara West 2, 2.72 km away
Otara West 1, 4.19 km away
Volkner 3, 6.8 km away
Volkner 4, 8.2 km away
Tauranga Trough West 2, 12.95 km away
Otara West 3, 14.95 km away
Tauranga Trough East 2, 19.71 km away

Tuakana 7, 0.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count309
Co-rupture Rate4.676215E-4

Otara West 2, 2.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count60
Co-rupture Rate0.0

Otara West 1, 4.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate0.0

Volkner 3, 6.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count430
Co-rupture Rate3.6382934E-4

Volkner 4, 8.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count408
Co-rupture Rate8.1843566E-5

Tauranga Trough West 2, 12.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate2.2254261E-4

Otara West 3, 14.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Tauranga Trough East 2, 19.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count231
Co-rupture Rate2.4507887E-4
