Uruti East - PorWest 1 Details

PropertyValue
Rupture Count20,139
Ruptures Above Sect Min Mag20,097
Ruptures w/ Nonzero Rates13
Magnitude Range[6.49, 8.64]
Length Range[12, 1,156] km
Total Rate1.9104959E-4 /yr
Multi-Fault Rate1.9104959E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults72

Table Of Contents

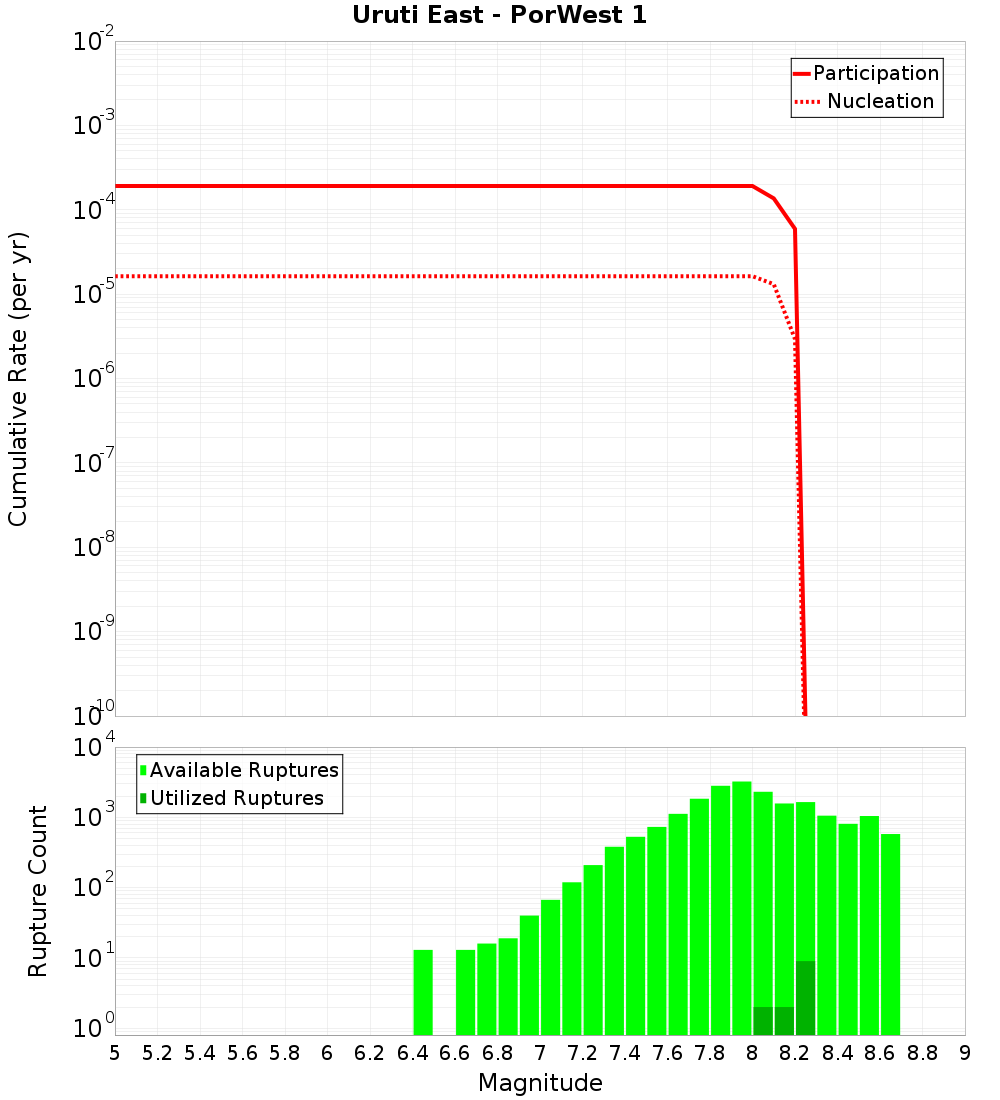

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

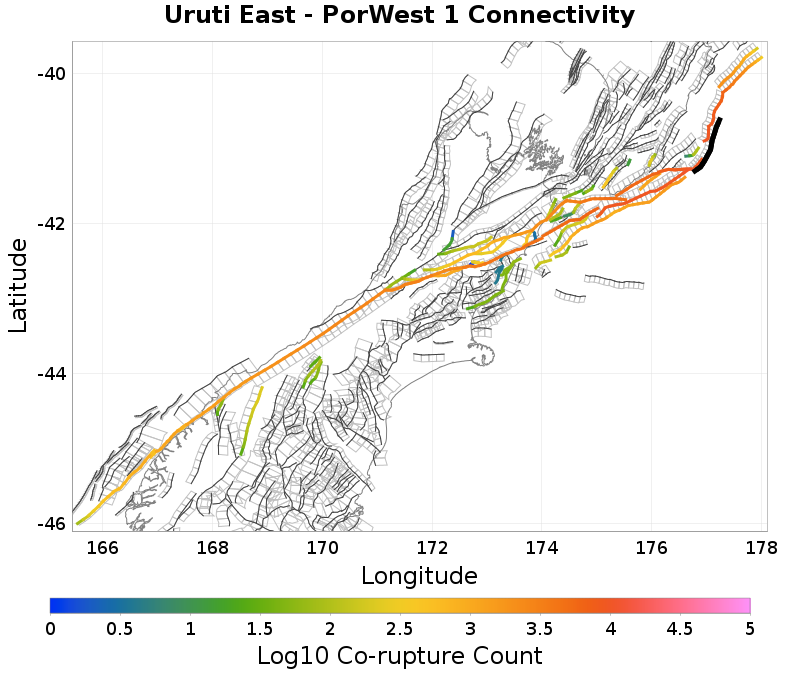

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Uruti Basin, 0.19 km away
Uruti Ridge 2, 2.58 km away
Madden Banks, 4.32 km away
Opouawe - Uruti, 5.71 km away
Uruti North, 11.16 km away
Uruti Basin 2, 11.52 km away
Pahaua, 11.57 km away
Whareama Bank, 17.92 km away

Uruti Basin, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count10,058
Co-rupture Rate1.7406637E-4

Uruti Ridge 2, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count9,355
Co-rupture Rate8.4554704E-5

Madden Banks, 4.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count9,633
Co-rupture Rate4.2348493E-5

Opouawe - Uruti, 5.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?true
Co-rupture Count12,164
Co-rupture Rate1.6983227E-5

Uruti North, 11.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count99
Co-rupture Rate0.0

Uruti Basin 2, 11.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pahaua, 11.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?true
Directly Connected?false
Co-rupture Count1,684
Co-rupture Rate0.0

Whareama Bank, 17.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjAuME1HWFFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
