Barefell Details

Property	Value
Rupture Count	2,592
Ruptures Above Sect Min Mag	2,591
Ruptures w/ Nonzero Rates	6
Magnitude Range	[6.78, 8.31]
Length Range	[18, 744] km
Total Rate	1.0263741E-4 /yr
Multi-Fault Rate	1.0263741E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	64

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

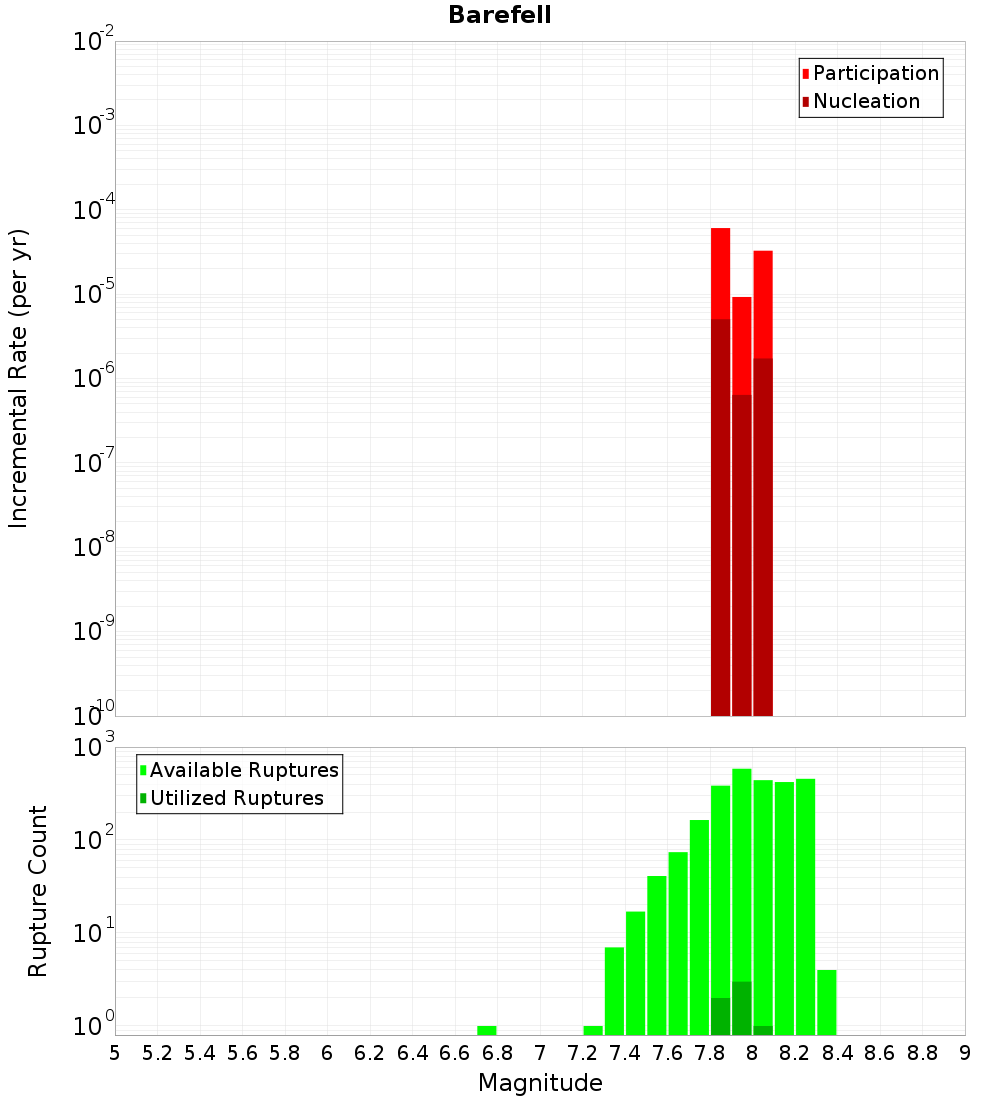

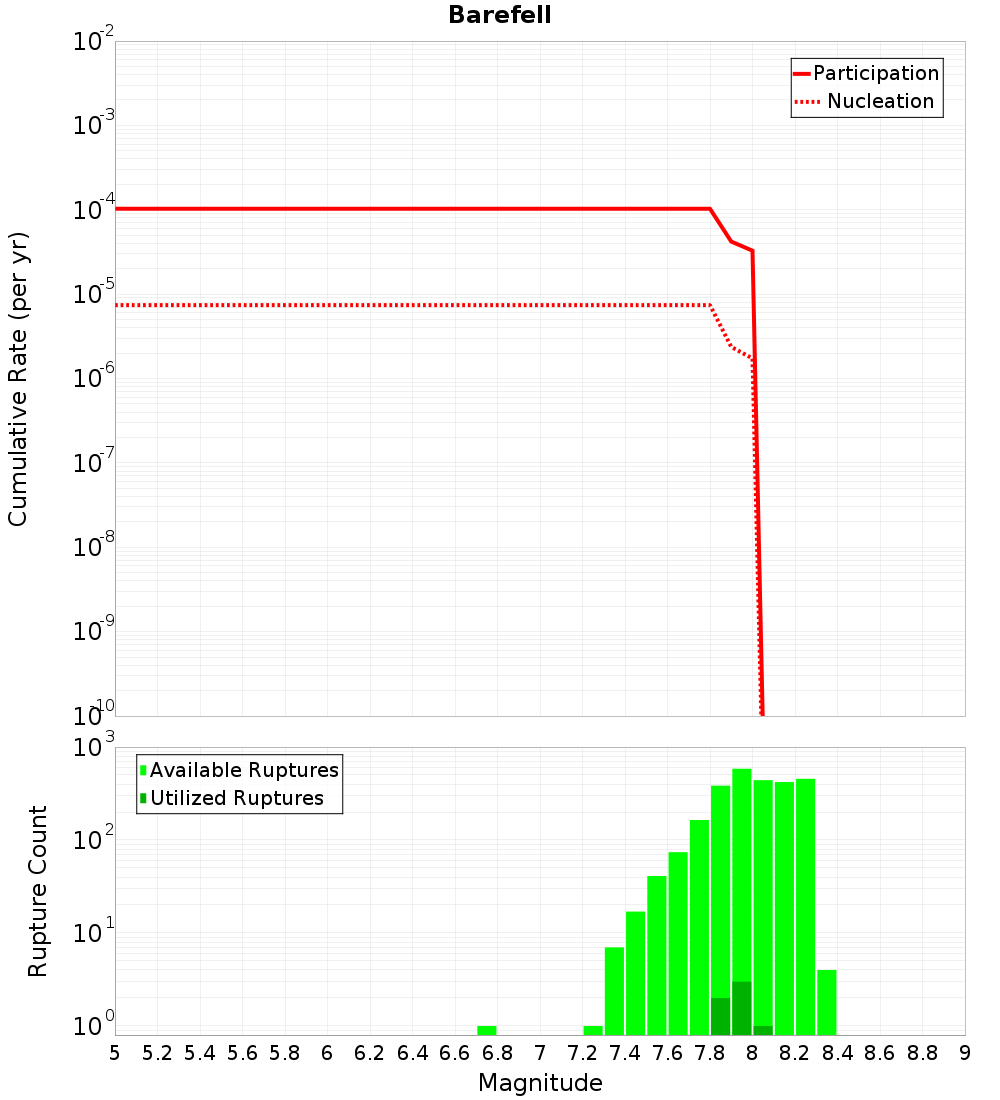

Magnitude-Frequency Distribution

Incremental	Cumulative

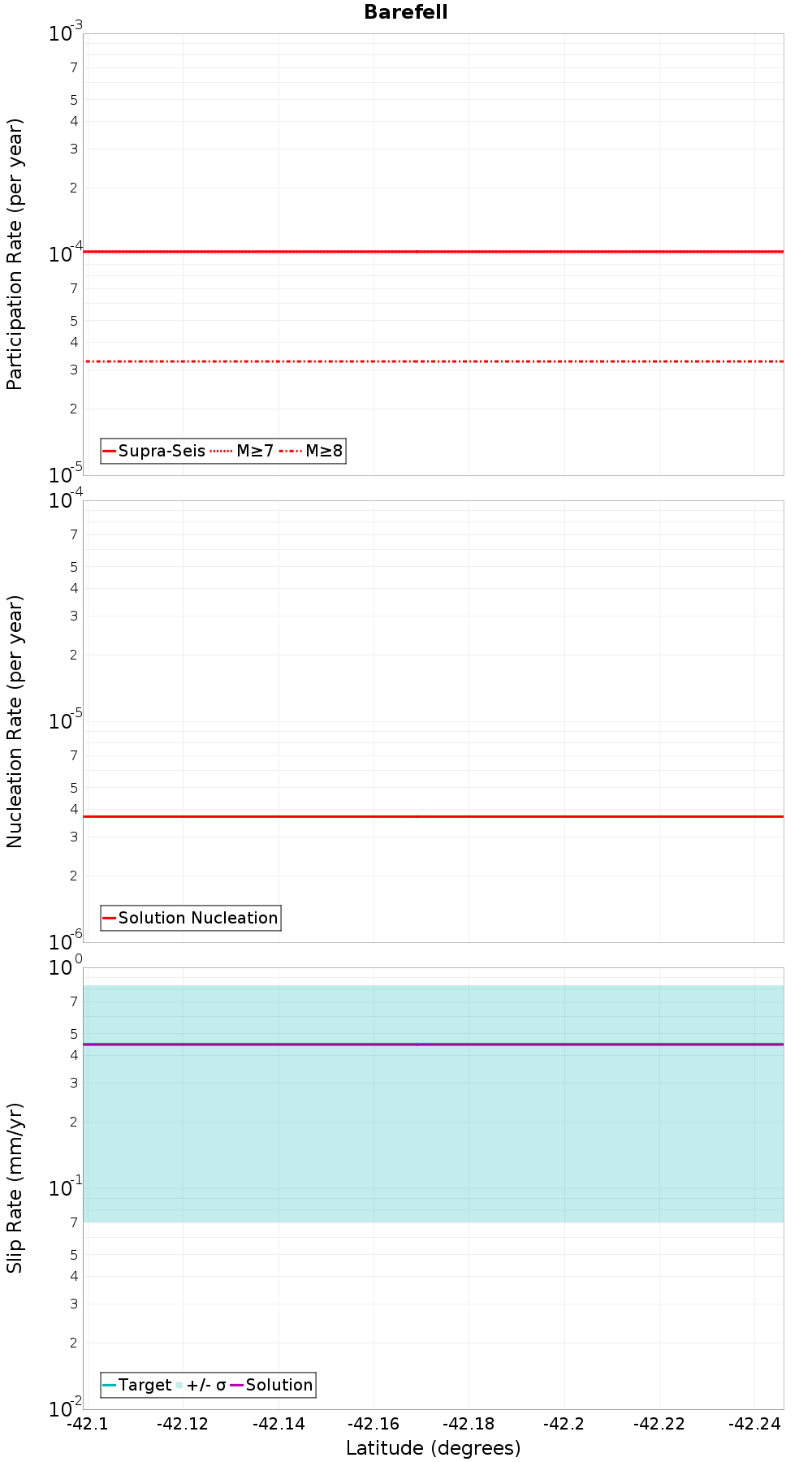

Along-Strike Values

Moment-Rates and b-Values

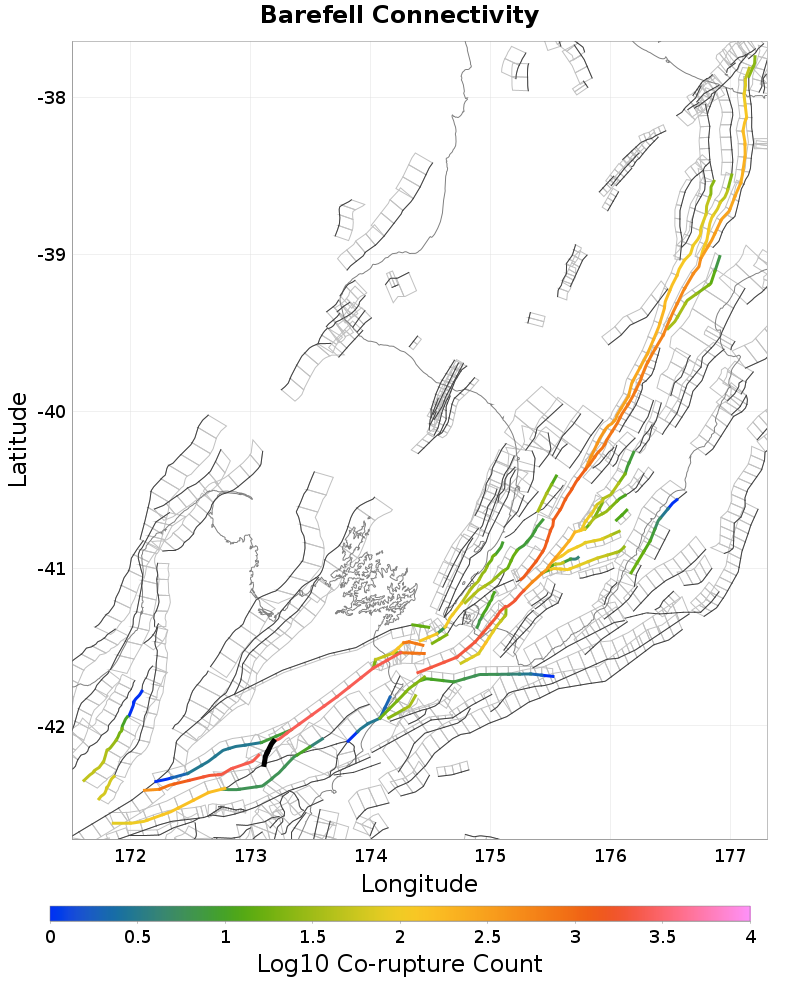

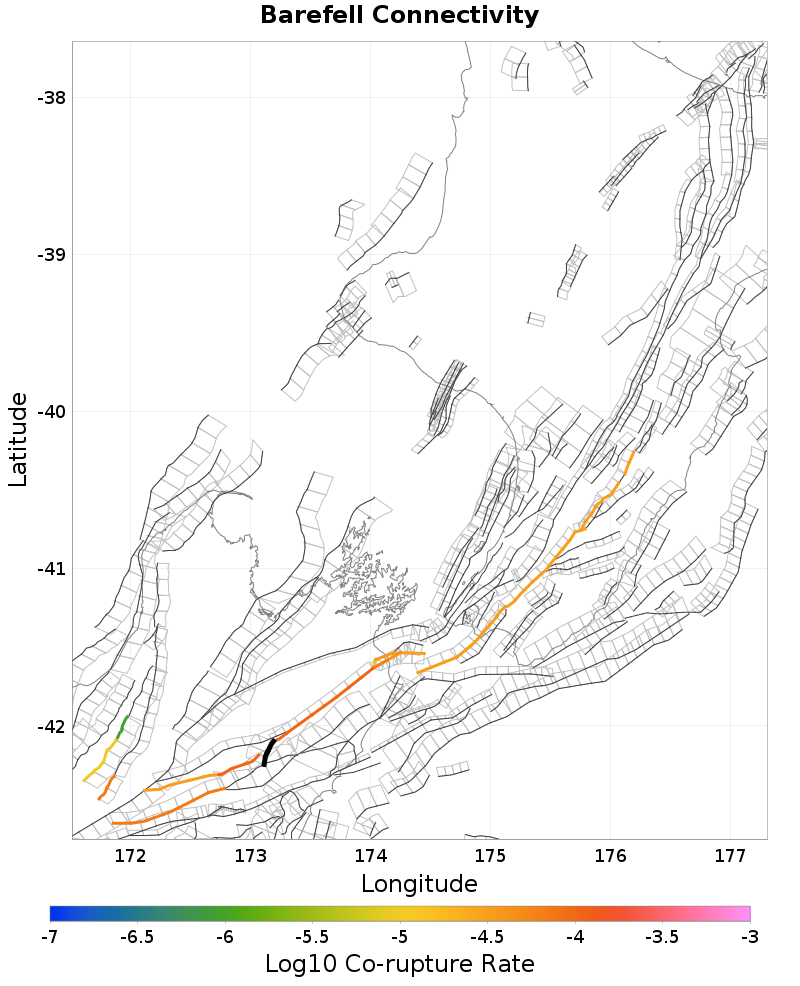

Connectivity

Nearby Sections

Fault Section
Awatere: Northeast 1, 0 km away
Clarence: Central, 0.07 km away
Awatere: Southwest, 0.12 km away
Fowlers, 0.28 km away
Elliott, 8.42 km away
Clarence: Northeast, 16.85 km away
Leader: North, 19.84 km away

Awatere: Northeast 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	true
Co-rupture Count	2,569
Co-rupture Rate	1.0263741E-4

Clarence: Central, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awatere: Southwest, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	0.0

Fowlers, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	true
Co-rupture Count	2,376
Co-rupture Rate	1.0263741E-4

Elliott, 8.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0

Clarence: Northeast, 16.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	false
Co-rupture Count	10
Co-rupture Rate	0.0

Leader: North, 19.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
