Hanmer Details

PropertyValue
Rupture Count39,454
Ruptures Above Sect Min Mag39,274
Ruptures w/ Nonzero Rates31
Magnitude Range[5.20, 8.41]
Length Range[4, 1,071] km
Total Rate7.020723E-4 /yr
Multi-Fault Rate7.020723E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults111

Table Of Contents

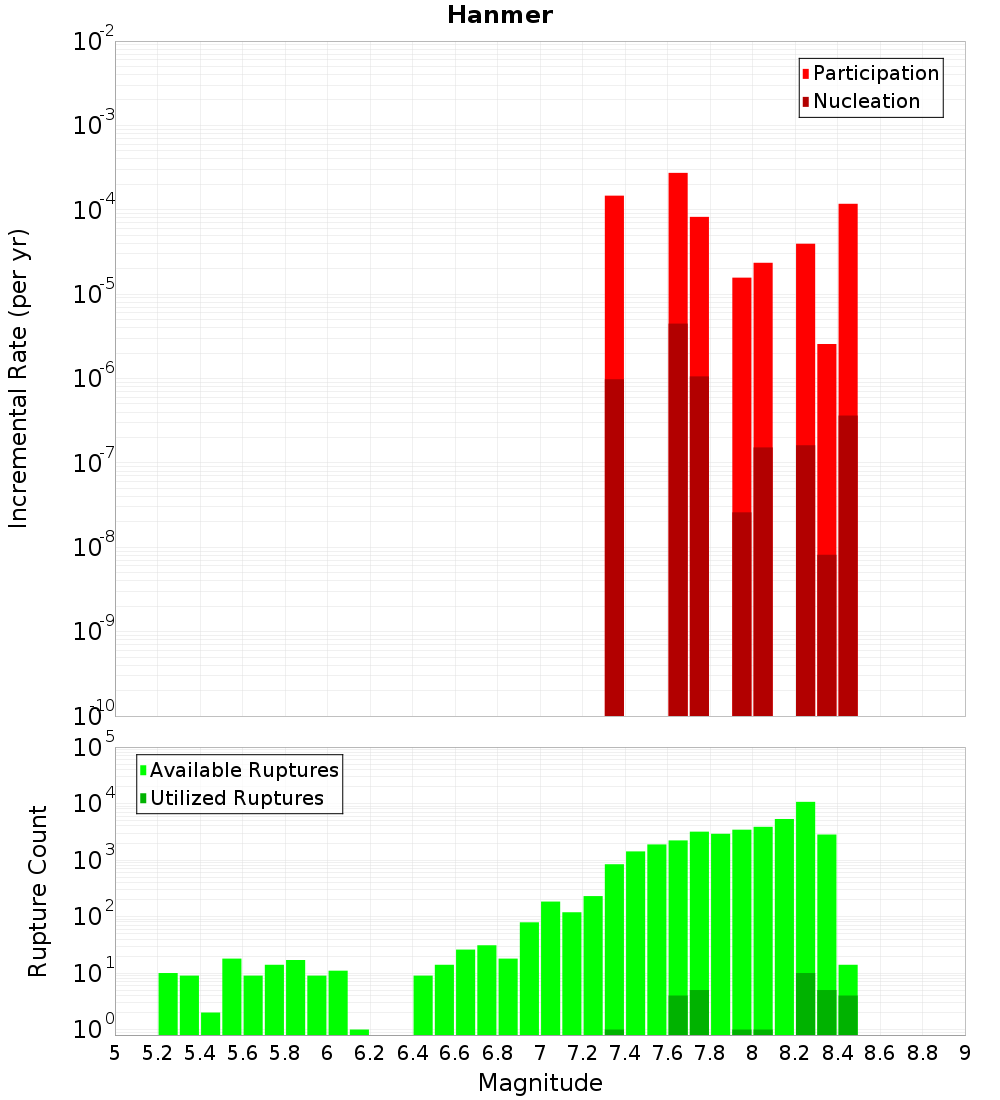

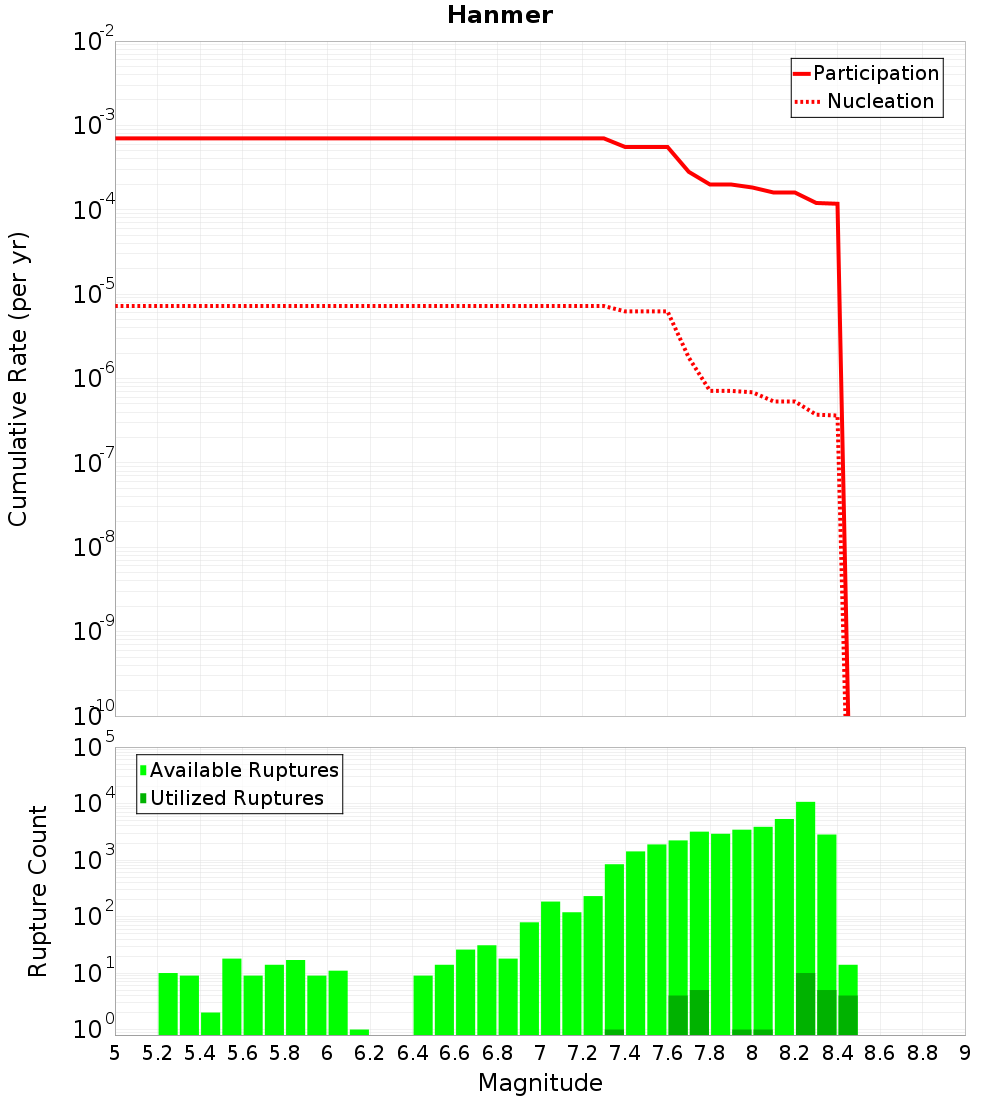

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

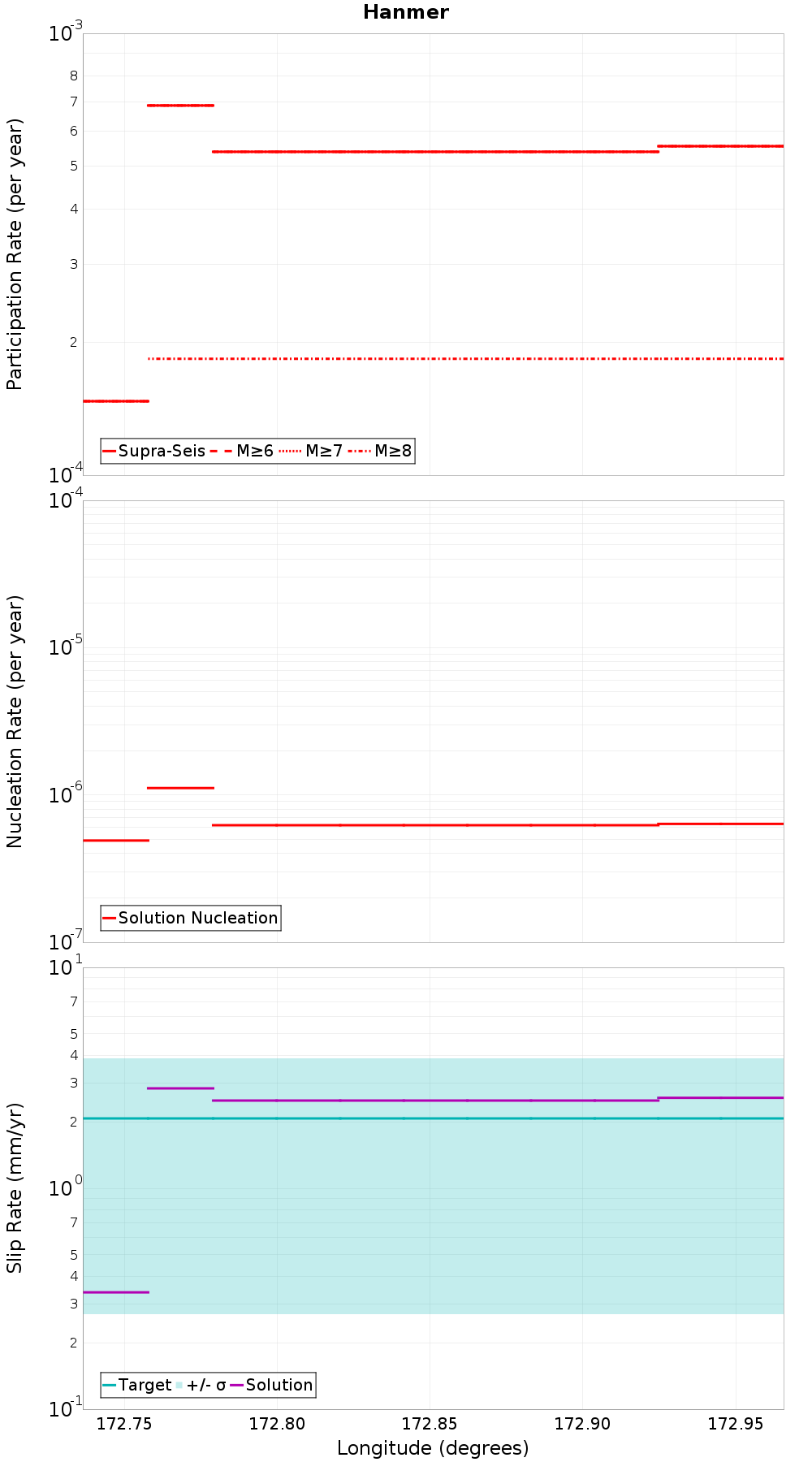

Along-Strike Values

(top)

Along-strike plot

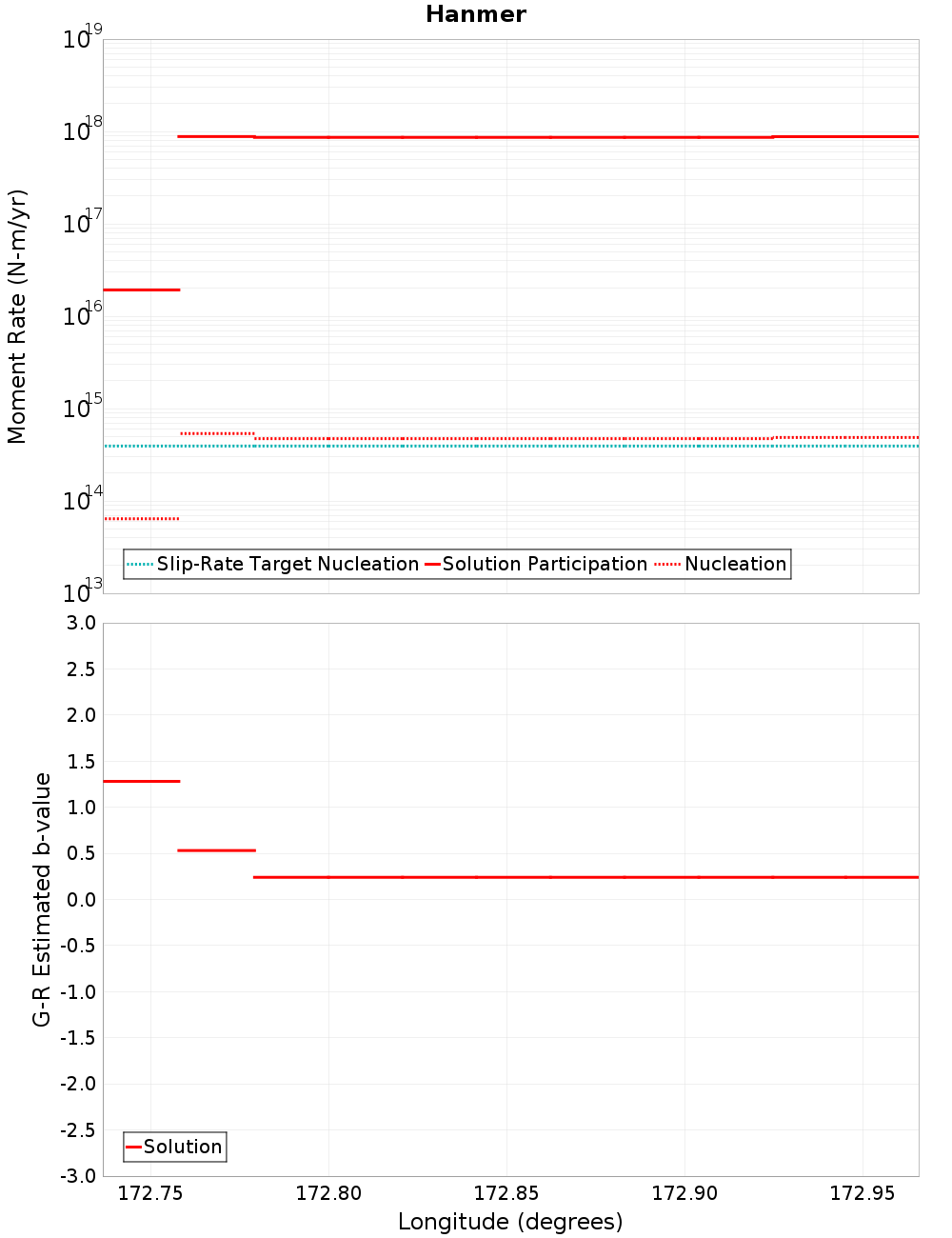

Moment-Rates and b-Values

(top)

Along-strike plot

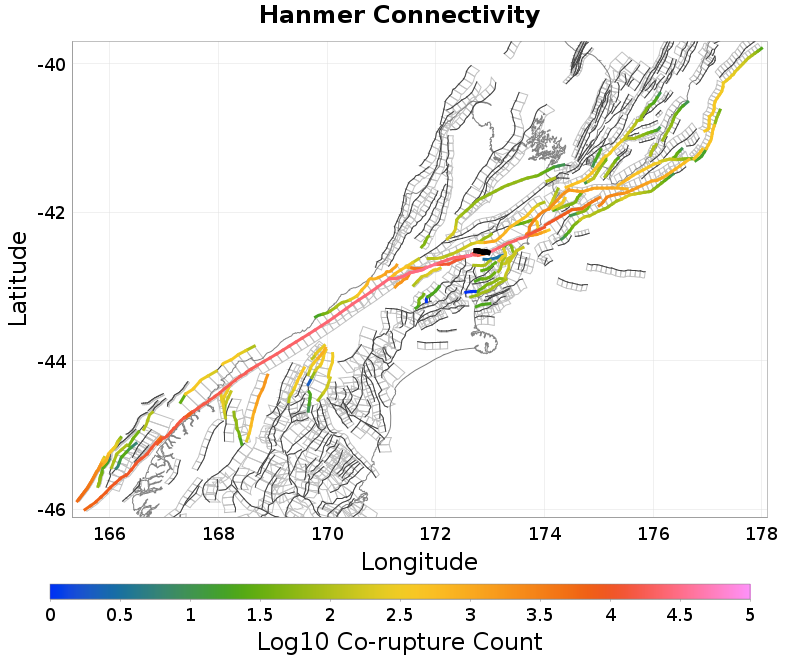

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hope: Conway, 0 km awayElliott, 12.46 km away
Hope: Hanmer SE, 0 km awayClarence: Central, 13.21 km away
Hope: Hanmer NW, 0.16 km awayHope: Hope River, 14.35 km away
Hope: Hanmer SW, 3.33 km awayKakapo, 14.45 km away
Hope: Kakapo-2-Hamner, 8.11 km awayLeader: South, 14.77 km away
The Humps, 9.2 km awayKaiwara North, 16.38 km away
Mt Culverden, 11.42 km awayLeonard Mound, 17.71 km away
Clarence: Southwest, 11.45 km awayEsk North, 18.7 km away

Hope: Conway, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count29,443
Co-rupture Rate5.551184E-4

Hope: Hanmer SE, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count4,797
Co-rupture Rate3.896296E-5

Hope: Hanmer NW, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count17,529
Co-rupture Rate6.8638753E-4

Hope: Hanmer SW, 3.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count19,779
Co-rupture Rate0.0

Hope: Kakapo-2-Hamner, 8.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count35,352
Co-rupture Rate6.754445E-4

The Humps, 9.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Mt Culverden, 11.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count92
Co-rupture Rate1.0943039E-5

Clarence: Southwest, 11.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count215
Co-rupture Rate0.0

Elliott, 12.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count1,126
Co-rupture Rate0.0

Clarence: Central, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count70
Co-rupture Rate0.0

Hope: Hope River, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count23,807
Co-rupture Rate6.44519E-4

Kakapo, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count11,618
Co-rupture Rate3.0925483E-5

Leader: South, 14.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count253
Co-rupture Rate0.0

Kaiwara North, 16.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count81
Co-rupture Rate1.0943039E-5

Leonard Mound, 17.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate0.0

Esk North, 18.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
