Lees Valley Details

PropertyValue
Rupture Count121
Ruptures Above Sect Min Mag118
Ruptures w/ Nonzero Rates4
Magnitude Range[6.76, 7.88]
Length Range[20, 234] km
Total Rate2.2784894E-4 /yr
Multi-Fault Rate2.2784894E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults10

Table Of Contents

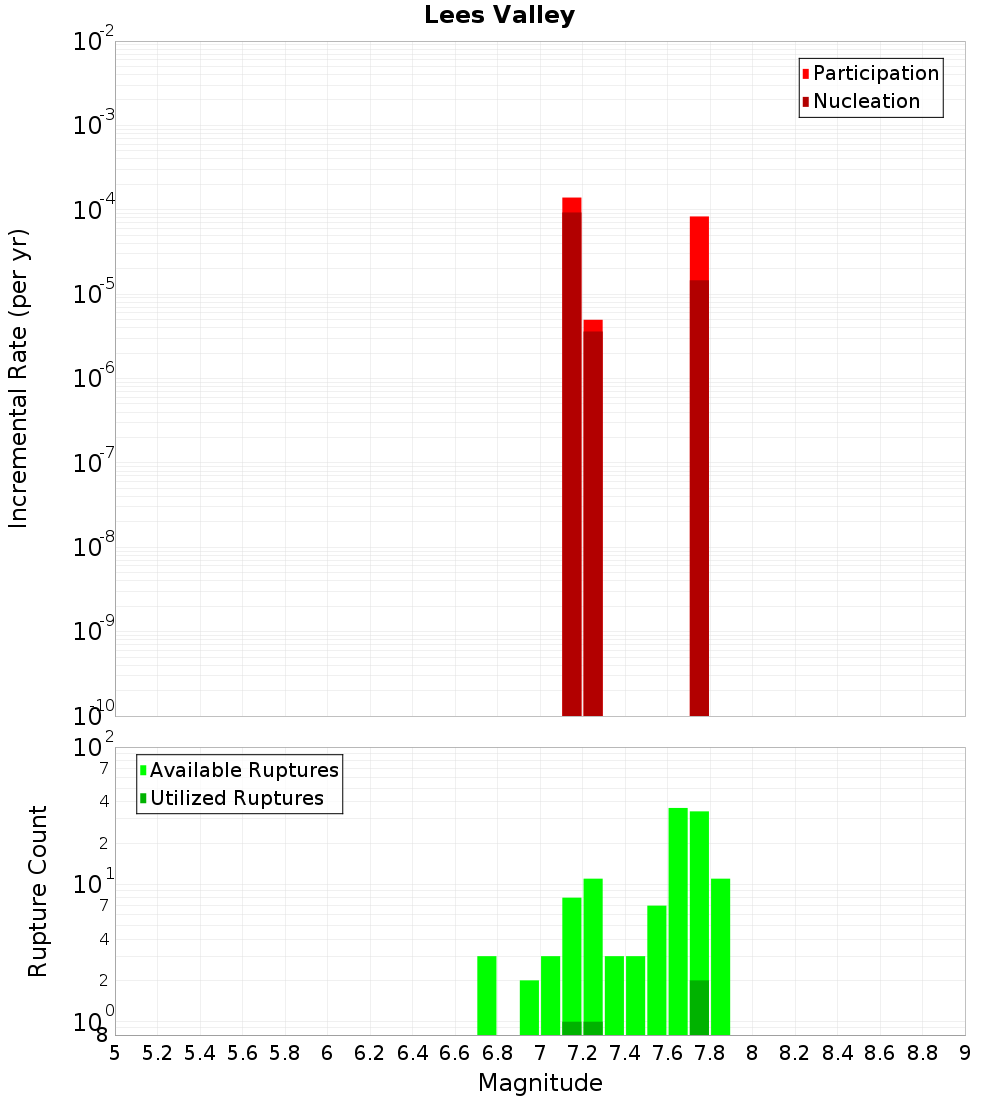

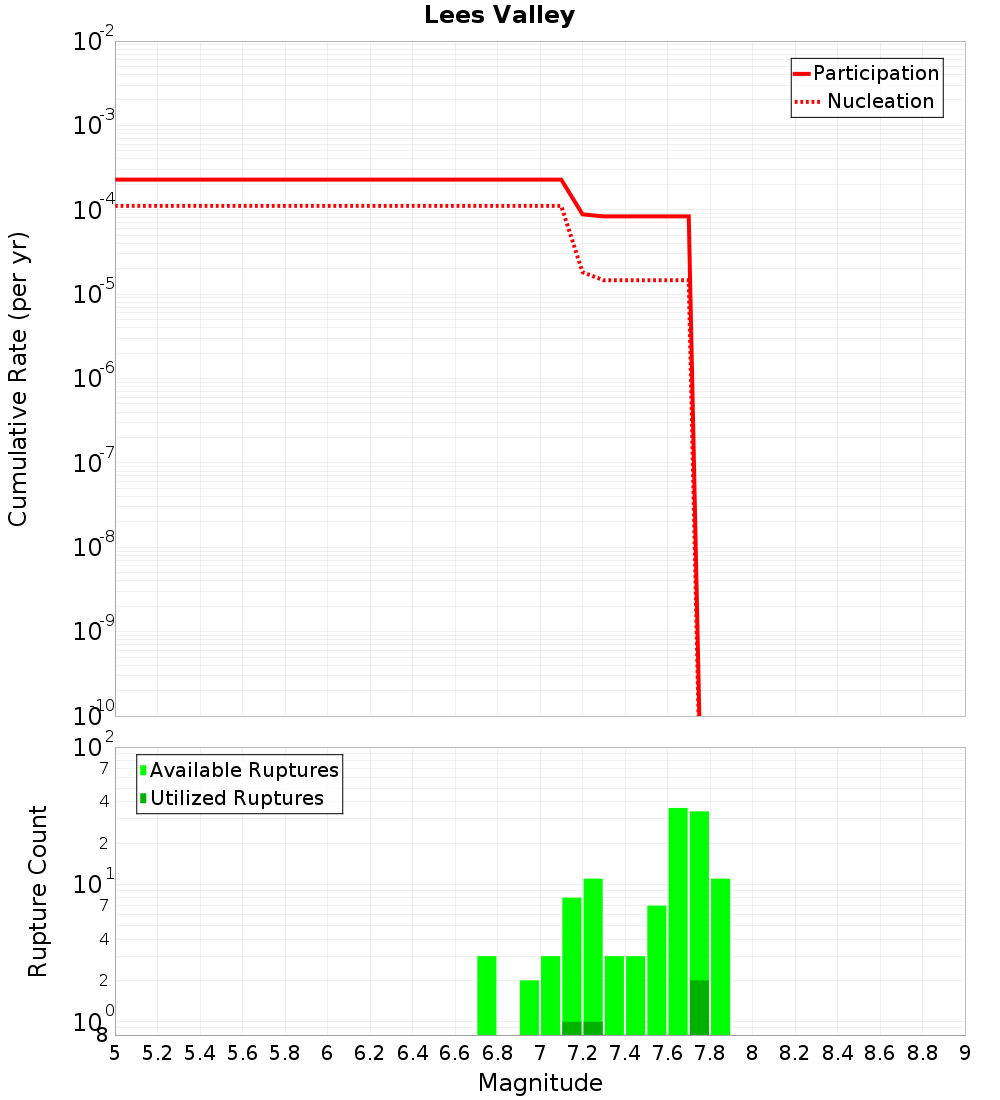

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Knowles Top, 0.1 km awayKowai - View Hill, 8.8 km away
Mt Arden, 0.19 km awayTorlesse, 9.42 km away
Springbank, 0.21 km awayVirginia, 9.67 km away
Pancake, 0.22 km awayEsk North, 11.43 km away
Starvation - Ashley, 0.28 km awayMt Lawry, 11.49 km away
Porters Pass, 0.91 km awayHigh Peak - Sheffield, 11.61 km away
Hororata, 3.65 km awayDoctors, 13.52 km away
Esk South, 3.94 km awaySailor, 14.17 km away
Boby Stream, 8.23 km awayHurunui Peak, 15.83 km away

Knowles Top, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Arden, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

Springbank, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count48
Co-rupture Rate7.621351E-6

Pancake, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count50
Co-rupture Rate0.0

Porters Pass, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate2.2784894E-4

Hororata, 3.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 3.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Boby Stream, 8.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowai - View Hill, 8.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Torlesse, 9.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate0.0

Virginia, 9.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk North, 11.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Lawry, 11.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

High Peak - Sheffield, 11.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 13.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sailor, 14.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hurunui Peak, 15.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
