Mataikona Details

PropertyValue
Rupture Count1,425
Ruptures Above Sect Min Mag1,408
Ruptures w/ Nonzero Rates12
Magnitude Range[6.61, 8.14]
Length Range[18, 527] km
Total Rate0.0016212751 /yr
Multi-Fault Rate0.0016212751 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults66

Table Of Contents

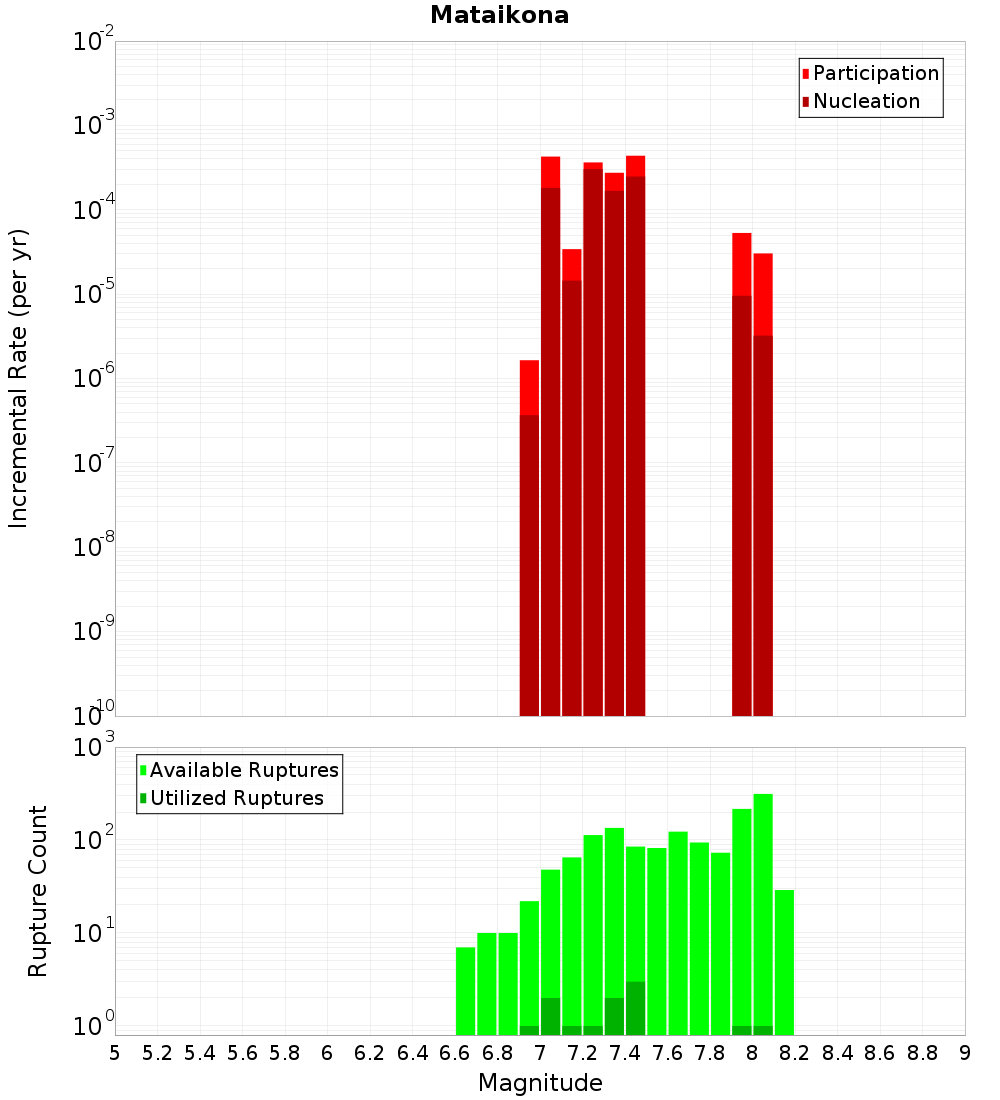

Magnitude-Frequency Distribution

(top)

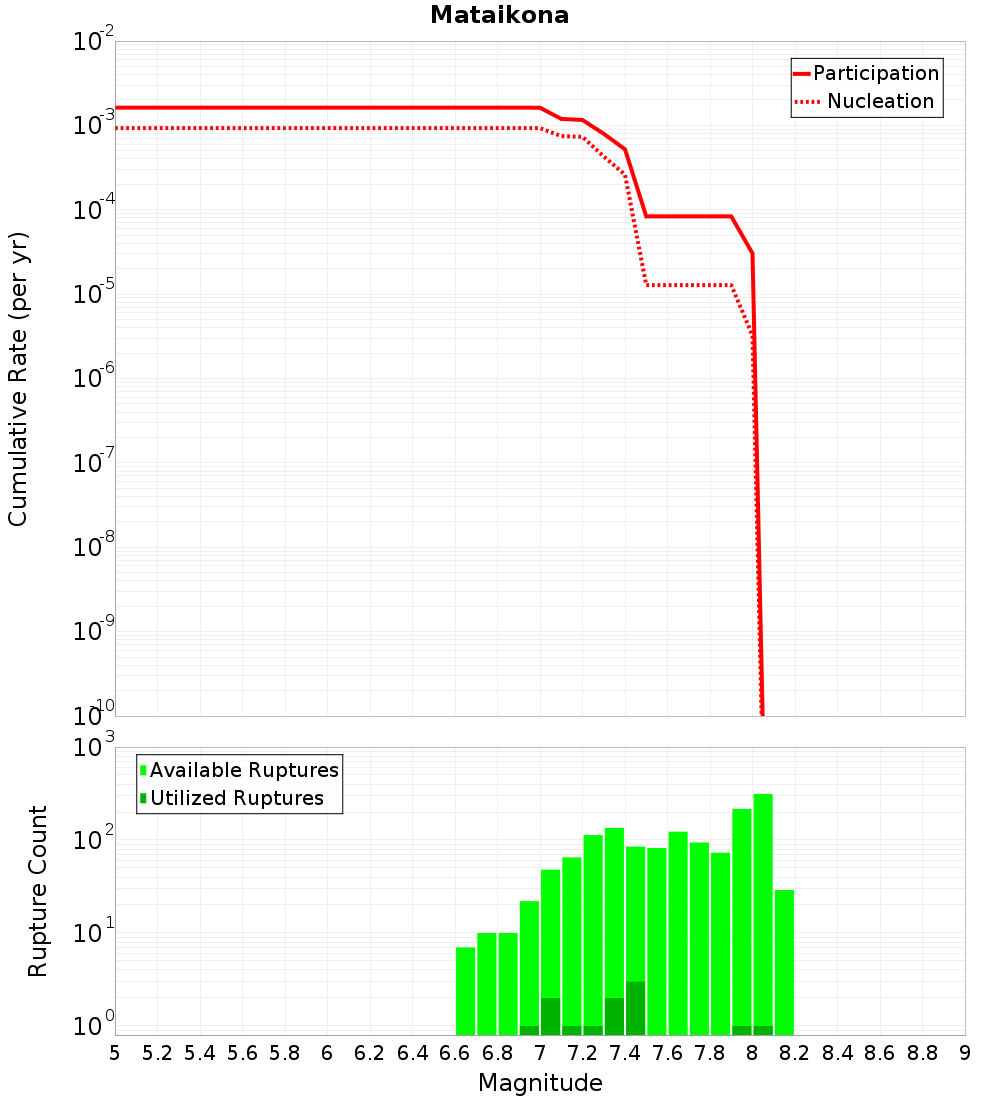

IncrementalCumulative
Incremental PlotCumulative Plot

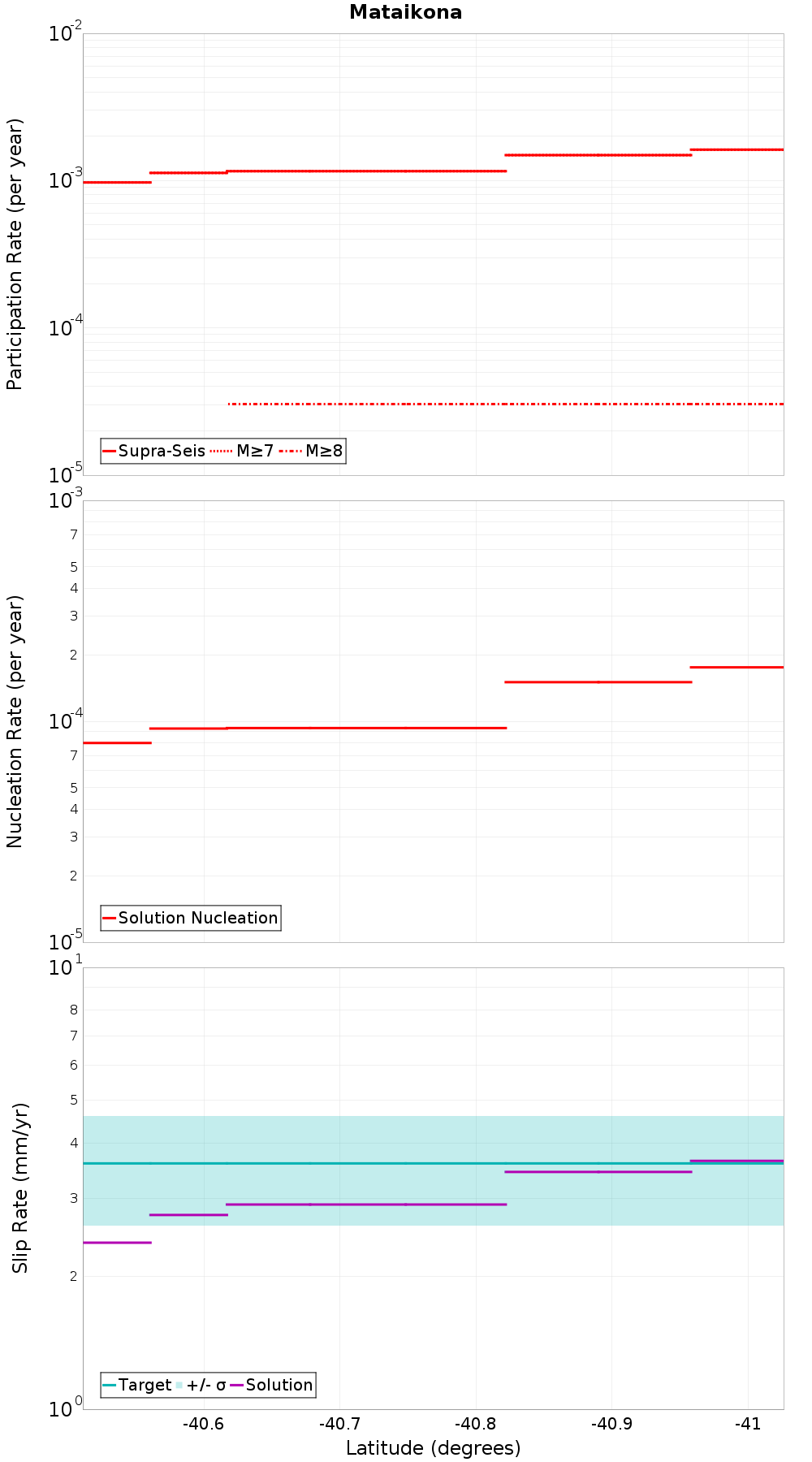

Along-Strike Values

(top)

Along-strike plot

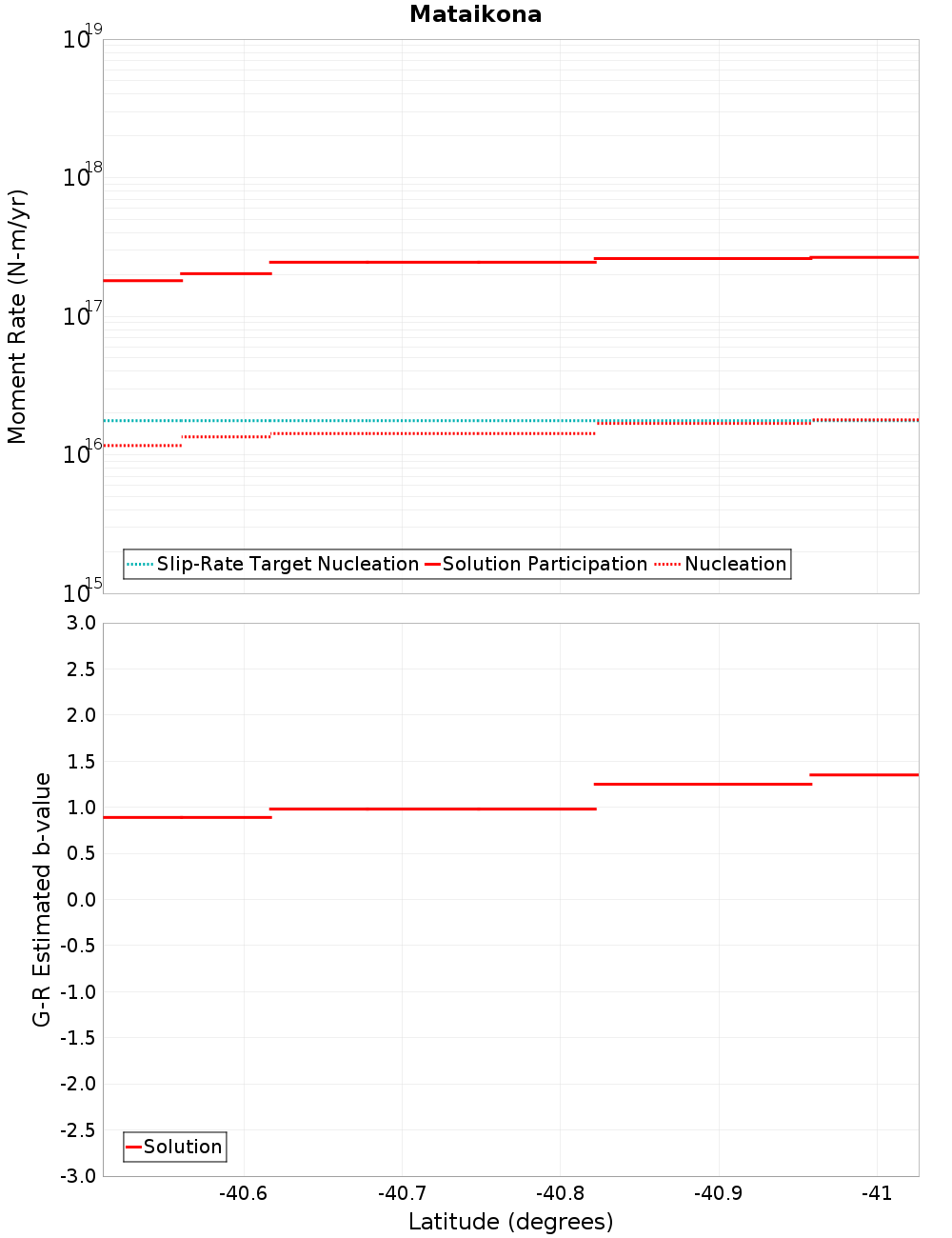

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Carterton, 0.19 km away
Kaumingi, 1.72 km away
Riversdale North, 2.2 km away
Mokonui Northeast, 4.82 km away
Waitawhiti, 5.55 km away
Mataikona East, 5.62 km away
Riversdale, 6.64 km away
Uruti Point, 11.34 km away
Whareama Bank, 12.73 km away
Pongaroa - Weber, 13.47 km away
Waipukaka, 16.01 km away
Saunders Road, 18.32 km away

Carterton, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count571
Co-rupture Rate4.5364676E-4

Kaumingi, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count63
Co-rupture Rate4.2846982E-4

Riversdale North, 2.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count197
Co-rupture Rate6.8606174E-4

Mokonui Northeast, 4.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count25
Co-rupture Rate0.0

Waitawhiti, 5.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count39
Co-rupture Rate3.3040365E-4

Mataikona East, 5.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count47
Co-rupture Rate1.3219874E-4

Riversdale, 6.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count202
Co-rupture Rate3.2212987E-4

Uruti Point, 11.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count554
Co-rupture Rate5.3096774E-5

Whareama Bank, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate0.0

Pongaroa - Weber, 13.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count46
Co-rupture Rate1.7075792E-4

Waipukaka, 16.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Saunders Road, 18.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
