Moonlight South Details

Property	Value
Rupture Count	38
Ruptures Above Sect Min Mag	36
Ruptures w/ Nonzero Rates	4
Magnitude Range	[7.03, 7.92]
Length Range	[28, 241] km
Total Rate	1.0435498E-5 /yr
Multi-Fault Rate	1.0435498E-5 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	2

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

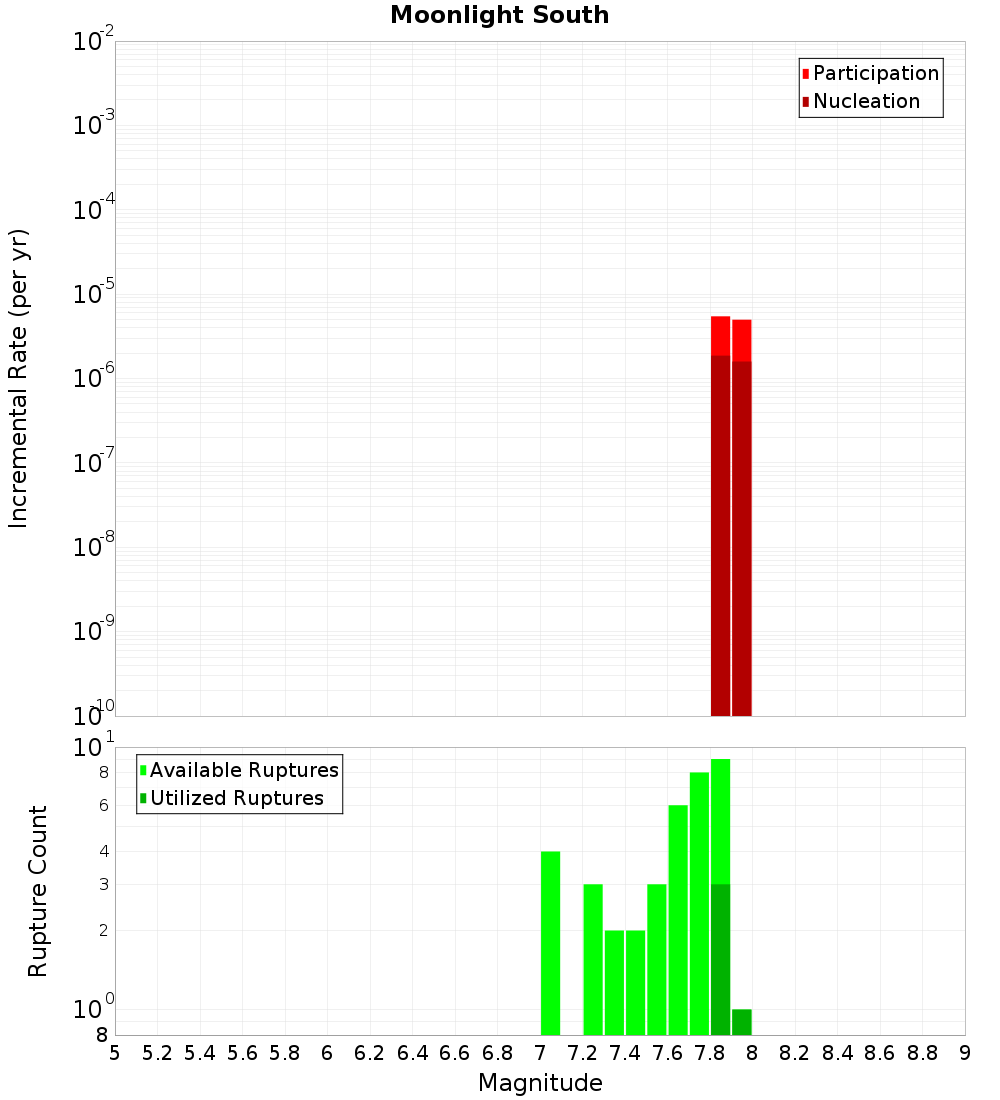

Magnitude-Frequency Distribution

Incremental	Cumulative

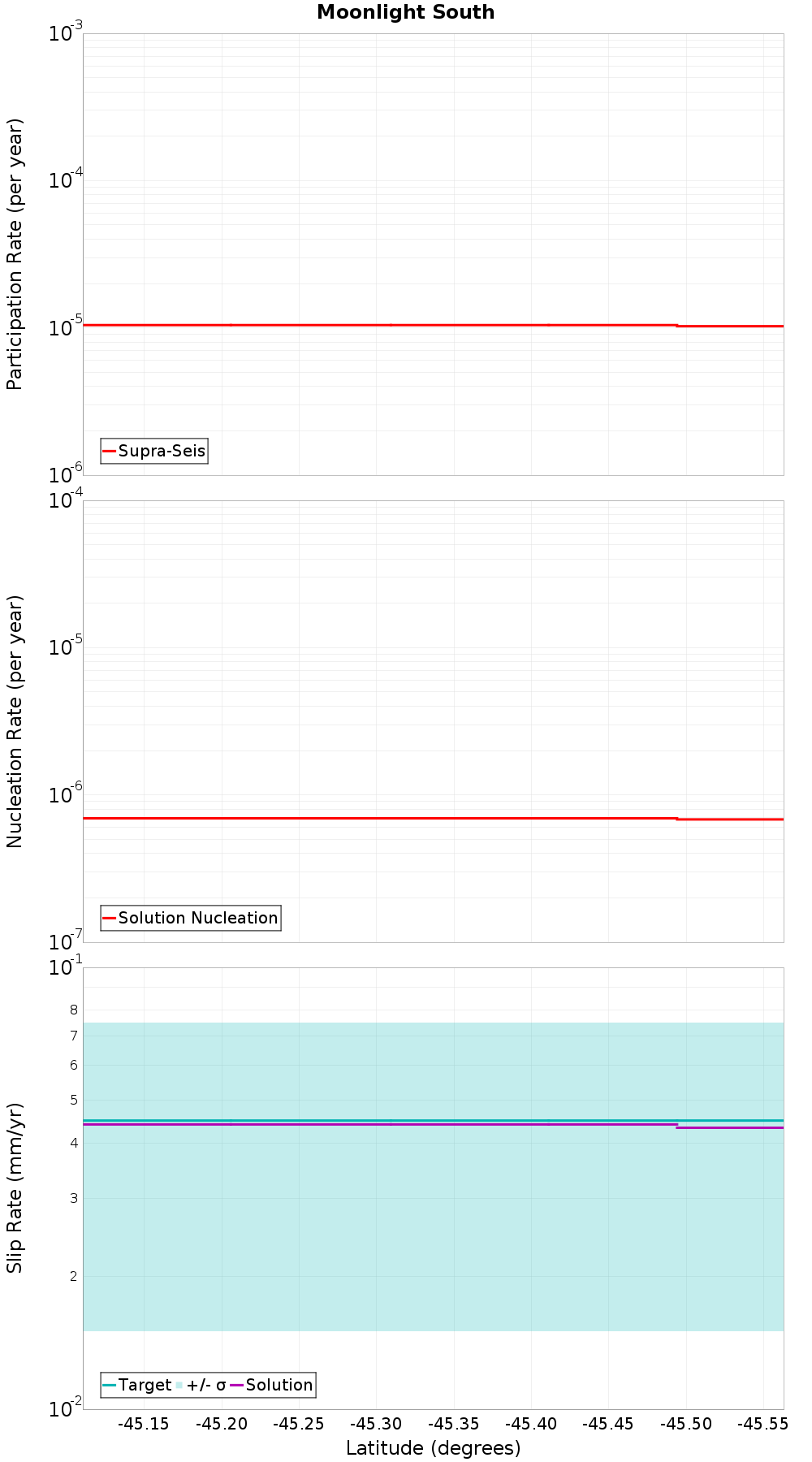

Along-Strike Values

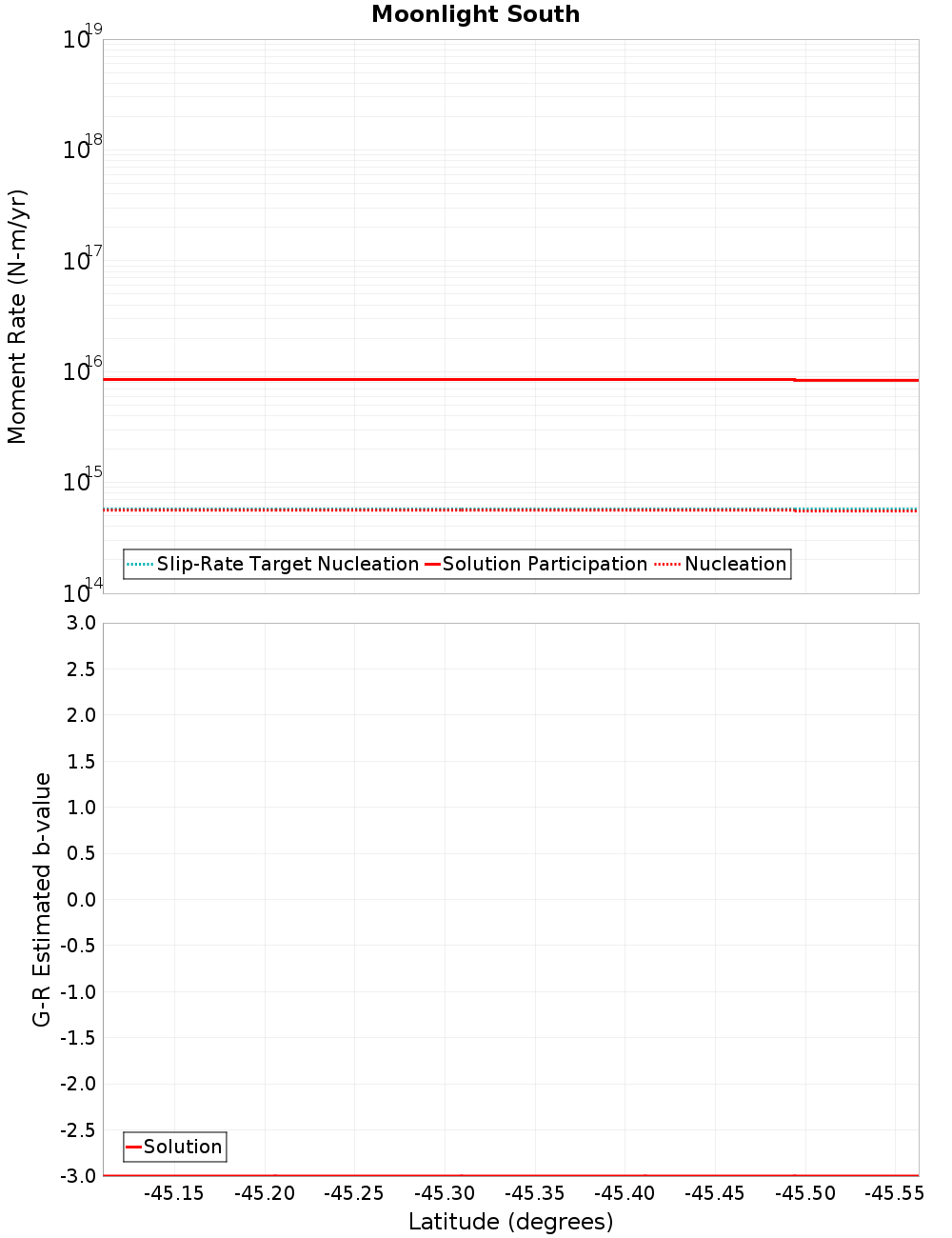

Moment-Rates and b-Values

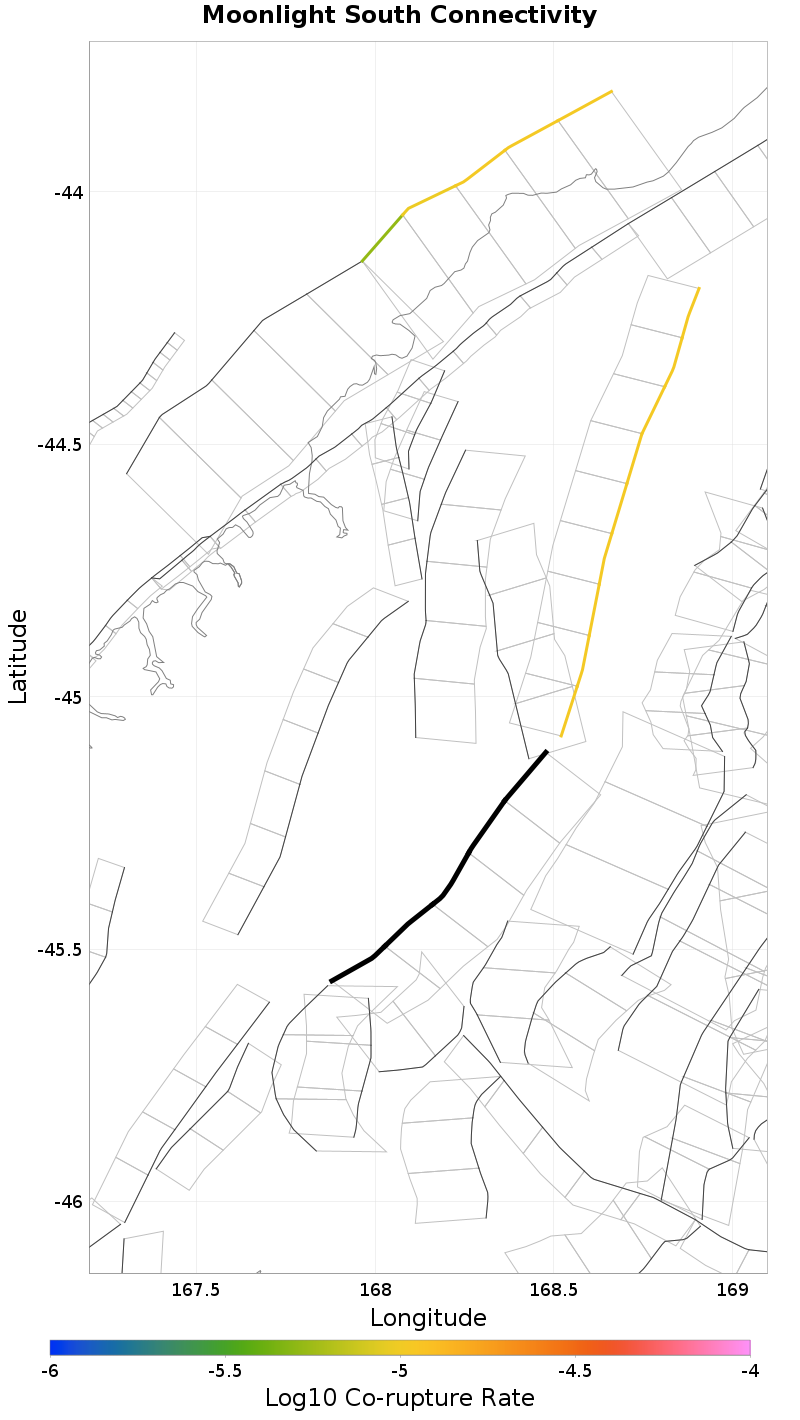

Connectivity

Nearby Sections

Fault Section
Mossburn, 0.24 km away
McKerchar, 0.53 km away
Nevis, 0.61 km away
Tin Hut, 0.88 km away
West Wakatipu, 1.86 km away
Moonlight North, 4.72 km away
Acton, 12 km away
Hokonui, 13.42 km away
Hauroko: North, 14.39 km away
White Hill, 15.82 km away
NW Cardrona South, 17.44 km away

Mossburn, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

McKerchar, 0.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Nevis, 0.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tin Hut, 0.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

West Wakatipu, 1.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Moonlight North, 4.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	true
Directly Connected?	true
Co-rupture Count	28
Co-rupture Rate	1.0435498E-5

Acton, 12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hokonui, 13.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hauroko: North, 14.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Hill, 15.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

NW Cardrona South, 17.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
