Ohariu South 2 Details

PropertyValue
Rupture Count1,945
Ruptures Above Sect Min Mag1,940
Ruptures w/ Nonzero Rates12
Magnitude Range[6.35, 8.16]
Length Range[7, 536] km
Total Rate4.8185705E-4 /yr
Multi-Fault Rate4.8185705E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults78

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

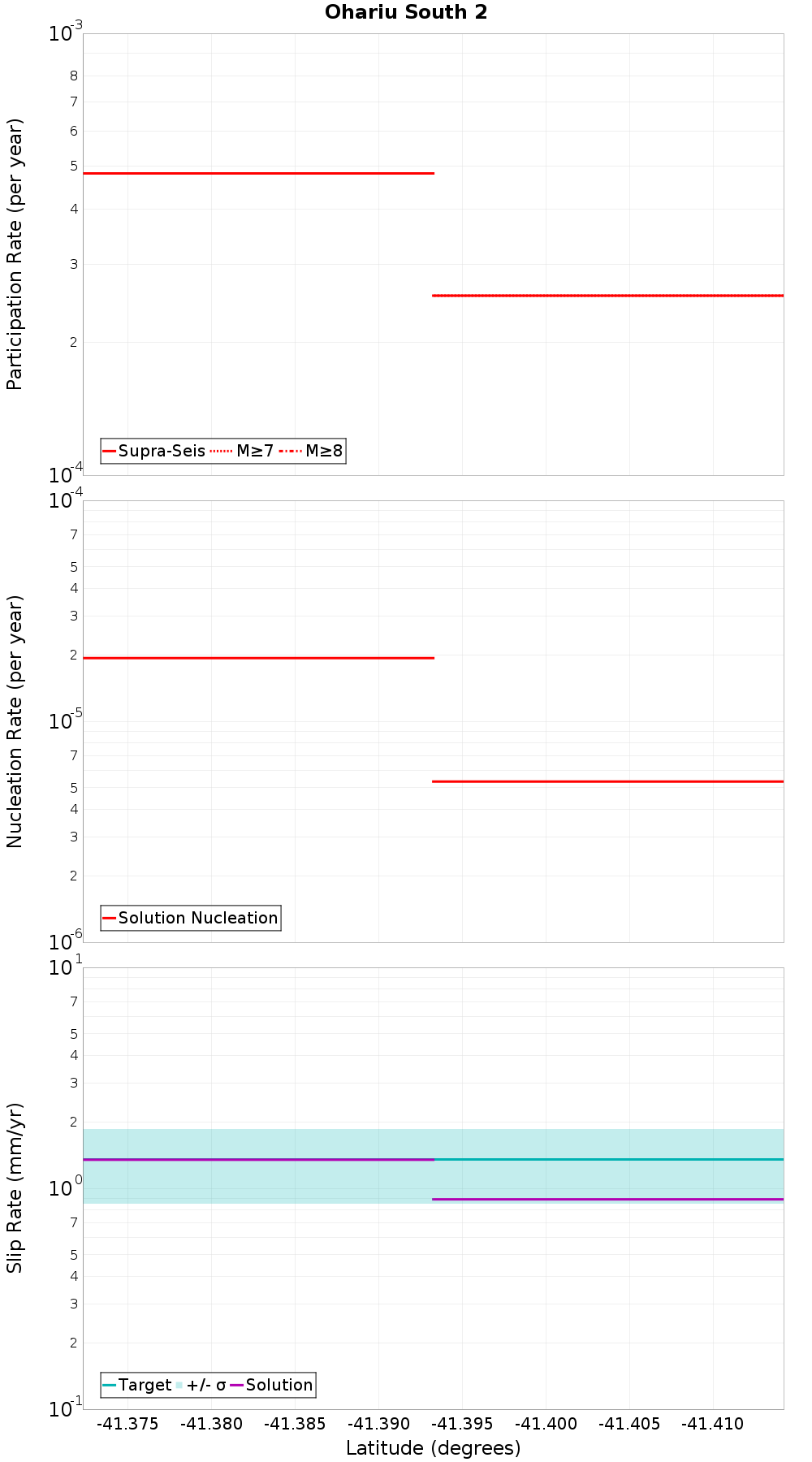

Along-Strike Values

(top)

Along-strike plot

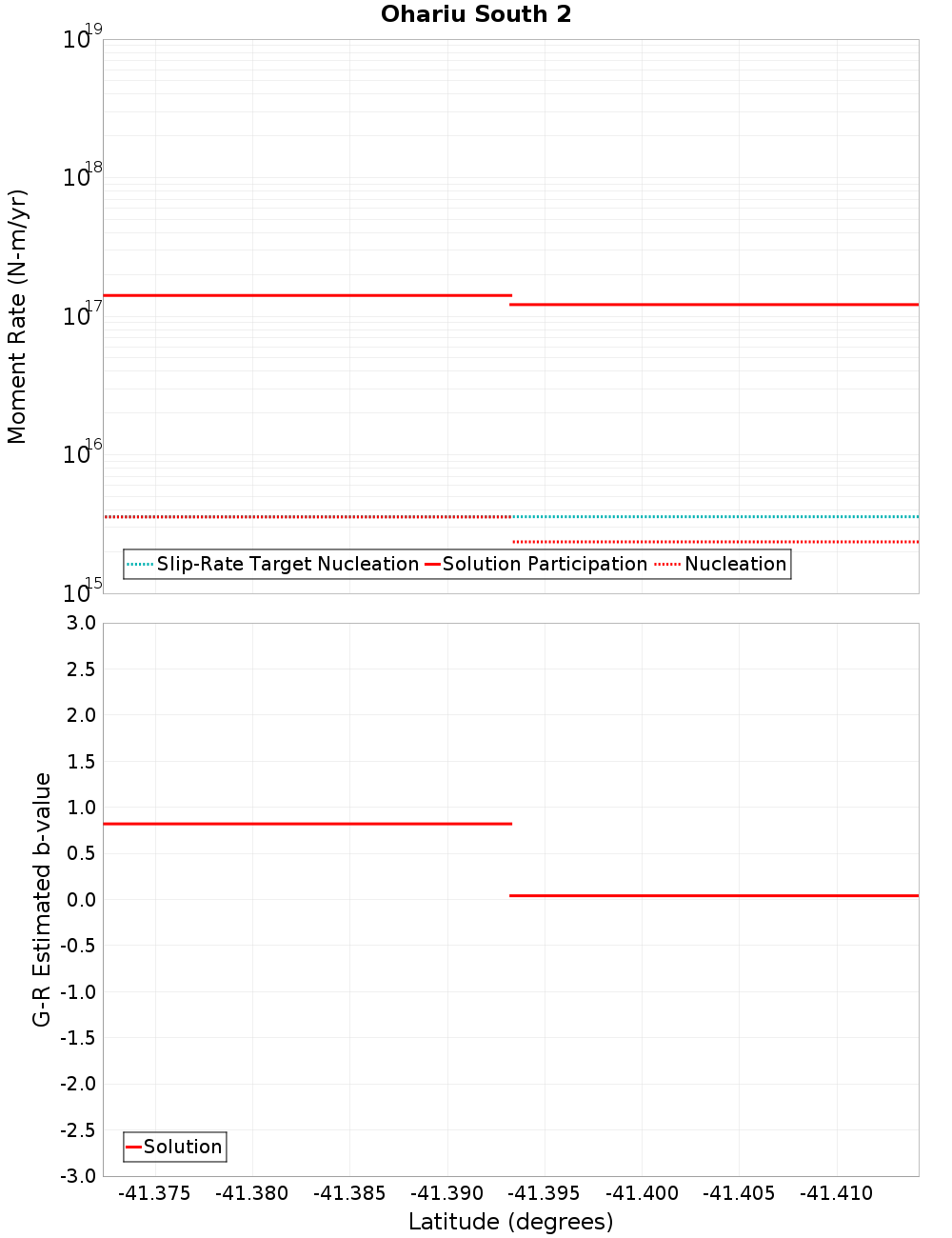

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohariu South 1, 0 km awayPukerua - Shepherds Gully: 2, 10.73 km away
Ohariu, 0 km awayWairau 2, 12.02 km away
Shepherds Gully - Mana, 3.16 km awayAotea - Evans Bay, 12.23 km away
Wellington Hutt Valley: 2, 3.71 km awayCloudy 3, 12.76 km away
Wellington Hutt Valley: 1, 3.82 km awayWhitemans Valley, 16.18 km away
Pukerua - Shepherds Gully: 1, 4.05 km awayVernon 4, 16.56 km away
Wairau 3, 4.71 km awayWellington Hutt Valley: 4, 17.41 km away
Wellington Hutt Valley: 3, 6.81 km awayPukerua - Shepherds Gully: 3, 17.6 km away
Okupe 1, 8.92 km awayWairarapa: Needles, 19.14 km away

Ohariu South 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate0.0

Ohariu, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count1,413
Co-rupture Rate9.859345E-5

Shepherds Gully - Mana, 3.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count923
Co-rupture Rate4.4731688E-4

Wellington Hutt Valley: 1, 3.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 1, 4.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?true
Co-rupture Count412
Co-rupture Rate2.2704348E-4

Wairau 3, 4.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 3, 6.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count547
Co-rupture Rate2.4278462E-4

Okupe 1, 8.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate6.1033606E-5

Pukerua - Shepherds Gully: 2, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count427
Co-rupture Rate1.6600986E-4

Wairau 2, 12.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 3, 12.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whitemans Valley, 16.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 4, 16.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 4, 17.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count171
Co-rupture Rate1.4047898E-4

Pukerua - Shepherds Gully: 3, 17.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?true
Directly Connected?false
Co-rupture Count419
Co-rupture Rate1.6196747E-4

Wairarapa: Needles, 19.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNjIuMG81cmFq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
